Description

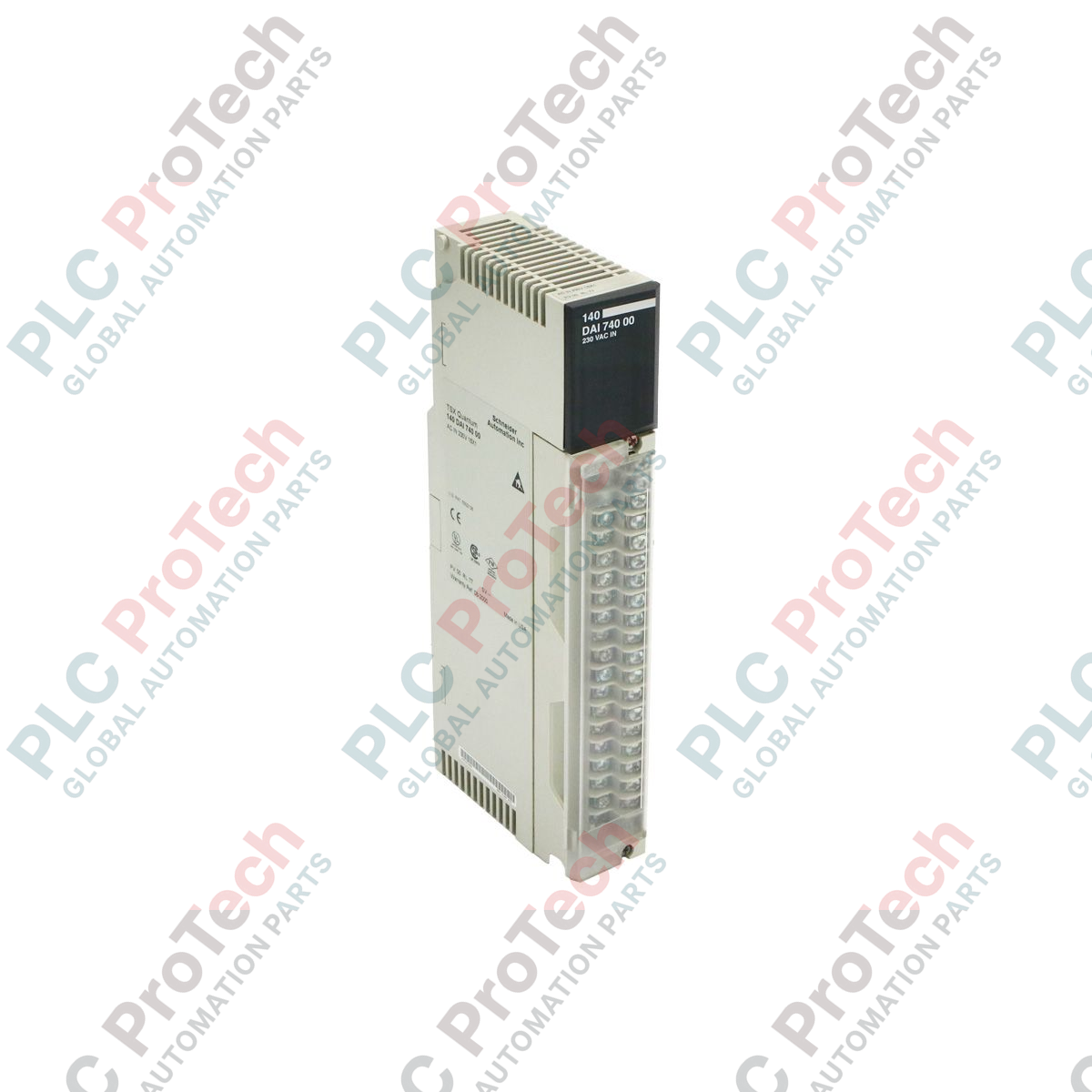

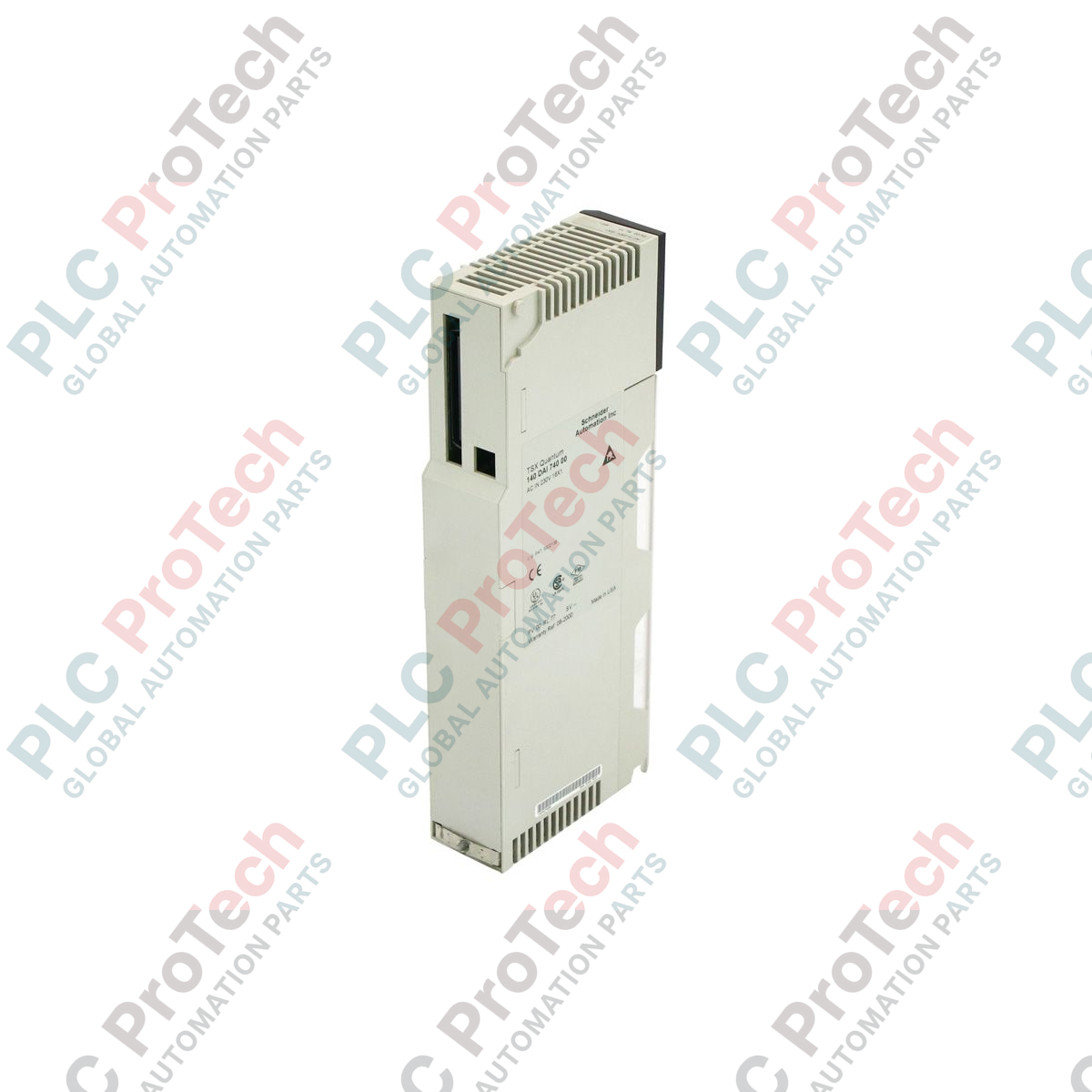

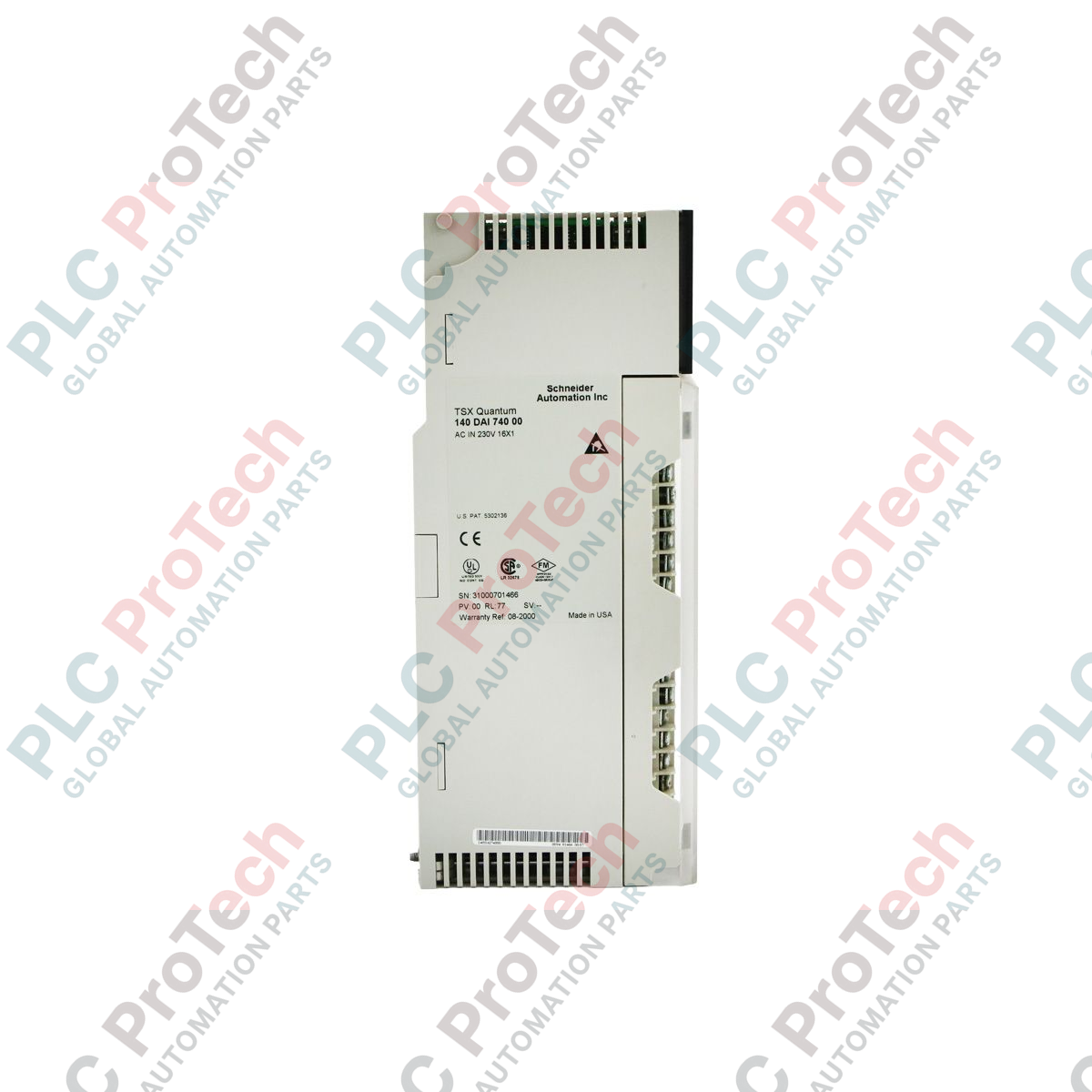

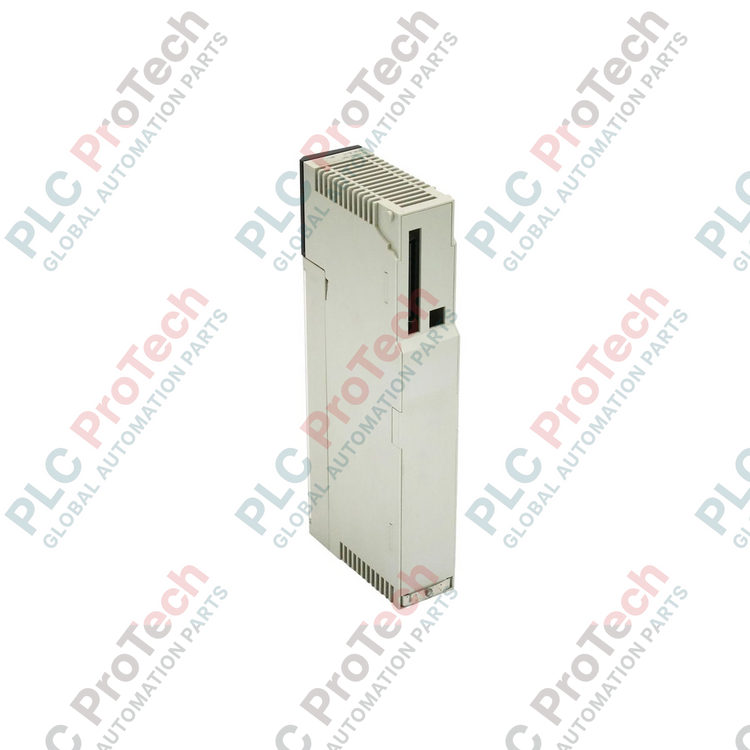

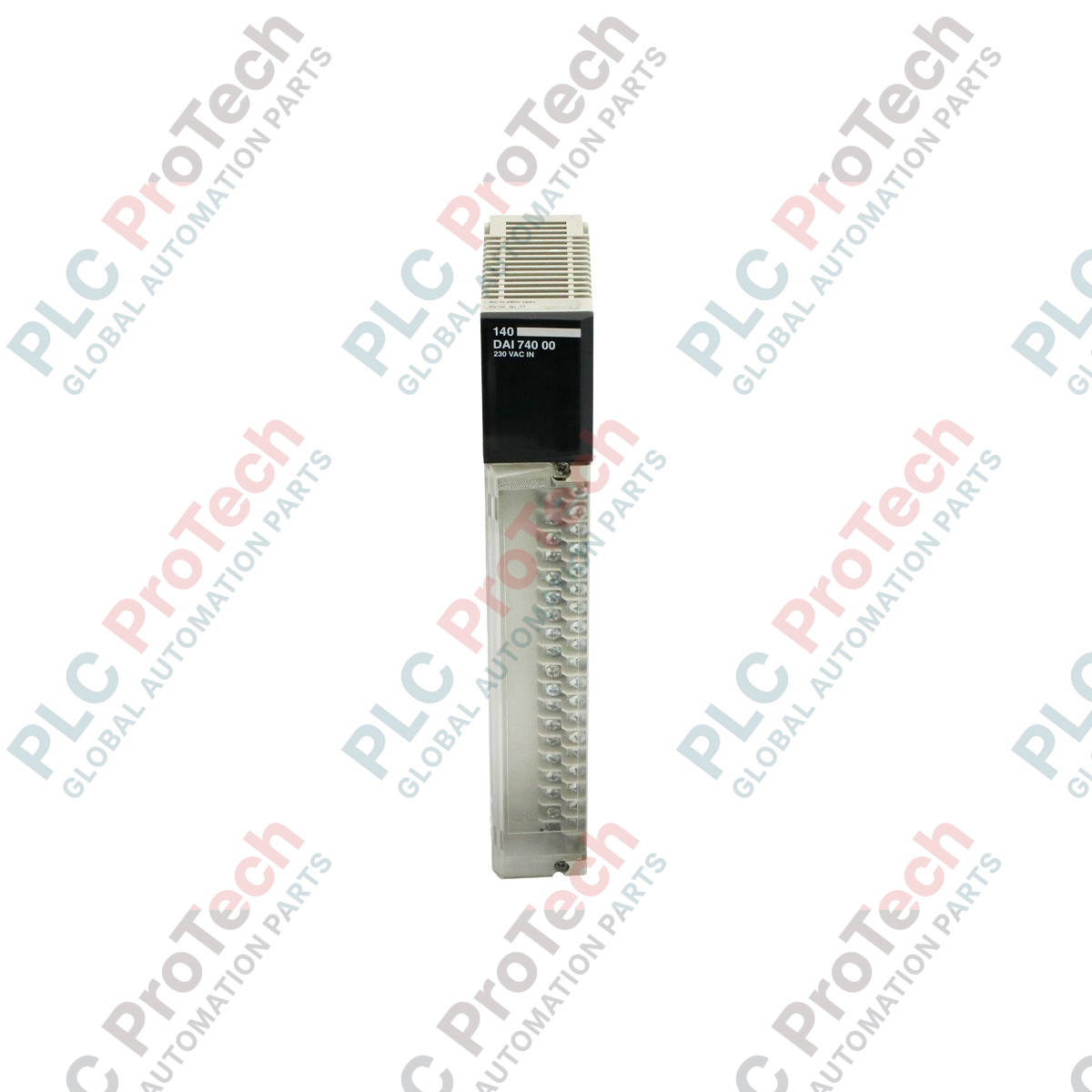

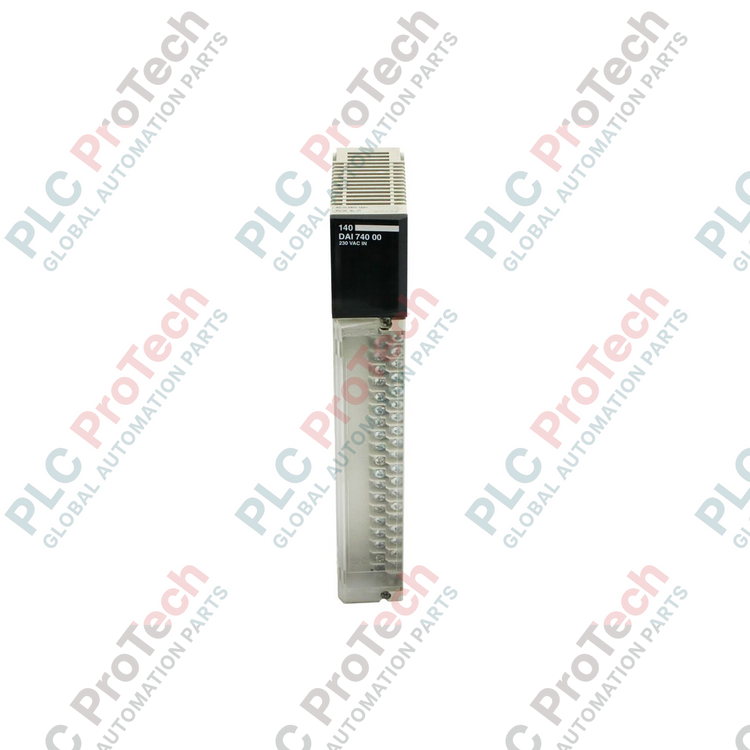

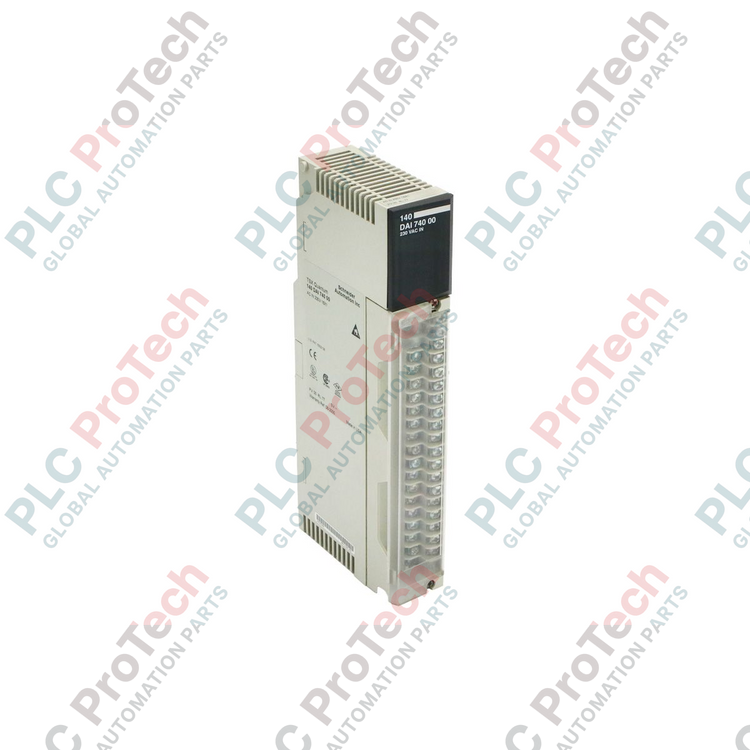

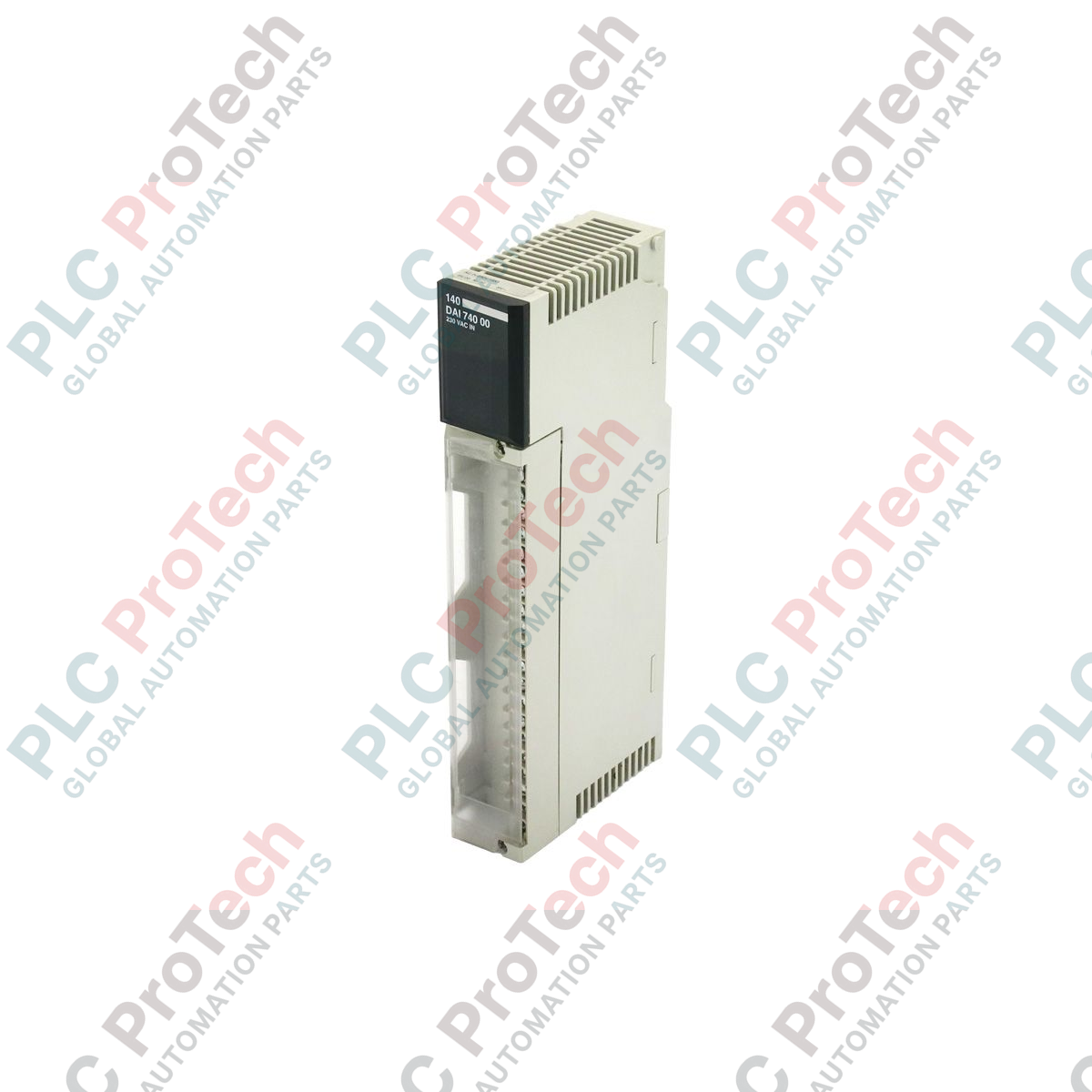

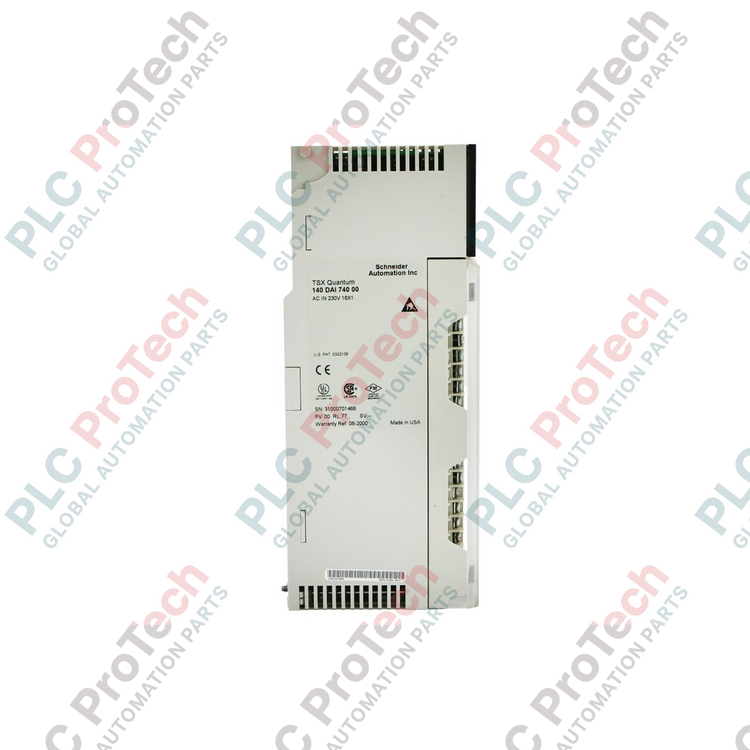

The 140DAI74000 is a 16-channel discrete input module engineered for the Modicon Quantum automation platform. Operating at a nominal voltage of 230 V AC, this module provides the interfacing capacity necessary to register high-voltage digital signals from field devices such as pushbuttons, limit switches, and electrical interlocks. It captures alternating current states and processes them into a single 1 input word format for execution within the main processor rack.

Integrated into the system architecture via Unity Pro, Concept, or ProWORX 32 programming frameworks, the module interfaces with the local controller backplane via standard bus routing protocol. The unit is specialized for high-power processing environments where separate tracking of independent AC input circuits is mandatory to prevent cross-talk and maintain signal safety. It handles discrete data conversion with an optimized response time profile and high electrical isolation thresholds between channels as well as across the bus lines.

Features

• Features 16 discrete input channels structured in an isolated group layout
• Operates on a wide 230 V AC input range compatible with dual network frequencies (57...63 Hz or 47...53 Hz)
• High channel-to-channel and channel-to-bus galvanic isolation rated at 1780 Vrms for 1 minute
• Equipped with front-panel local signaling LEDs including 1 green bus communication indicator, 1 red external fault warning, and 16 green individual input status lights
• Low bus current requirement of 180 mA to optimize backplane power distribution
• Standard module format fits seamlessly into any open Modicon Quantum slot position

Applications

• Main power plant control and distribution substation monitoring
• Heavy infrastructure control systems including municipal water treatment facilities
• Safety interlocking logic for high-voltage industrial machinery and switchgears
• Marine and offshore production platform auxiliary process systems
• Manufacturing lines utilizing 230 V AC field machinery sensor arrays

Technical Specifications

Installation Guidelines

• Backplane Insertion: Turn off all rack power supplies prior to positioning the input module into the target Quantum slot. Push the unit firmly until the module connector fully seats into the backplane bus interface.
• Wiring and Routing: Route all high-voltage 230 V AC external field cabling through separate wire ducts distinct from low-voltage DC signals and communication lines to mitigate cross-coupling and electromagnetic interference.
• Cooling Requirements: Verify that the enclosure layout preserves natural convection airways. Ensure the operating environment does not surpass the upper thermal barrier of 60 degC and that non-condensing moisture stays within 95% relative humidity constraints.
• System Earth Grounding: Confirm the main Modicon Quantum mounting rack features an uncompromised, low-impedance ground bonding strap connected directly to the primary structural earth terminal of the control cabinet.

Compliance and Certifications

• Marking: CE
• Standards: CSA C22.2 No 142, UL 508
• Product Certifications: FM Class 1 Division 2, CUL

FAQ

What do the distinct front-panel signaling LEDs mean during normal operation?

The top green LED remains illuminated when active bus communication is running across the backplane. The red LED illuminates if an external fault is detected. The remaining block of 16 green LEDs individually follow the on/off state transitions of the corresponding AC field input lines.

What is the maximum allowed temporary voltage spike that the inputs can withstand?

The input channels tolerate absolute maximum voltage boundaries up to 300 V for a duration of 10 seconds and 400 V for a brief single line cycle without suffering permanent component failure.

Can this unit be programmed using standard EcoStruxure Control Expert software?

Yes, since this module functions under the standard Unity Pro engine framework, it remains compatible with legacy Unity Pro applications as well as updated development suites from Schneider Electric.
