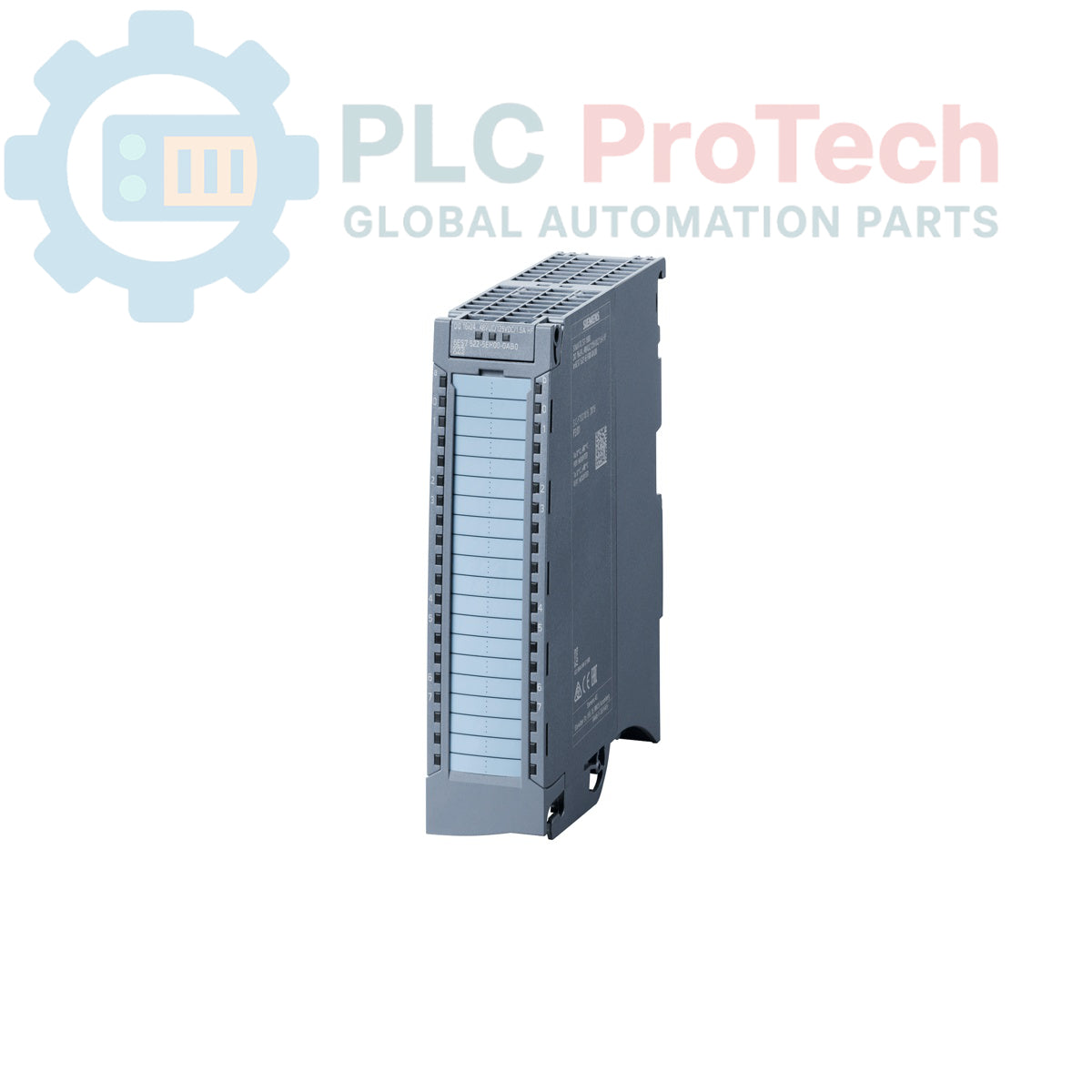

Siemens 6AG2522-5EH00-4AB0 SIPLUS S7-1500 Digital Output Module

SKU 6AG2522-5EH00-4AB0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AG2522-5EH00-4AB0
  • Origin Germany
  • Product Type: Digital Output Modules
  • Barcode: 85389091
  • Payment: T/T, Western Union
  • Weight: 0.2 kg
  • Dimensions: 3.50cm x 12.90cm x 14.70cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Digital Output Modules
Quantità
Call sales Contact

Product Description

Description

The 6AG2522-5EH00-4AB0 is a SIPLUS S7-1500 DQ 16x110VDC ST digital output module, specifically engineered for deployment in extreme industrial conditions. Based on the standard 6ES7522-5EH00-0AB0, this SIPLUS variant features a ruggedized design with conformal coating, allowing for reliable operation across an expanded temperature range from -40 degC to +70 degC (OT4) and supporting short-term temperatures up to +85 degC for 10 minutes. This module provides 16 digital output channels organized into groups of 1, each capable of handling 0.5 A. It supports substitute value output, ensuring process safety and control continuity even in harsh, high-vibration, or chemically aggressive environments.

Features

  • Extreme Environment Capability: Conformal coating for operation from -40 degC to +70 degC
  • Digital Outputs: 16 channels organized in groups of 1
  • Output Current: 0.5 A per channel
  • System Compatibility: Based on the standard 6ES7522-5EH00-0AB0 for seamless S7-1500 integration
  • Safety Features: Supports substitute value output for fault-tolerant control
  • Ruggedized: TX rail design for enhanced resistance to environmental stress

Applications

  • Harsh industrial automation environments (e.g., oil & gas, mining)
  • Infrastructure requiring extended temperature tolerance
  • Rail and transportation signaling systems
  • Outdoor or non-climate-controlled automation cabinets
  • Chemical or corrosive production areas

Technical Specifications

Feature Specification
Manufacturer Siemens
Brand Siplus S7
Subrange S7-1500
Product Type Digital output module
Digital Outputs 16
Current Rating 0.5 A per channel
Operating Temperature -40 degC to +70 degC
Dimensions 3.50 cm x 12.90 cm x 14.70 cm
Weight 0.20 kg
Commodity Code 85389091
ECCN EAR99
Product Phase Active

Installation Guidelines

  • Thermal Management: While the module supports operation up to +70 degC, observe all specific derating requirements provided in the official Siemens installation manual to maintain hardware longevity.
  • Mounting: Install on standard S7-1500 mounting rails. Ensure the module is securely latched to the backplane to maintain the integrity of the environmental protection.
  • Wiring: Utilize the specified terminal wiring for the 110V DC outputs. Given the grouping of 1, ensure each channel is correctly fused according to the load requirements.
  • Conformal Coating: Do not damage the protective conformal coating during installation or wiring, as this is critical for the module's resistance to environmental factors.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the operating temperature range for the 6AG2522-5EH00-4AB0?
This module is designed for extreme environments, operating between -40 degC and +70 degC, with the ability to withstand +85 degC for up to 10 minutes.
How are the outputs organized on this module?
The module features 16 digital output channels arranged in groups of 1, with a current capacity of 0.5 A per channel.
What is the primary difference between this and the standard 6ES7522-5EH00-0AB0?
The 6AG2522-5EH00-4AB0 is the SIPLUS version, meaning it includes conformal coating and ruggedized design components for operation in extreme environmental conditions.
Does this module support substitute values?
Yes, it supports the configuration of substitute values for the digital outputs to ensure predictable system behavior during faults.
