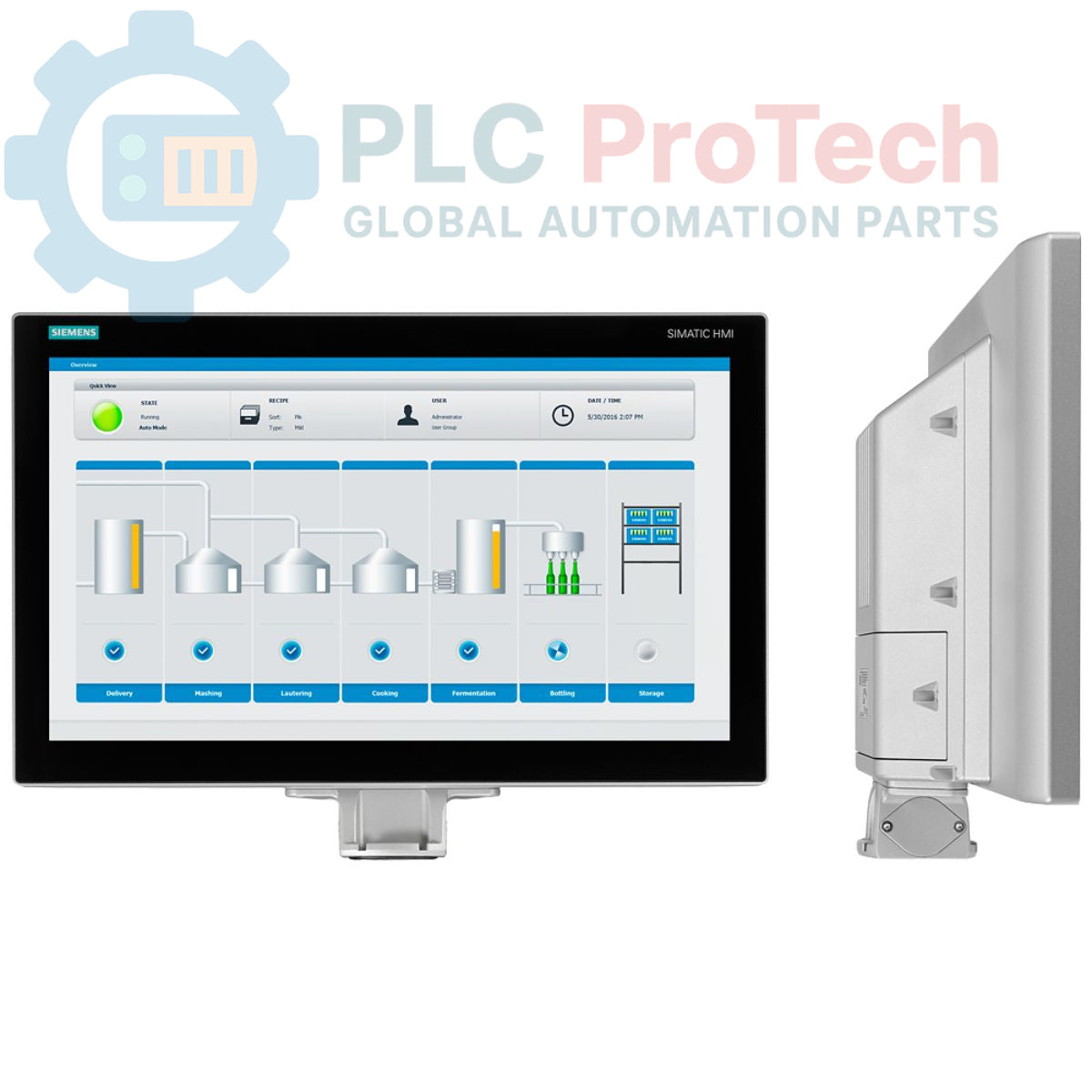

Siemens 6AV2124-0UC24-1AX0 SIMATIC HMI TP1900 Comfort Pro Touch Panel

SKU 6AV2124-0UC24-1AX0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV2124-0UC24-1AX0
  • Origin Germany
  • Product Type: Comfort Panel
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 8.6 kg
  • Dimensions: 215.90 x 50.80 x 61.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

CoMfort Panels HMI Simatic HMIs
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV2124-0UC24-1AX0 is a SIMATIC HMI TP1900 Comfort Pro stand-alone Comfort Panel designed for touch operation. It features an 18.5" widescreen TFT display capable of rendering 16,777,216 colors, providing clear visualization for industrial processes. This HMI is equipped with both PROFINET and MPI/PROFIBUS DP interfaces for versatile industrial communication. With 24 MB of configuration memory, it operates on WEC 2013 and is configurable from WinCC Comfort V14 SP1 with HSP.

Features

  • Touch operation HMI
  • 18.5" widescreen TFT display
  • 16,777,216 display colors
  • Integrated PROFINET interface
  • Integrated MPI/PROFIBUS DP interface
  • 24 MB configuration memory
  • WEC 2013 operating system
  • Configurable with WinCC Comfort V14 SP1 with HSP

Applications

The Siemens 6AV2124-0UC24-1AX0 Comfort Panel is suitable for a wide range of industrial automation applications requiring robust human-machine interface capabilities. Typical uses include process visualization, operator control, data monitoring, and alarm management in manufacturing, process control, and infrastructure systems.

Technical Specifications

Brand Siemens
Manufacturer Siemens
Range SIMATIC HMI
Product Type Comfort Panel
Supply Voltage 24V DC
PLM Product Phase Phase-Out
Screen Diagonal 18.5" inch
Display Type TFT
Display Resolution 1366 x 768 pixels
Color Display Yes
Display Colors 16,777,216
Configuration Memory 24 MB
Supported Protocols PROFINET, PROFIBUS
Package Dimensions (Calculated) 215.90 x 50.80 x 61.00 cm
Shipping Weight 8.60 kg
Commodity Code 85371091
Export Control Regulations (ECCN) 5A992

Installation Guidelines

  1. De-energize System: Ensure all power to the installation area and associated equipment is disconnected and locked out before commencing installation.
  2. Mounting: Position the Comfort Panel securely using its stand or appropriate mounting hardware in a location that allows for optimal viewing and touch interaction, free from excessive vibration or heat.
  3. Power Connection: Connect the 24V DC supply voltage to the designated power terminals, observing correct polarity. Ensure the power source is stable and within specified voltage tolerances.
  4. Communication Wiring: Connect PROFINET and MPI/PROFIBUS DP cables to their respective interfaces. Use appropriate shielded cables and ensure proper grounding for industrial communication stability and noise immunity.
  5. Grounding: Establish a reliable protective earth (PE) connection for the HMI panel to ensure electrical safety and minimize electromagnetic interference (EMI).
  6. Configuration: Once powered, configure the HMI using WinCC Comfort V14 SP1 with HSP, uploading the project to define screens, tags, and communication settings.
  7. Environmental Considerations: Ensure the operating environment meets the panel's specified temperature, humidity, and ingress protection ratings to maintain long-term reliability.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the display size and type of the 6AV2124-0UC24-1AX0?
The HMI features an 18.5-inch widescreen TFT display with touch operation.
What communication interfaces does this Comfort Panel support?
It supports PROFINET and MPI/PROFIBUS DP for industrial communication.
What is the required supply voltage for the Siemens 6AV2124-0UC24-1AX0?
The panel requires a 24V DC supply voltage.
Which software is used to configure the HMI?
The HMI is configurable from WinCC Comfort V14 SP1 with HSP.
What is the product's current lifecycle status?
The Siemens 6AV2124-0UC24-1AX0 is currently in a Phase-Out product lifecycle stage.
