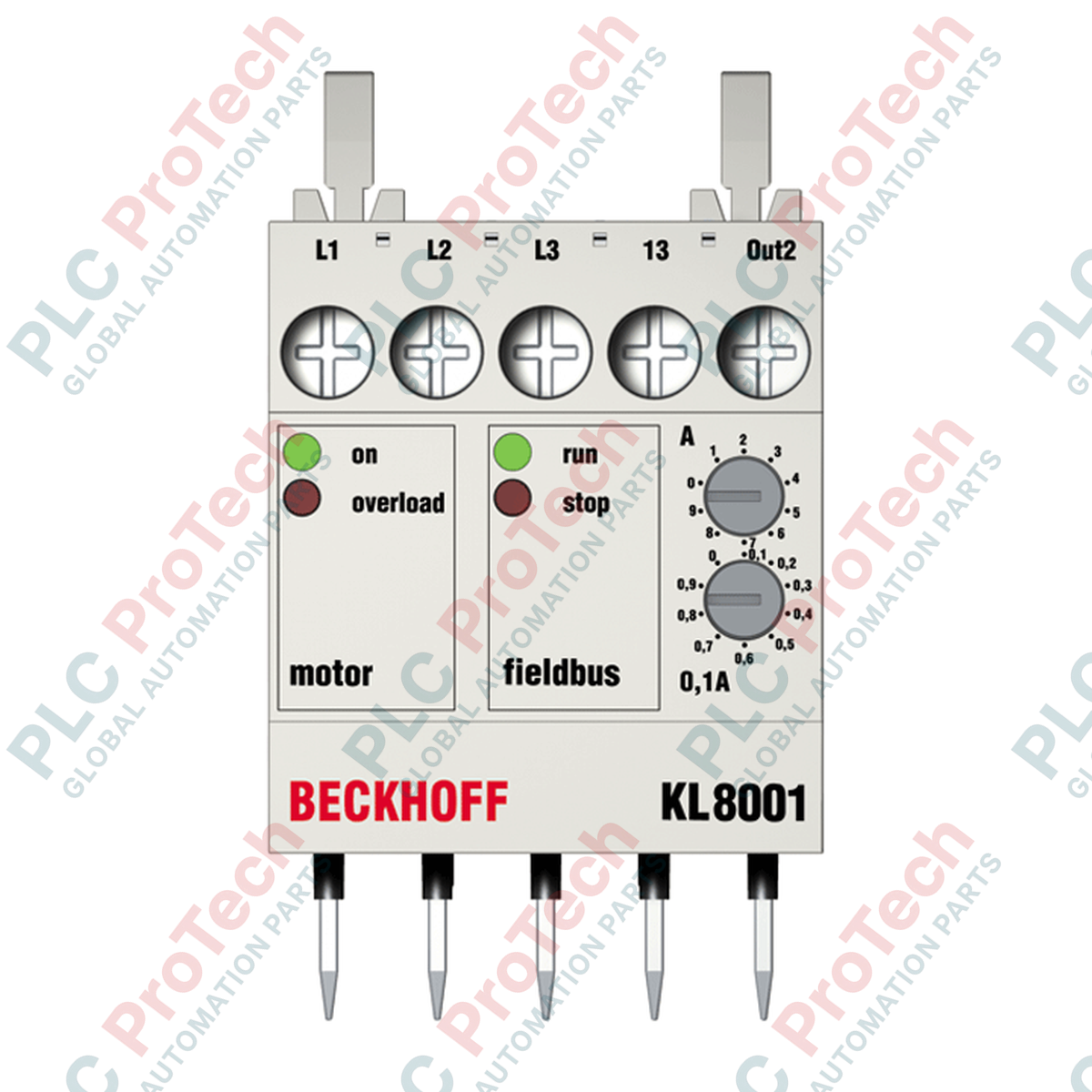

Integrating electronic motor protection directly into the modular I/O system, the BECKHOFF KL8001 operates as an intelligent power terminal interface designed specifically for Siemens Sirius 3R contactors (switch size S00, Type 3RT 10 1). This integration allows direct connection and control of up to ten power terminals (at a typical current consumption of 140 mA per contactor) while transmitting comprehensive diagnostics back to the K-bus.
The module facilitates precise measurement of critical electrical parameters including operational current, voltage, and power. It features adjustable nominal current settings ranging from 0.9 A to 9.9 A and selectable tripping classes (5, 10, 15, 20, 25, 30) to protect machinery against overload conditions. Connection to the primary fieldbus system is completed through the KL9060 adapter terminal, ensuring seamless integration into PLC control architectures.
| Manufacturer | BECKHOFF |
| Part Number/Model | KL8001 |
| Series | Bus Terminal System (K-bus) |
| Supported Contactor | Siemens Sirius 3R (Size S00, Type 3RT 10 1) |
| Max. Number of Power Terminals | Up to 10 (at typ. 140 mA per contactor) |
| Nominal Current Setting Range | 0.9 to 9.9 A |
| Tripping Classes | Class 5, 10, 15, 20, 25, 30 |
| Measured Values | Current, Voltage, Power |
| Measuring Error | 0.1 A AC |
| Measuring Voltage | 500 V AC |
| Current Load (Fuse) | Max. 25 A |
| Short-Circuit Proof | Up to 5 kA |
| Internal Resistance | < 1 mOhm |
| K-Bus Connection Type | 2 x flat plug socket, 10-pin |
| K-Bus Current Consumption | Typ. 150 mA |
| Power Contacts Current Consumption | Typ. 7 mA + load |
| Power Contacts Voltage | 24 V DC (-15% / +20%), max. 1.4 A (short-circuit proof) |
| Electrical Isolation | 500 V (24 V DC / K-bus), 2500 V (mains supply / K-bus) |
| Process Image Bit Width | Input/Output: 64 bits (8-bit control/status, 32-bit data) |
| Required Adapter Terminal | KL9060 |
| Short-Circuit Behavior | Conforms to EN 60947-4-1 (assignment type 2) / VDE 102 |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Relative Humidity | 95 %, non-condensing |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity/Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating | IP20 |
| Weight | Approx. 90 g |
| Interface Type | Terminal Specification |
|---|---|
| Power Path Connection | Screw terminals up to 2 x 2.5 mm² |
| K-Bus Interface | 2 x 10-pin flat plug sockets |
| Adapter Connection | Interface for KL9060 adapter |
