Description

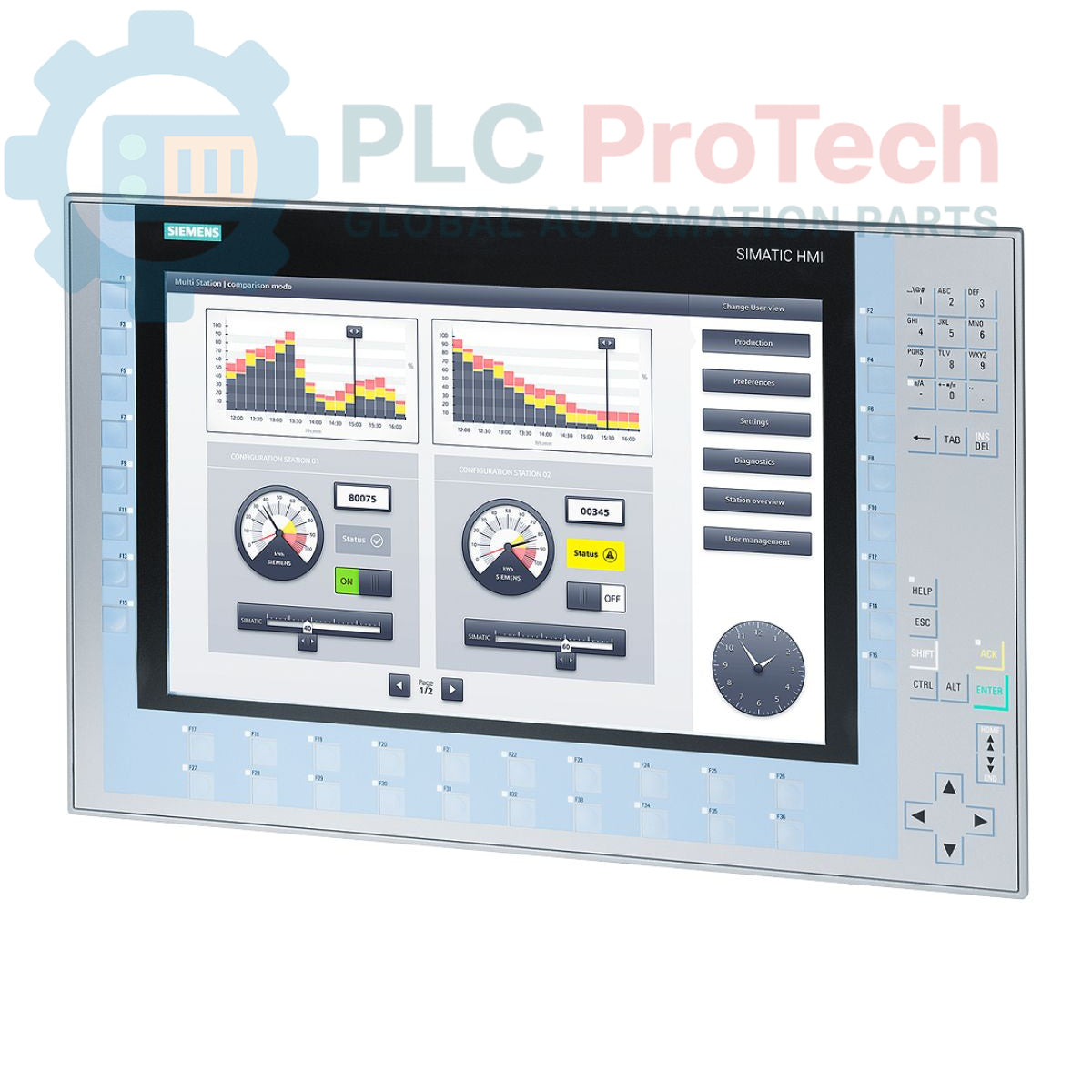

The Siemens 6AV2124-1QC02-0AX1 is a SIMATIC HMI KP1500 Comfort Panel designed for key operation in industrial automation environments. This Comfort Panel features a 15-inch widescreen TFT display capable of rendering 16 million colors, providing a clear and detailed visual interface. It integrates seamlessly into control systems via its PROFINET and MPI/PROFIBUS DP interfaces, offering robust communication capabilities. With 24 MB of configuration memory and running on WEC 2013, it is configurable using WinCC Comfort V14 SP1 with HSP.

Features

• 15-inch widescreen TFT display
• 16 million display colors
• Key operation interface
• Integrated PROFINET interface
• Integrated MPI/PROFIBUS DP interface
• 24 MB configuration memory
• Runs on WEC 2013 operating system
• Configurable with WinCC Comfort V14 SP1 with HSP

Applications

The Siemens 6AV2124-1QC02-0AX1 Comfort Panel is suitable for a wide range of industrial applications requiring local operator control and visualization. Typical deployments include:

• Machine operation and monitoring in manufacturing plants
• Process control in chemical, pharmaceutical, and food and beverage industries
• Building automation and infrastructure management
• Material handling and logistics systems
• Energy management and power distribution monitoring

Technical Specifications

Connections / Interfaces

• PROFINET Interface
• MPI/PROFIBUS DP Interface

Installation Guidelines

1. De-energize System: Before beginning installation, ensure that all power to the control system and the HMI panel's intended mounting location is completely de-energized and locked out according to standard safety procedures.
2. Mounting: Securely mount the Comfort Panel into a prepared panel cutout. Ensure proper sealing to maintain the enclosure's IP rating, if applicable. Use all designated mounting clamps or screws to prevent vibration and ensure a stable installation.
3. Power Connection: Connect the 24V DC supply voltage to the designated power terminals. Observe correct polarity to prevent damage to the unit.
4. Grounding: Establish a robust protective earth (PE) connection to the HMI chassis. Proper grounding is essential for operational safety and electromagnetic compatibility (EMC).
5. Communication Wiring: Connect PROFINET and MPI/PROFIBUS DP cables to their respective ports. Use shielded cables for communication lines and ensure shields are properly terminated at both ends to minimize interference.
6. Cable Routing: Route power and communication cables separately where possible to avoid inductive interference. Secure all cables to prevent strain and abrasion.
7. Configuration: After physical installation and power-up, configure the HMI using WinCC Comfort V14 SP1 with HSP, ensuring correct network parameters and application loading.
