Description

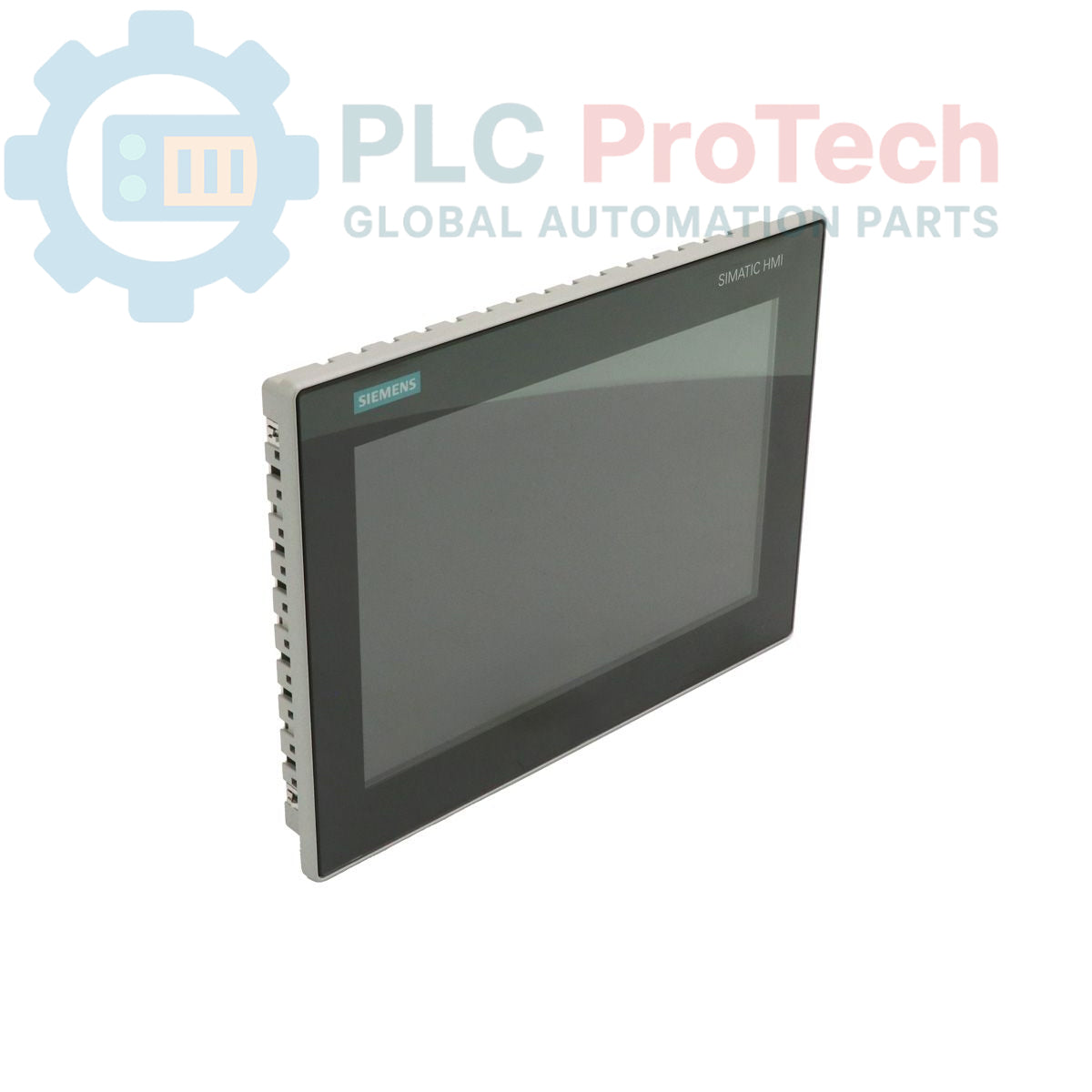

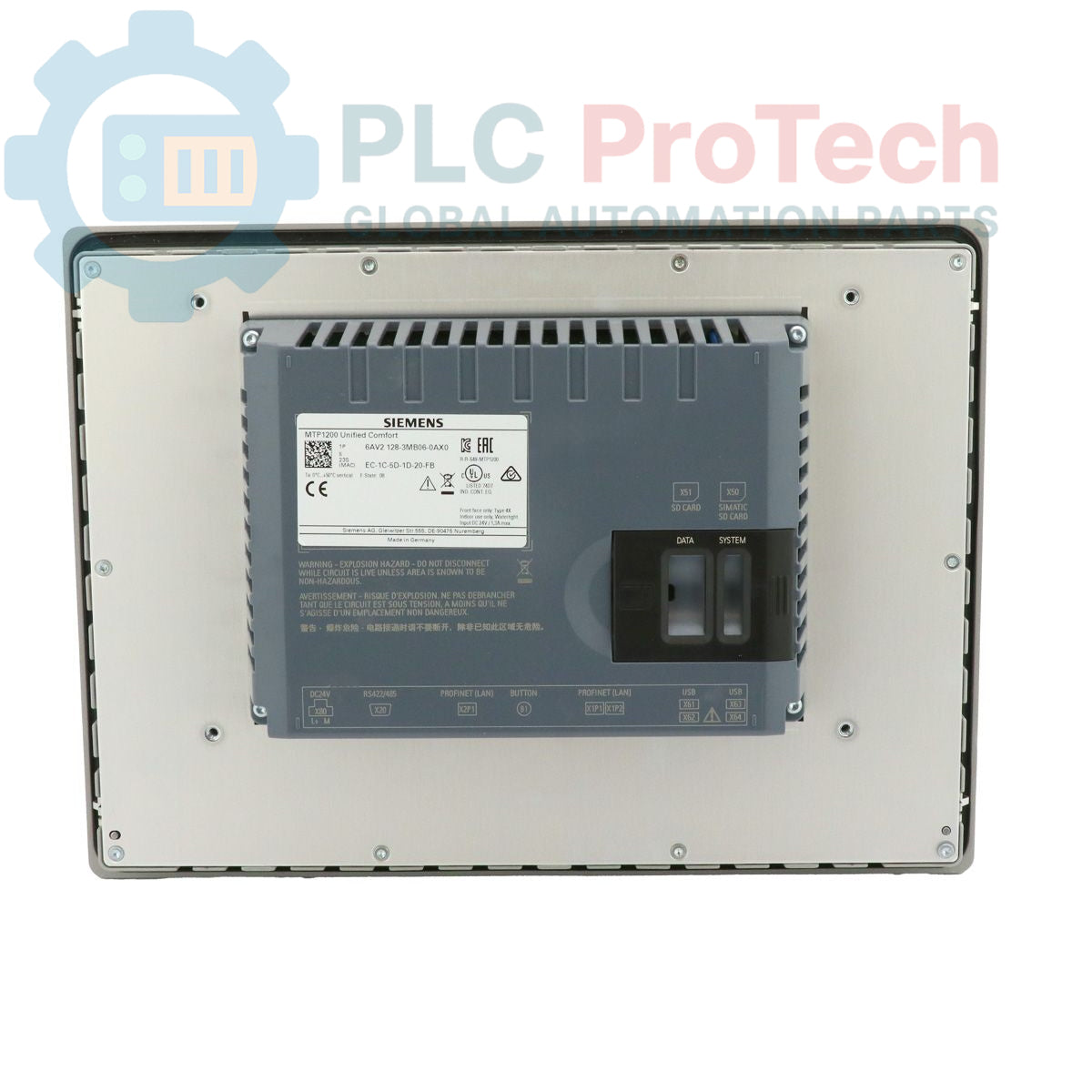

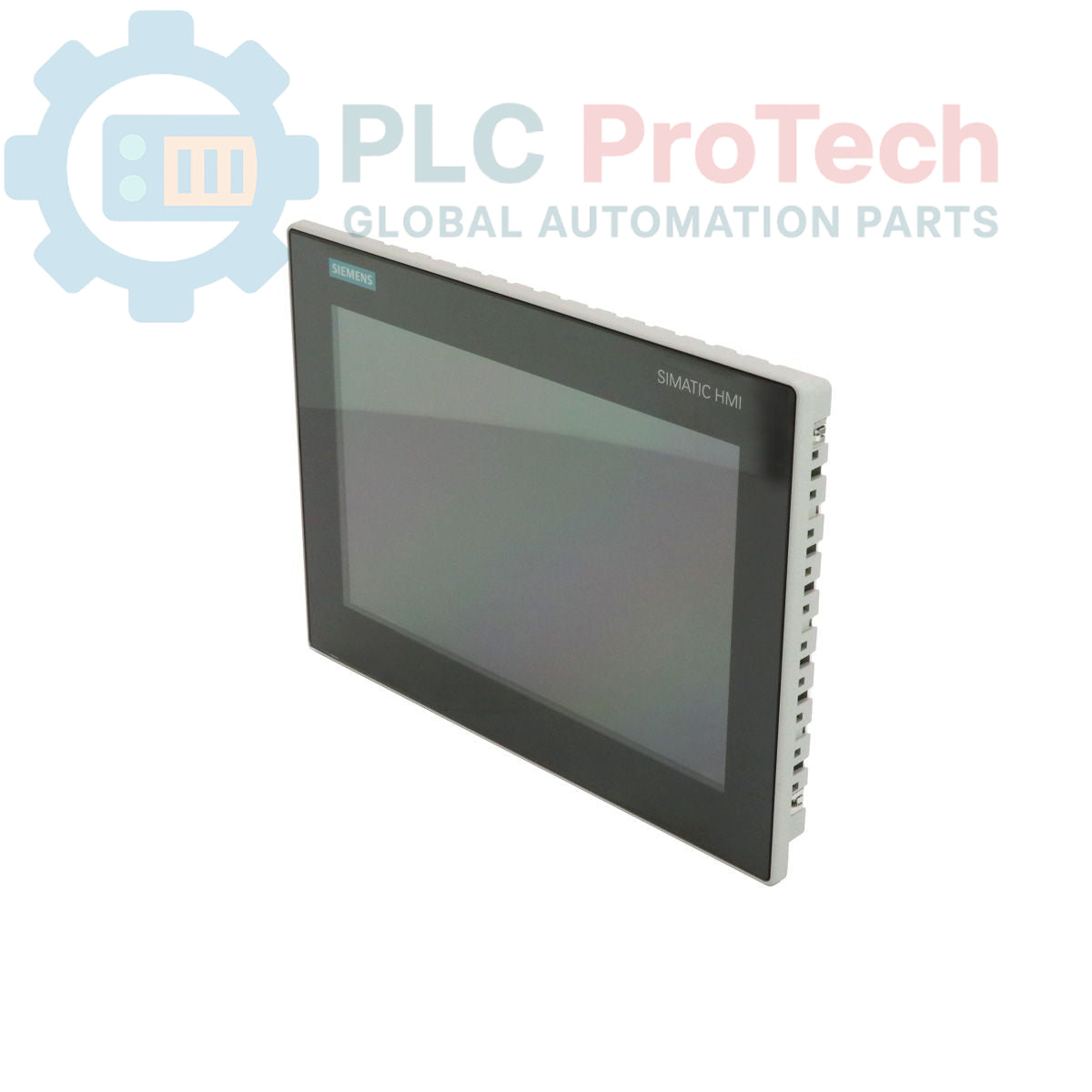

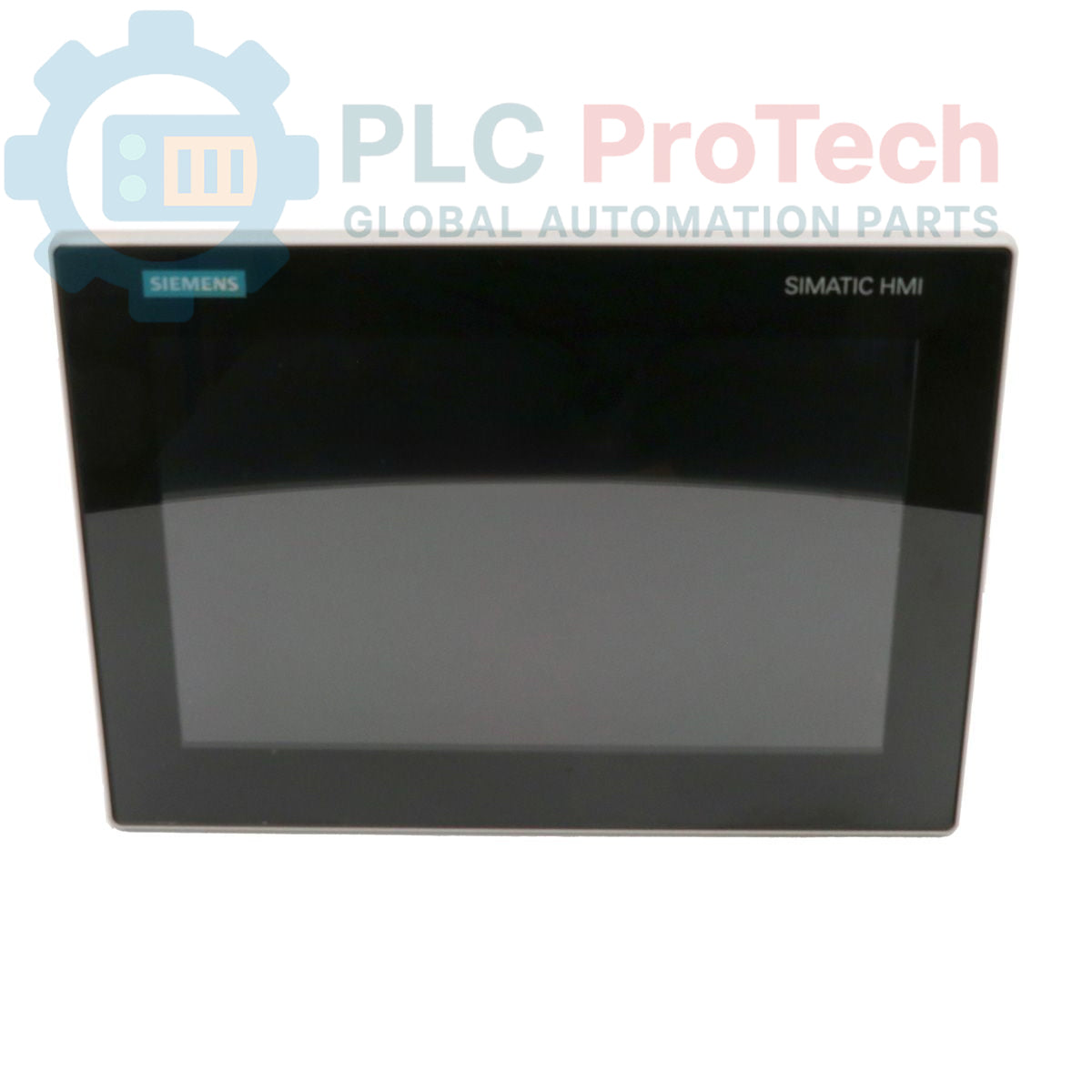

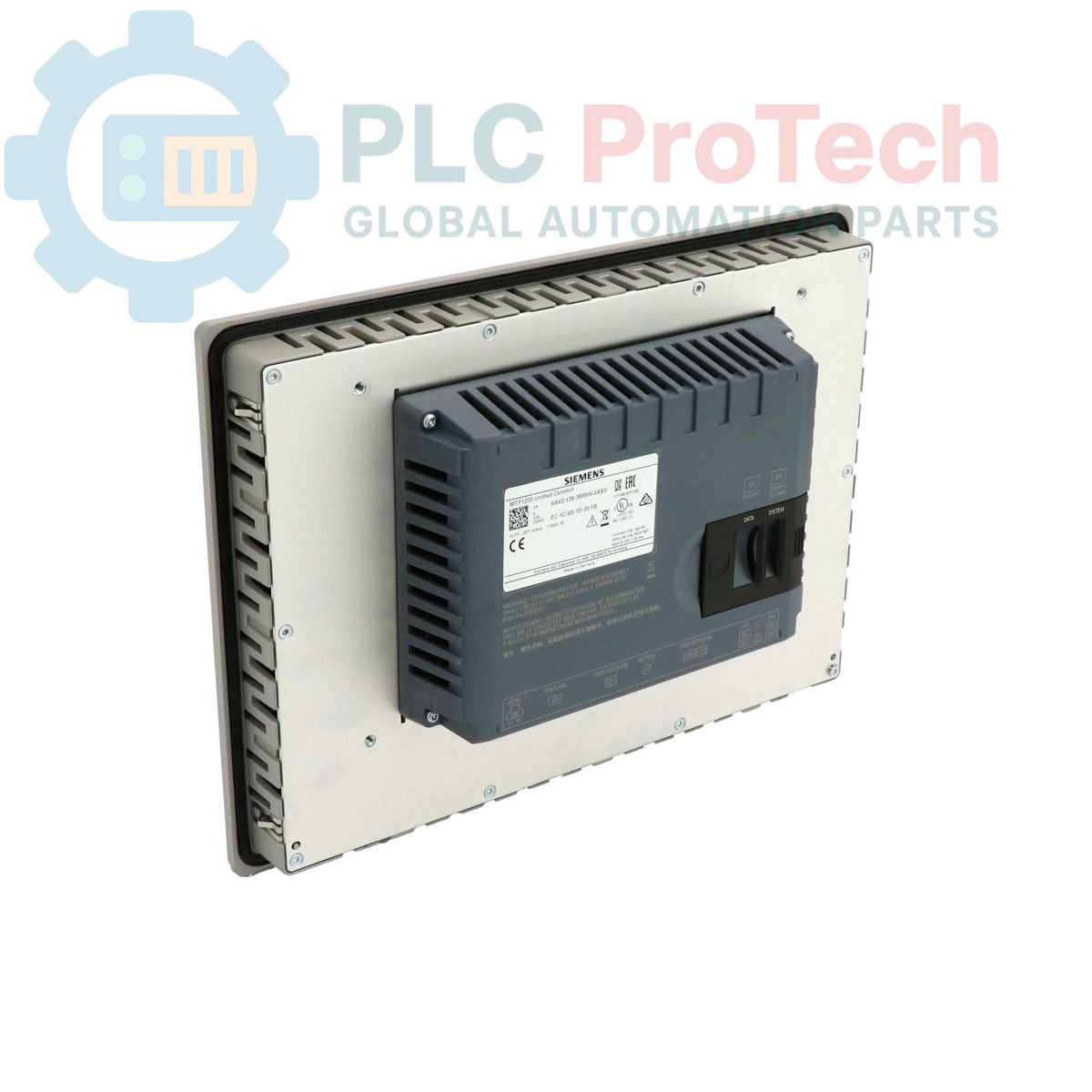

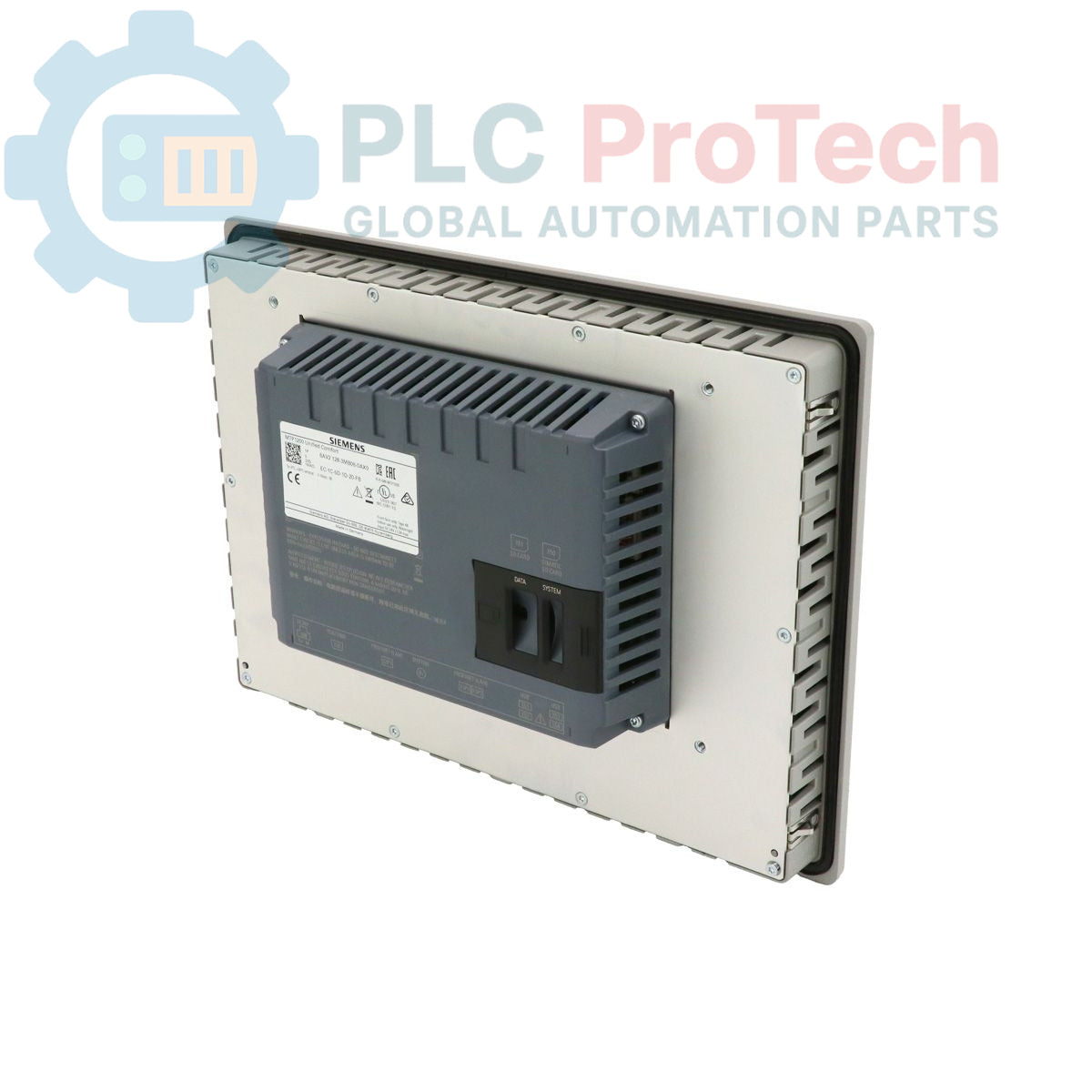

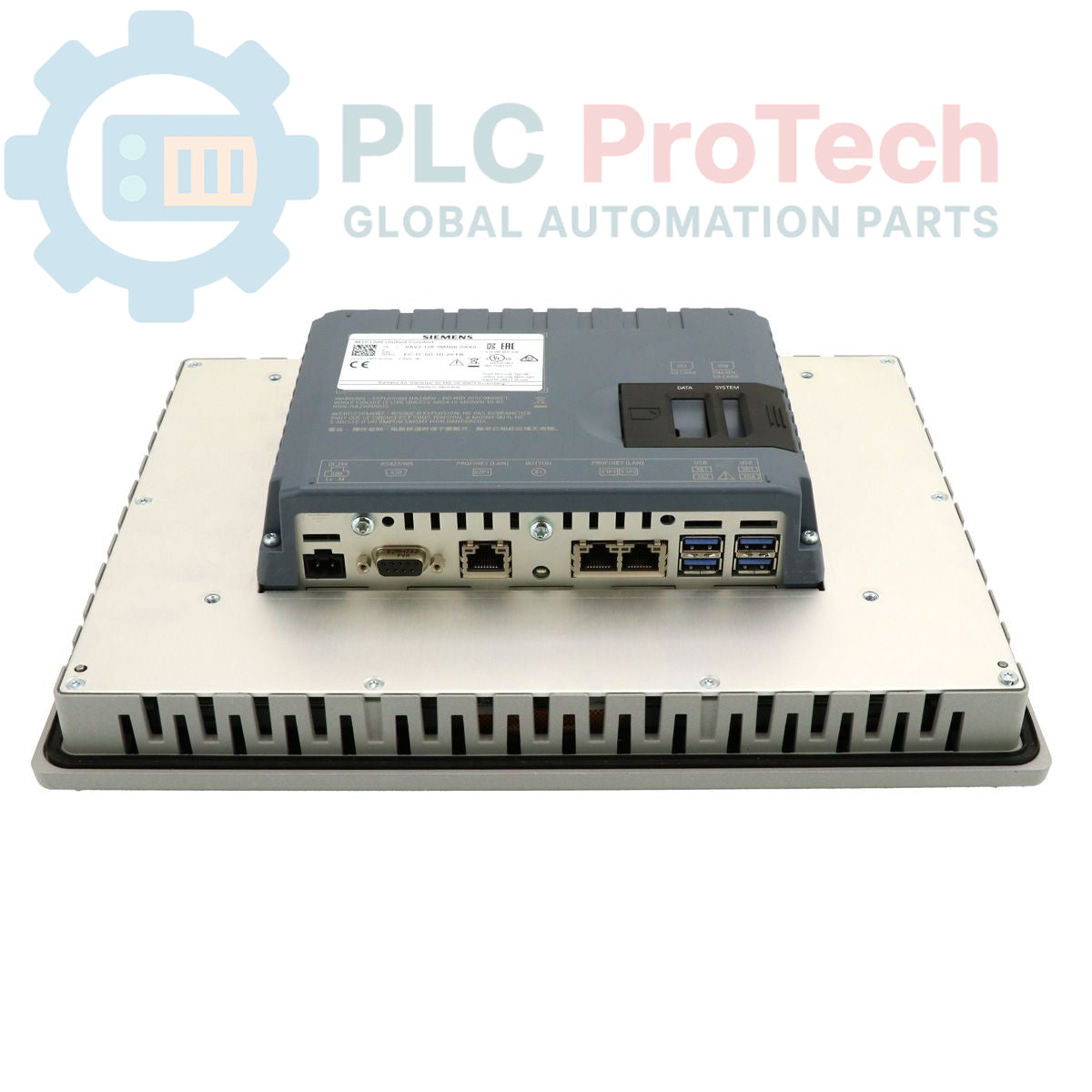

The Siemens 6AV2128-3MB06-0AX0 is a SIMATIC HMI MTP1200 Unified Comfort Panel, designed for intuitive touch operation in industrial environments. It features a 12.1" widescreen TFT display capable of rendering 16 million colors, providing clear visualization for various applications. This panel integrates a PROFINET interface for seamless communication and is configurable using WinCC Unified Comfort V16. The device also incorporates open-source software, provided free of charge, and is currently in a Phase-Out product lifecycle stage.

Features

• 12.1" Widescreen TFT Display
• 16 Million Colors Display Capability
• Intuitive Touch Operation
• Integrated PROFINET Interface
• Configurable with WinCC Unified Comfort V16
• Includes Open-Source Software

Applications

• Industrial machine control and monitoring
• Process visualization and operator interface
• Data acquisition and display in automation systems
• Human-Machine Interface for various industrial processes

Technical Specifications

Installation Guidelines

1. Safety First: Ensure all power to the control system and the panel mounting area is de-energized and locked out before beginning installation.
2. Mounting: Prepare the panel cutout according to the manufacturer's specifications. Insert the HMI panel into the cutout and secure it using the provided mounting clamps or screws.
3. Power Connection: Connect the appropriate power supply to the panel's power input terminals, observing correct polarity and voltage requirements.
4. PROFINET Connection: Connect the PROFINET cable from the network switch or PLC to the designated PROFINET port on the HMI panel. Ensure secure and proper termination.
5. Grounding: Connect the panel's protective earth (PE) terminal to the system's protective earth ground to ensure electrical safety and minimize interference.
6. Cable Management: Route all cables neatly and ensure they are secured to prevent strain or damage. Keep power and signal cables separated where possible to reduce electromagnetic interference.
7. System Configuration: After physical installation, power on the system and configure the HMI panel using WinCC Unified Comfort V16 to load the application and establish communication.
