Description

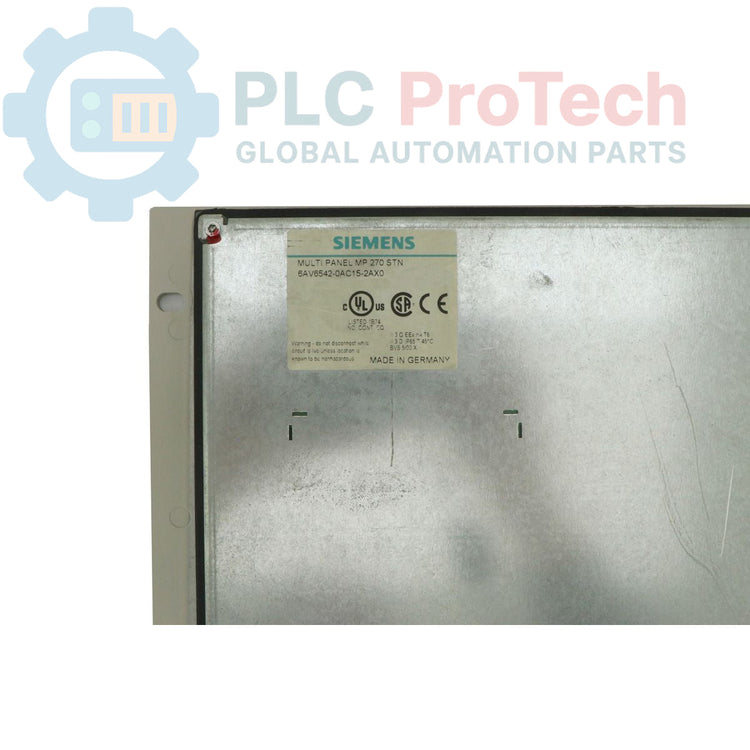

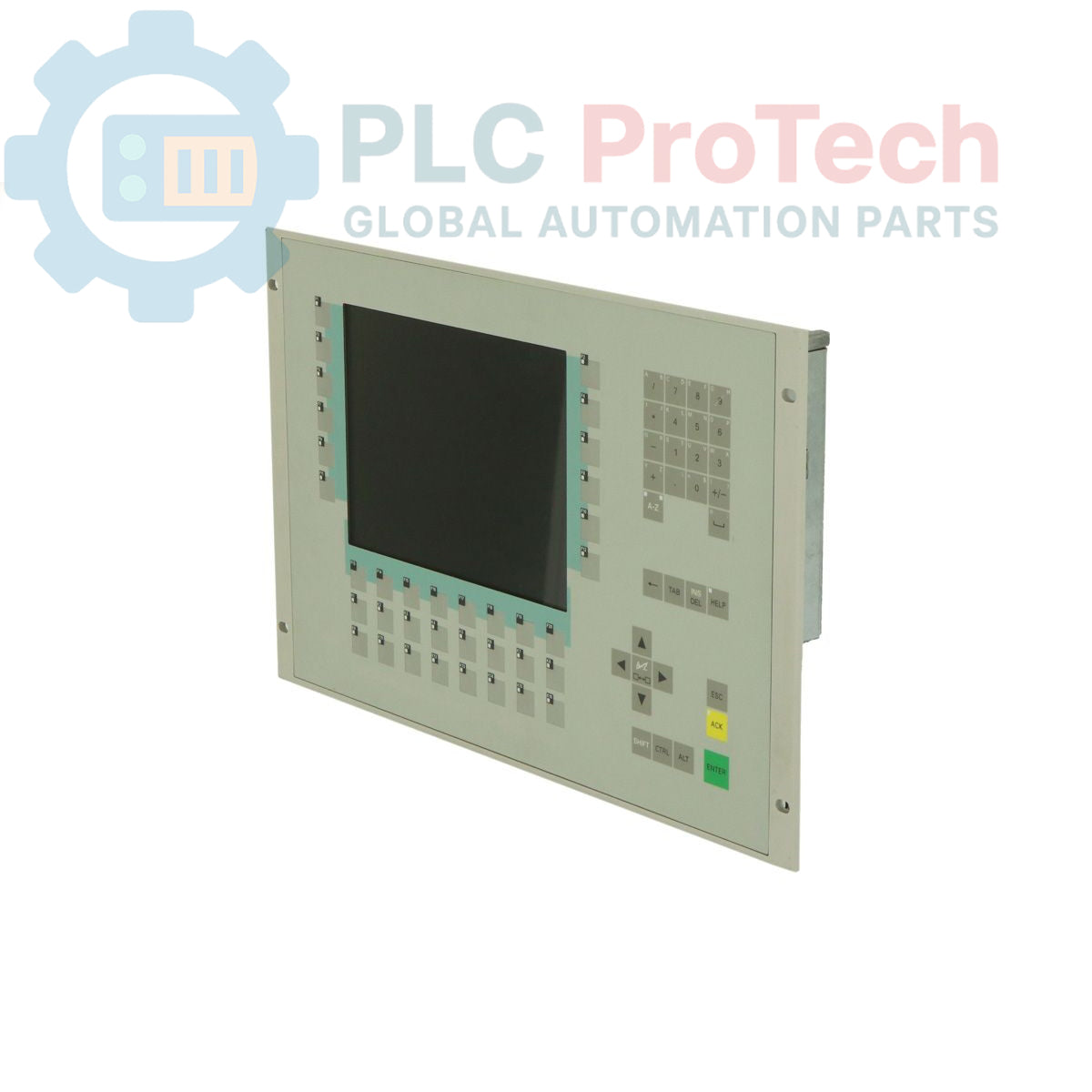

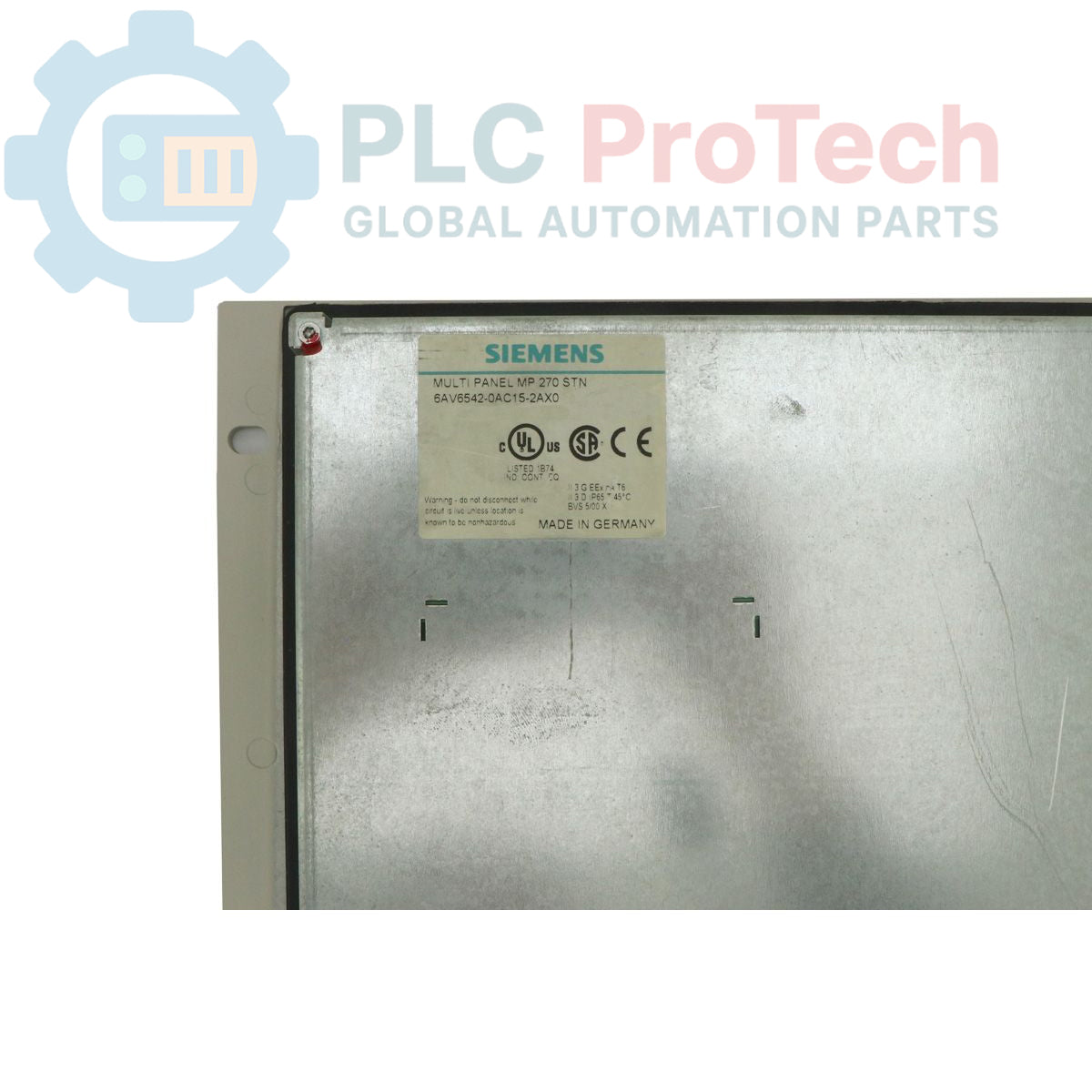

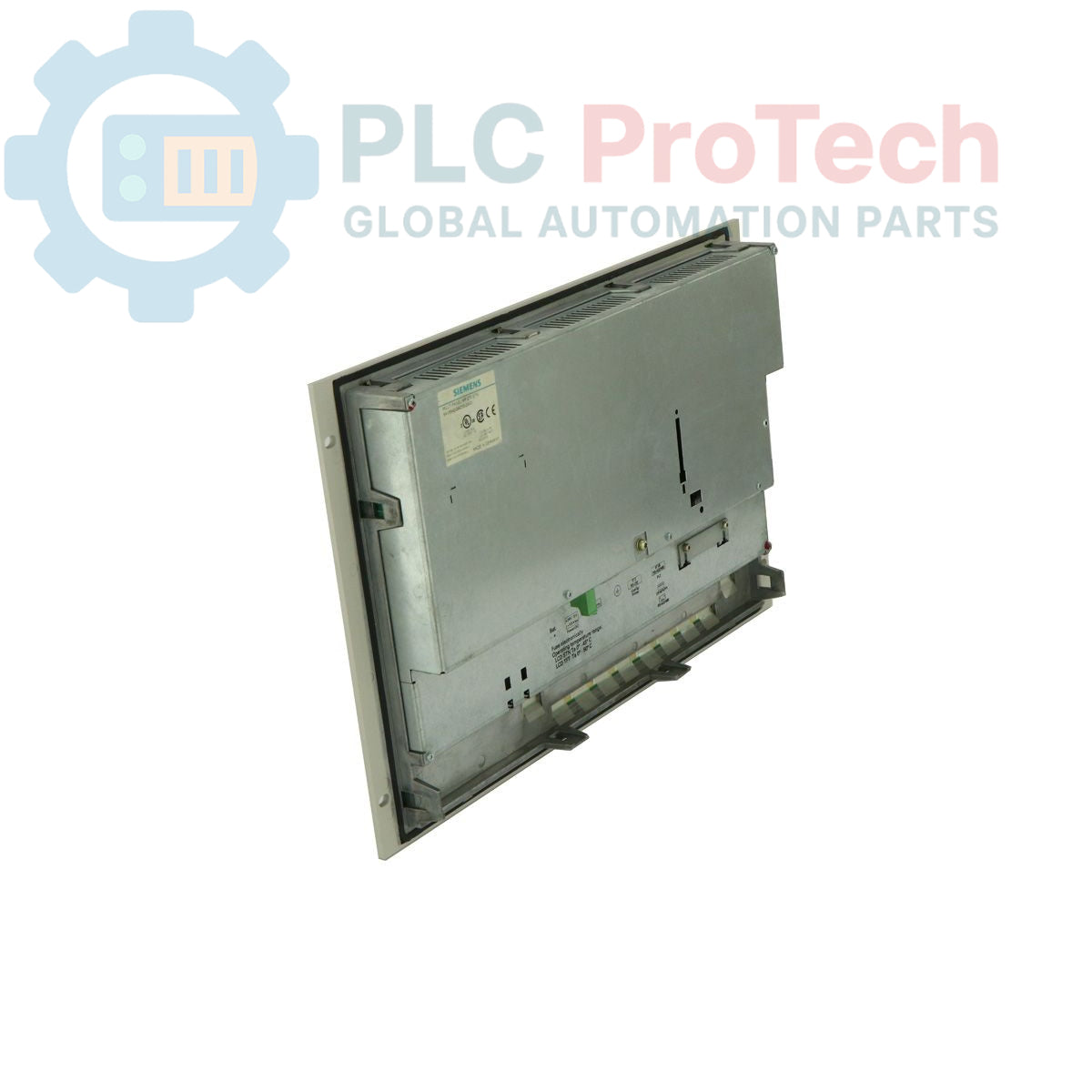

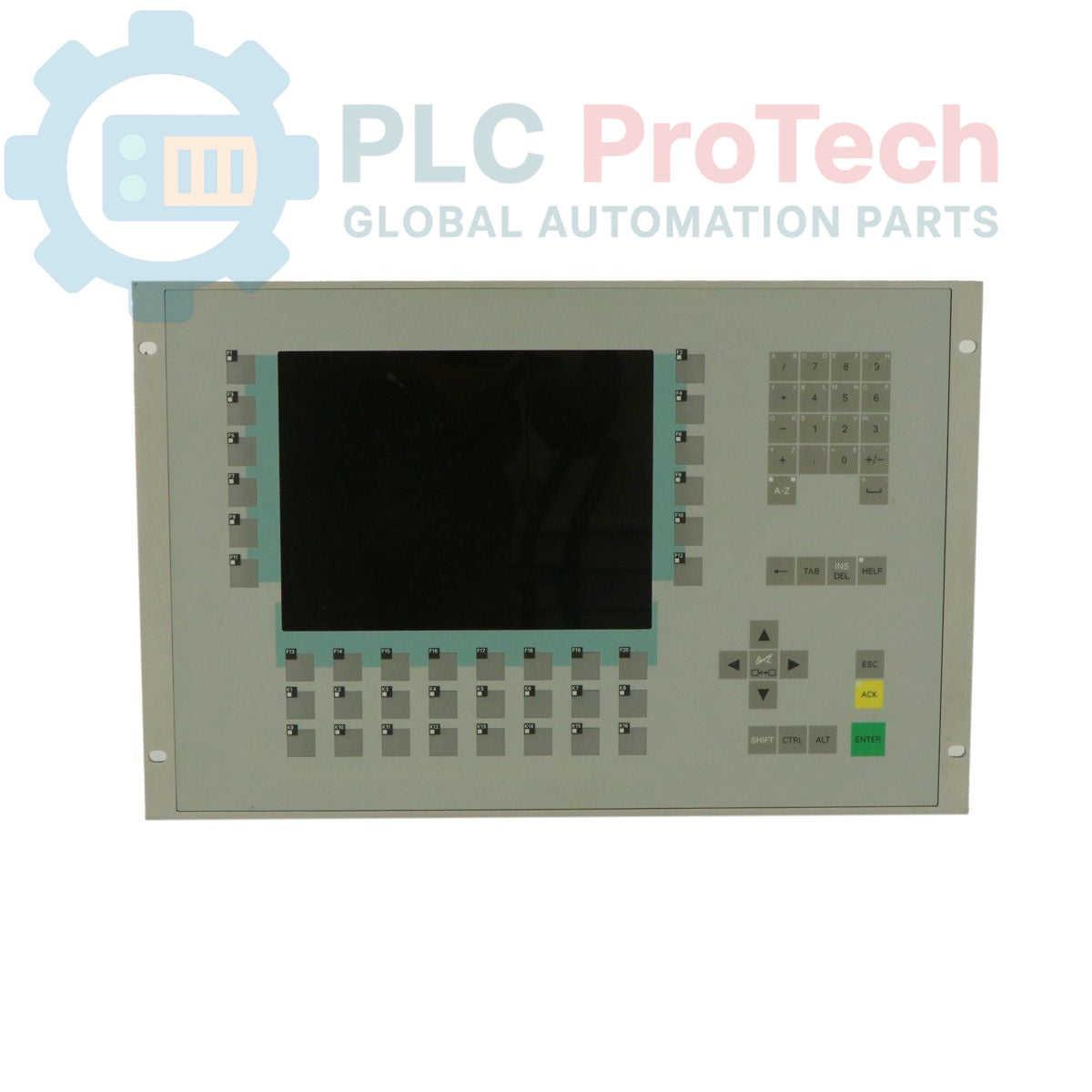

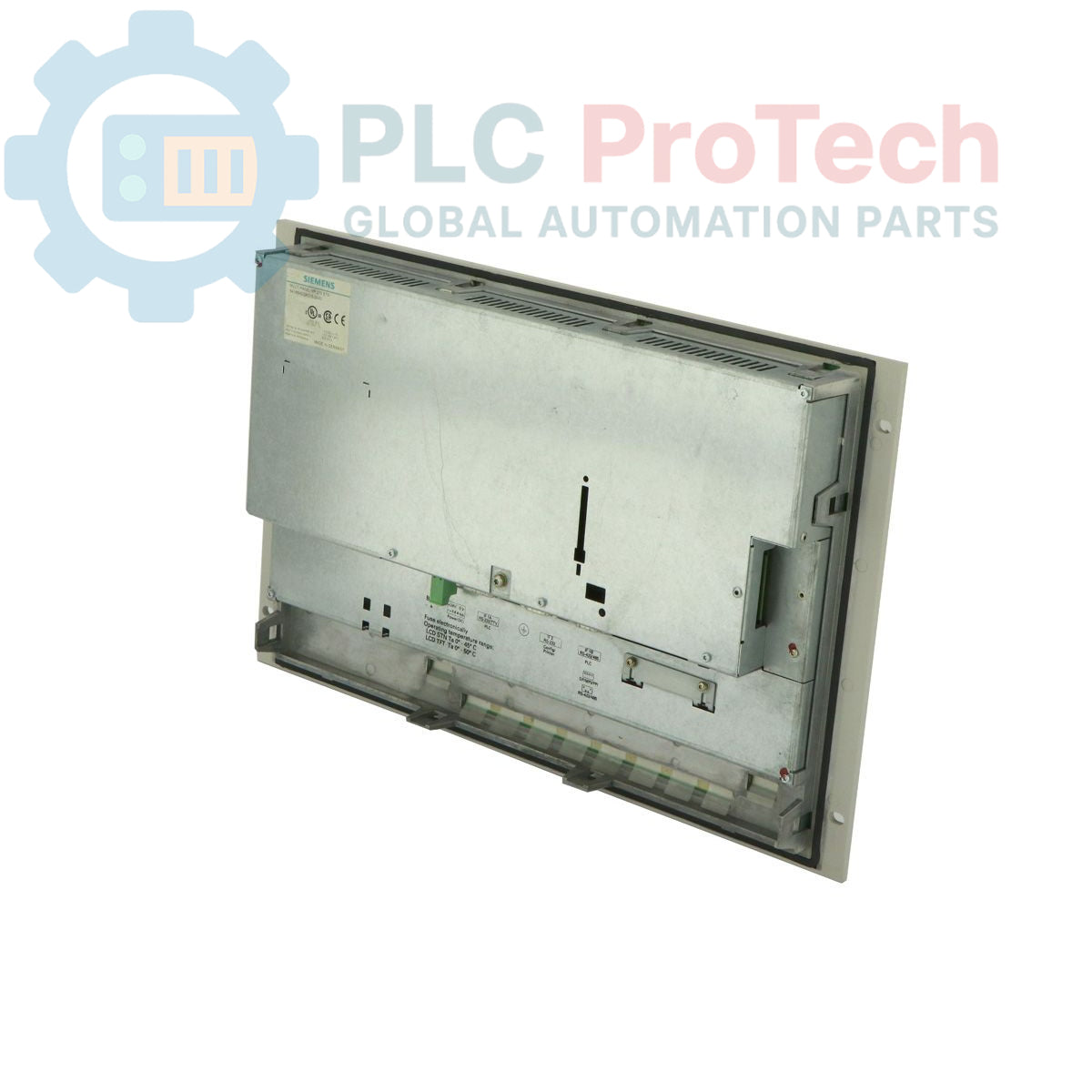

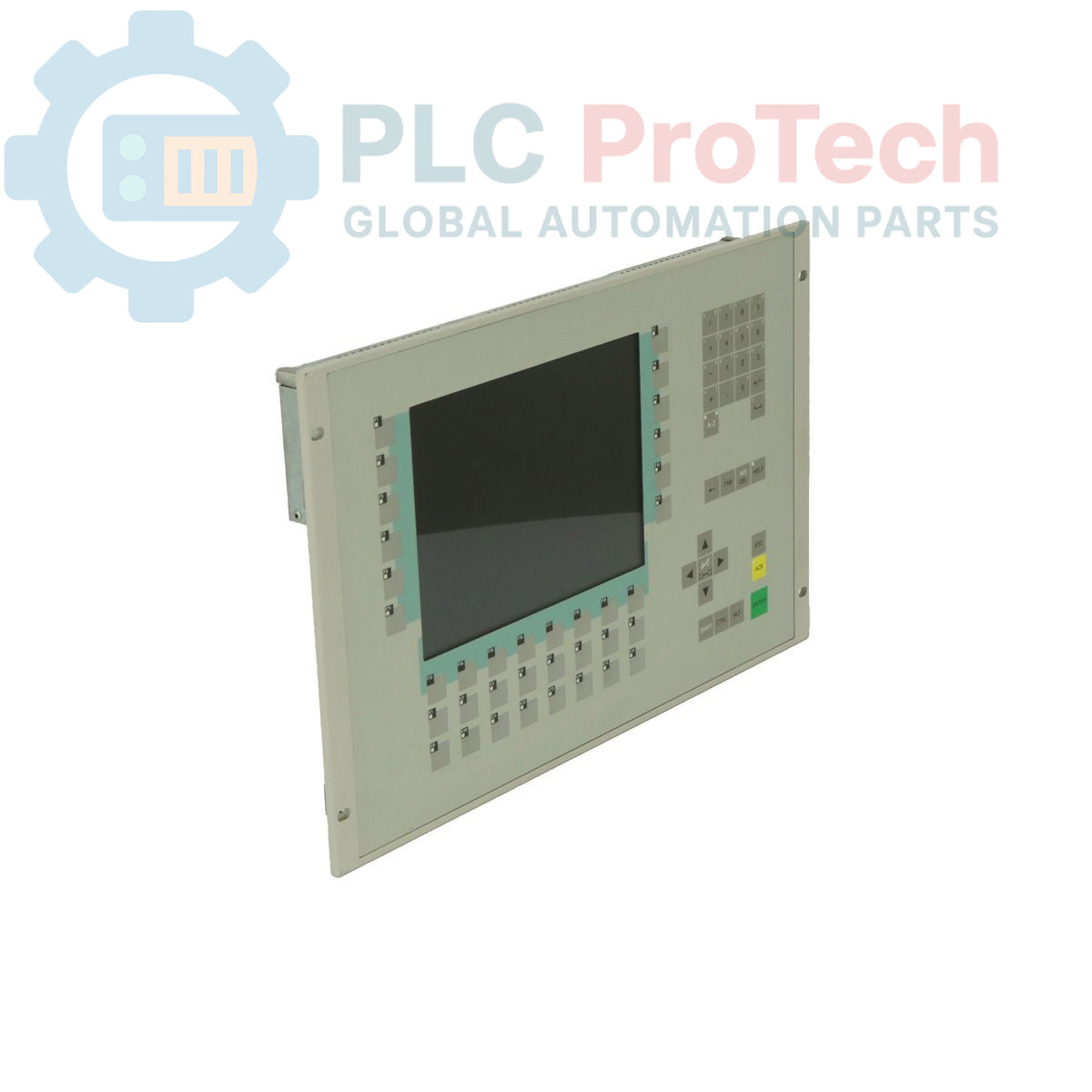

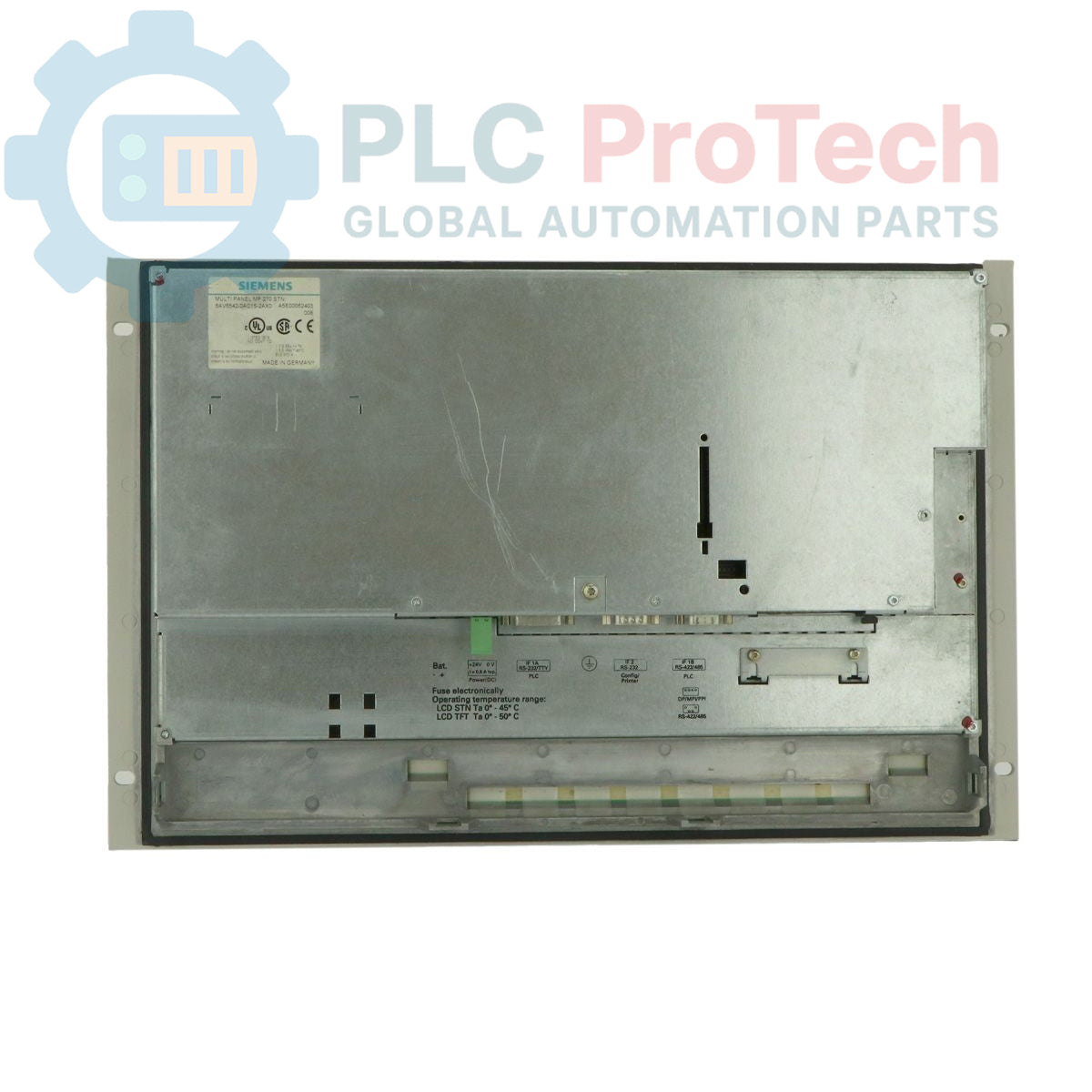

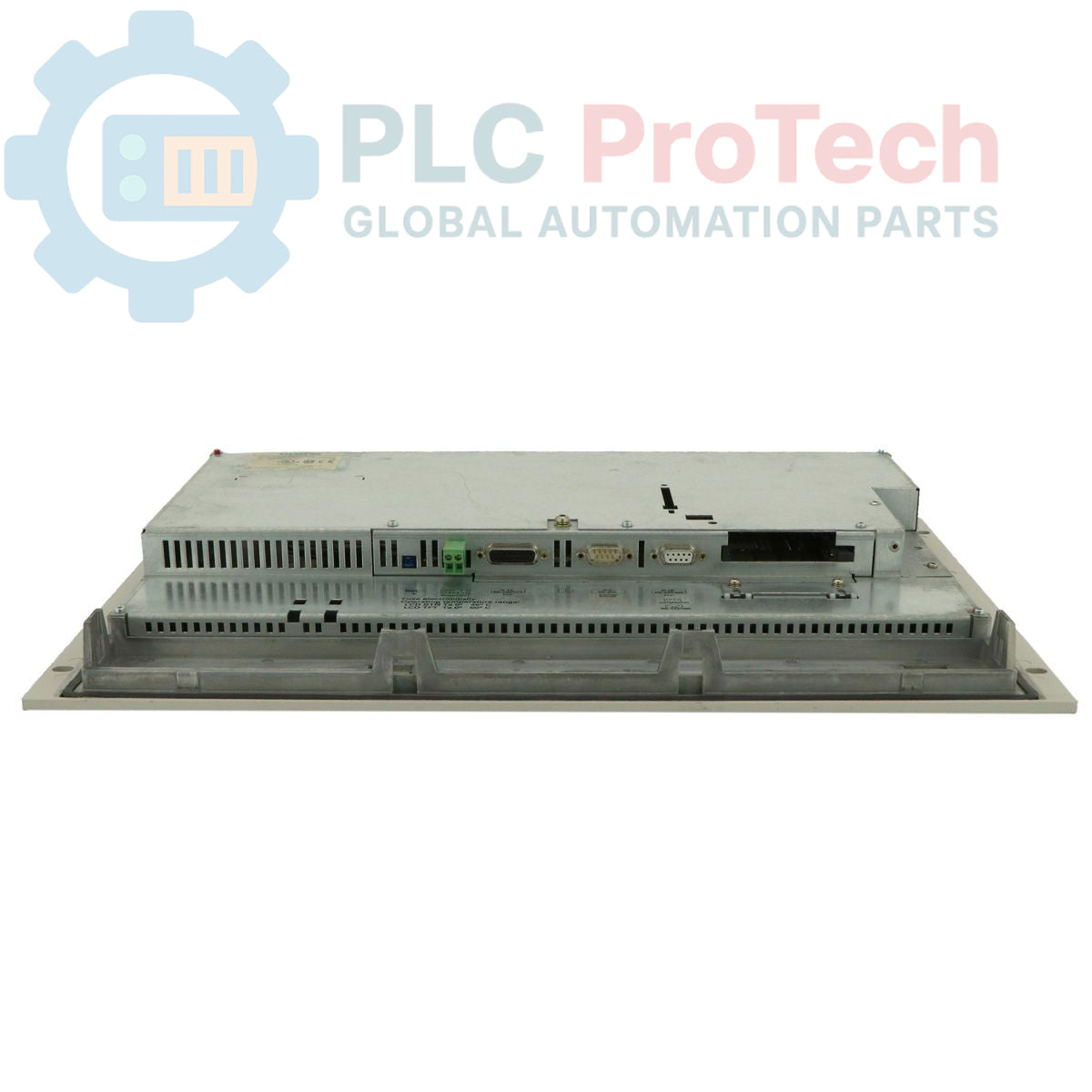

The Siemens 6AV6542-0AC15-2AX0 is a SIMATIC MP270 Multi Panel, featuring a 10-inch STN display for clear visualization in industrial environments. This HMI panel is equipped with 12 MB Flash-EPROM and 32 MB RAM, providing reliable data storage and smooth operation for production line controls. The 6AV6542-0AC15-2AX0 is configurable using ProTool software from version V5.2+SP2, offering flexibility for integration into existing automation systems. Its robust design and dependable performance ensure suitability for continuous use in demanding industrial settings, making it a practical choice for upgrading or replacing legacy HMI solutions.

Features

• 10-inch STN display
• 12 MB Flash-EPROM for program and data storage
• 32 MB RAM for operational data
• Configurable with ProTool software (V5.2+SP2 or higher)
• Key-operated interface
• Designed for industrial environments

Applications

• Human-Machine Interface (HMI) for industrial machinery
• Visualization and control in production lines
• Integration into existing automation systems
• Monitoring and operation in demanding industrial settings
• Upgrade or replacement for legacy HMI systems

Technical Specifications

Installation Guidelines

1. De-energize System: Ensure all power to the control cabinet and associated equipment is disconnected before beginning installation.
2. Mounting: Mount the Multi Panel into a prepared panel cutout. Secure the unit using the provided mounting clamps or screws to ensure a stable fit.
3. Power Connection: Connect the 24V DC supply voltage to the designated power terminals, observing correct polarity. Ensure the power source is stable and within the specified voltage range.
4. Grounding: Connect the panel's protective earth (PE) terminal to the cabinet's ground bus for safety and electromagnetic compatibility.
5. Communication Connections: Connect any necessary communication cables (e.g., MPI, PROFIBUS, Ethernet if applicable) to the respective ports on the panel and the automation system.
6. Configuration: Once physically installed and powered, configure the panel using ProTool software (V5.2+SP2 or higher) to load the application project.
7. Functional Test: After configuration, perform a comprehensive functional test to verify correct operation of the HMI and its interaction with the connected automation system.
