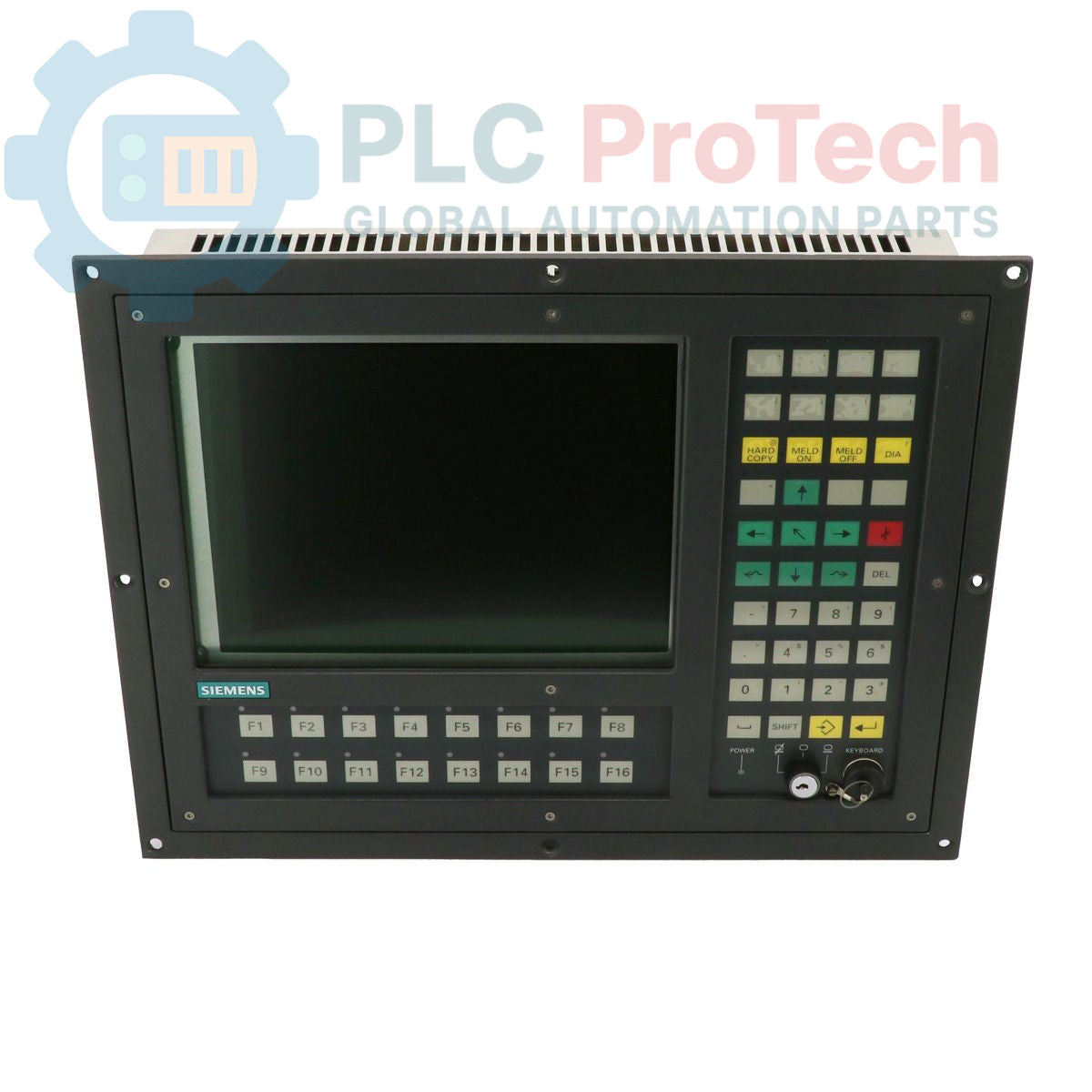

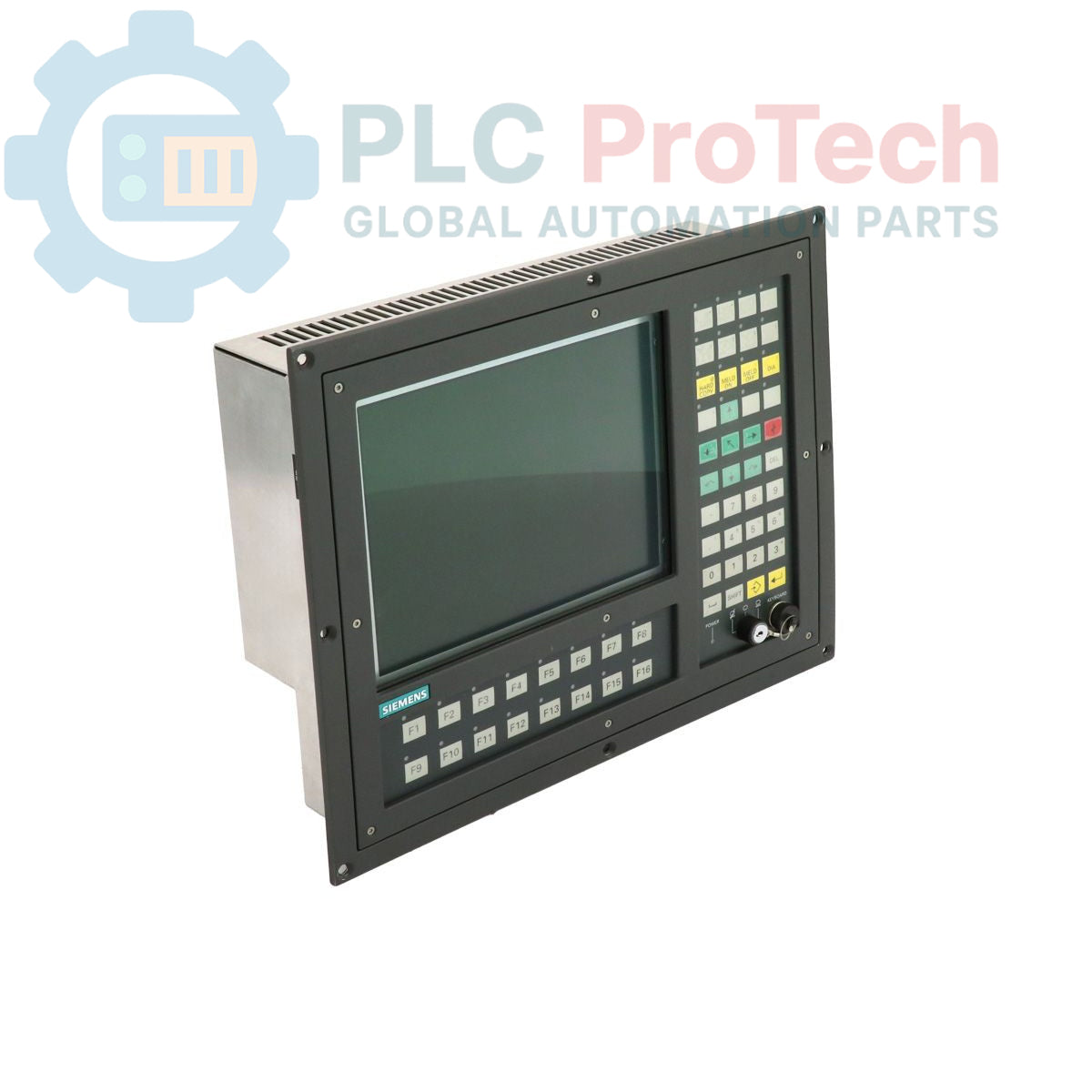

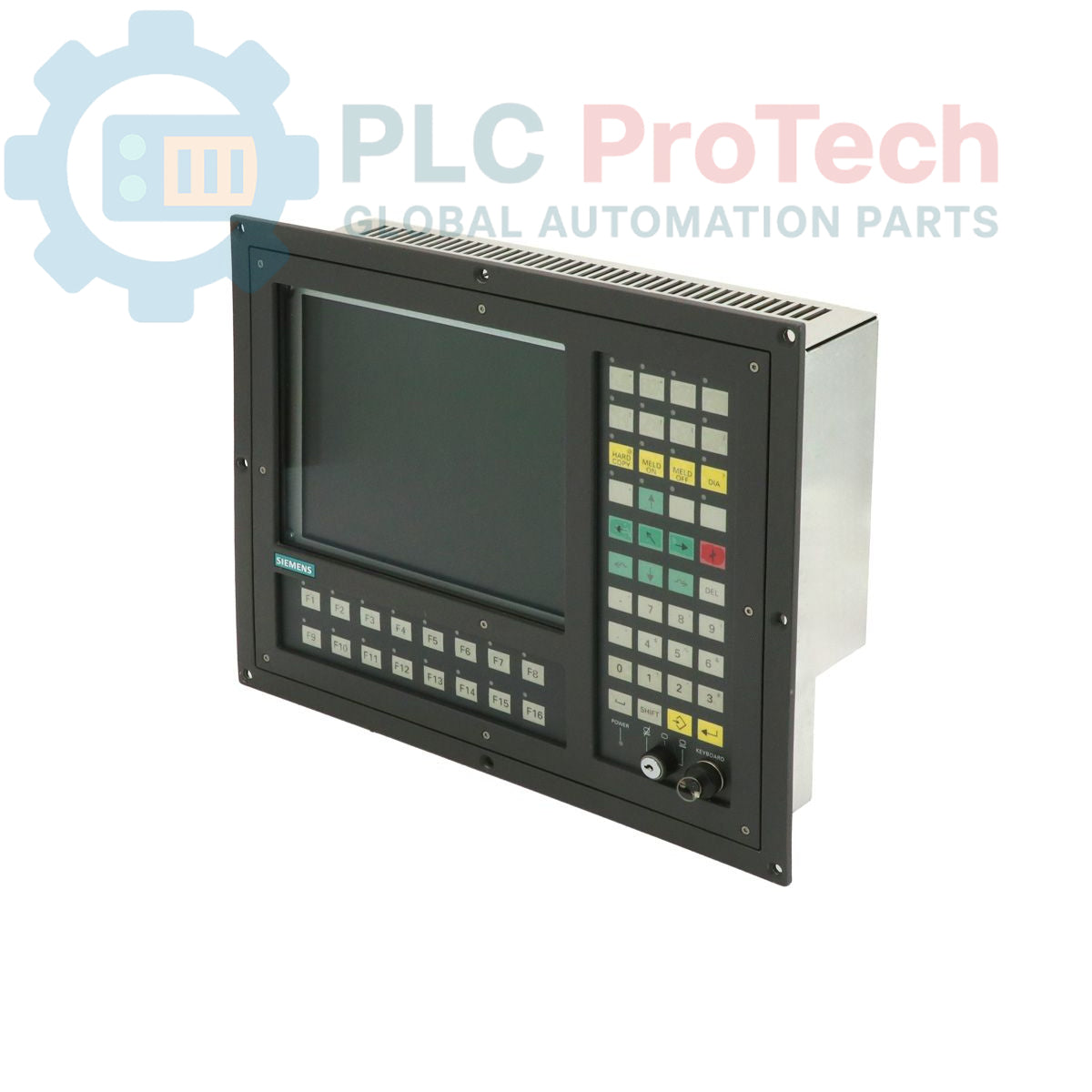

Siemens 6AV3530-1RR11 Coros OP30 Operator Panel

SKU 6AV3530-1RR11

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV3530-1RR11
Origin Germany
Product Type: Operator Panel
Barcode: 85371091
Payment: T/T, Western Union
Weight: 5.14 kg
Dimensions: 201.0 x 13.5 x 5.5 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens 6AV3530-1RR11 is an Operator Panel from the Coros OP30 series, designed for reliable human-machine interaction in industrial settings. This unit features a pixel graphics display for clear visualization of process data and system status. It is constructed with a durable mineral glass front, offering high resistance to scratches and chemicals common in production environments. This specific model, the OP 30/B, is supplied without a direct keypad, providing a streamlined interface suitable for specific monitoring and control applications.

Features

Pixel graphics display for clear data representation.
Durable mineral glass front panel for enhanced longevity.
Resistant to common industrial scratches and chemicals.
Streamlined design without an integrated direct keypad.

Applications

Machine control and monitoring panels.
Production line status visualization.
Process control systems in manufacturing facilities.
Integration into legacy automation systems.

Technical Specifications

Specification	Value
Product Type	Operator Panel
Manufacturer	Siemens
Series	Coros HMI, OP30 Series
Model Number	6AV3530-1RR11
Display Type	Pixel Graphics
Front Panel Material	Mineral Glass
Keypad	Not included
Product Lifecycle Status	Obsolete
Shipping Weight	5.14 kg
Package Dimensions (Calculated)	201.0 cm x 13.5 cm x 5.5 cm
Commodity Code	85371091
ECCN	N
Country of Origin (Estimated)	Germany

Installation Guidelines

CRITICAL WARNING: RISK OF ELECTRIC SHOCK

Disconnect all power sources before installation or servicing. All work must be performed by qualified personnel in accordance with local electrical codes and safety regulations. Failure to de-energize equipment can result in severe injury or death.

1 Ensure the control cabinet or panel is completely de-energized and locked out/tagged out (LOTO).
2 Verify that the panel cutout dimensions match the operator panel's required mounting dimensions. Clean the mounting surface to ensure a proper seal.
3 Insert the operator panel into the cutout from the front of the enclosure. Ensure the gasket is properly seated between the panel bezel and the enclosure surface.
4 From the rear, install and tighten the mounting clamps evenly in a cross-pattern to the manufacturer's specified torque. Do not overtighten, as this can warp the bezel and compromise the seal.

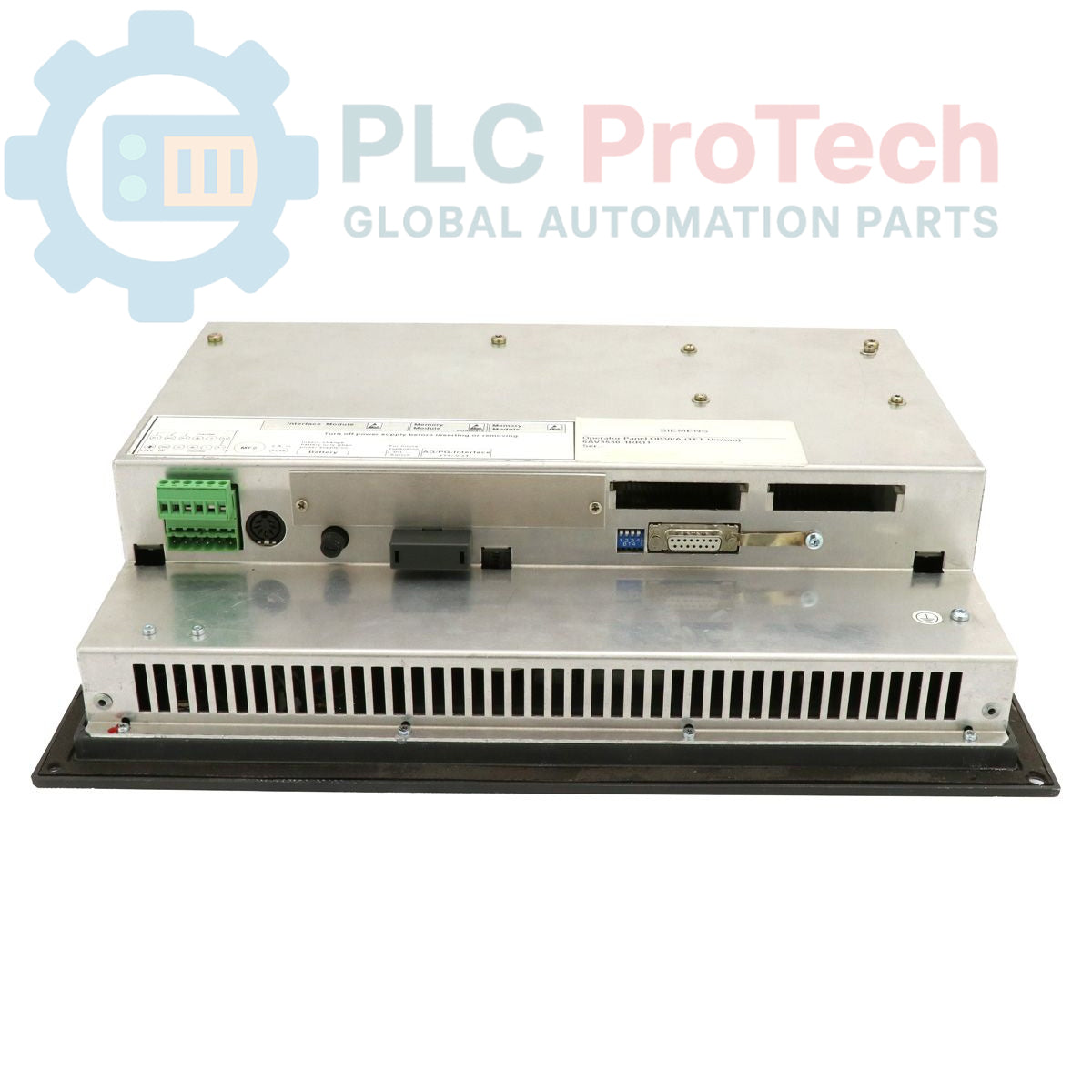

5 Connect the DC power supply and communication cables to the appropriate terminals on the rear of the unit. Ensure proper polarity and secure connections.
6 Verify that the unit's chassis is properly connected to the panel's protective earth (PE) ground to ensure operator safety and noise immunity.
7 After all connections are secure and verified, remove the LOTO device and re-energize the control panel. Power on the unit and verify its functionality.
