Description

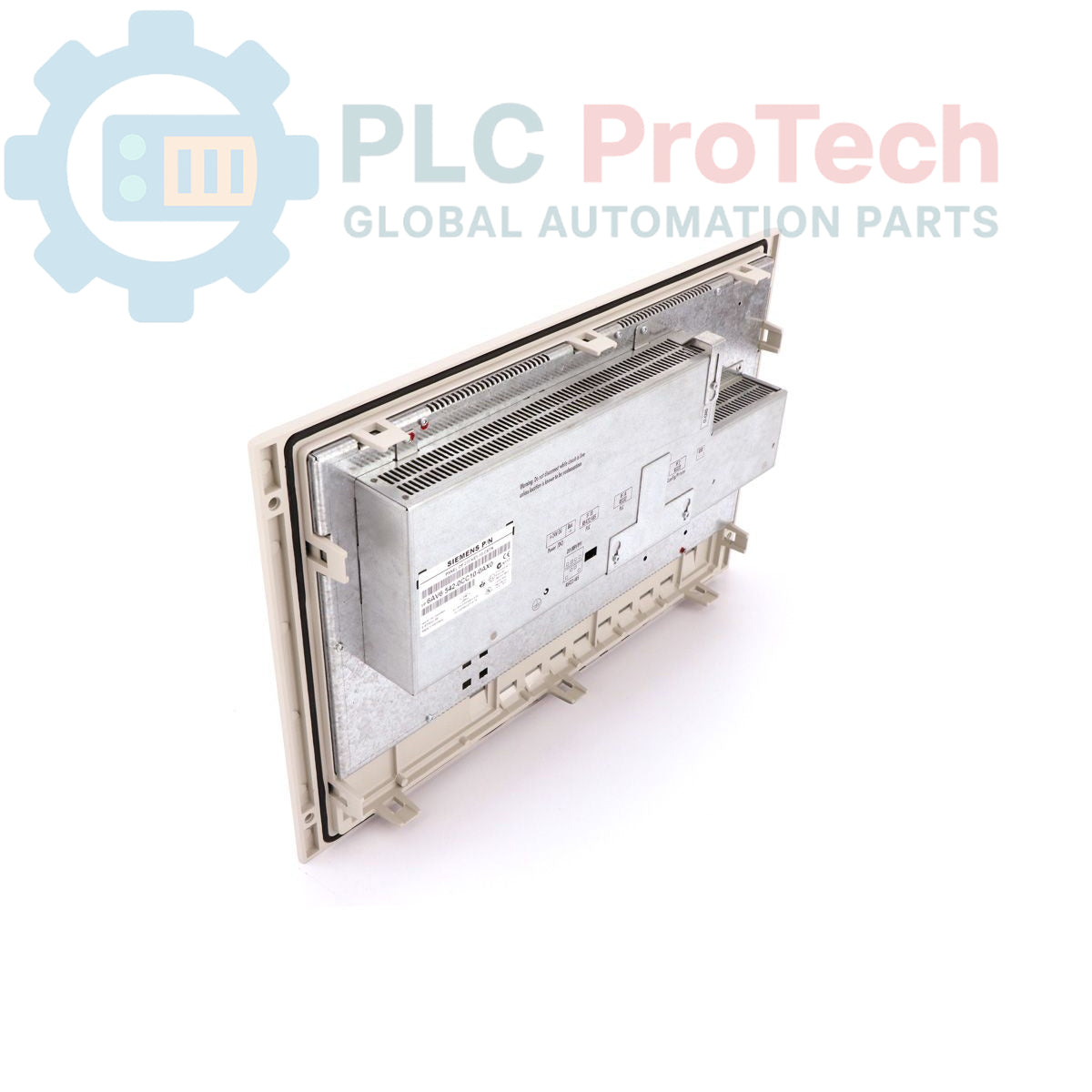

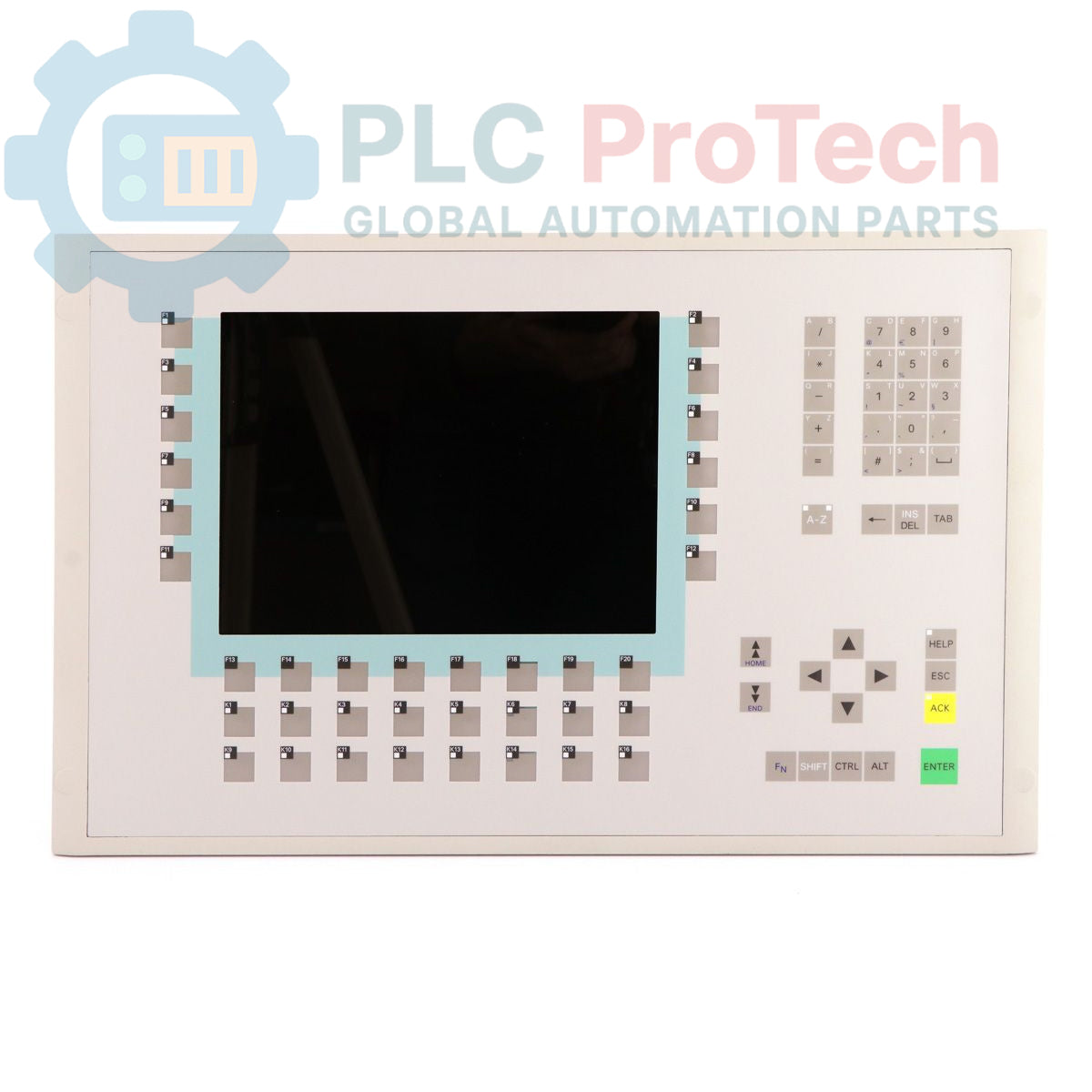

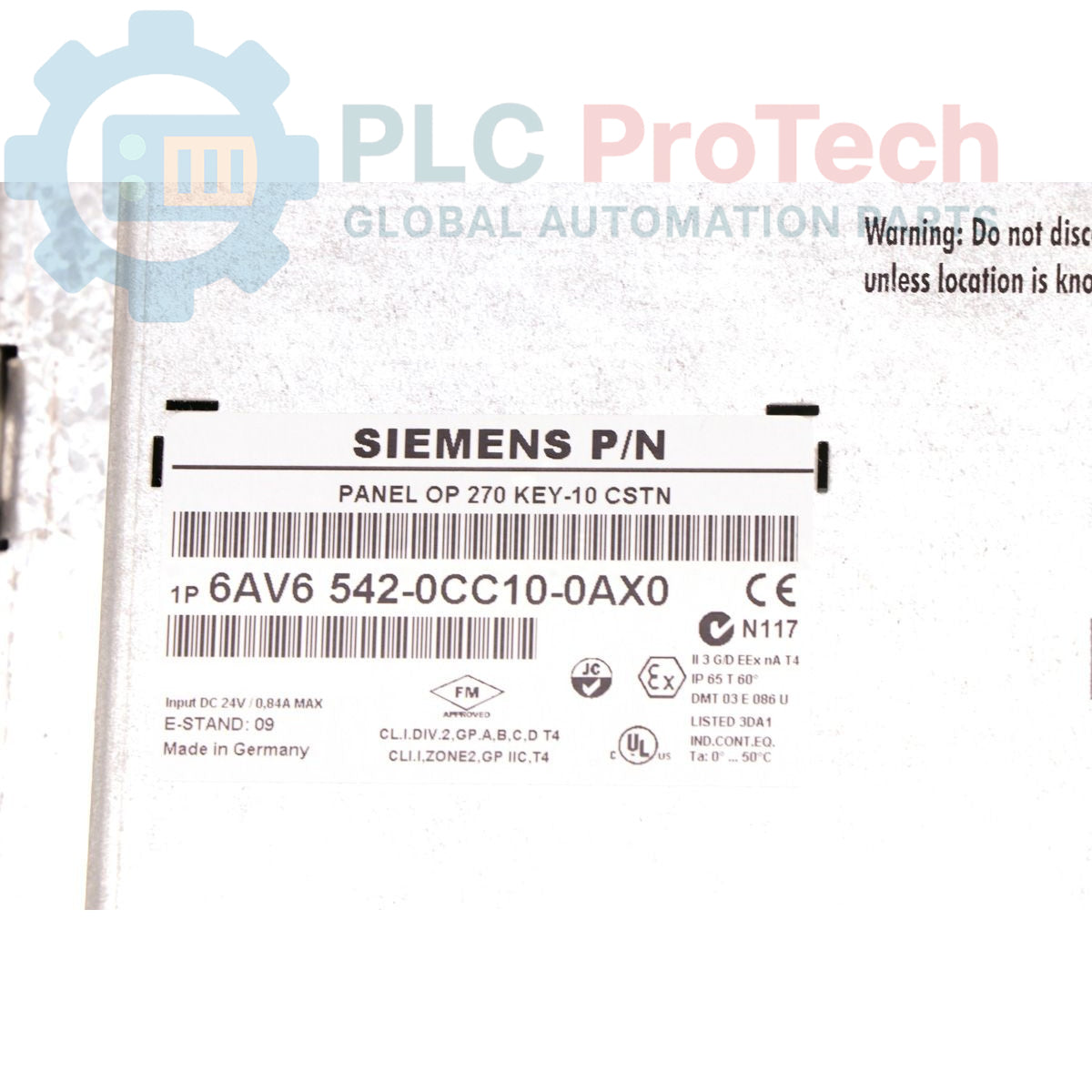

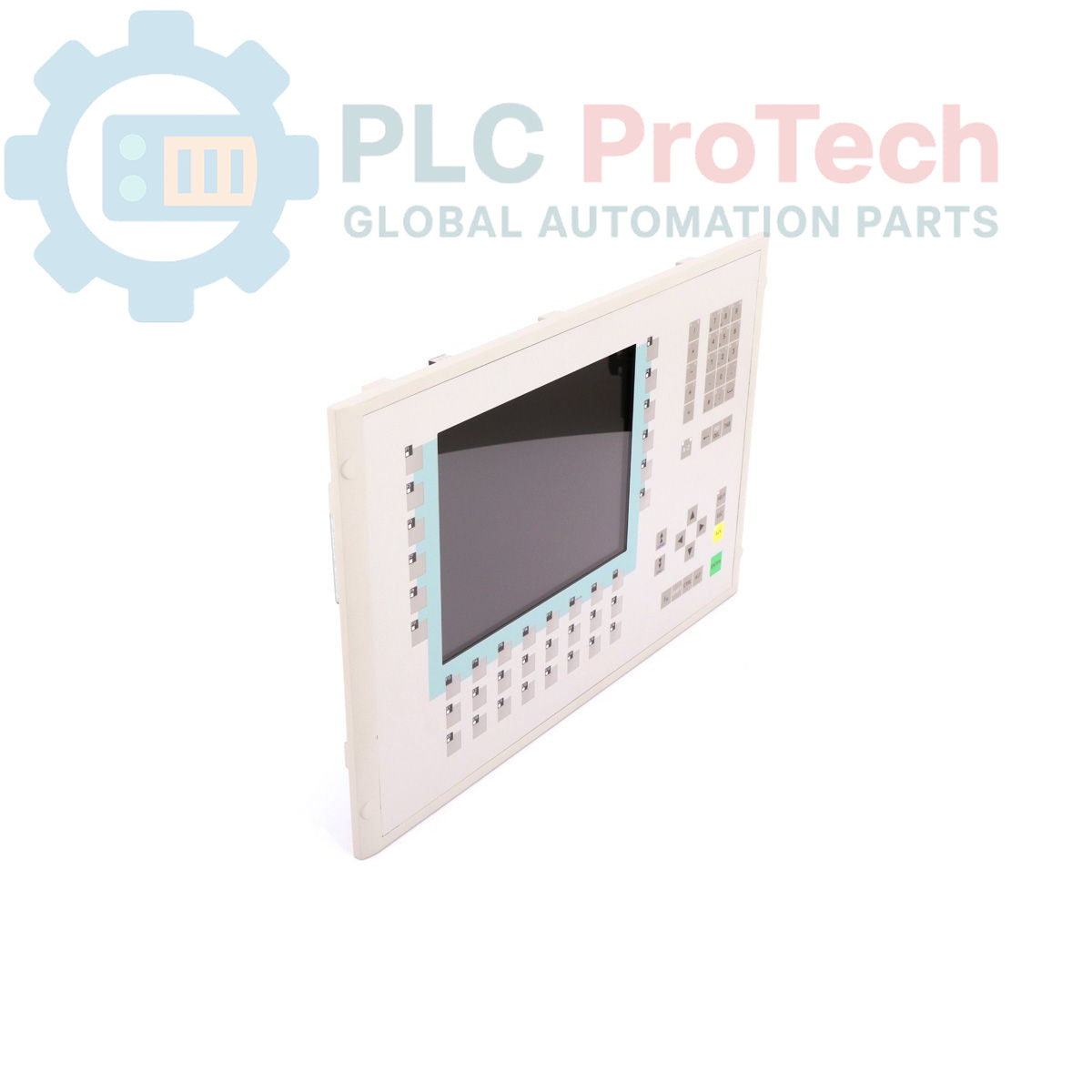

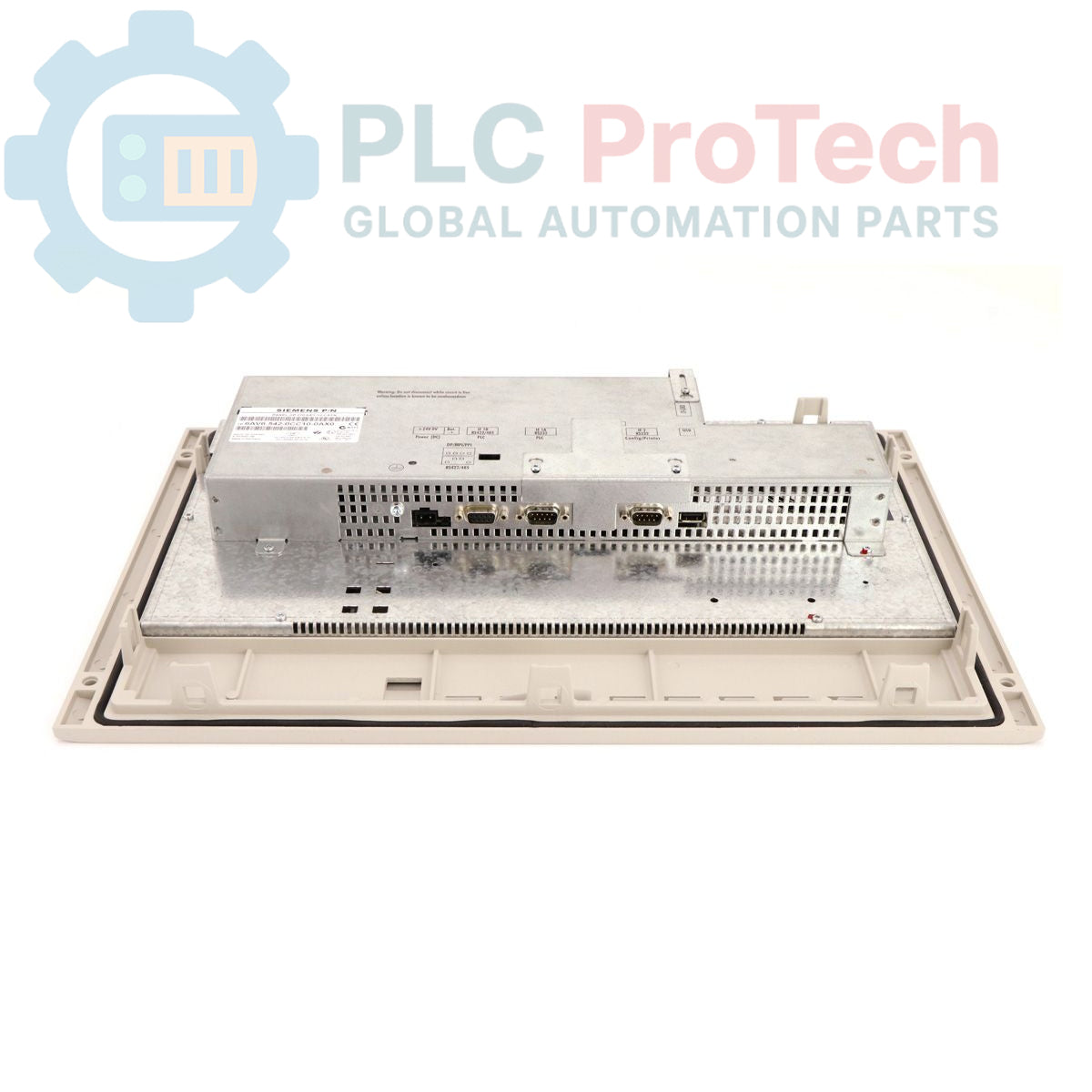

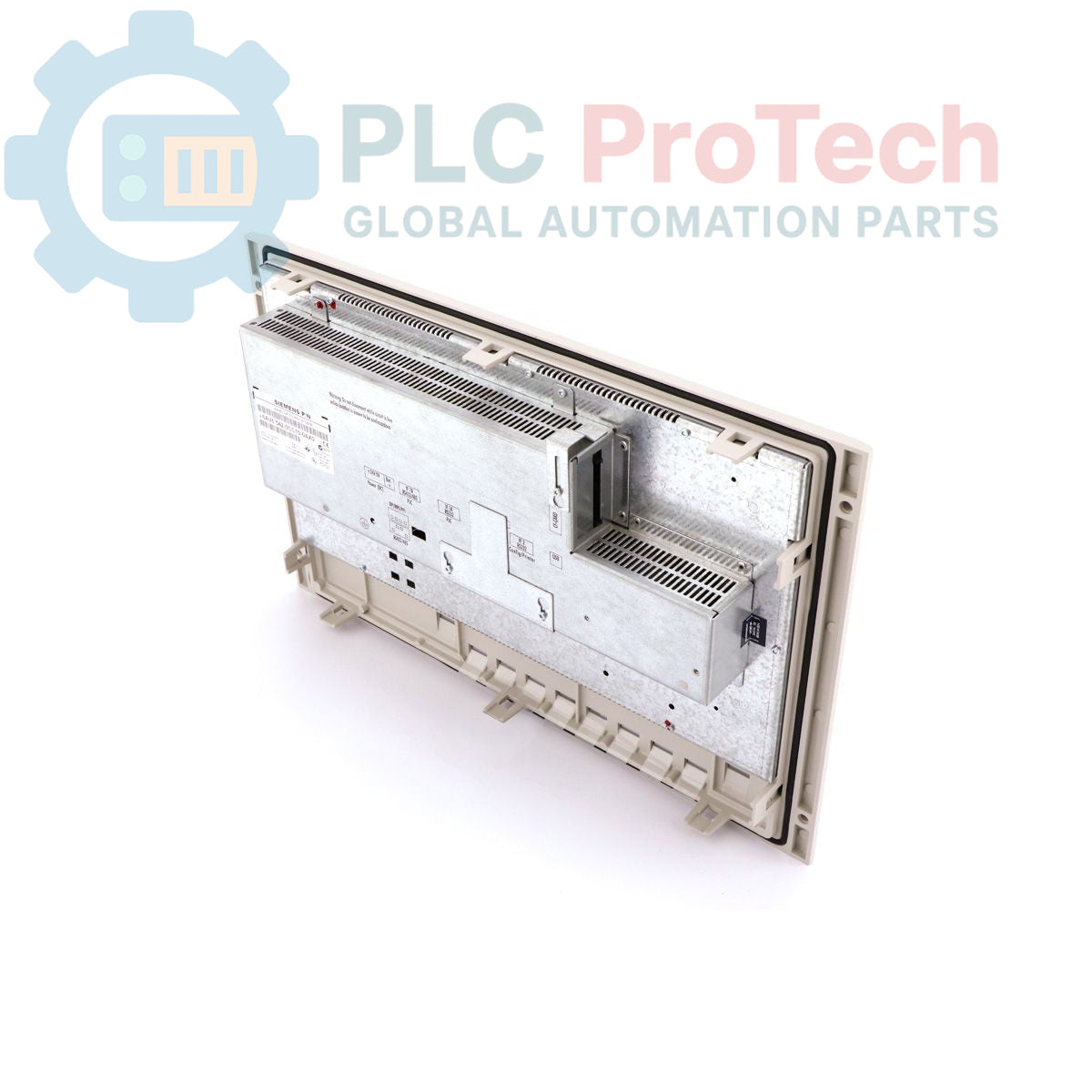

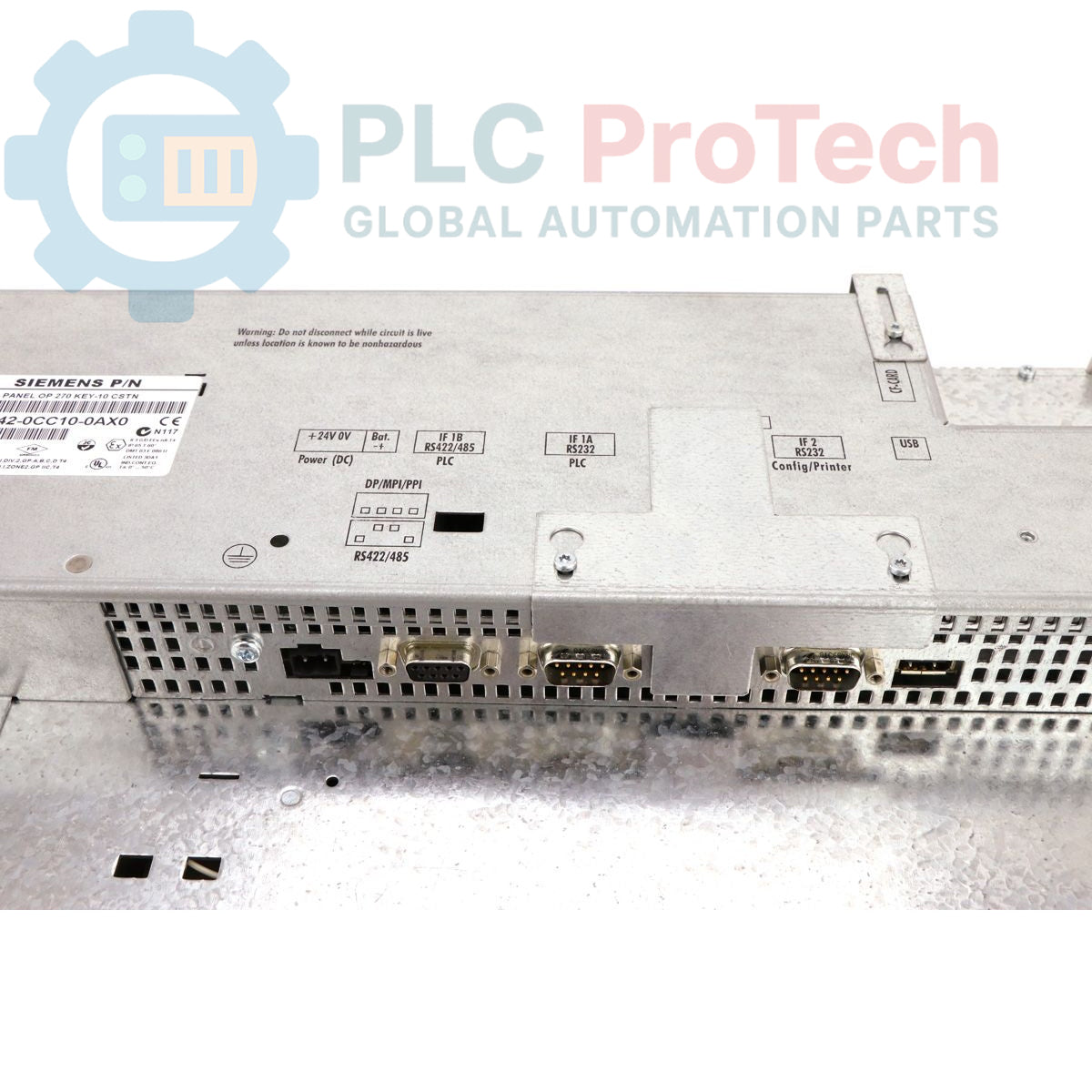

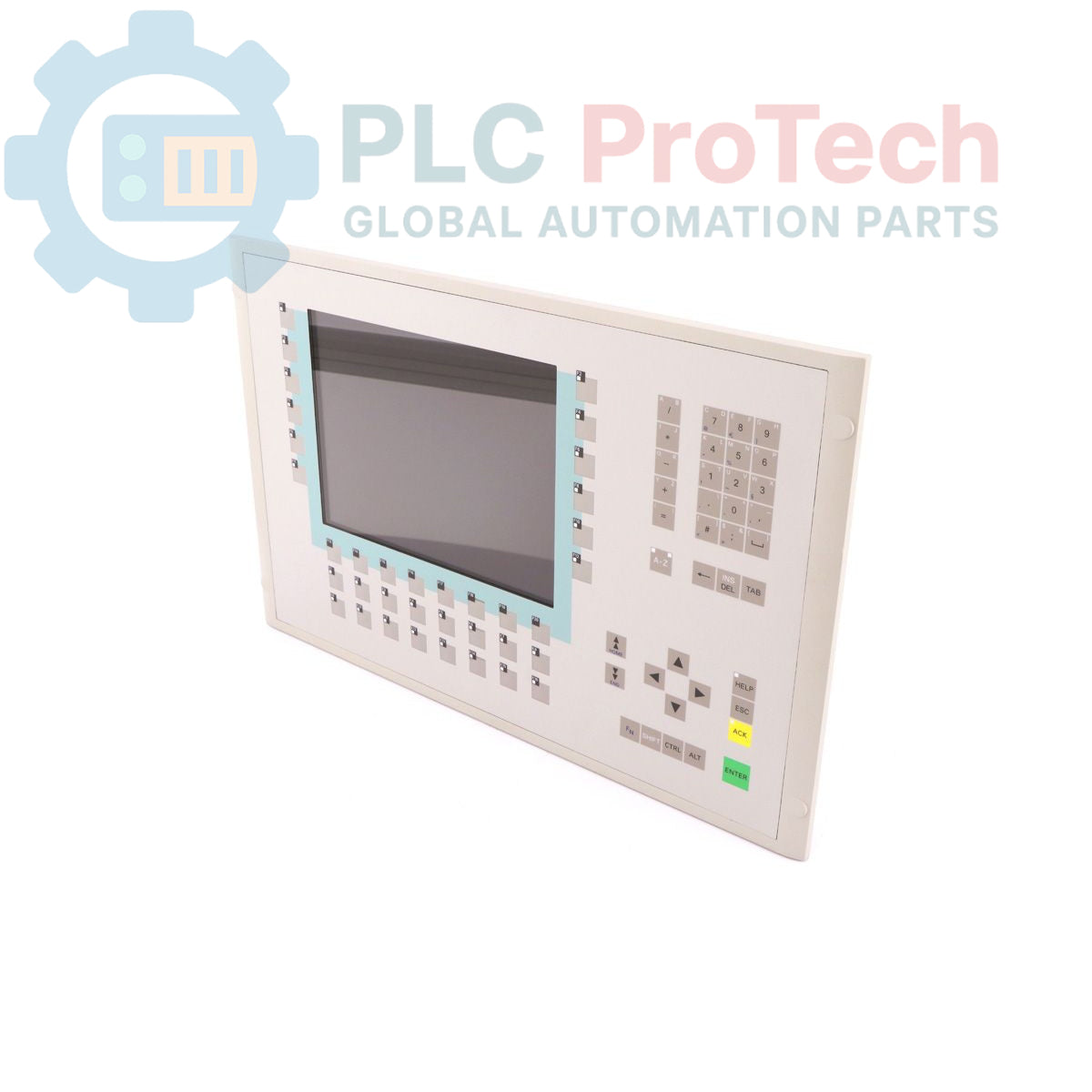

The Siemens 6AV6542-0CC10-0AX0 is an industrial-grade SIMATIC OP270 operator panel designed for efficient and reliable control in production environments. This unit features a 10.4-inch STN color display, providing clear visualization of process data and intuitive operation. Equipped with 2 MB of configuring memory, the 6AV6542-0CC10-0AX0 supports flexible configuration using ProTool software from version V6.0 and higher. Its robust construction ensures consistent performance in demanding industrial settings, making it suitable for a wide range of automation applications.

Features

• 10.4-inch STN Color Display
• 2 MB (2048 kbyte) Configuring Memory
• Configurable with ProTool Software (from V6.0)
• 640 x 480 Pixel Display Resolution
• 256 Display Colors
• Key-based Operation

Applications

The Siemens 6AV6542-0CC10-0AX0 operator panel is suitable for deployment in various industrial automation scenarios requiring human-machine interface capabilities. Typical applications include:

• Process visualization and control in manufacturing plants
• Machine operation and monitoring
• Data entry and parameter adjustment in production lines
• Supervision of automated systems in demanding industrial environments

Technical Specifications

Installation Guidelines

Proper installation of the Siemens 6AV6542-0CC10-0AX0 operator panel is crucial for reliable operation and system integrity. Adhere to the following general guidelines:

1. Power De-energization: Before commencing any installation work, ensure that all power to the control cabinet or mounting location is disconnected and secured against accidental re-energization.
2. Mounting: Mount the operator panel securely into a prepared panel cutout. Ensure adequate clearance for ventilation and cable routing. Use appropriate mounting hardware to prevent vibration and ensure a stable fit.
3. Power Connection: Connect the 24V DC supply voltage to the designated power terminals, observing correct polarity. Use shielded cables for power supply if recommended by system design to minimize electrical interference.
4. Grounding: Ensure the panel's protective earth (PE) connection is properly bonded to the system's main ground. A low-impedance ground connection is essential for safety and electromagnetic compatibility.
5. Cable Routing: Route signal and communication cables separately from power cables to prevent interference. Ensure cables are secured, properly terminated, and do not obstruct cooling airflow.
6. Environmental Considerations: Verify that the operating environment's temperature, humidity, and vibration levels are within the specified limits for the device to ensure long-term performance.
7. Initial Power-Up: After installation, carefully re-energize the system and observe the panel for proper startup and functionality.
