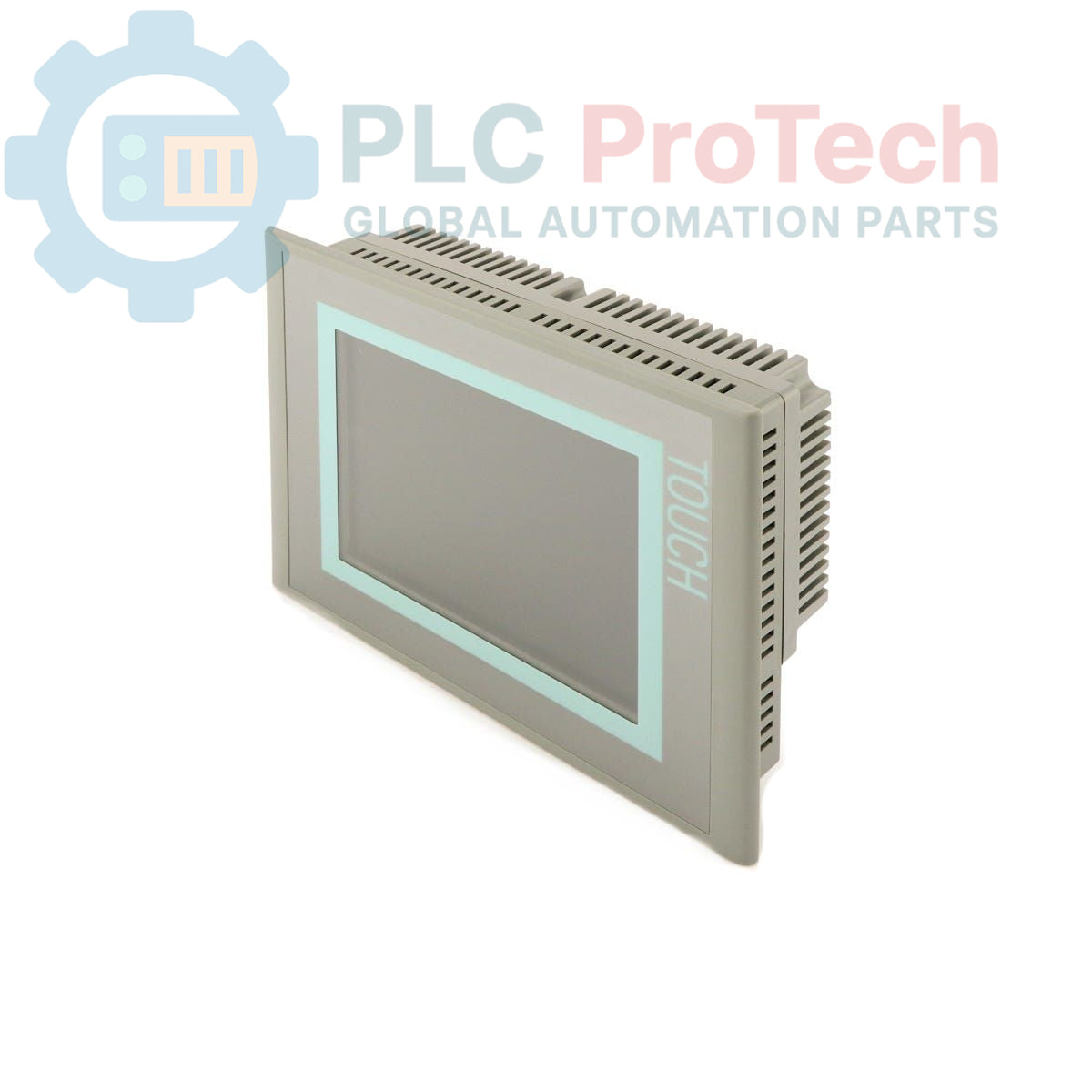

Siemens 6AV6643-5CB10-1DS1 SIMATIC MP 277 8" Touch Multi Panel

SKU 6AV6643-5CB10-1DS1

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV6643-5CB10-1DS1
  • Origin Germany
  • Product Type: HMI Touch Panel
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 2.19 kg
  • Dimensions: 30.10 x 33.90 x 6.50 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI Multi Panels Simatic HMIs
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV6643-5CB10-1DS1 is a SIMATIC MP 277 8" Touch Multi Panel, specifically configured with a customized design for Enviro Chemie applications. This HMI device is based on the standard 6AV6643-0CB01-1AX1 model and is delivered with a standard front panel, providing a human-machine interface for process visualization and control in industrial environments.

Features

  • 8-inch touch display for intuitive operation
  • Customized design tailored for Enviro Chemie applications
  • Based on the Siemens SIMATIC MP 277 platform (model 6AV6643-0CB01-1AX1)
  • Supplied with a standard front panel

Applications

This Multi Panel is suitable for industrial automation systems requiring a dedicated human-machine interface. Its customized design makes it particularly applicable in:

  • Process control and monitoring within Enviro Chemie facilities.
  • Specialized machinery and equipment requiring specific HMI configurations.
  • General industrial HMI tasks where an 8-inch touch interface is required.

Technical Specifications

Manufacturer Siemens
Brand Siemens
Series SIMATIC HMI Multi panels 270 series
Model 6AV6643-5CB10-1DS1
Product Type Multi Panel (8" Touch)
Product Phase Phase-Out
Package Dimensions (Calculated) 30.10 x 33.90 x 6.50 cm
Shipping Weight 2.19 kg
Commodity Code 85371091
Export Control Regulations (ECCN) N

Installation Guidelines

When installing the Siemens 6AV6643-5CB10-1DS1 SIMATIC MP 277 Touch Multi Panel, adhere to standard industrial practices and system documentation:

  1. De-energize System: Ensure all power to the control cabinet and associated equipment is disconnected before beginning installation.
  2. Panel Mounting: Cut the appropriate opening in the control cabinet door or panel according to the HMI's cutout dimensions. Secure the Multi Panel using the provided mounting clamps or screws, ensuring a tight seal to maintain the cabinet's IP rating.
  3. Power Connection: Connect the power supply cables to the designated terminals, observing correct polarity and voltage requirements as specified in the general SIMATIC MP 277 documentation.
  4. Communication Wiring: Connect necessary communication cables (e.g., Ethernet, PROFIBUS) from the Multi Panel to the PLC or other network devices. Ensure proper shielding and grounding for communication cables to minimize interference.
  5. Grounding: Ensure the Multi Panel is properly grounded to the control cabinet's protective earth (PE) bar to prevent electrical hazards and ensure EMC compliance.
  6. Cable Management: Route all cables neatly and secure them to prevent strain and damage. Avoid routing power and signal cables in parallel to prevent inductive interference.
  7. Power Up: After all connections are secure and verified, re-energize the system and verify proper operation of the HMI.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary application of the 6AV6643-5CB10-1DS1?
This Multi Panel is primarily designed for Human-Machine Interface (HMI) tasks in industrial automation, specifically with a customized configuration for Enviro Chemie applications.
Is this HMI a standard Siemens product?
The 6AV6643-5CB10-1DS1 is a customized version of the SIMATIC MP 277 8" Touch Multi Panel, based on the standard 6AV6643-0CB01-1AX1 model.
What is the product phase of this model?
The Siemens 6AV6643-5CB10-1DS1 Multi Panel is currently in the Phase-Out product lifecycle stage.
What are the package dimensions of the unit?
The package dimensions for this Multi Panel are 30.10 x 33.90 x 6.50 cm.
