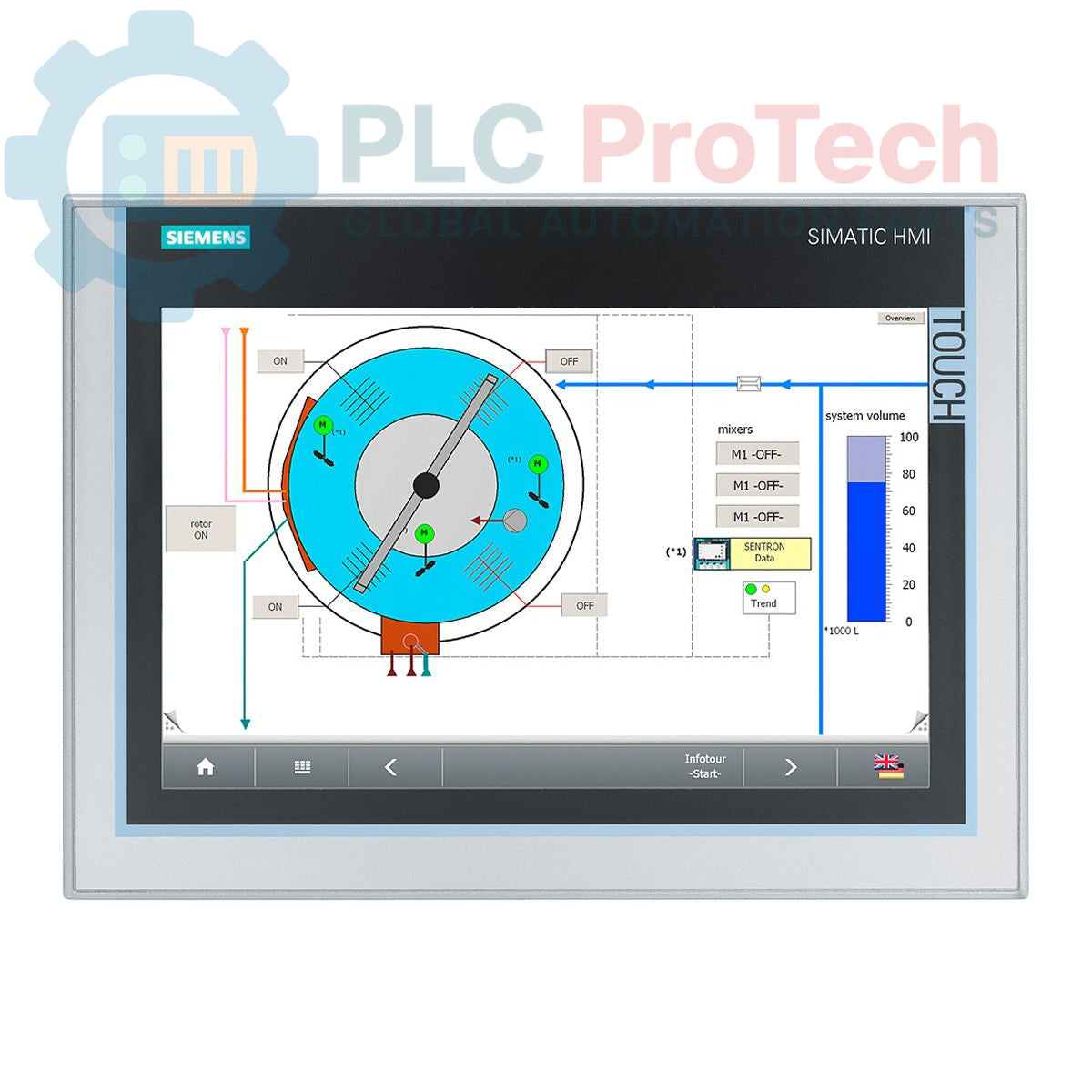

The Siemens 6AV6646-1AA22-0AX0 is an industrial thin client from the SIMATIC ITC 1200 series. This unit features a 12.1-inch widescreen TFT display with touch operation, designed for visualizing and operating applications in demanding industrial environments. It operates on a nominal 24V DC supply and supports multiple communication protocols, including RDP, VNC, SmartServer, and Web, enabling flexible integration into various control system architectures.
| Specification | Value |
|---|---|
| Brand | Siemens |
| Product Range | SIMATIC HMI |
| Model | 6AV6646-1AA22-0AX0 |
| Product Type | Industrial Thin Client (ITC 1200) |
| Supply Voltage | 24V DC |
| Display Type | Widescreen TFT, Touch Operation |
| Screen Diagonal | 12.1 inch |
| Display Resolution | 1280 x 800 pixels |
| Supported Protocols | RDP, VNC, SmartServer, Web |
| Product Lifecycle Phase | Phase-Out |
| Shipping Weight | 4.48 kg |
| Commodity Code | 84719000 |
| Export Control (ECCN) | 5A992 |
| Country of Origin | Germany (Estimate) |
| Package Dimensions (Calculated) | 52.5 x 40.0 x 17.5 cm |
CRITICAL WARNING: RISK OF ELECTRIC SHOCK
Disconnect all power sources before installation, servicing, or removal. Failure to de-energize the equipment can result in severe injury or death. All work must be performed by qualified personnel in accordance with local electrical codes and safety regulations.
Ensure the panel cutout dimensions precisely match the device specifications for a secure and environmentally sealed fit. Clean the mounting surface of any debris or contaminants.
Insert the thin client into the panel cutout from the front. Secure it from the rear using the provided mounting clamps. Tighten the clamp screws evenly in a diagonal pattern to ensure uniform gasket compression.
Connect the designated PE terminal on the device chassis to the cabinet's main protective earth bus using a low-impedance conductor. This is critical for operator safety and noise immunity.
Connect a stable, correctly rated 24V DC power source to the power supply terminals. Ensure correct polarity (+/-). Use appropriately sized wiring and verify the power supply is properly fused.
Connect the Ethernet cable to the network port. If required, connect any USB peripherals. Ensure all cables are routed to prevent strain and are separated from high-voltage power lines to minimize interference.
Global Express Shipping
Returns & Warranty
Manufacturer: Siemens
Product No.: 6AV6646-1AA22-0AX0
Country of origin:Germany
Product Type: Industrial Thin Client
Barcode: 84719000
Payment: T/T, Western Union
Weight: 4480g
Dimensions: 52.5 x 40.0 x 17.5 cm
Shipping port: Xiamen
Warranty: 12 months
