Description

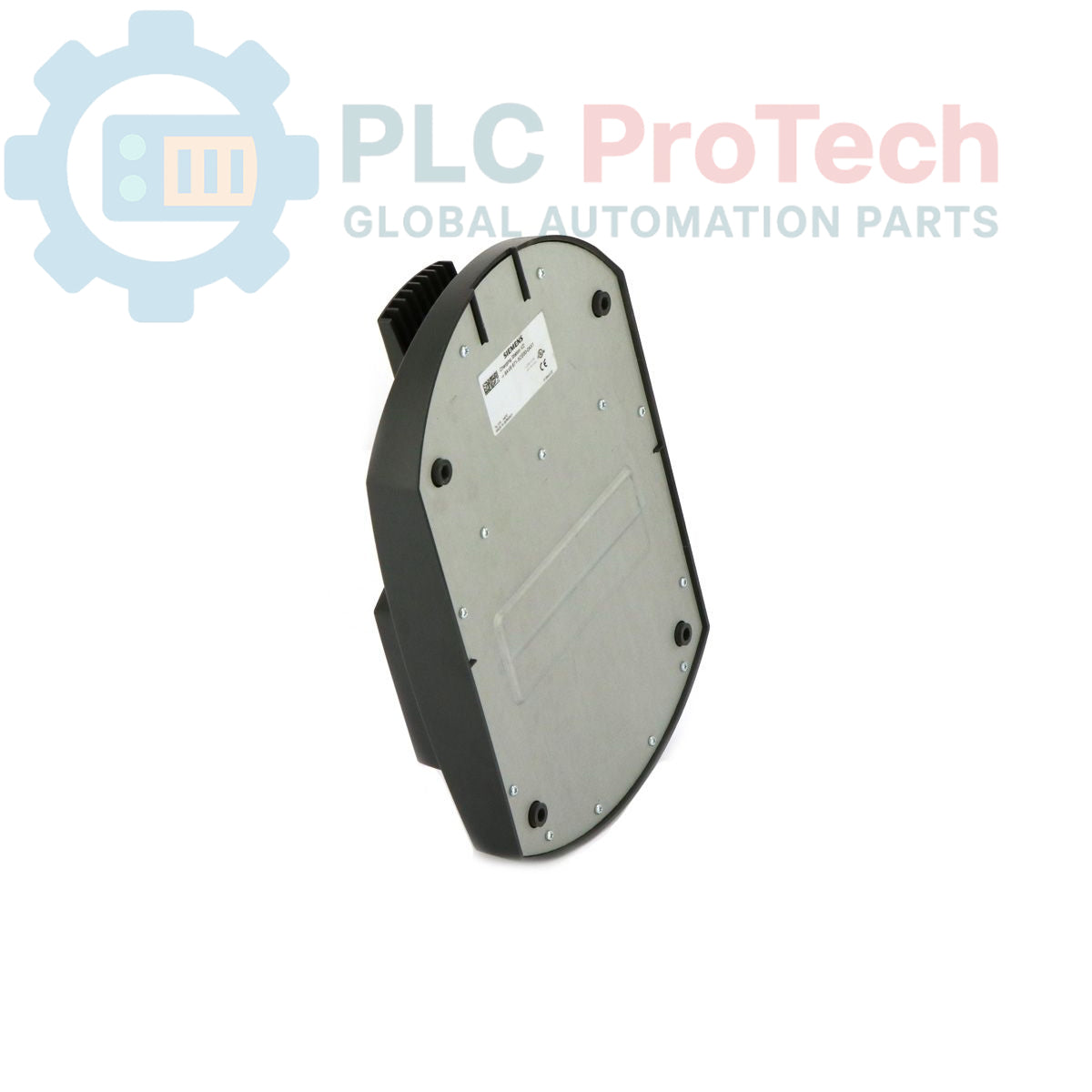

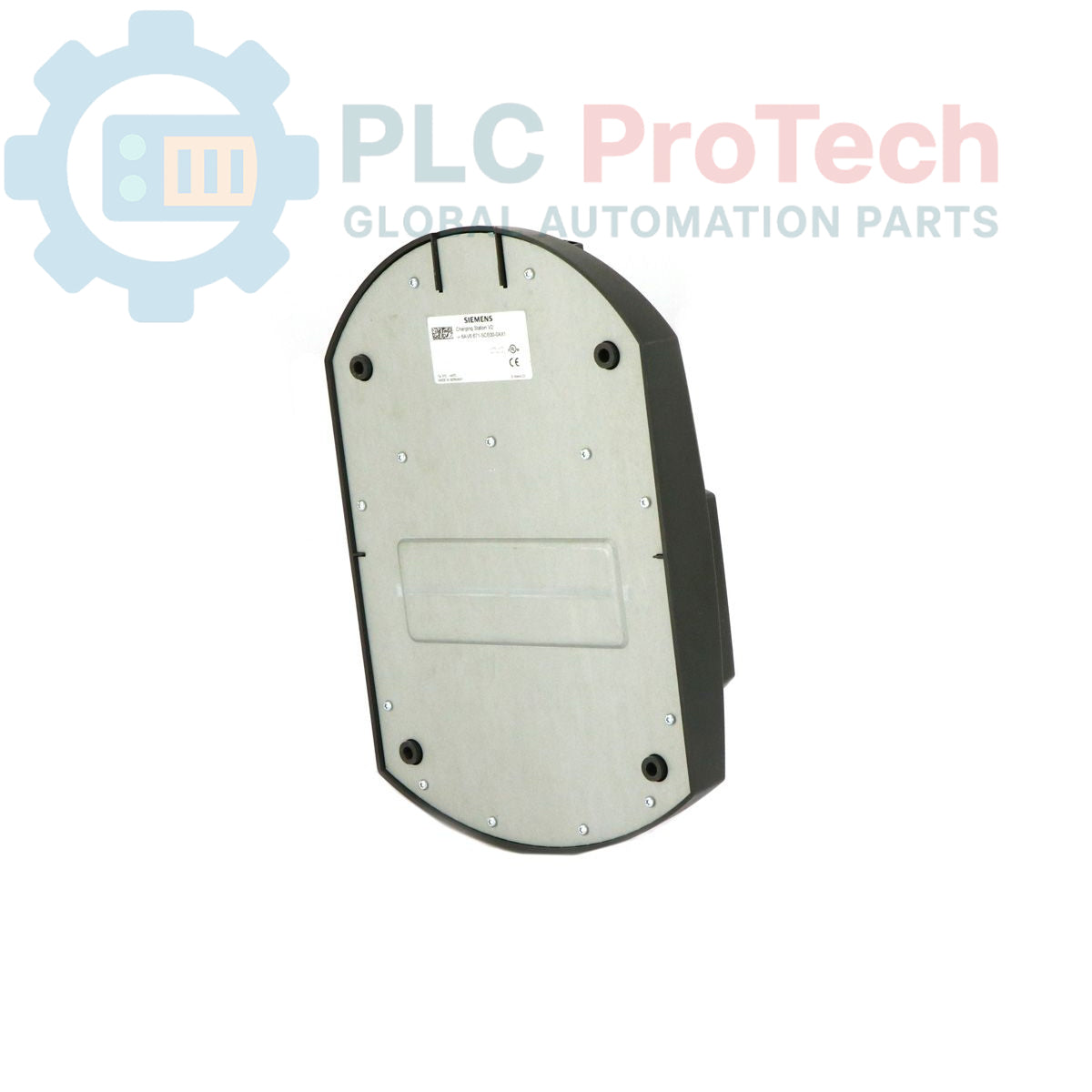

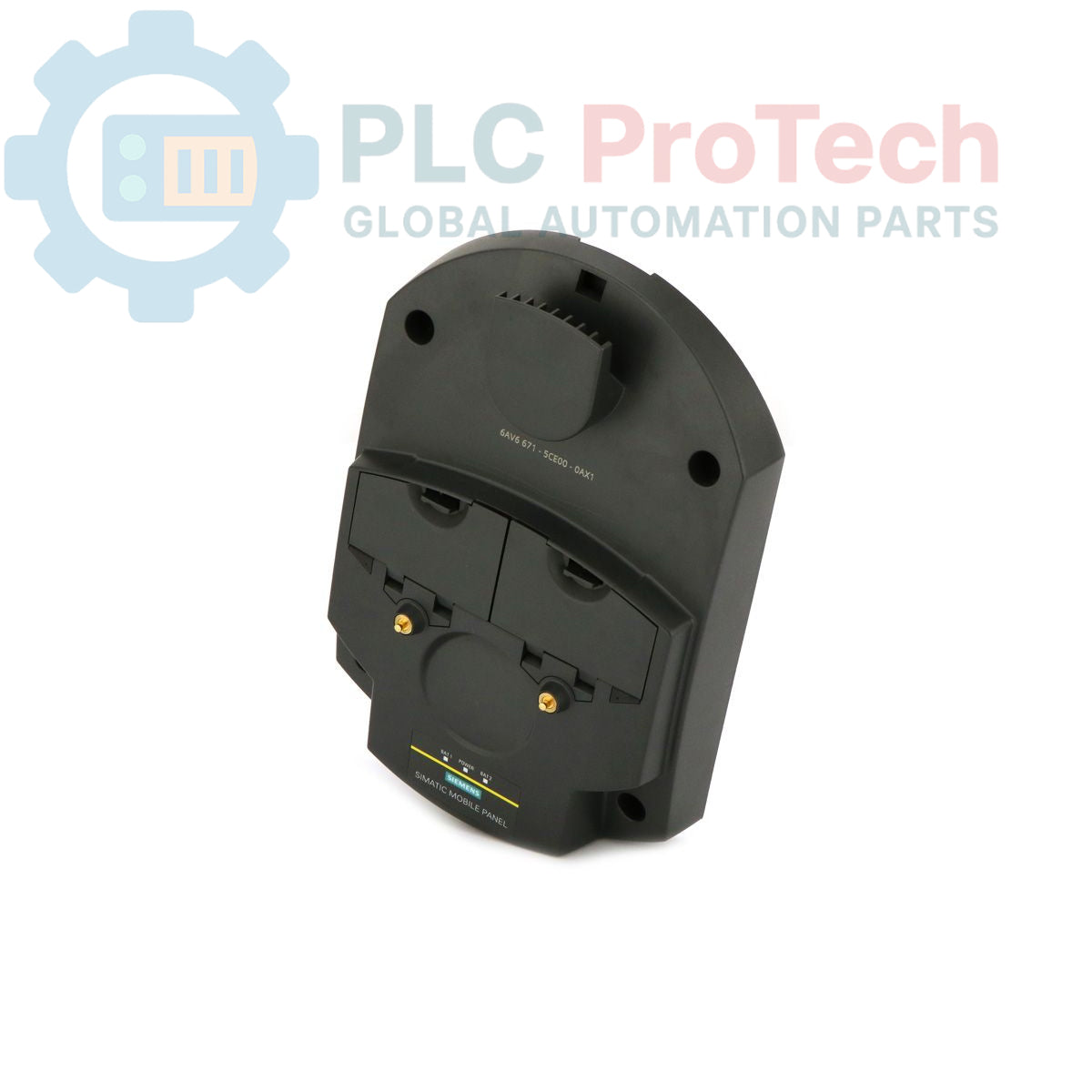

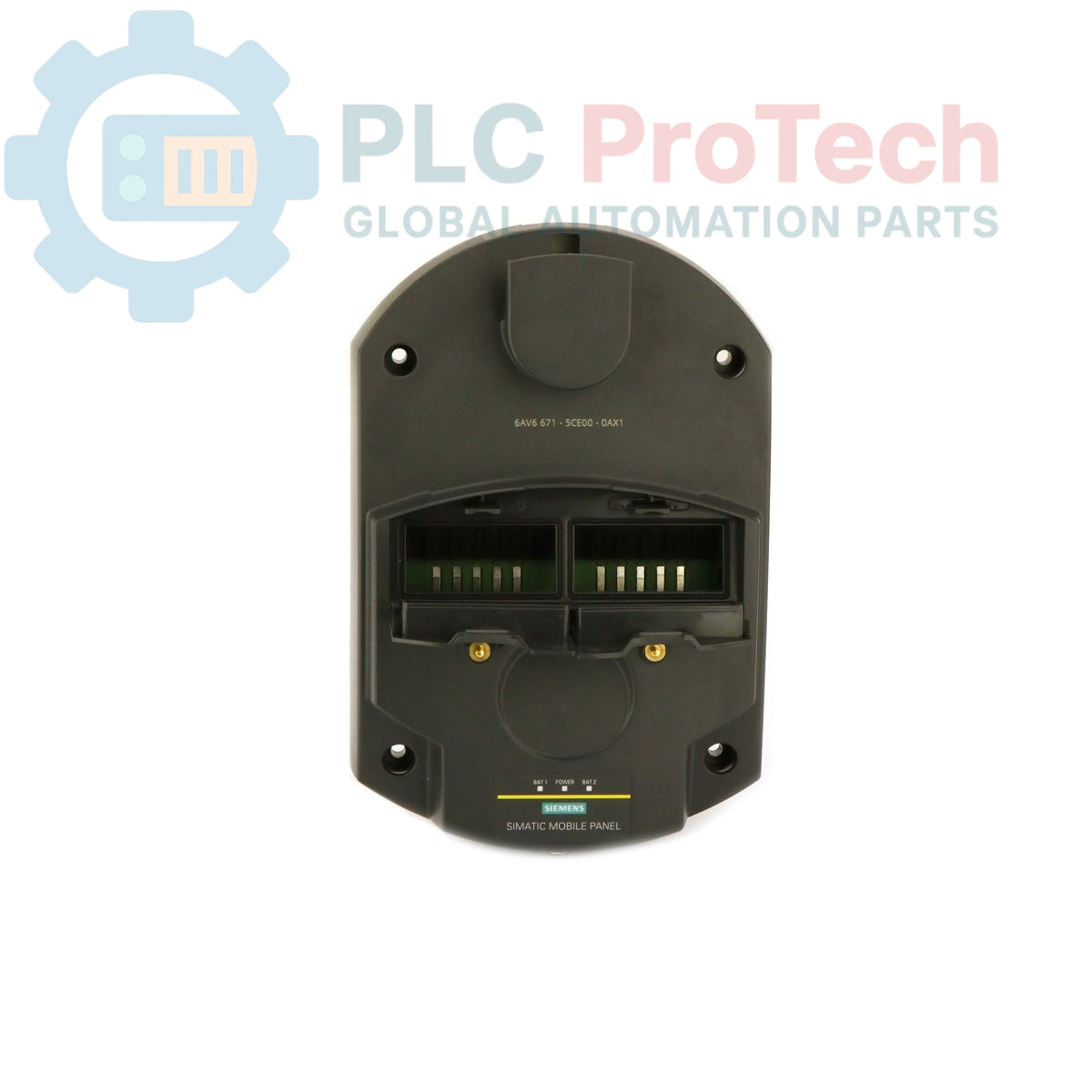

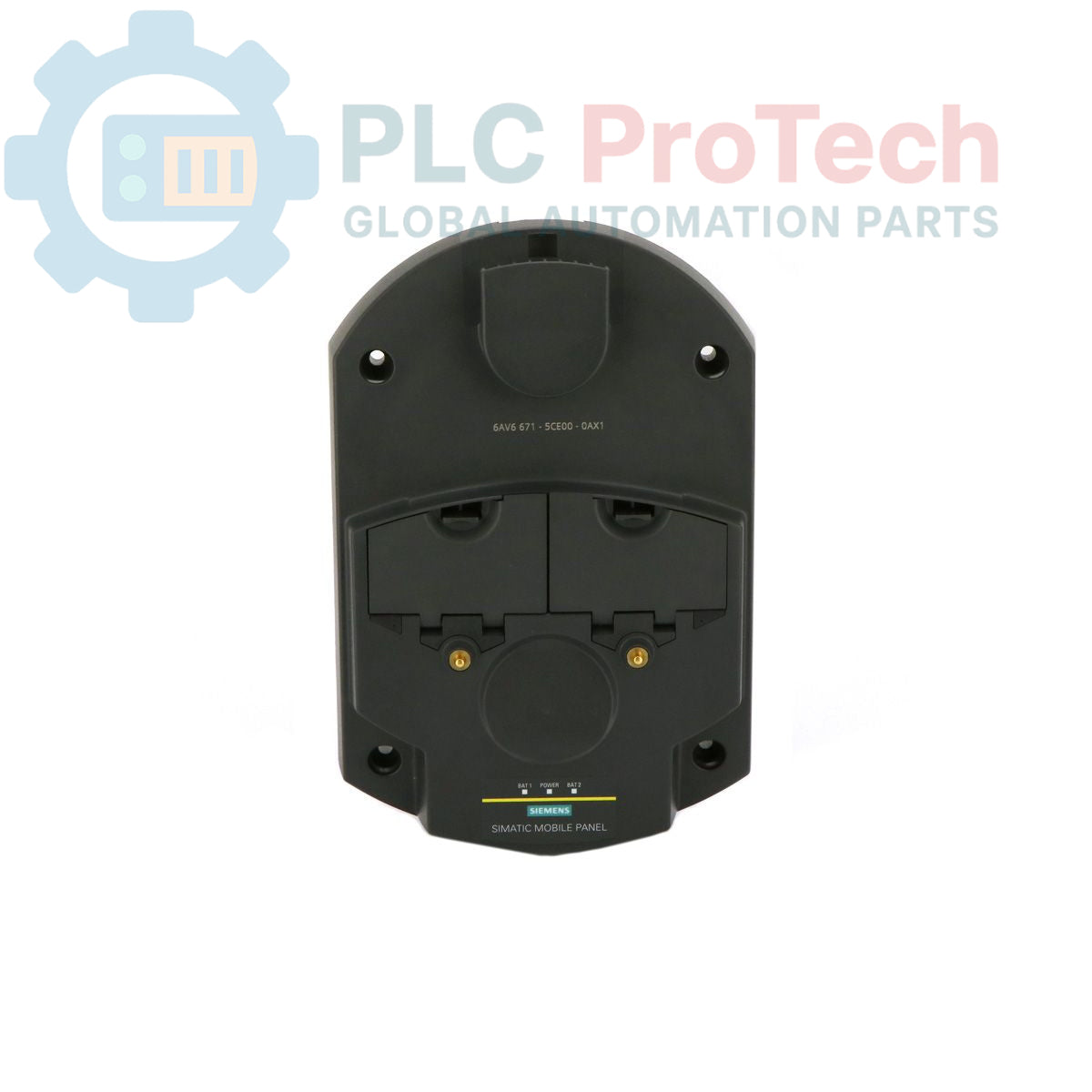

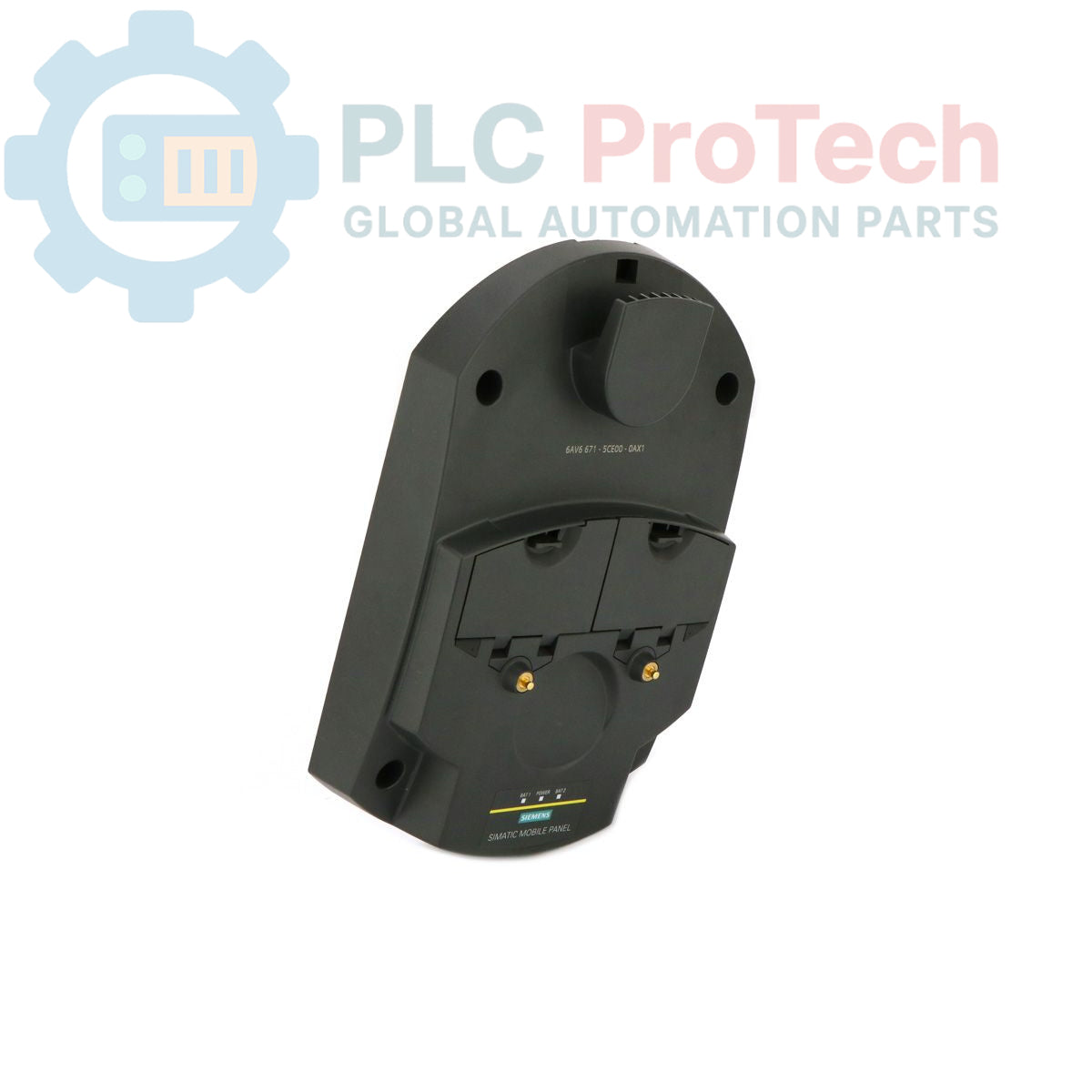

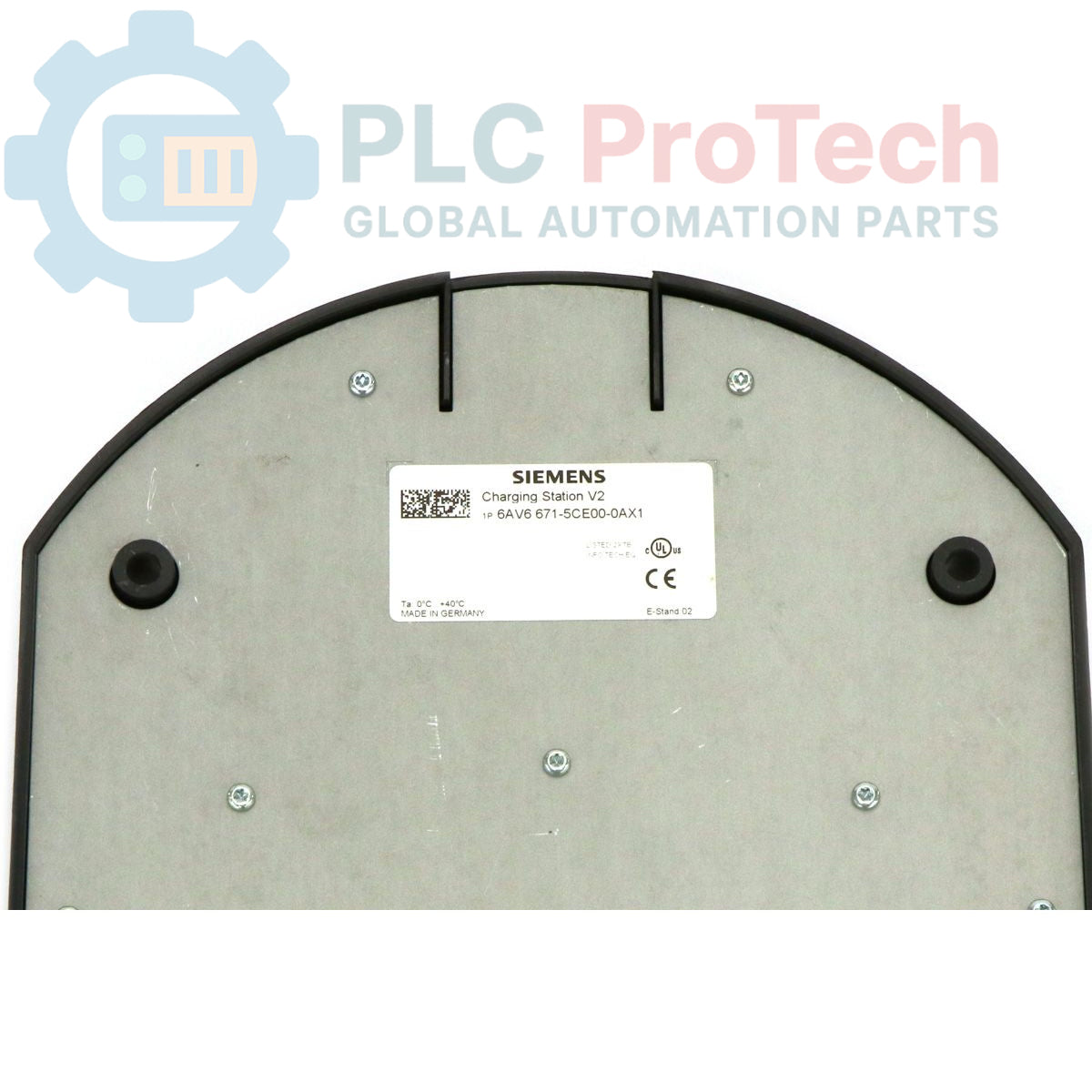

This is a charging station, Siemens model 6AV6671-5CE00-0AX1, designed for the SIMATIC HMI series. It provides a dedicated and secure solution for charging and storing the Mobile Panel 277(F) IWLAN. The unit is engineered to support continuous operations by simultaneously charging the main panel and two additional batteries. For enhanced security in industrial environments, the station is equipped with an integrated locking mechanism. Its robust construction ensures reliable performance and durability for maintaining the operational readiness of mobile HMI devices.

Features

• Designed specifically for the Siemens Mobile Panel 277(F) IWLAN.
• Charges one Mobile Panel and two spare batteries at the same time.
• Features an integrated lock for secure storage of the HMI device.
• Robust enclosure suitable for demanding industrial settings.

Applications

• Automated manufacturing and assembly lines
• Process control and monitoring in plant facilities
• Machine commissioning, diagnostics, and maintenance tasks
• Logistics and automated warehousing systems

Technical Specifications

Installation Guidelines

1. 1 Select a suitable location for the charging station. The surface must be stable, level, and capable of supporting the weight of the station and the HMI device. Ensure adequate clearance for ventilation and cable access.
2. 2 Securely mount the station to a wall or benchtop if required, using appropriate mounting hardware for the surface material. Verify the unit is firmly fixed and cannot be accidentally dislodged.
3. 3 Connect the specified power supply cord to the charging station's power input port. Route the cable safely to prevent tripping hazards or physical damage.
4. 4 Connect the power supply to a properly grounded mains outlet with the correct voltage rating. Do not use extension cords or multi-way adapters unless they are rated for industrial use.
5. 5 Perform an initial functional test by placing the Mobile Panel 277(F) IWLAN and any spare batteries into their respective slots. Confirm that the charging status indicators activate correctly.
