Description

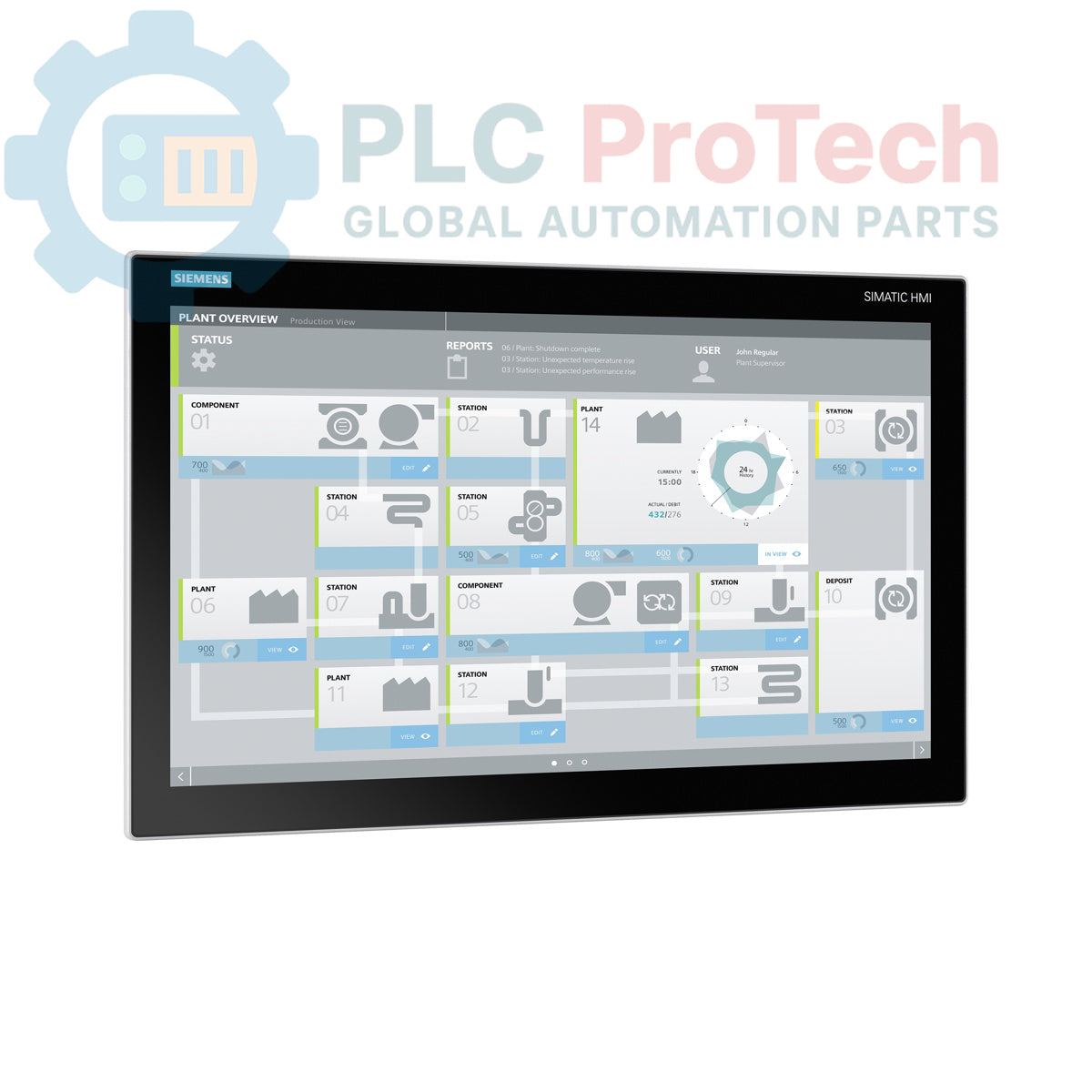

The Siemens 6AV7241-1BA07-0FA0 is a SIMATIC IPC 477E series industrial panel PC designed for demanding visualization and control tasks. This unit features a 15-inch widescreen touch display with a resolution of 1280 x 800 pixels, providing a clear and responsive human-machine interface (HMI). It is powered by an Intel Celeron G3902E processor and equipped with 4 GB of RAM and a 240 GB SATA solid-state drive for reliable, high-speed performance. Connectivity is robust, with a total of four Gigabit Ethernet interfaces, including three designated for PROFINET (IE/PN) networks, and multiple USB ports on both the front and rear panels. The system operates on a standard 24 V DC industrial power supply and comes pre-installed with the Windows 10 IoT Enterprise 2016 LTSB operating system.

Features

• 15-inch widescreen TFT touch display
• Intel Celeron G3902E processor
• 4 GB of main memory (RAM)
• 240 GB internal SATA Solid-State Drive (SSD)
• Integrated Intel HD Graphics
• Four Gigabit Ethernet interfaces for extensive network connectivity
• Front-accessible USB port for convenient data transfer
• Fanless design for maintenance-free operation in harsh environments
• Pre-installed with Windows 10 IoT Enterprise 2016 LTSB (64-bit)
• Operates on a 24 V DC power input

Applications

• Machine-level HMI and SCADA applications
• Process visualization and control in manufacturing
• Data acquisition and logging systems
• Industrial automation gateways
• Control rooms and operator stations

Technical Specifications

Installation Guidelines

1. 1 Panel Preparation: Ensure the control cabinet or panel has a clean, flat mounting surface. Prepare the panel cutout according to the dimensions specified in the device's mechanical drawings. Deburr all cutout edges to prevent damage to the IPC gasket.
2. 2 Mounting: Insert the Panel PC into the cutout from the front. Secure the unit from the rear using the provided mounting clamps. Tighten the clamp screws evenly in a diagonal pattern to ensure a uniform seal against the panel surface, maintaining the specified IP rating.
3. 3 Grounding: Connect the functional earth (FE) terminal on the IPC chassis to the control cabinet's central grounding point using a low-impedance conductor. A proper ground connection is essential for noise immunity and operator safety.
4. 4 Power Connection: Connect a stable, filtered 24 V DC power source to the IPC's power supply connector. Verify correct polarity before applying power. Use appropriately sized conductors for the current draw and route power cables separately from high-voltage or communication lines.
5. 5 Network and Peripheral Connections: Connect Ethernet cables to the appropriate RJ45 ports for plant network and PROFINET communication. Connect any required USB peripherals. Ensure all cables are properly secured and have adequate strain relief.
