Description

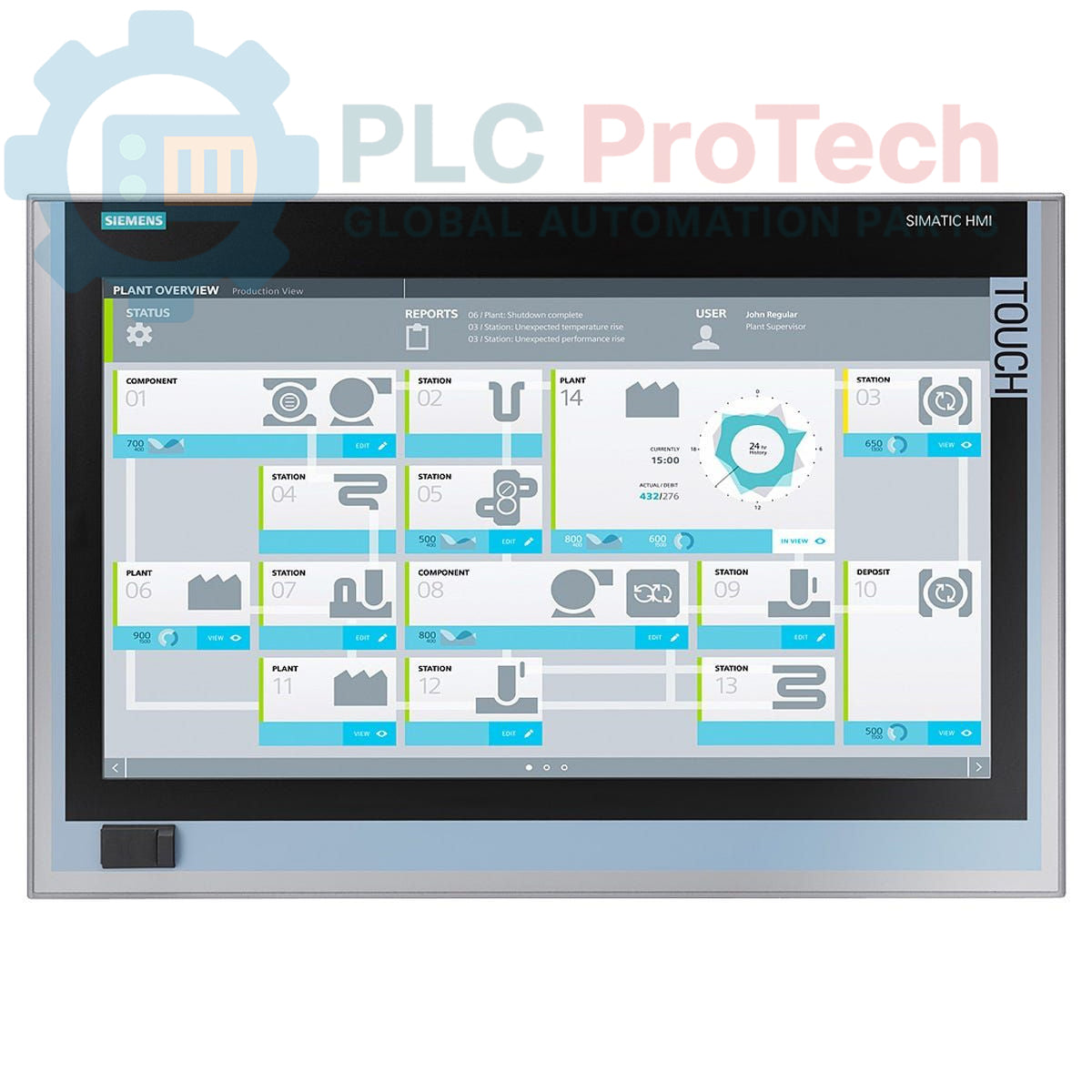

The Siemens 6AV7260-1GD20-0BX0 is a SIMATIC IPC677D Panel PC designed for industrial applications requiring robust computing and visualization capabilities. This unit features a 19-inch touch display with a resolution of 1366x768, providing an intuitive human-machine interface. It is equipped with an Intel Xeon E3-1268LV3 processor, 4 GB of DDR3 1600 DIMM RAM, and a 1 TB SATA hard drive. Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V3.0 ports (including front USB), and one serial (COM1) port. The IPC677D integrates a watchdog, temperature, and fan monitoring, along with an onboard RAID controller for enhanced system reliability. It comes pre-installed with Windows 7 Ultimate 64-bit SP1 (MUI) and is powered by an AC 110/230V industrial power supply unit with NAMUR compatibility.

Features

• Integrated 19-inch touch display (1366x768 resolution).
• Equipped with Intel Xeon E3-1268LV3 processor (4C/8T, 2.3 (3.3) GHz, 8 MB Cache VT-D, AMT).
• Includes 1 TB SATA HDD and 4 GB DDR3 1600 DIMM RAM.
• Multiple communication interfaces: 2x Gigabit Ethernet, 4x USB V3.0, 1x Serial (COM1).
• Onboard RAID controller for data redundancy.
• Watchdog, temperature, and fan monitoring functions for system stability.
• Pre-installed Windows 7 Ultimate 64-bit SP1 (MUI: DE, EN, FR, ES, IT).
• Industrial power supply unit (AC 110/230V) with NAMUR compatibility.
• Two PCI expansion slots (hardware without expansion).

Applications

The Siemens SIMATIC IPC677D Panel PC is suitable for a wide range of industrial automation tasks, including:

• Human-Machine Interface (HMI) and visualization in manufacturing environments.
• Data acquisition and processing in control rooms or on the plant floor.
• Supervisory Control and Data Acquisition (SCADA) systems.
• Machine control and embedded applications requiring a robust PC platform.
• Industrial workstations for process monitoring and operational control.

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Power Connection: Connect the Panel PC to an AC 110/230V power source using the provided Europe power supply cable. Ensure the power supply adheres to NAMUR standards if required for your application.
2. Grounding: Properly ground the Panel PC chassis to the industrial grounding system to ensure electrical safety and minimize electromagnetic interference.
3. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate ventilation for heat dissipation, especially for the integrated fan monitoring.
4. Peripheral Connections: Connect necessary peripherals such as keyboards, mice, or external storage devices to the available USB V3.0 ports. Utilize the Ethernet ports for network integration and the serial port (COM1) for legacy device communication.
5. Environmental Considerations: Install the Panel PC in an environment that complies with its specified operating conditions regarding temperature, humidity, and vibration to ensure long-term reliability.
6. Software Configuration: After hardware installation, configure the pre-installed Windows 7 Ultimate 64-bit SP1 operating system and any required application software for your specific control or monitoring tasks.
