Siemens 6AV7424-4AD00-0FE0 SIMATIC IPC277D Panel PC

SKU 6AV7424-4AD00-0FE0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7424-4AD00-0FE0
Origin Germany
Product Type: Panel PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 9.76 kg
Dimensions: 52.0 x 28.0 x 24.0 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

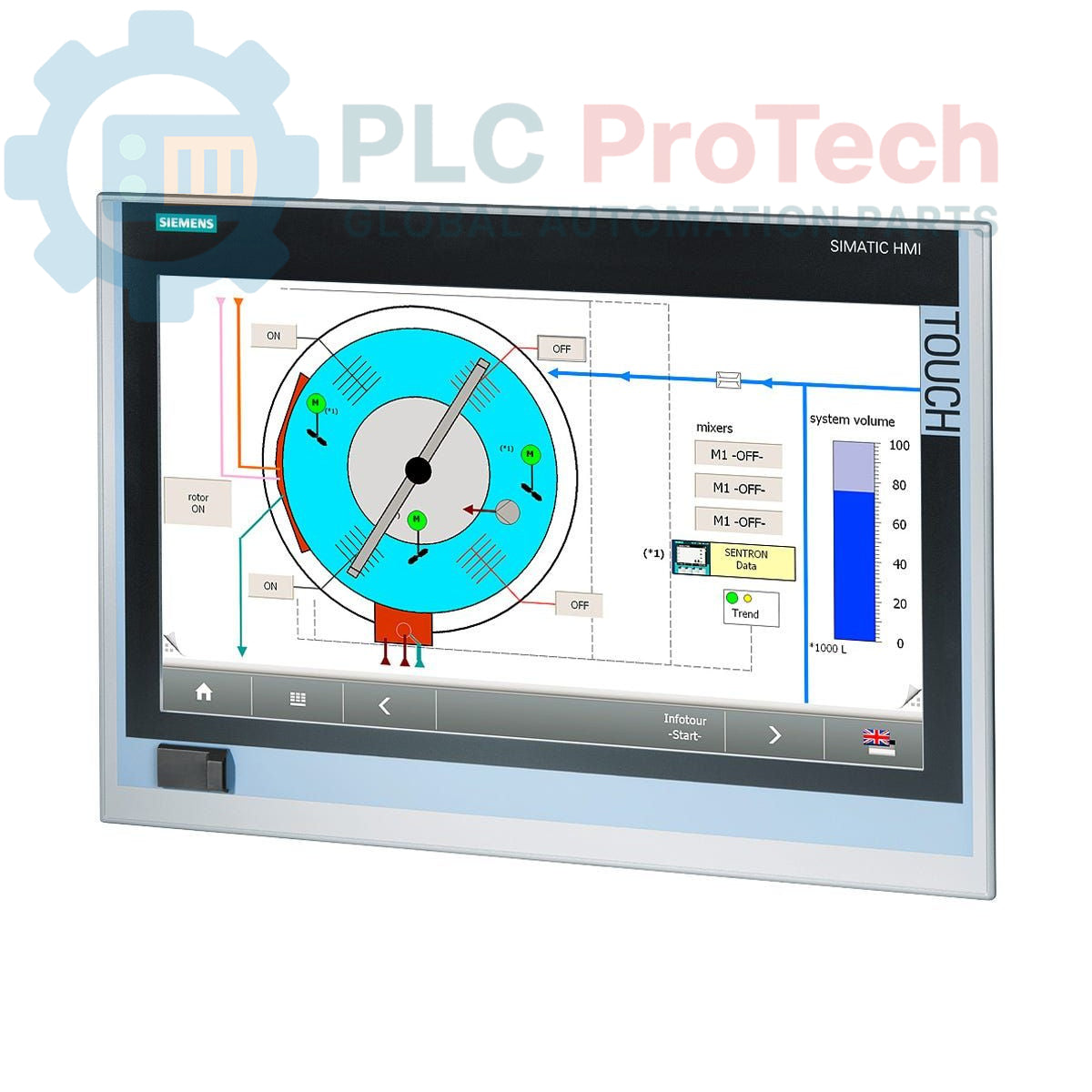

The Siemens 6AV7424-4AD00-0FE0 is a SIMATIC IPC277D Panel PC, configured as a customer-specific variant based on the 6AV7881-5AA00-2BA0 platform. This human-machine interface (HMI) features a 19-inch AGCO display and is designed for industrial control and visualization applications. The unit is equipped with an integrated 110/220V AC power supply and supports standard mounting via a VESA 100 interface. The rear panel provides IP20 protection for internal components in a control cabinet environment.

Features

■19-inch AGCO Display
■Integrated 110/220V AC Power Supply
■VESA 100 Mounting Standard (M6)
■IP20 Rated OEM Rear Panel
■Customer-Specific Configuration

Applications

■Machine-level operator control and monitoring
■Process visualization and data acquisition
■Factory automation and plant floor HMI
■Industrial computing tasks in controlled environments

Technical Specifications

Specification	Value
Brand	Siemens
Product Series	SIMATIC Panel PC IPC277D
Model Number	6AV7424-4AD00-0FE0
Base Model	6AV7881-5AA00-2BA0
Display Size	19 inch
Power Supply	110/220 V AC
Mounting	VESA 100 (M6 screws)
Rear Panel Protection	IP20
Product Lifecycle Status	Obsolete
Shipping Weight	9.76 kg
Package Dimensions (L x W x H)	52.00 x 28.00 x 24.00 cm
Commodity Code	85371091
ECCN	N
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: Hazardous voltages are present. Installation must be performed by qualified personnel only. Ensure all power sources are de-energized and locked out/tagged out (LOTO) before beginning any work. Failure to comply can result in severe injury or death.

1
Site Preparation: Select a mounting location that provides adequate ventilation and protects the unit from direct sunlight, excessive vibration, and corrosive atmospheres. Ensure the panel cutout or mounting arm is clean and free of burrs.
2
Mounting: Securely fasten the Panel PC to a VESA 100 compatible mounting arm or surface using four M6 screws. Ensure the mounting surface can safely support the unit's weight (9.76 kg). Do not overtighten the mounting screws.
3
Grounding: Connect the chassis ground terminal to the main system protective earth (PE) ground using a low-impedance conductor. A reliable ground connection is critical for both safety and noise immunity.
4
Power Connection: Connect the 110/220V AC power supply cable to a properly rated and protected power source. Ensure the source voltage matches the unit's requirements. Use appropriate strain relief for the power cable.
5
I/O and Communication Cabling: Connect all required communication and I/O cables. Route cables away from high-voltage lines and other sources of electromagnetic interference (EMI). Secure all connectors firmly.
