6AV7705-3DC10-0AD0

Siemens

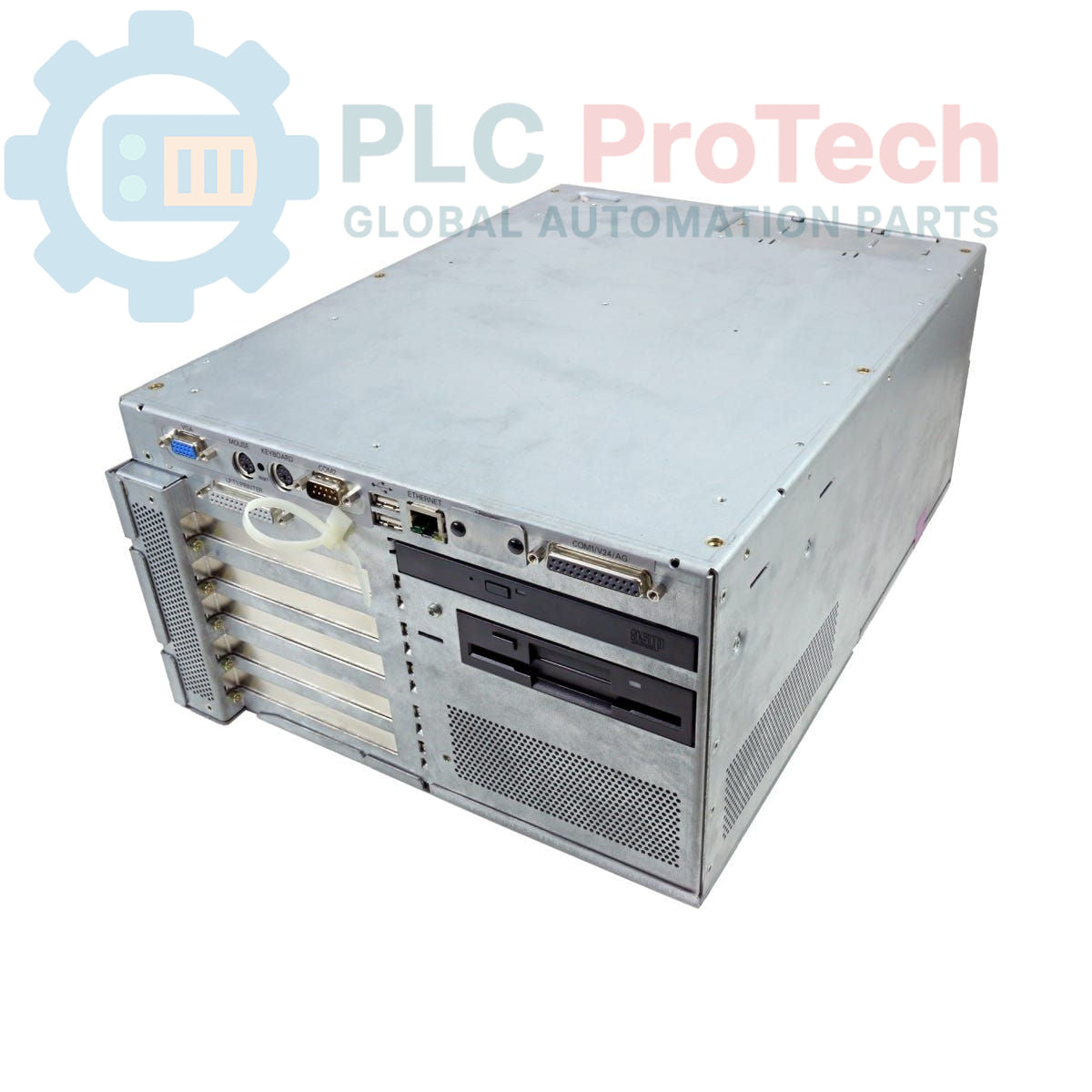

Siemens 6AV7705-3DC10-0AD0 SIMATIC Panel PC 870

SKU 6AV7705-3DC10-0AD0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7705-3DC10-0AD0
  • Origin Germany
  • Product Type: Panel PC
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.019 kg
  • Dimensions: 38.0 x 33.0 x 10.0 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI Panel PCs SIMATIC Panel PC
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV7705-3DC10-0AD0 is a SIMATIC Panel PC 870 standard configuration designed for industrial human-machine interface (HMI) and control applications. This unit features a 15.1-inch color TFT display, an Intel Pentium III 1.26 GHz processor, and 512 MB of RAM. It is equipped with a 40 GByte EIDE hard drive, an integrated CD-ROM, and comes pre-installed with the Windows 2000 multi-language operating system. The package includes a mains cable with a European plug for a 230V AC power source.

Features

  • 15.1-inch Color TFT Display for clear process visualization.
  • Intel Pentium III processor operating at 1.26 GHz.
  • 512 MB of system RAM for application support.
  • 40 GByte EIDE Hard Disk Drive for data and application storage.
  • Integrated CD-ROM drive for software installation and data transfer.
  • Pre-installed with Windows 2000 Multi-language (EN, DE, FR, IT, SP).
  • Includes a 230V mains cable with a European plug.

Applications

  • Machine-level operator control and monitoring.
  • Process visualization in manufacturing and production lines.
  • Data acquisition and logging systems.
  • Supervisory control in small to medium-sized automation systems.

Technical Specifications

Specification Value
Brand Siemens
Model 6AV7705-3DC10-0AD0
Product Series SIMATIC Panel PC 870
Product Type Panel PC
Product Lifecycle Status Obsolete
Display 15.1-inch Color TFT
Processor Pentium III, 1.26 GHz
Memory (RAM) 512 MByte
Storage 40 GByte HDD EIDE
Optical Drive CD-ROM
Operating System Windows 2000 Multi-language (EN, GER, FR, IT, SP)
Input Power 230V AC (with European plug)
Shipping Weight 19.00 kg
Package Dimensions 38.0 x 33.0 x 10.0 cm
Commodity Code 85371091
ECCN N
Country of Origin Germany (Estimate)
Manufacturer Siemens

Installation Guidelines

CRITICAL WARNING: RISK OF ELECTRIC SHOCK
Installation must be performed by qualified personnel only. Disconnect and lock out all power sources before accessing the control cabinet or performing any installation, wiring, or maintenance. Failure to de-energize equipment can result in severe injury or death.
  1. 1 Verify the panel cutout dimensions match the Panel PC's specifications to ensure a proper fit and seal.
  2. 2 Insert the Panel PC into the prepared cutout from the front of the enclosure or cabinet door.
  3. 3 From the rear, install and tighten all mounting clamps evenly around the perimeter of the unit to secure it firmly in place. Do not overtighten.
  4. 4 Connect a protective earth (PE) conductor to the designated grounding terminal on the chassis. This connection is critical for safety.
  5. 5 Connect the 230V AC power supply cable to the unit's power input terminal. Ensure the power source is compatible.
  6. 6 Connect all required communication, peripheral, and I/O cables. Ensure proper cable routing and strain relief.
  7. 7 After verifying all connections are secure and the cabinet is closed, restore power and commission the system.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What operating system is installed on the 6AV7705-3DC10-0AD0?
This Panel PC comes pre-installed with Windows 2000 Multi-language, which includes English, German, French, Italian, and Spanish.
What are the processor and RAM specifications?
The unit is equipped with an Intel Pentium III processor running at 1.26 GHz and includes 512 MBytes of RAM.
Is this product still in production by Siemens?
No, the 6AV7705-3DC10-0AD0 is classified as an obsolete product and is no longer in production.
What are the storage specifications for this Panel PC?
It includes a 40 GByte EIDE hard disk drive for primary storage and an integrated CD-ROM drive for software installation or data access.
What is the required input power for this device?
The device operates on a 230V AC power source. It is supplied with a mains cable featuring a European plug.
