Description

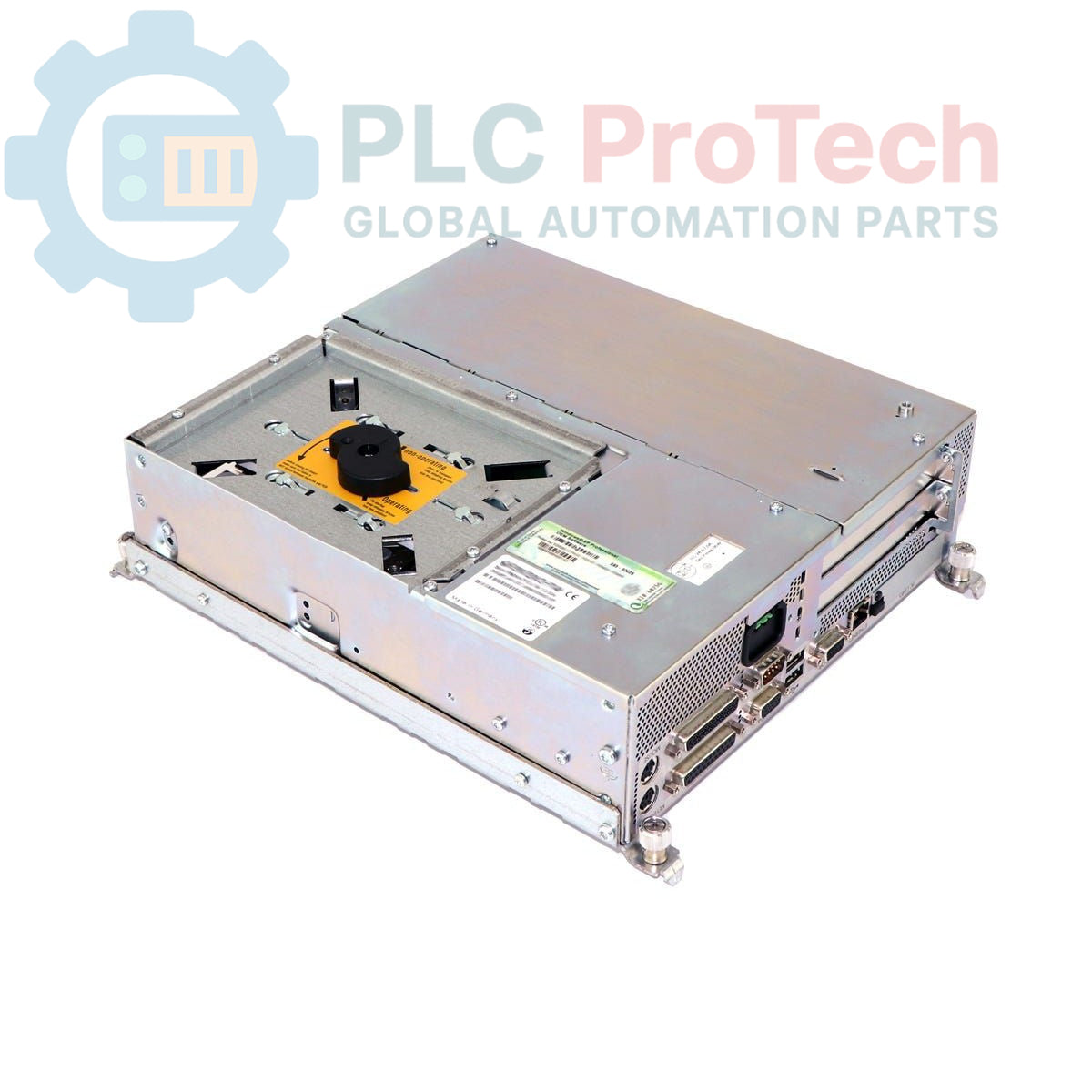

This is a Siemens SIMATIC Panel PC 670, model 6AV7726-1BA10-0AD0, designed for industrial human-machine interface (HMI) and control applications. This standard configuration unit features a 12.1-inch color TFT touchscreen display with a NEMA4-rated front interface for protection against dust and moisture. It is powered by a Pentium III 1.26 GHz processor and is equipped with 128 MB of SDRAM. The system operates on a 24V DC power supply and includes a 40 GB EIDE hard drive, a DVD-ROM drive, and comes pre-installed with the Windows 2000 multi-language operating system.

Features

• 12.1-inch Color TFT display with integrated touchscreen
• NEMA4 rated front panel for environmental resistance
• Powered by a Pentium III 1.26 GHz processor
• Includes 40 GB EIDE hard disk drive for local storage
• Integrated DVD-ROM optical drive
• Operates on a nominal 24V DC power input
• Pre-installed with Windows 2000 Multi-Language Edition

Applications

• Process visualization and control
• Machine-level data acquisition and logging
• Operator control stations in manufacturing environments
• Supervisory Control and Data Acquisition (SCADA) nodes
• Industrial automation gateways

Technical Specifications

Installation Guidelines

1. 1 Panel Cutout and Mounting: Prepare the control cabinet panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and rigid. Insert the Panel PC into the cutout from the front and secure it evenly using all provided mounting clamps to achieve the specified NEMA4 seal. Do not overtighten the clamps.
2. 2 Protective Earth (PE) Connection: Connect the chassis grounding terminal to the control cabinet's main protective earth busbar using a low-impedance conductor. This connection is critical for personnel safety and electromagnetic compatibility (EMC).
3. 3 Power Supply Wiring: Connect a stable, filtered 24V DC power source to the designated power input terminals. Verify correct polarity (+/-) before energizing. Use appropriately sized conductors and ensure connections are torqued to the specified value. Route power cables separately from high-noise or communication cables.
4. 4 Interface and Communication Cabling: Connect all required communication and I/O cables (e.g., Ethernet, serial). Ensure proper shielding and grounding practices are followed for all data cables to minimize interference. Secure all connectors firmly.
5. 5 Final Checks and Power-Up: After all connections are made and verified, remove LOTO devices and apply power to the unit. Observe the boot sequence and verify that the operating system loads correctly. Proceed with application-specific software configuration.
