Description

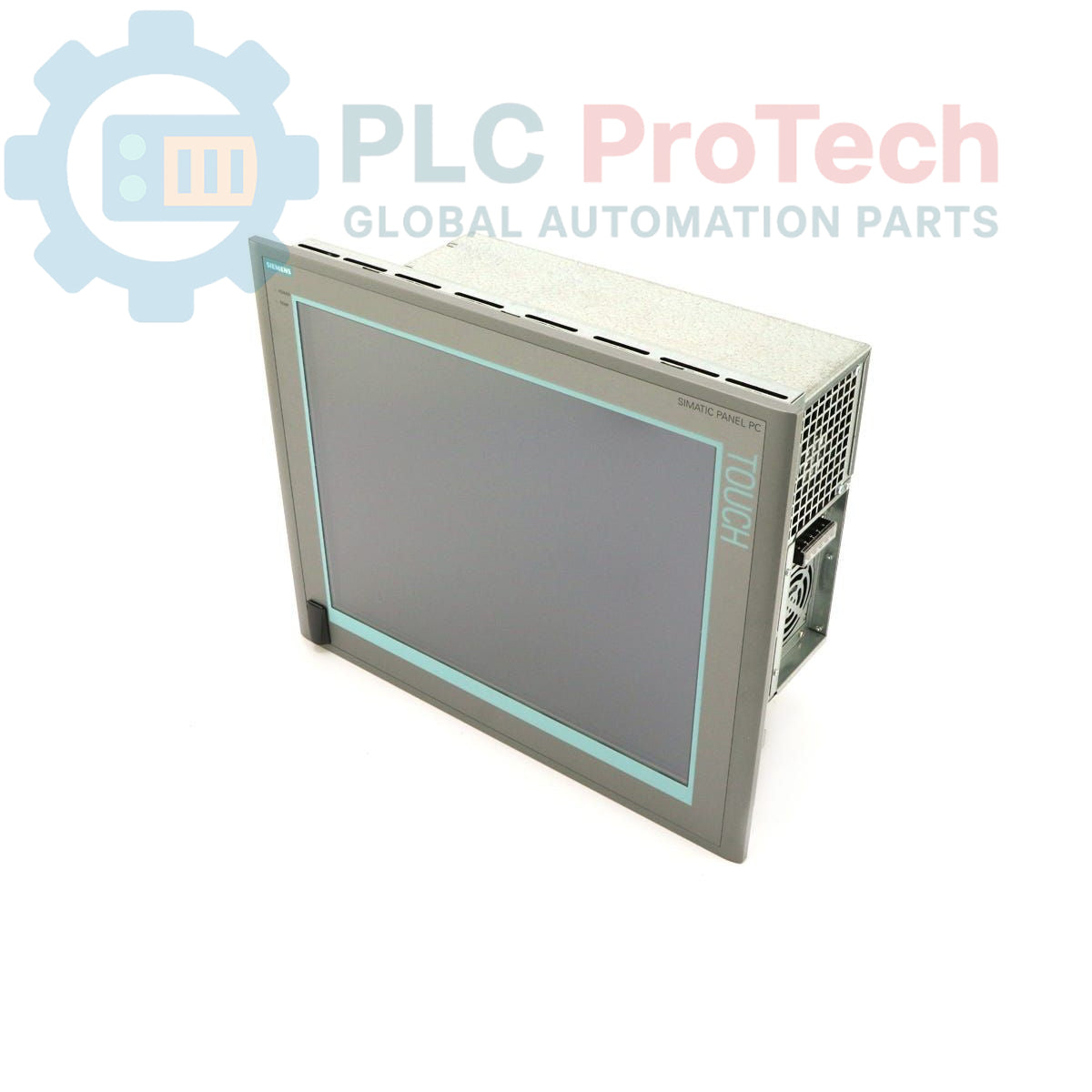

The Siemens 6AV7812-0BB21-1AC0 is a SIMATIC Panel PC 877, designed for industrial visualization and control applications. This unit features a 15-inch touch display with a resolution of 1024x768. It is equipped with a Pentium 4 2.8 GHz processor, 533 MHz FSB, and 512KB SLC cache. The system includes 1GB DDR266 SDRAM (configured as 2x512MB) and an 80 GBYTE EIDE 3.5" hard disk drive. An integrated DVD-ROM drive is also present. For connectivity, it provides a front-side USB interface. The Panel PC operates on an AC110-230V power supply and includes a power cable suitable for Europe. It comes pre-installed with Windows XP Professional MUI, supporting multiple languages (English, German, French, Italian, Spanish, Japanese, Chinese, and Korean). This model is currently in an obsolete product phase.

Features

• 15-inch touch display with 1024x768 resolution
• Front-side USB interface for peripheral connectivity
• Pentium 4 2.8 GHz processor with 533 MHz FSB and 512KB SLC
• 1GB DDR266 SDRAM (2x512MB configuration)
• 80 GBYTE EIDE 3.5" Hard Disk Drive
• Integrated DVD-ROM drive
• AC110-230V power input with Europe-specific power cable
• Pre-installed Windows XP Professional MUI (Multi-User Interface)

Applications

The SIMATIC Panel PC 877 is suitable for a range of industrial applications requiring robust computing and visualization, including:

• Human Machine Interface (HMI) for machine operation and process control
• Data acquisition and monitoring systems
• Industrial workstation for SCADA and MES applications
• Visualization and control in manufacturing and automation environments
• Embedded control systems requiring a local display and interaction

Technical Specifications

Installation Guidelines

1. De-energize System: Ensure all power to the installation area and connected equipment is completely de-energized and locked out before beginning installation.
2. Mounting: Securely mount the Panel PC into a suitable control cabinet or panel cutout. Ensure adequate space for ventilation and cable routing.
3. Power Connection: Connect the AC110-230V power supply to the designated power input terminal. Use the provided Europe power cable or an appropriate equivalent. Verify correct voltage and polarity before applying power.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis for safety and electromagnetic compatibility.
5. USB Interface: Connect any required USB peripherals to the front-side USB interface.
6. Environmental Considerations: Ensure the operating environment meets the specified temperature, humidity, and vibration ratings for industrial PC equipment to ensure reliable operation.
7. Initial Power-Up: After all connections are secure, apply power to the Panel PC. Monitor for proper boot-up and display functionality.
