Description

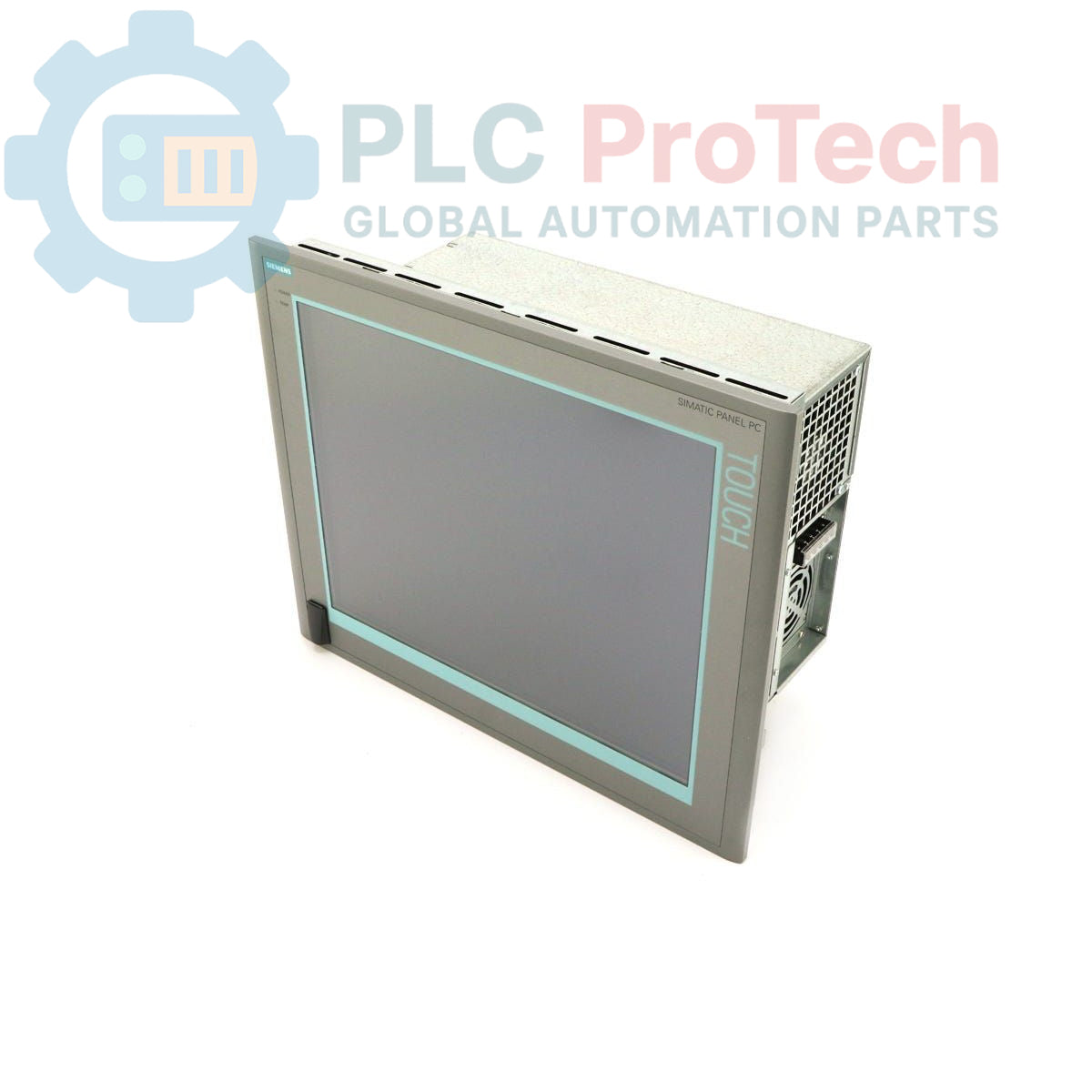

The Siemens 6AV7814-0BB11-1AB0 is a SIMATIC PANEL PC 877, an industrial touch panel PC designed for visualization and control tasks. This unit features a 19-inch touch display with a resolution of 1280x1024 pixels and includes a front-side USB interface for convenient connectivity. It operates on an AC110-230V power supply and comes with a power cable suitable for European regions. Internally, the panel PC is equipped with a Pentium 4 processor running at 2.8 GHz, supported by a 533 MHz Front Side Bus (FSB) and 512KB Secondary Level Cache (SLC). It includes 512MB DDR266 SDRAM (configured as 1x512MB), an 80 GBYTE EIDE 3.5" Hard Disk Drive, and a DVD-ROM drive. The system comes pre-installed with Windows 2000 Professional Multi-User Interface (MUI), supporting English, German, French, Italian, Spanish, Japanese, Chinese, and Korean languages.

Features

• 19-inch Touch Display with 1280x1024 Resolution
• Front Side USB Interface
• AC110-230V Power Supply
• Pentium 4 Processor, 2.8 GHz with 533 MHz FSB
• 512KB Secondary Level Cache (SLC)
• 512MB DDR266 SDRAM (1x512MB)
• 80 GBYTE EIDE 3.5" Hard Disk Drive
• Integrated DVD-ROM Drive
• Pre-installed Windows 2000 Professional MUI (Multi-User Interface)

Applications

The Siemens SIMATIC PANEL PC 877 is suitable for a range of industrial applications requiring robust human-machine interface (HMI) and data processing capabilities. Typical deployments include:

• Machine operation and control panels
• Process visualization and monitoring systems
• Data acquisition and logging in manufacturing environments
• Industrial workstation for SCADA or MES applications
• Building automation and facility management

Technical Specifications

Installation Guidelines

1. De-energize System: Before beginning any installation, ensure all power to the control cabinet or mounting location is completely disconnected and locked out according to safety procedures.
2. Mounting: Securely mount the panel PC into the designated panel cutout. Ensure all mounting clamps or screws are tightened evenly to prevent stress on the display and housing.
3. Power Connection: Connect the AC110-230V power supply to the appropriate terminal block on the rear of the panel PC. Verify correct polarity and secure all connections.
4. Grounding: Ensure proper grounding of the panel PC chassis to the control cabinet's protective earth (PE) busbar to minimize electrical noise and ensure safety.
5. USB Connections: Connect any necessary USB devices to the front-side USB interface.
6. Environmental Considerations: Ensure the installation location provides adequate ventilation and maintains the operating temperature and humidity within specified limits for industrial electronics. Avoid direct sunlight, excessive vibration, and corrosive atmospheres.
7. Cable Management: Route all power and interface cables to prevent strain, interference, and damage. Use cable ties and conduits where appropriate.
8. Power Up: Once all connections are secure and verified, restore power to the system and observe for proper boot-up and operation.
