Description

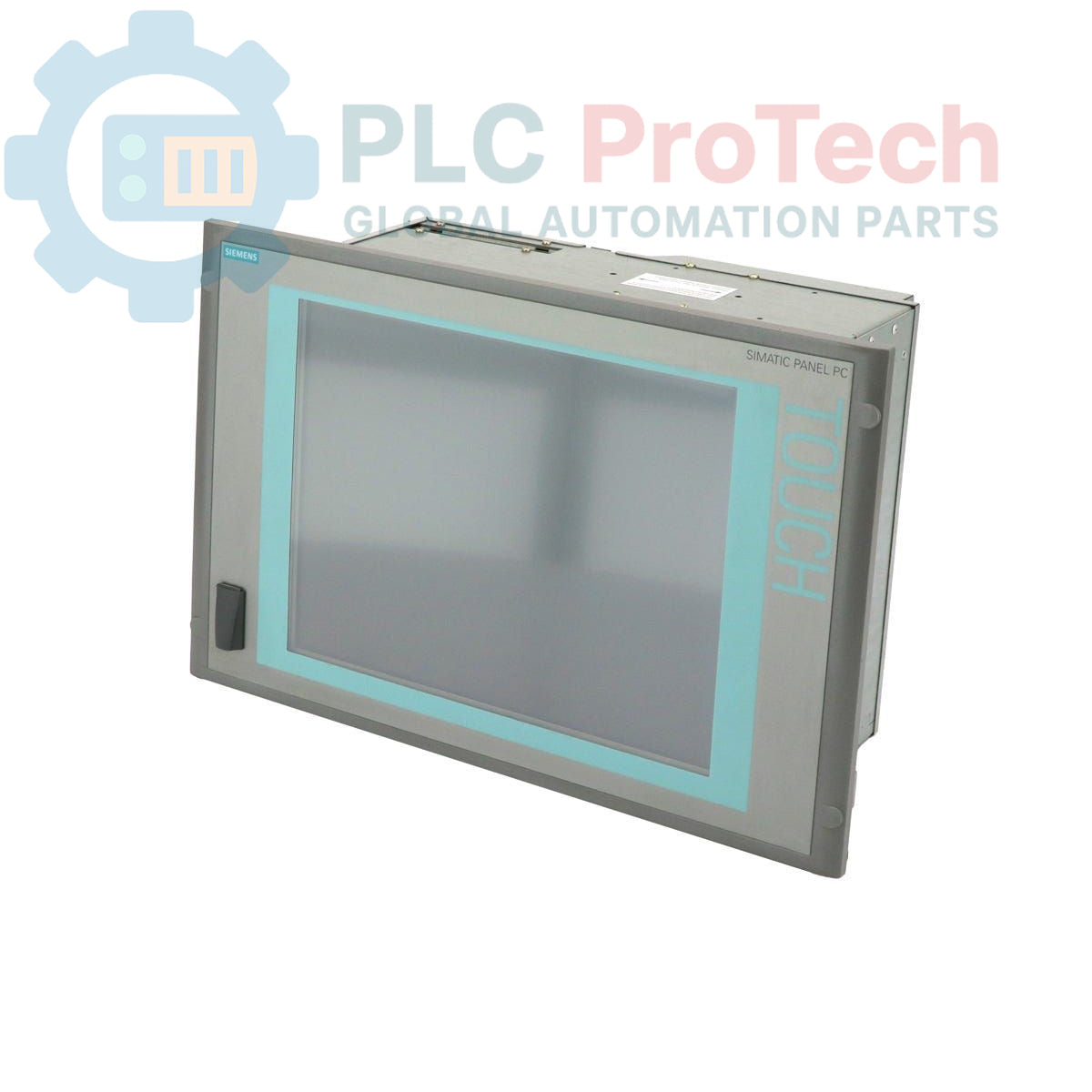

The Siemens 6AV7822-0AB10-1AC0 is a SIMATIC Panel PC 577 designed for control and monitoring applications in demanding industrial environments. This unit integrates a 15-inch touchscreen display with a native resolution of 1024x768 pixels for clear operator interaction. It is powered by an Intel Pentium 4 processor at 2.4 GHz and is equipped with 512 MB of DDR400 SDRAM. For data and application storage, the panel PC includes a 40 GB 2.5-inch hard disk drive and a DVD-ROM drive. The system comes pre-installed with Windows XP Professional SP2 MUI and is configured for a standard 110-230V AC power supply, including a European power cable.

Features

• 15-inch color touchscreen display
• 1024 x 768 pixel screen resolution
• Intel Pentium 4 processor operating at 2.4 GHz
• 512 MB DDR400 SDRAM (configured as 2x 256 MB)
• 40 GB 2.5-inch internal hard disk drive
• Integrated DVD-ROM optical drive
• Pre-installed Windows XP Professional SP2 MUI operating system
• Standard 110-230V AC power input

Applications

• Human-Machine Interface (HMI) for machine control
• Process visualization and SCADA clients
• Data logging and acquisition on the factory floor
• Production line monitoring and control stations
• Industrial computing in manufacturing environments

Technical Specifications

Installation Guidelines

1. 1 Prepare Enclosure: Ensure the panel cutout dimensions match the PC 577 specifications. The mounting surface must be clean, flat, and capable of supporting the unit's weight. Verify adequate clearance for ventilation and cable routing.
2. 2 Mount the Unit: Insert the Panel PC into the prepared cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to ensure a proper seal against the enclosure gasket. Do not overtighten.
3. 3 Establish Ground Connection: Connect the chassis ground terminal on the Panel PC to the enclosure's main protective earth (PE) bus bar using a low-impedance conductor. A reliable ground connection is critical for safety and noise immunity.
4. 4 Connect Power: Connect the AC power cable to the unit's power input connector. Route the power cable separately from signal and communication cables to minimize electromagnetic interference. Ensure the source voltage matches the 110-230V AC rating.
5. 5 Connect Peripherals: Connect all necessary communication cables (e.g., Ethernet, serial) and I/O devices. Ensure all connectors are fully seated and secured. Power on the unit only after all connections are made and the enclosure is safely closed.
