6AV7861-1TA00-1AA0

Siemens

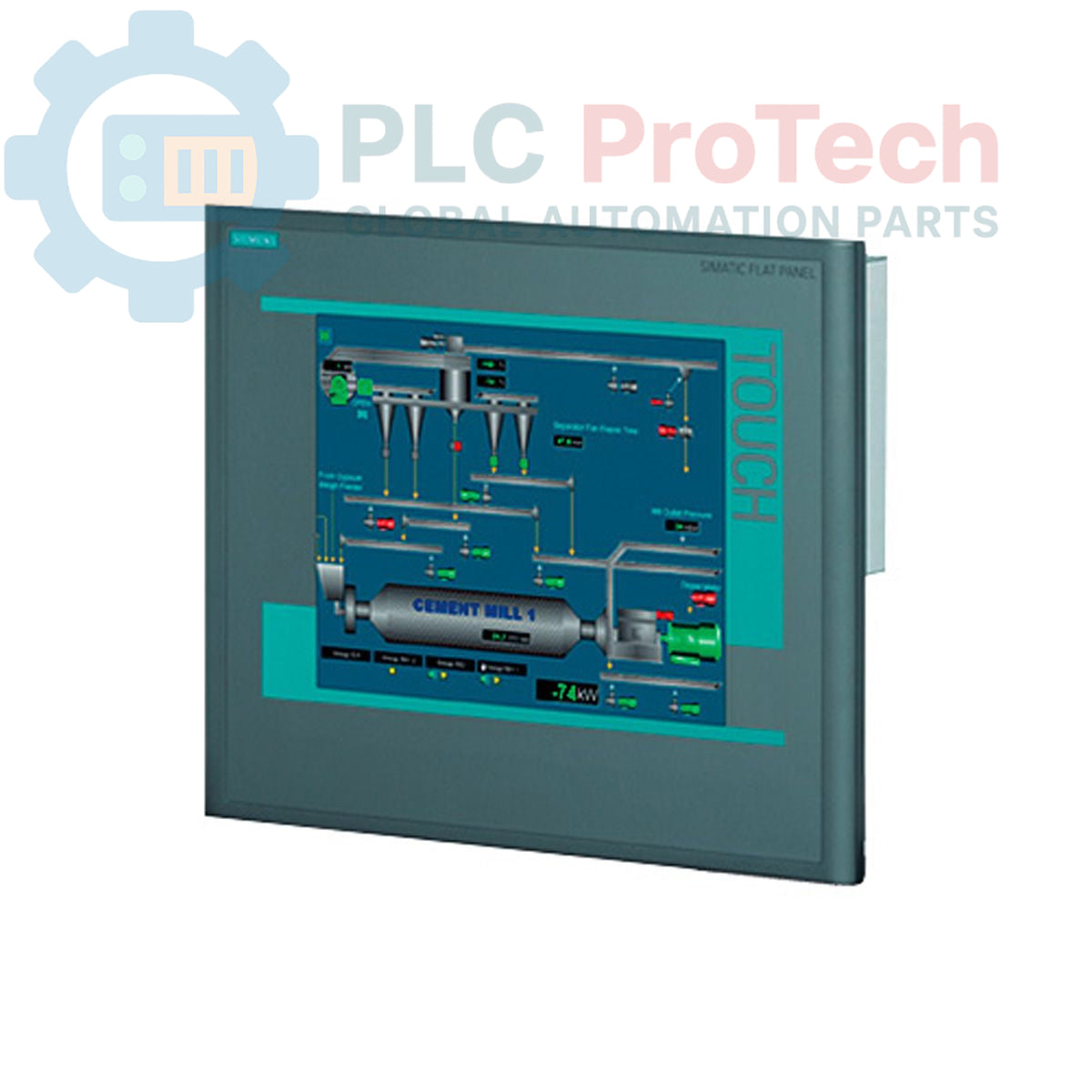

Siemens 6AV7861-1TA00-1AA0 SIMATIC FP 12T Flat Panel

SKU 6AV7861-1TA00-1AA0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7861-1TA00-1AA0
  • Origin Germany
  • Product Type: Flat Panel
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.003 kg
  • Dimensions: 54.00 x 51.00 x 23.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Flat Panels SIMATIC FP
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV7861-1TA00-1AA0 is a SIMATIC Flat Panel 12T, a 12-inch touch TFT screen designed for demanding industrial environments. This flat panel provides an 800 x 600 pixel resolution for clear visualization and user-friendly operation. It supports both VGA and DVI-I interfaces, allowing for flexible integration into various automation systems. The device operates on a 24 V DC input, making it suitable for consistent performance in production settings. Included with the 6AV7861-1TA00-1AA0 is a 1.8-meter VGA cable for immediate installation and setup.

Features

  • 12-inch touch TFT display
  • 800 x 600 pixel resolution
  • VGA and DVI-I interface support
  • 24 V DC power input
  • Designed for industrial environments
  • Includes 1.8 m VGA cable

Applications

  • Industrial Human-Machine Interface (HMI)
  • Process visualization and control
  • Machine operation and monitoring
  • Data display in production settings
  • Integration into automation systems requiring robust display solutions

Technical Specifications

Brand Siemens
Manufacturer Siemens
Range SIMATIC
Subrange FP
Product Type Flat Panel
PLM Product Phase Obsolete
Screen Size 12-inch
Display Type Touch TFT
Resolution 800 x 600 pixels
Input Voltage 24 V DC
Interfaces VGA, DVI-I
Included Cable 1.8 m VGA cable
Package Dimensions (Calculated) 54.00 x 51.00 x 23.00 cm
Shipping Weight 3.00 kg
Commodity Code 85371091
Export Control Regulations (ECCN) EAR99

Connections / Interfaces

The Siemens 6AV7861-1TA00-1AA0 Flat Panel supports standard video input via VGA and DVI-I interfaces. Power is supplied through a 24 V DC input. A 1.8-meter VGA cable is included for direct connection to a compatible video source.

Installation Guidelines

  1. De-energize System: Before beginning installation, ensure all power to the control cabinet or mounting area is completely de-energized and locked out according to safety procedures.
  2. Mounting: Securely mount the flat panel into the designated panel cutout or mounting bracket. Ensure proper ventilation clearances are maintained around the unit.
  3. Power Connection: Connect the 24 V DC power supply to the designated power terminals on the flat panel. Observe correct polarity to prevent damage.
  4. Video Connection: Connect the video source (e.g., industrial PC, controller) to the flat panel using either the VGA or DVI-I interface. Use the included 1.8 m VGA cable if applicable.
  5. Grounding: Ensure the flat panel and associated equipment are properly grounded to the system's protective earth.
  6. Cable Routing: Route all power and signal cables away from sources of electrical noise and mechanical stress. Use appropriate cable management techniques.
  7. Power Up: After all connections are verified, re-energize the system and test the flat panel's functionality.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the screen size and resolution of the 6AV7861-1TA00-1AA0?
The flat panel features a 12-inch touch TFT screen with an 800 x 600 pixel resolution.
What power input does this SIMATIC Flat Panel require?
It requires a 24 V DC power input for operation.
Which video interfaces are supported by this panel?
The panel supports both VGA and DVI-I video interfaces for connectivity.
Is a VGA cable included with the product?
Yes, a 1.8-meter VGA cable is included for immediate installation.
