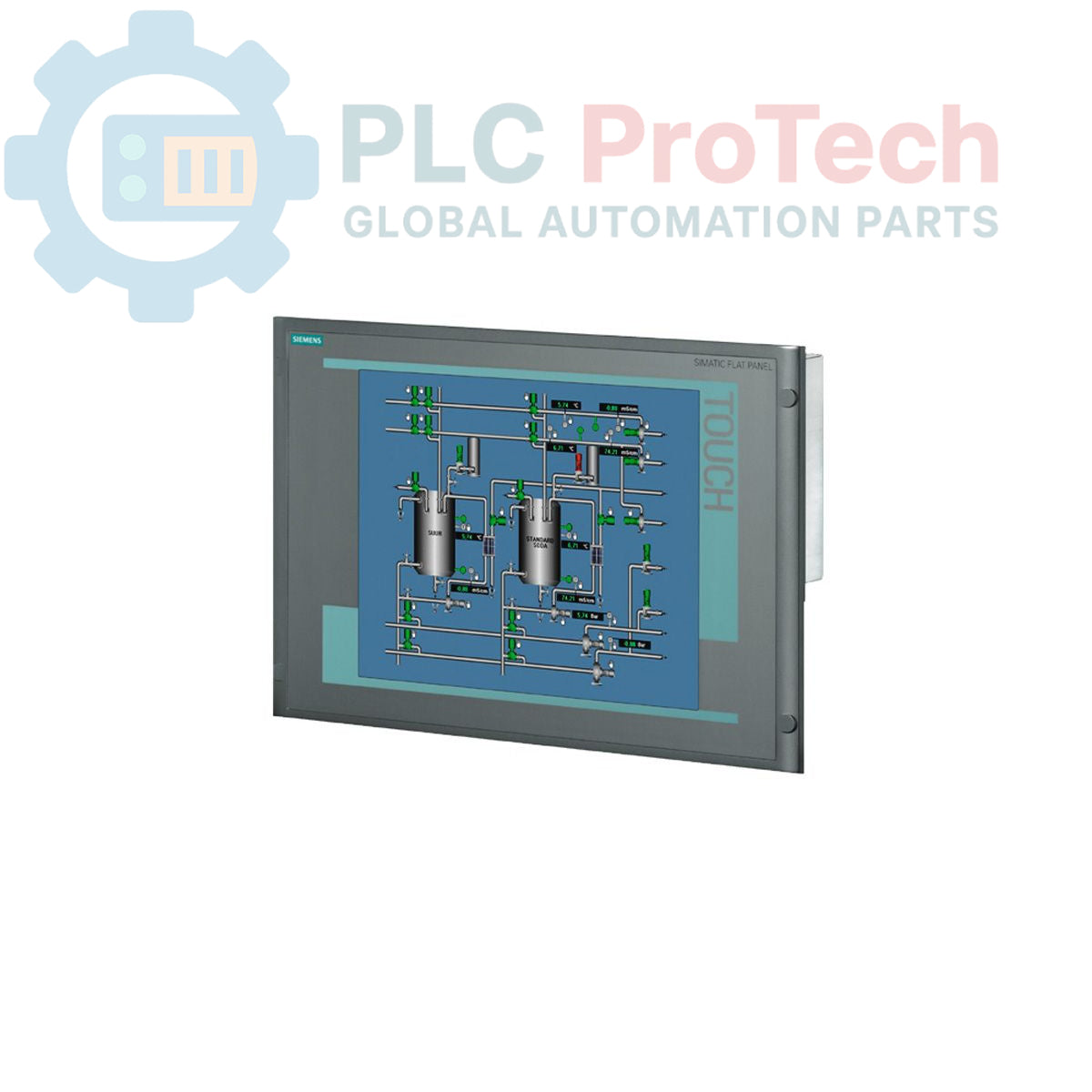

Siemens 6AV7861-2AB00-0AA0 SIMATIC FP Flat Panel Display

SKU 6AV7861-2AB00-0AA0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7861-2AB00-0AA0
  • Origin Germany
  • Product Type: Industrial Flat Panel Display
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.003 kg
  • Dimensions: 39.50 x 30.00 x 17.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Flat Panel Displays SIMATIC FP
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV7861-2AB00-0AA0 is a SIMATIC Flat Panel FP77-15 display designed for human-machine interface (HMI) applications in industrial environments. This unit features a 15-inch TFT screen with a native resolution of 1024 x 768 pixels, providing clear and detailed visualization for process monitoring and control. It offers versatile power integration with support for both 24V DC and 120/240V AC inputs. Connectivity is handled through standard VGA and DVI-D interfaces, ensuring compatibility with a wide range of industrial PCs and controllers.

Features

  • 15-inch TFT active-matrix display
  • Resolution of 1024 x 768 pixels
  • Flexible power supply options: 24V DC or 120/240V AC
  • Dual video inputs: VGA and DVI-D
  • Includes a 1.8-meter VGA cable for immediate setup
  • Engineered for continuous operation in industrial settings

Applications

  • Process visualization and control
  • Machine control panels
  • Data monitoring stations
  • Factory automation systems
  • Industrial PC display units

Technical Specifications

Specification Value
Brand Siemens
Product Series SIMATIC FP
Model Number 6AV7861-2AB00-0AA0
Product Type Flat Panel Display
Display Size 15 inch
Display Technology TFT
Resolution 1024 x 768 pixels
Power Supply 24V DC and 120/240V AC
Video Interfaces VGA, DVI-D
Included Accessories VGA Cable (1.8 m)
PLM Product Phase Obsolete
Shipping Weight 3.00 kg
Package Dimensions 39.50 x 30.00 x 17.00 cm
Commodity Code 85371091
ECCN EAR99
Country of Origin Germany (Estimated)

Installation Guidelines

CRITICAL WARNING: Installation must be performed by qualified personnel only. Failure to adhere to safety protocols, including Lockout/Tagout (LOTO) procedures, can result in severe electrical shock, equipment damage, or personal injury.
  1. 1 De-energize the main control panel and apply appropriate Lockout/Tagout (LOTO) devices before beginning any installation work.
  2. 2 Verify the panel cutout dimensions match the display's mounting requirements. Ensure the mounting surface is clean, flat, and can support the unit's weight.
  3. 3 Insert the display into the panel cutout and secure it using the provided mounting hardware. Tighten fasteners evenly to ensure a proper seal.
  4. 4 Connect the appropriate power supply (24V DC or 120/240V AC) to the power input terminal. Ensure correct polarity for DC connections.
  5. 5 Connect the video source to either the VGA or DVI-D port using a shielded cable. Secure the cable connectors.
  6. 6 After verifying all connections are secure, remove LOTO devices and re-energize the control panel to test display functionality.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What are the power supply requirements for this display?
The 6AV7861-2AB00-0AA0 supports dual power inputs, accepting either 24V DC or 120/240V AC, providing flexibility for various industrial panel configurations.
What video inputs does this panel support?
This SIMATIC Flat Panel is equipped with both a VGA (D-sub) and a DVI-D interface for video connectivity.
What is the screen resolution of the 6AV7861-2AB00-0AA0?
The display features a native resolution of 1024 x 768 pixels on its 15-inch TFT screen.
Is a video cable included with the purchase?
Yes, a 1.8-meter VGA cable is included with the unit to facilitate immediate installation.
What is the product lifecycle status of this model?
The Siemens 6AV7861-2AB00-0AA0 is classified with a PLM (Product Lifecycle Management) status of 'Obsolete', meaning it is no longer in active production but may be available as a spare part.
