Description

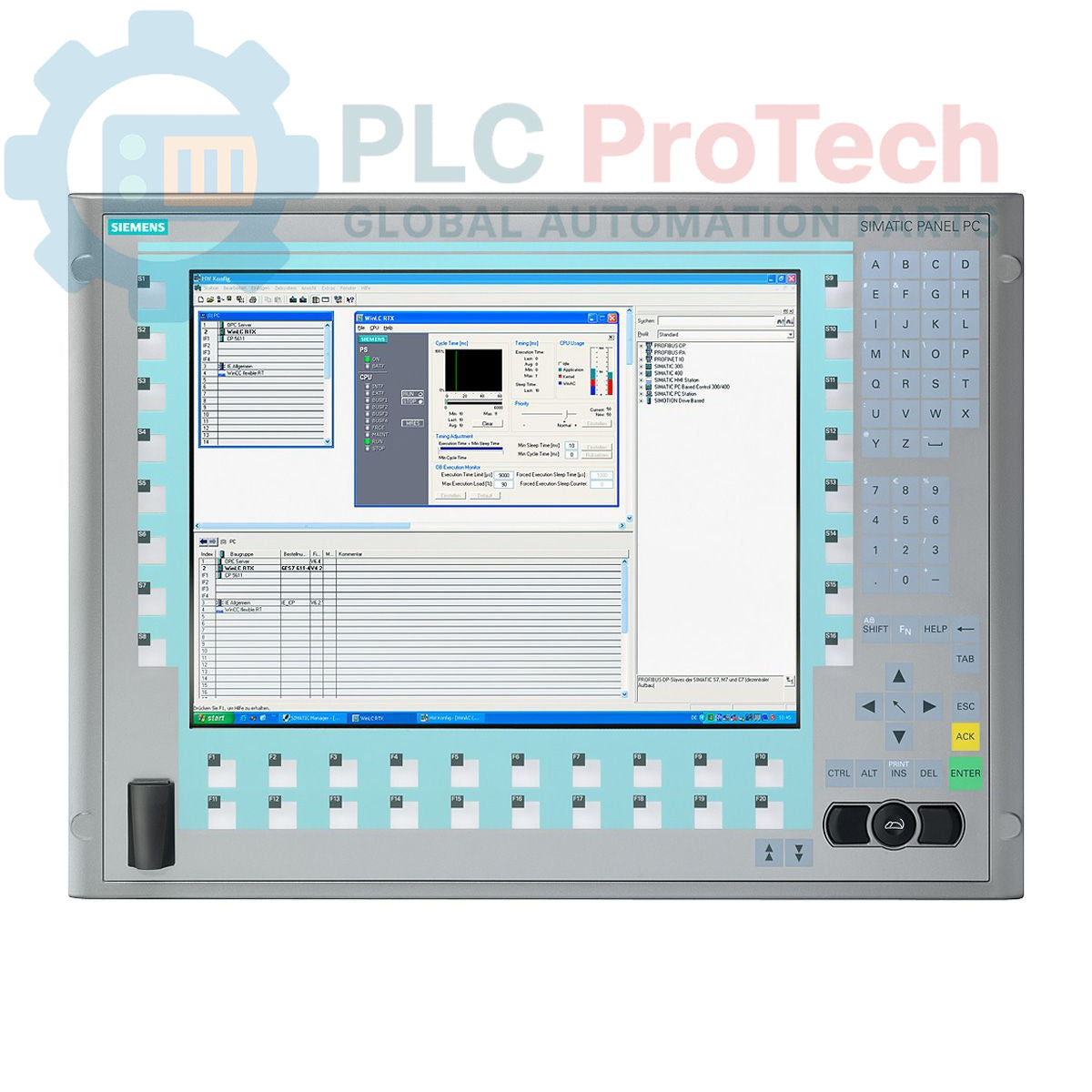

The Siemens 6AV7893-0BE30-1AB0 is a SIMATIC HMI IPC677C Panel PC designed for robust and reliable operation in demanding industrial environments. This unit integrates a 15-inch display with a 1024 x 768 resolution and an accessible front-side USB interface. It is equipped with an Intel Core i3-330E processor (2 cores, 4 threads, 2.13 GHz), 4 GB DDR3 memory, and a 250 GB SATA hard disk, along with a DVD+-R+-RW drive for data storage and software installation. The 6AV7893-0BE30-1AB0 features extensive connectivity, including two Gigabit Ethernet ports, four USB 2.0 ports, one serial COM1 port, and an onboard CP 5611-A2-compatible interface for PROFIBUS/MPI. Enhanced reliability features include a built-in RAID controller, 2 MB buffered SRAM, and watchdog, temperature, and fan monitoring. It comes pre-installed with Windows XP Professional SP3 MUI, supporting multiple languages (German, English, French, Spanish, Italian), and is powered by a 110/230 V AC supply unit with NAMUR standard, complete with a European power cable.

Features

• Integrated 15-inch display with 1024 x 768 resolution
• Intel Core i3-330E processor (2 cores, 4 threads, 2.13 GHz, HT, VT, 3 MB cache)
• 4 GB DDR3 1066 DIMM RAM
• 250 GB SATA Hard Disk Drive and DVD+-R+-RW optical drive
• Dual Gigabit Ethernet ports (2x 10/100/1000 Mbit/s)
• Four USB V2.0 ports (including front-side USB-Schnittstelle)
• One serial (COM1) port
• PROFIBUS/MPI (CP 5611-A2-compatible) interface
• Onboard RAID controller and 2 MB buffered SRAM
• Watchdog, temperature, and fan monitoring functions
• 110/230 V AC power supply unit with NAMUR standard
• Pre-installed Windows XP Professional SP3 MUI (de, en, fr, es, it)
• Two free PCI expansion slots

Applications

The Siemens SIMATIC HMI IPC677C Panel PC is suitable for a wide range of industrial applications requiring integrated control, monitoring, and visualization capabilities. Typical deployments include:

• Machine control and operation within manufacturing environments
• Process visualization and data acquisition in industrial plants
• Human-Machine Interface (HMI) applications for production lines
• Industrial data logging and archiving solutions
• Front-end computing for Distributed Control Systems (DCS) and Supervisory Control and Data Acquisition (SCADA) systems

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Ensure all power to the installation area and associated equipment is completely de-energized and locked out before beginning any work.
2. Mounting: Securely mount the Panel PC into a prepared panel cutout, ensuring proper sealing to maintain the specified IP rating of the front panel.
3. Power Connection: Connect the provided European power cable to the 110/230 V AC power supply unit, adhering to local electrical codes and safety standards. Verify correct voltage and grounding.
4. Grounding: Establish a robust protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Interface Cabling: Connect Ethernet, USB, and serial communication cables to their respective ports. Ensure proper cable routing to avoid strain and interference.
6. PROFIBUS/MPI Connection: If utilizing the PROFIBUS/MPI interface, connect the bus cable according to the PROFIBUS standard, ensuring correct termination and shielding.
7. Environmental Considerations: Ensure the installation environment is within the specified operating temperature and humidity ranges to prevent damage and ensure reliable operation.
8. Power On: After all connections are verified, re-energize the system and observe for proper startup and functionality.
