Description

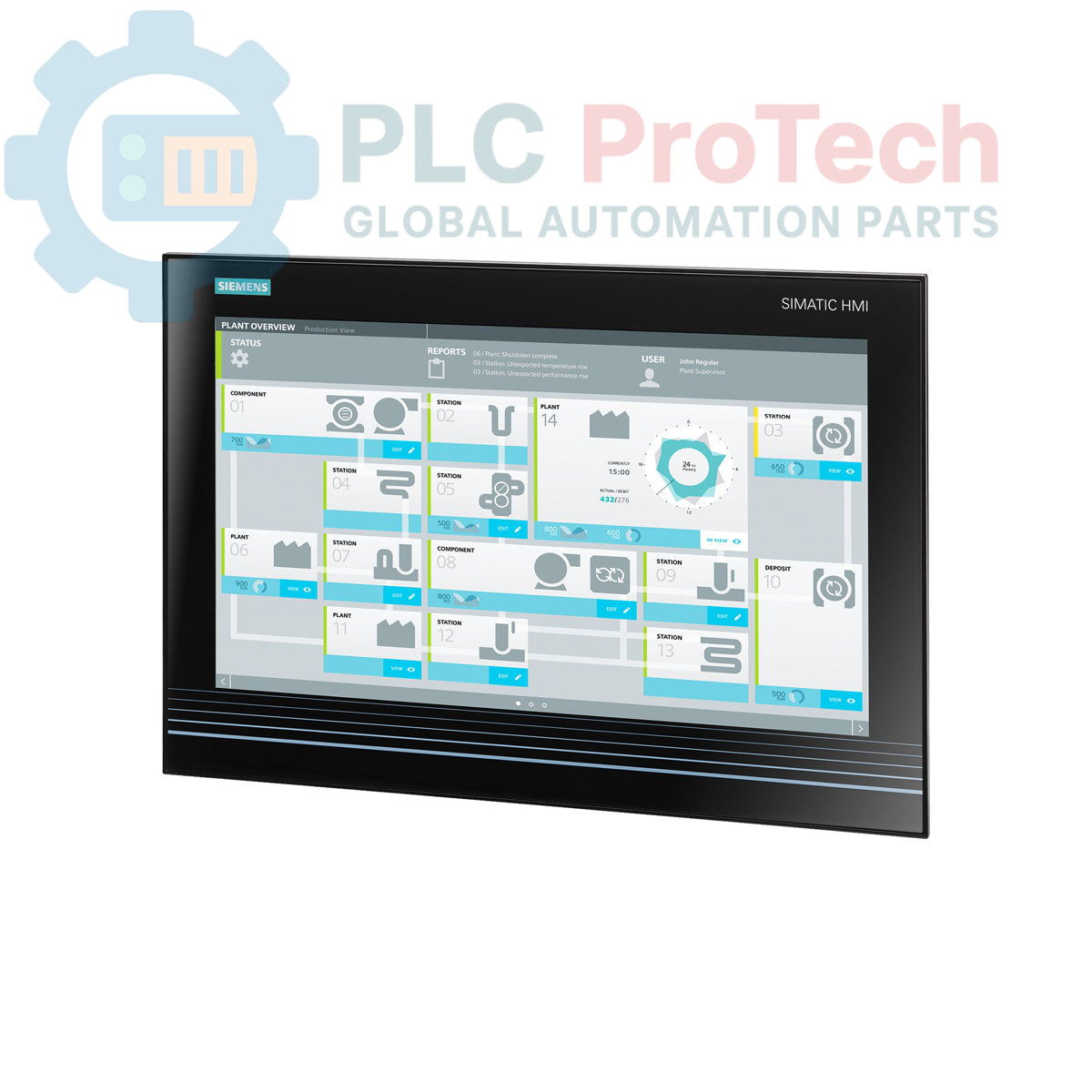

This device is a Siemens 6AV7863-2MB10-0AA0 SIMATIC IFP1500, a 15-inch industrial flat panel display designed for demanding automation environments. It features a widescreen 16:9 aspect ratio with multitouch capability for intuitive operator control. This extended version is engineered for signal transmission up to a distance of 30 meters. The unit offers flexible power options, accepting both 24 V DC and 100-240 V AC inputs, and provides DisplayPort and DVI video interfaces for connectivity. A 1.8-meter DVI/USB cable is included for immediate setup.

Features

• 15-inch widescreen display with a 16:9 aspect ratio
• High-resolution screen with 1366 x 768 pixels
• Responsive multitouch operator interface
• Extended version supports signal transmission up to 30 meters
• Dual power supply compatibility for 24 V DC or 100-240 V AC
• Standard video inputs: DisplayPort and DVI
• Includes a 1.8 m DVI/USB combination cable

Applications

• Machine-level operator control and monitoring
• Process visualization in manufacturing and production lines
• Human-Machine Interface (HMI) for industrial machinery
• SCADA system monitoring stations
• Data display in control rooms and automation cells

Technical Specifications

Installation Guidelines

1. 1
   Prepare Mounting Location: Verify that the panel cutout dimensions match the display's specifications. Ensure the mounting surface is clean, flat, and can support the unit's weight.
2. 2
   Secure the Unit: Insert the flat panel into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's recommended torque to ensure a proper seal.
3. 3
   Connect Protective Earth: Connect the protective earth (PE) or grounding terminal first using a wire of the appropriate gauge. A secure ground connection is critical for safety and noise immunity.
4. 4
   Connect Signal Cables: Connect the DisplayPort or DVI cable for video and the USB cable for the touch interface. Ensure connectors are fully seated and secured.
5. 5
   Connect Power Supply: Connect the 24 V DC or 100-240 V AC power supply to the appropriate terminals. Verify the source voltage matches the selected input.
6. 6
   Final Checks: Secure all cables with appropriate strain relief to prevent accidental disconnection. After verifying all connections, remove the LOTO and energize the system for testing.
