Siemens 6AV7873-0BE50-0AC0 SIMATIC Panel PC 677B

SKU 6AV7873-0BE50-0AC0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7873-0BE50-0AC0
Origin Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 0.017 kg
Dimensions: 67.00 x 83.00 x 11.50 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

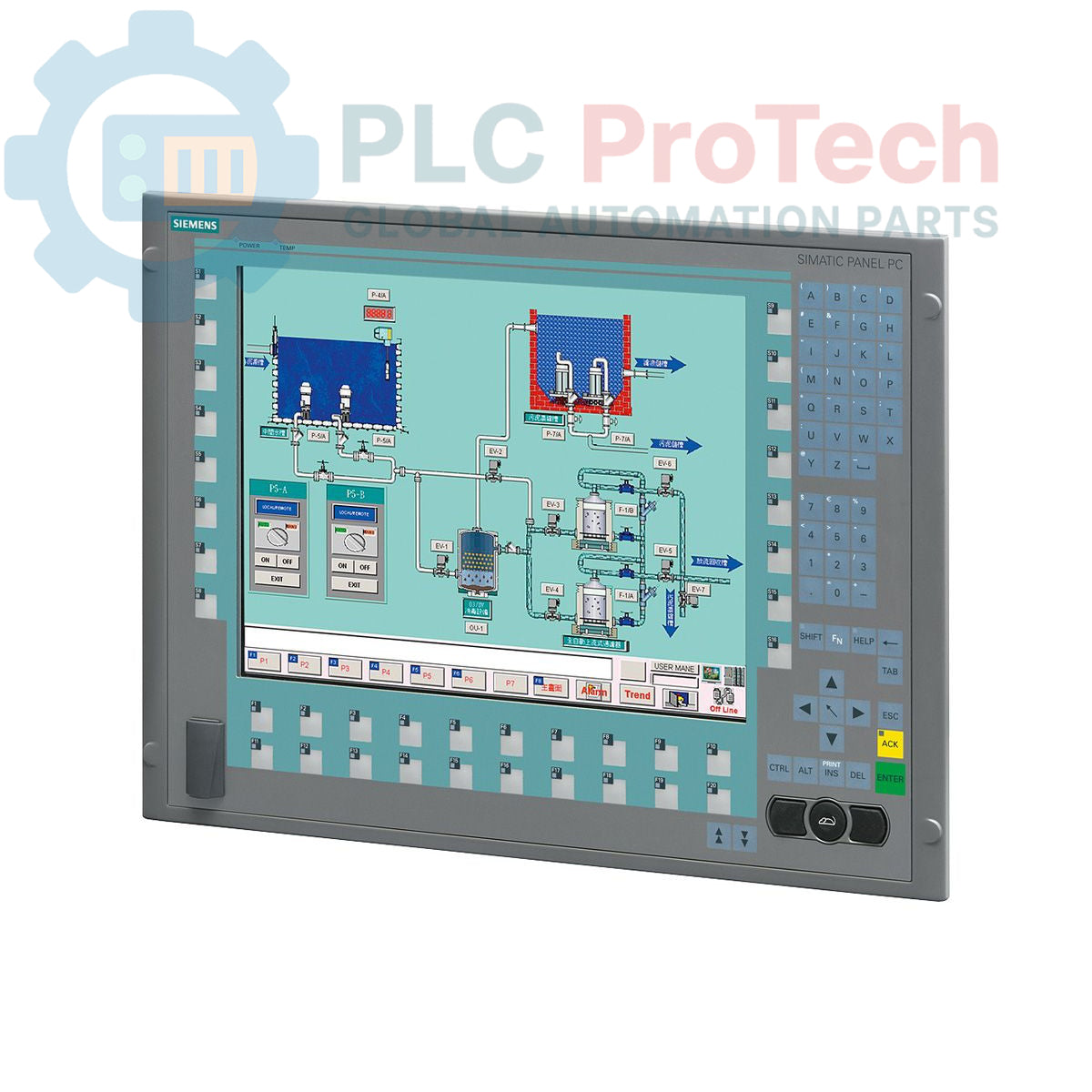

The Siemens 6AV7873-0BE50-0AC0 is a SIMATIC Panel PC 677B, an industrial human-machine interface (HMI) and control platform designed for demanding automation environments. This Panel PC features a 15-inch key-operated display with a 1024x768 resolution, powered by a Core 2 Duo T7400 processor running at 2.16 GHz. It is equipped with 4 GB of DDR2 RAM, a 160 GB SATA HDD, and multiple communication interfaces including 2x 10/100/1000 Mbit/s Ethernet ports, 4x USB V2.0 ports (including a front-side USB interface), and 1x serial (COM1) port. The unit also includes a PROFIBUS/MP interface and operates with a 110/230 V AC power supply unit with NAMUR functionality, supplied with a Europe-standard power cable. It comes pre-installed with Windows XP Professional MUI, supporting multiple languages.

Features

Integrated 15-inch key-operated display with 1024x768 resolution
Intel Core 2 Duo T7400 processor, 2.16 GHz with 4 MB SLC cache
4 GB DDR2 RAM and 2 MB Buffered SRAM
160 GB SATA HDD 3.5" for robust storage
Dual 10/100/1000 Mbit/s Ethernet interfaces
Four USB V2.0 ports, including a convenient front-side USB interface
One serial (COM1) interface
PROFIBUS/MP communication interface
Two PCI expansion slots
110/230 V AC power supply unit with NAMUR signaling
Pre-installed Windows XP Professional MUI (Multi-User Interface)

Applications

The Siemens SIMATIC Panel PC 677B is suitable for a wide range of industrial applications requiring robust HMI and control capabilities. Typical deployments include:

Machine operation and visualization
Process control and monitoring systems
Data acquisition and logging
Factory automation and manufacturing execution systems (MES)
Building automation and infrastructure management
Distributed control systems (DCS) interfaces

Technical Specifications

Manufacturer	Siemens
Range	SIMATIC Panel PC
Subrange	PC677B
Product Type	Panel PC
Product Phase	Obsolete
CPU	Core 2 Duo T7400, 2.16 GHz
CPU Cache	4 MB SLC
RAM	4 GB DDR2
Buffered SRAM	2 MB
Storage	160 GB SATA HDD 3.5"
Optical Drive	None
Display Size	15 inch
Display Resolution	1024 x 768
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB V2.0 (plus front-side USB)
Serial Ports	1x (COM1)
Expansion Slots	2x PCI
Fieldbus Interface	PROFIBUS/MP
Operating System	Windows XP Professional MUI (de,en,fr,es,it,ja,zh,ko)
Power Supply	110/230 V AC with NAMUR
Power Cable	Europe
Package Dimensions (Calculated)	67.00 x 83.00 x 11.50 cm
Shipping Weight	17.00 kg
Commodity Code	85371098
Export Control Regulations (ECCN)	N

Connections / Interfaces

Interface Type	Quantity / Specification
Ethernet	2x 10/100/1000 Mbit/s
USB	4x USB V2.0 (including 1x front-side)
Serial	1x (COM1)
Fieldbus	PROFIBUS/MP
Expansion Slots	2x PCI

Installation Guidelines

Safety First: Ensure all power to the installation area is de-energized and locked out before beginning any work.
Mounting: Securely mount the Panel PC into the designated panel cutout. Ensure proper ventilation clearances around the unit to prevent overheating.
Power Connection: Connect the provided Europe-standard power cable to a stable 110/230 V AC power source. Verify correct voltage and grounding.
Grounding: Establish a reliable protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
Ethernet Connections: Connect industrial Ethernet cables to the 10/100/1000 Mbit/s ports for network communication. Use shielded cables in noisy industrial environments.
USB Connections: Connect USB devices to the available USB V2.0 ports. Utilize the front-side USB for convenient access during commissioning or maintenance.
Serial Connection: If required, connect serial devices to the COM1 port.
PROFIBUS/MP Connection: Connect the PROFIBUS/MP cable according to the network topology and termination requirements.
Peripheral Connections: Connect any necessary keyboards, mice, or other peripherals.
Power On: After all connections are secure and verified, restore power to the system.
Configuration: Follow the operating system and application software instructions for initial setup and configuration.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What operating system is pre-installed on the 6AV7873-0BE50-0AC0?

The Panel PC comes with Windows XP Professional MUI (Multi-User Interface) pre-installed, supporting multiple languages.

What are the primary communication interfaces available?

It features 2x 10/100/1000 Mbit/s Ethernet ports, 4x USB V2.0 ports (including a front-side port), 1x serial (COM1) port, and a PROFIBUS/MP interface.

What type of display does this Panel PC have?

The unit is equipped with a 15-inch key-operated display offering a resolution of 1024x768 pixels.

What are the power supply requirements for this device?

It requires a 110/230 V AC power supply unit and includes NAMUR signaling functionality. A Europe-standard power cable is provided.
