Description

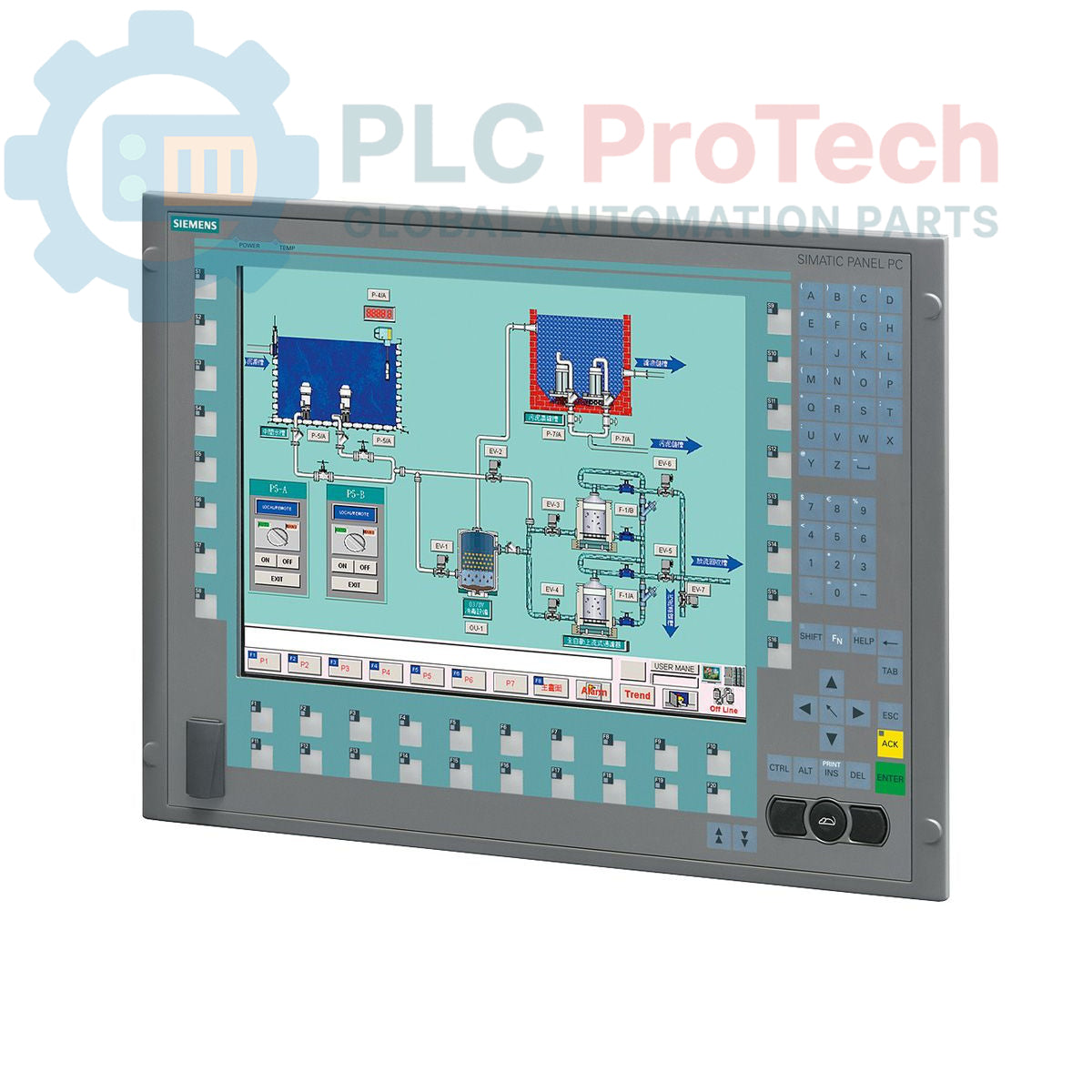

The Siemens 6AV7873-1BC20-1AC0 is a SIMATIC Panel PC 677B, an industrial PC designed for robust operation in automation environments. This unit features a 15-inch display with a resolution of 1024x768, making it suitable for human-machine interface (HMI) and visualization tasks. It is equipped with a Core 2 Duo T5500 processor running at 1.66 GHz, 1 GB of DDR2 RAM, and a 160 GB SATA hard disk drive. Communication capabilities include two 10/100/1000 Mbit/s Ethernet ports, four USB V2.0 ports, and one serial (COM1) interface. Additionally, it integrates a PROFIBUS/MP interface with 2 MB of buffered SRAM. The system includes a DVD+-R+-RW optical drive and operates on a 110/230 V AC power supply with NAMUR compatibility, supplied with a European power cable. It comes pre-installed with Windows XP Professional MUI, supporting multiple languages.

Features

• Integrated 15-inch display with 1024x768 resolution
• Core 2 Duo T5500 processor, 1.66 GHz with 2 MB SLC
• 1 GB DDR2 RAM (expandable via 2x PCI slots)
• 160 GB SATA hard disk drive (3.5")
• DVD+-R+-RW optical drive
• Dual 10/100/1000 Mbit/s Ethernet interfaces
• Four USB V2.0 ports
• One serial interface (COM1)
• PROFIBUS/MP interface with 2 MB buffered SRAM
• 110/230 V AC power supply unit with NAMUR support
• Pre-installed Windows XP Professional MUI (Multi-User Interface)

Applications

The SIMATIC Panel PC 677B is typically deployed in industrial settings requiring a robust and integrated computing platform. Common applications include:

• Human-Machine Interface (HMI) for machine and process control
• Data acquisition and visualization systems
• Supervisory Control and Data Acquisition (SCADA) stations
• Manufacturing execution systems (MES) terminals
• Industrial workstation for plant floor operations
• Process monitoring and control in various industries such as automotive, food and beverage, and chemical.

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Ensure all power to the installation area is disconnected and locked out before beginning any work to prevent electrical shock.
2. Mounting: Securely mount the Panel PC into a suitable control cabinet or panel cutout. Ensure adequate clearance for ventilation and cable routing.
3. Power Connection: Connect the provided European power supply cable to the 110/230 V AC power input of the Panel PC. Verify the power source matches the specified voltage range.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect industrial Ethernet cables to the two 10/100/1000 Mbit/s Ethernet ports for network communication.
6. USB and Serial Connections: Connect peripheral devices or external components to the available USB V2.0 ports and the COM1 serial port as required by the application.
7. PROFIBUS/MP Connection: If utilizing the PROFIBUS/MP interface, connect the appropriate fieldbus cable, ensuring correct termination and addressing.
8. Cable Management: Route all cables neatly and securely, separating power and signal cables where possible to reduce interference.
9. Power On: After all connections are verified, re-energize the system and observe the Panel PC's startup sequence.
