Description

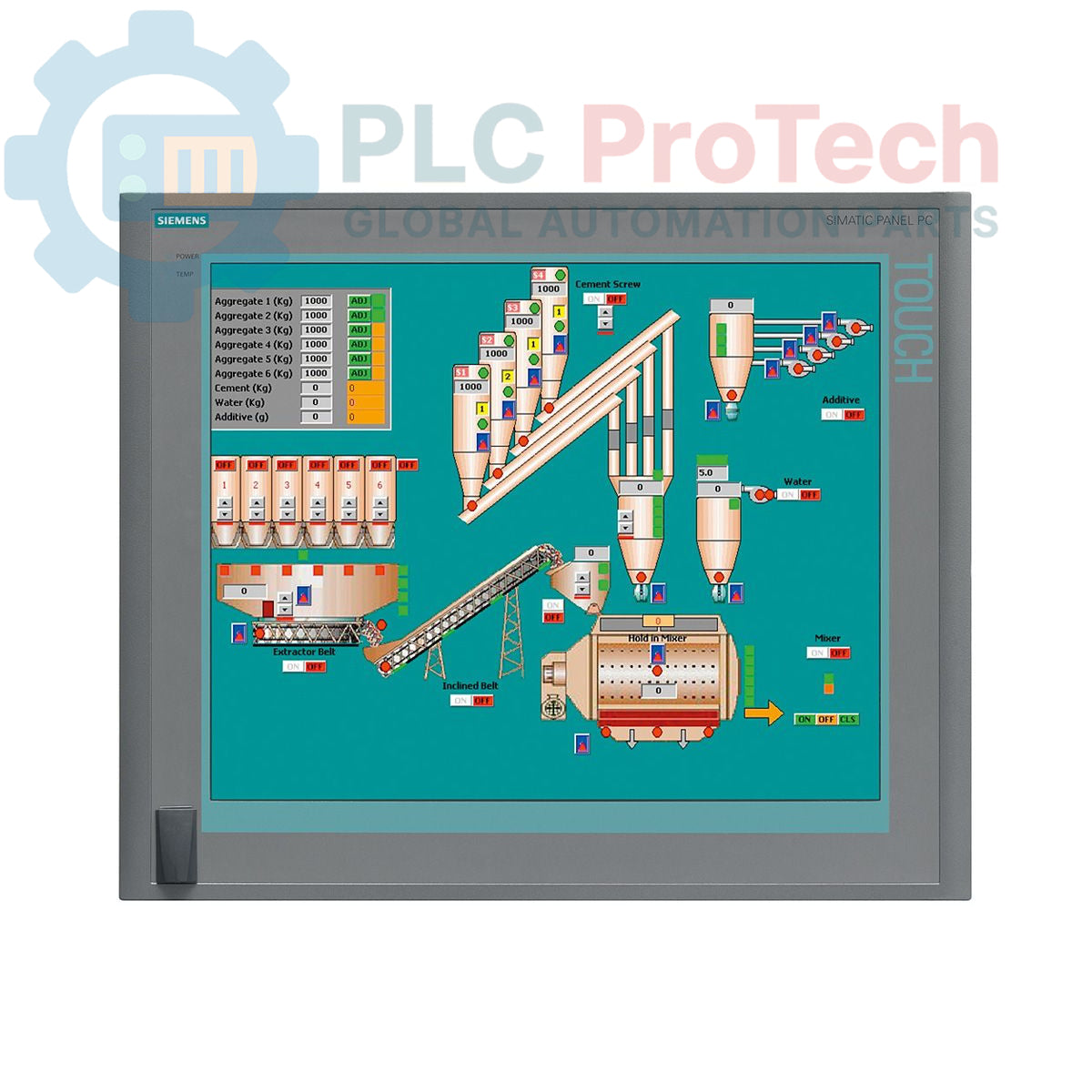

The Siemens 6AV7875-0BE52-0AC0 is a SIMATIC Panel PC 677B designed for industrial human-machine interface (HMI) and control applications. This unit features a 19-inch touch display with a 1280x1024 resolution, powered by an Intel Core 2 Duo T7400 processor running at 2.16 GHz. It is equipped with 4 GB of DDR2 RAM and a redundant storage system consisting of two 250 GB SATA hard drives configured in a RAID1 array. Connectivity options include dual Gigabit Ethernet, four USB 2.0 ports, a serial port, and an integrated PROFIBUS/MPI interface. The system is pre-installed with Windows XP Professional MUI and is powered by a 110/230 V AC supply.

Features

• 19-inch color touch display with 1280 x 1024 pixel resolution
• Intel Core 2 Duo T7400 processor (2.16 GHz)
• 4 GB DDR2 system memory
• Redundant storage with two 250 GB SATA hard drives in a RAID1 configuration
• Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity
• Integrated PROFIBUS/MPI interface for field-level communication
• Front-panel USB port for convenient data transfer and peripheral connection
• Pre-installed with Windows XP Professional Multi-User Interface (MUI)
• Two available PCI slots for hardware expansion

Applications

• Machine-level control and visualization
• Process monitoring and data acquisition (SCADA)
• Manufacturing Execution Systems (MES) terminals
• Industrial data logging and analysis
• Automation control panels in manufacturing and process industries

Technical Specifications

Installation Guidelines

1. 1 De-energize the main control cabinet and verify the absence of voltage using a calibrated meter. Apply appropriate Lockout/Tagout (LOTO) devices.
2. 2 Prepare the panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Insert the Panel PC into the cutout and secure it evenly using all provided mounting clamps. Do not overtighten the clamps, as this can deform the bezel.
4. 4 Connect the Protective Earth (PE) or chassis ground terminal to the cabinet's main ground bus using a low-impedance conductor. This connection must be made first.
5. 5 Connect the 110/230 V AC power supply cable to a properly rated and protected circuit. Ensure the cable is secured to prevent accidental disconnection.
6. 6 Connect all required communication and peripheral cables, including Ethernet, PROFIBUS/MPI, USB, and serial devices. Use shielded cables where specified.
7. 7 After verifying all connections are secure and correct, remove LOTO devices and re-energize the cabinet according to established site safety procedures.
