Description

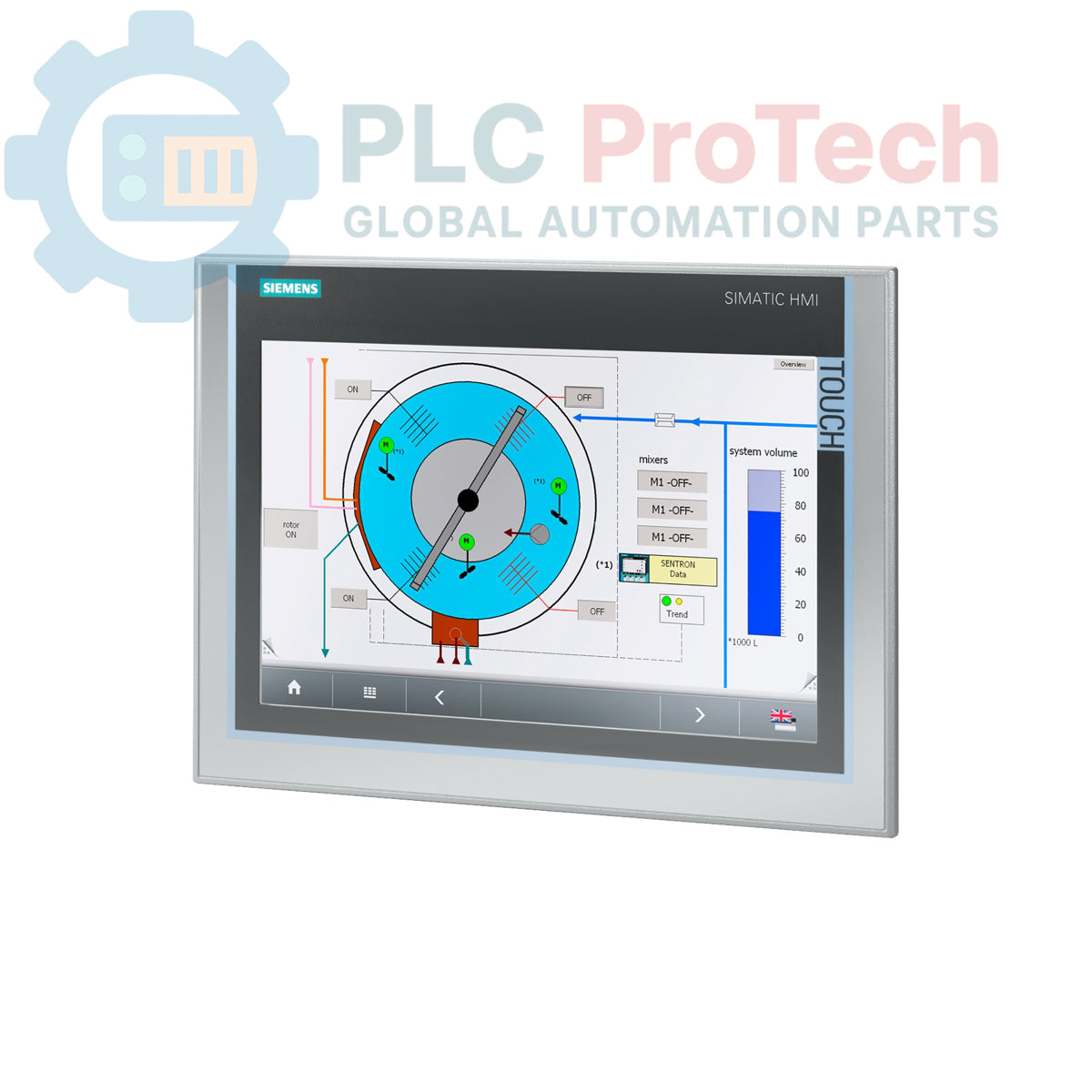

The Siemens 6AV7882-0CB30-7EA0 is a SIMATIC IPC277E Nanopanel PC designed for embedded HMI and control applications in industrial environments. This unit features a 12-inch touch TFT display, an Intel Celeron N2930 processor, 8 GB of RAM, and a 128 GB SSD for reliable, fanless operation. It is equipped with a comprehensive set of interfaces, including dual Gigabit Ethernet ports, multiple USB connections, and a DisplayPort for external video output. The system operates on a standard 24 V DC industrial power supply and is delivered without pre-installed SIMATIC software, providing a flexible platform for custom applications.

Features

• 12-inch TFT widescreen touch display for operator interaction.
• Powered by an Intel Celeron N2930 processor (4 Cores / 4 Threads).
• Equipped with 8 GB of system memory (RAM).
• Includes a 128 GB Solid-State Drive (SSD) for storage.
• Dual 10/100/1000 Mbps Ethernet ports for network connectivity.
• Extensive peripheral support with one USB 3.0 and three USB 2.0 ports.
• Features one DisplayPort for connecting an external monitor.
• Includes one serial port (COM1) for legacy device communication.
• CFast slot available for storage expansion.
• Operates on a 24 V DC power input.

Applications

• Machine-level HMI and visualization
• Process control and data acquisition
• Manufacturing Execution Systems (MES) terminals
• Industrial data logging and gateway applications
• Building automation and facility management

Technical Specifications

Installation Guidelines

1. 1
   De-energize System: Before installation, completely disconnect and lock out all power sources to the control cabinet or mounting panel. Verify the absence of voltage with a properly rated multimeter.
2. 2
   Prepare Mounting Location: Ensure the panel cutout dimensions match the IPC277E specifications for a proper fit and seal. Clean the mounting surface to remove any debris or contaminants.
3. 3
   Mount the Panel PC: Insert the unit into the panel cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure a uniform seal.
4. 4
   Connect Power and Ground: Connect the 24 V DC power supply to the designated terminals, ensuring correct polarity (+/-). Connect the functional earth (FE) terminal to the cabinet's equipotential bonding system using a low-impedance conductor.
5. 5
   Connect Peripherals: Connect Ethernet, USB, DisplayPort, and serial cables as required by the application. Ensure all connectors are fully seated. Route cables to prevent strain and interference.
6. 6
   System Commissioning: After verifying all connections, remove the LOTO device and re-apply power to the cabinet. Power on the Panel PC and proceed with operating system and application software configuration.
