Description

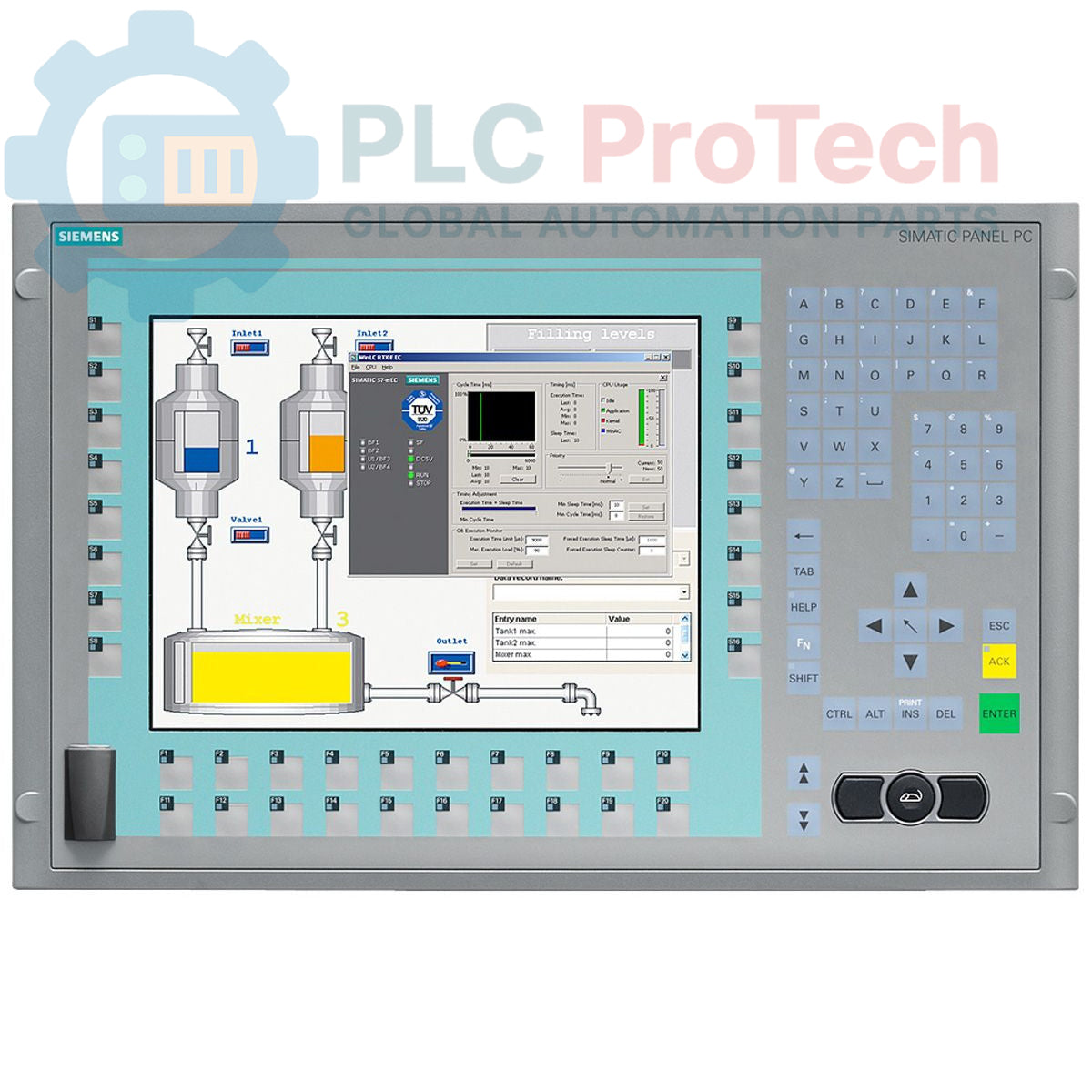

The Siemens 6AV7884-1AH10-3BB0 is a SIMATIC HMI IPC 477C Industrial PC designed for visualization and control tasks in industrial environments. This optional bundle includes a 12-inch Key Display with an 800 x 600 resolution, making it suitable for operator interface applications. It features a Core 2 Duo 1.2 GHz processor, 1 GB DDR3 RAM, and a 4 GB CF card with Windows Embedded Standard 2009 pre-installed. The unit comes with WinCC flexible 2008/WinAC and WinAC RTX software, providing a comprehensive solution for automation. Connectivity options include PROFINET (IE) with two 1 Gbit ports, PROFIBUS DP 12, and multiple USB ports (four at the back, one at the front) for peripheral integration.

Features

• SIMATIC HMI IPC 477C platform
• 12-inch Key Display with 800 x 600 resolution
• Core 2 Duo 1.2 GHz processor
• 1 GB DDR3 RAM
• 4 GB CF card (second CF slot not equipped)
• Windows Embedded Standard 2009 pre-installed
• Pre-installed WinCC flexible 2008/WinAC and WinAC RTX
• Integrated PROFINET (IE) with 2x 1 Gbit ports
• Integrated PROFIBUS DP 12 interface
• 5 USB ports (4 rear, 1 front)

Applications

The Siemens 6AV7884-1AH10-3BB0 is suitable for a wide range of industrial applications requiring robust visualization, data processing, and control capabilities, including:

• Machine operation and monitoring
• Process control and supervision
• Data acquisition and logging
• Factory automation and manufacturing execution systems (MES)
• Building automation and infrastructure management
• Distributed control systems (DCS) and supervisory control and data acquisition (SCADA) systems

Technical Specifications

Connections / Interfaces

• PROFINET (IE): Two 1 Gbit Ethernet ports for industrial Ethernet communication.
• PROFIBUS DP 12: Interface for PROFIBUS DP network integration.
• USB Ports: Five USB ports in total (four on the rear, one on the front) for connecting peripherals such as keyboards, mice, or external storage.

Installation Guidelines

1. De-energize System: Ensure all power to the installation area is disconnected and secured before beginning installation.
2. Mounting: Mount the Panel PC securely into a prepared panel cutout. Ensure proper sealing to maintain the specified IP rating of the front panel.
3. Power Connection: Connect the industrial PC to a stable and filtered power supply according to the specified voltage requirements. Ensure proper grounding.
4. Grounding: Connect the protective earth (PE) terminal of the Panel PC to the system's protective earth ground to ensure safety and minimize electromagnetic interference.
5. Communication Wiring: Connect PROFINET and PROFIBUS DP cables according to network topology and shielding requirements. Use appropriate industrial-grade cabling.
6. USB Peripherals: Connect any necessary USB peripherals to the available front or rear USB ports.
7. Environmental Considerations: Ensure the operating environment meets the specified temperature, humidity, and vibration ratings to ensure reliable long-term operation.
8. Power On: After all connections are verified, re-energize the system and power on the Panel PC.
