Description

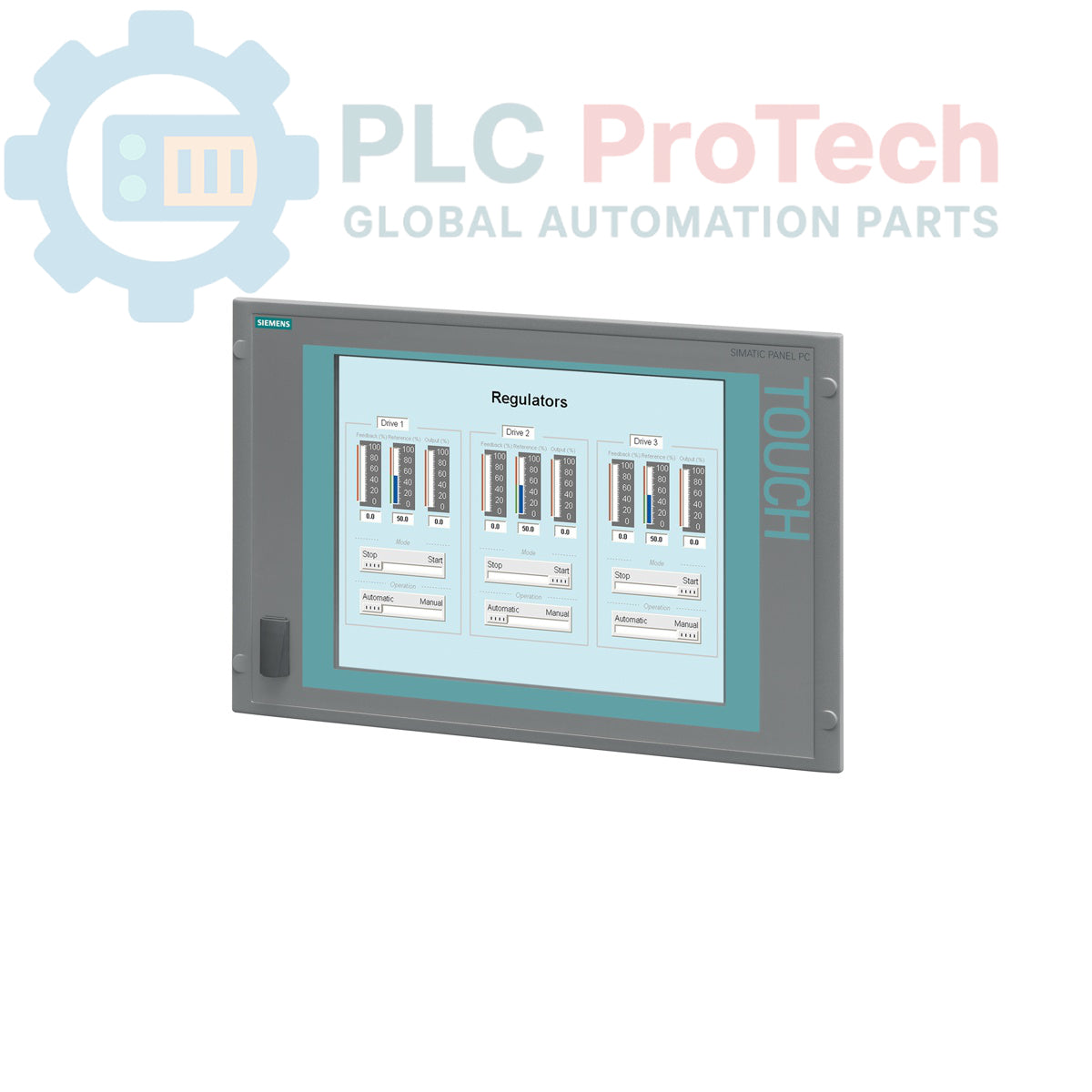

This is a Siemens 6AV7884-2AH20-4BP0 SIMATIC HMI IPC477C, an industrial panel PC designed for integrated control and visualization tasks in demanding automation environments. It combines a 15-inch touch display with an Intel Core 2 Duo processor and a comprehensive set of industrial communication interfaces, including dual PROFINET ports and a dedicated PROFIBUS DP connection. The unit is delivered with a pre-installed Windows Embedded Standard 2009 operating system and the SIMATIC WinAC RTX F 2009 software controller, providing a ready-to-deploy platform for HMI and PC-based control applications.

Features

• 15-inch color touch display with 1024 x 768 resolution.
• Powered by an Intel Core 2 Duo 1.2 GHz processor.
• Equipped with 2 GB of DDR3 SD-RAM.
• Includes an 8 GB CompactFlash (CF) card for system storage.
• Features dual 1 Gbit/s PROFINET (IE) interfaces for high-speed networking.
• Integrated PROFIBUS DP12 port for fieldbus connectivity.
• Standard front panel includes a convenient USB interface.
• Pre-installed with Windows Embedded Standard 2009 and SIMATIC WinAC RTX F 2009.

Applications

• Machine-level control and visualization (HMI).
• Process monitoring and data acquisition systems.
• PC-based automation in manufacturing and assembly lines.
• Integration into networked control systems requiring PROFINET and PROFIBUS.

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is completely de-energized and verified to be at a zero-energy state before beginning work. Use appropriate personal protective equipment (PPE), including ESD protection.
2. 2 Verify the panel cutout dimensions match the requirements for the IPC477C 15" unit. Ensure the mounting surface is clean, flat, and can support the weight of the device.
3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps. Tighten the clamp screws evenly in a diagonal pattern to ensure a uniform seal against the panel.
4. 4 Connect the 24 V DC power supply to the designated terminals. Double-check for correct polarity (+/-) before connecting. Use appropriately sized wiring for the load.
5. 5 Connect the PROFINET, PROFIBUS, and any required USB or serial cables. Ensure all connectors are fully seated. Route cables to prevent strain and interference.
6. 6 Connect the chassis grounding terminal to the cabinet's protective earth (PE) busbar using a low-impedance conductor. A reliable ground connection is critical for safety and noise immunity.
