Description

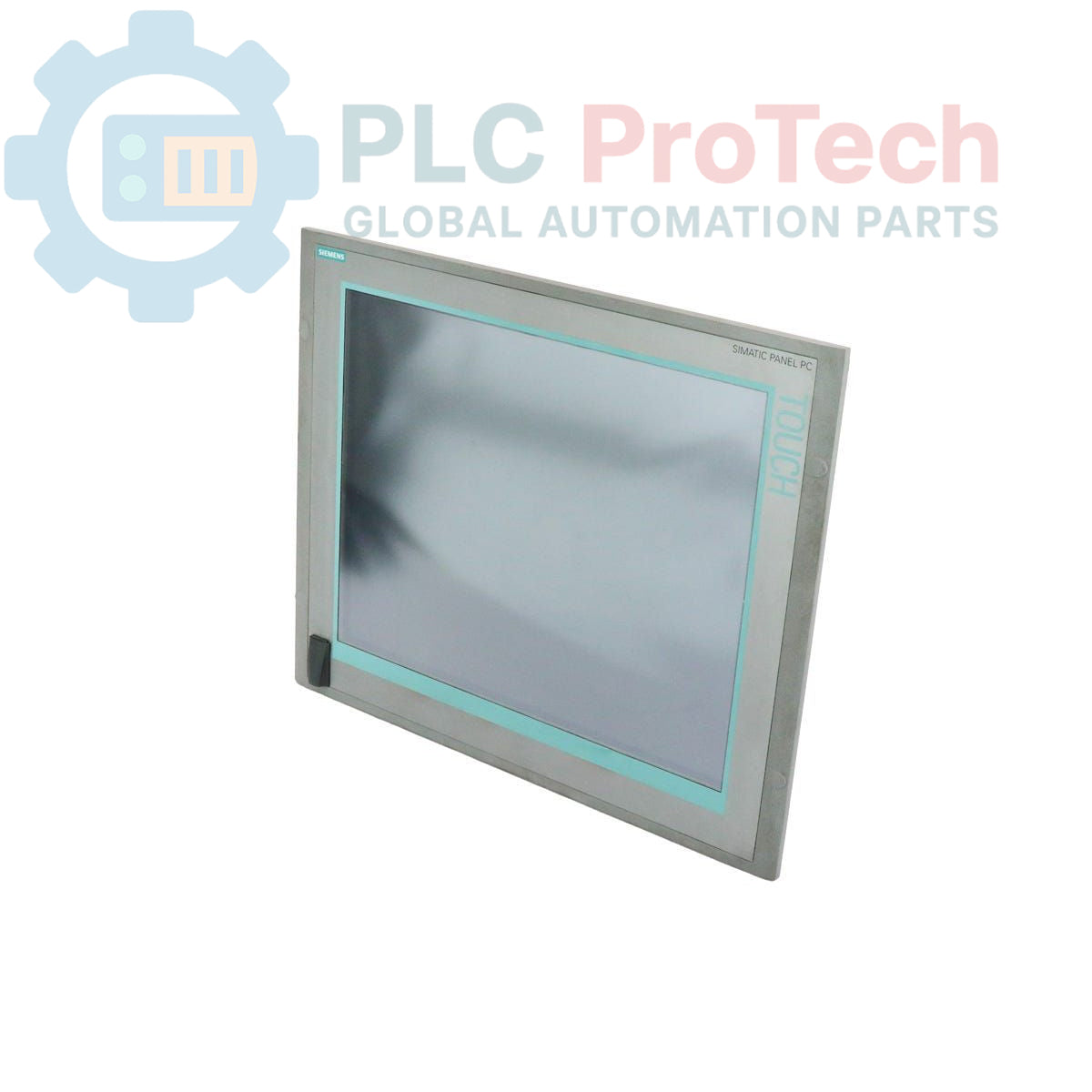

The Siemens 6AV7884-5AG20-6GA0 is a SIMATIC HMI IPC 477C, an industrial-grade panel PC designed for demanding visualization and control tasks. This unit is equipped with a 19-inch touch display, an Intel Core 2 Duo 1.2 GHz processor, and 2 GB of DDR3 RAM. For storage, it includes a 50 GB high-endurance SATA solid-state drive (SSD) pre-installed with Windows 7 Ultimate MUI. Connectivity is provided through dual 1 Gbit/s PROFINET (IE) ports and five USB interfaces. This model is part of an optional bundle configuration and is supplied without pre-installed SIMATIC HMI software.

Features

• 19-inch touch display with a native resolution of 1280 x 1024 pixels.
• Powered by an Intel Core 2 Duo processor operating at 1.2 GHz.
• Equipped with 2 GB of DDR3 system memory.
• Includes a 50 GB high-endurance SATA Solid-State Drive (SSD) for robust data storage.
• Integrated dual-port PROFINET (IE) interface with 1 Gbit/s speed.
• Features a total of five USB ports: four on the rear and one on the front for easy access.
• Comes pre-installed with the Windows 7 Ultimate (MUI) operating system.

Applications

• Human-Machine Interface (HMI) for complex machinery.
• Supervisory Control and Data Acquisition (SCADA) systems.
• Process visualization and control in manufacturing environments.
• Data logging and analysis at the machine level.
• Industrial automation gateways and controllers.

Technical Specifications

Installation Guidelines

1. 1
   De-energize Equipment: Before installation, completely disconnect and lock out all power sources to the control cabinet or mounting location. Verify the absence of voltage using a properly rated test instrument.
2. 2
   Prepare Panel Cutout: Ensure the mounting cutout in the enclosure door or panel corresponds to the IPC 477C's required dimensions. Deburr all sharp edges to prevent damage to cables and ensure a proper seal.
3. 3
   Mount the Unit: Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps. Tighten the clamp screws evenly in a cross-pattern to ensure uniform gasket compression and a proper IP rating.
4. 4
   Connect Protective Earth (PE): Connect a low-impedance protective earth conductor to the designated PE terminal on the unit's chassis. This is critical for operator safety and noise immunity.
5. 5
   Connect Power and Interfaces: Connect the DC power supply, PROFINET network cables, and any required USB peripherals. Ensure all connectors are fully seated and secured. Route cables away from high-voltage lines to minimize electrical noise.
6. 6
   Power-Up and Verification: After closing the cabinet and removing all lock-out/tag-out devices, restore power to the system. Verify that the Panel PC boots correctly into the Windows operating system and that network communication is established.
