Description

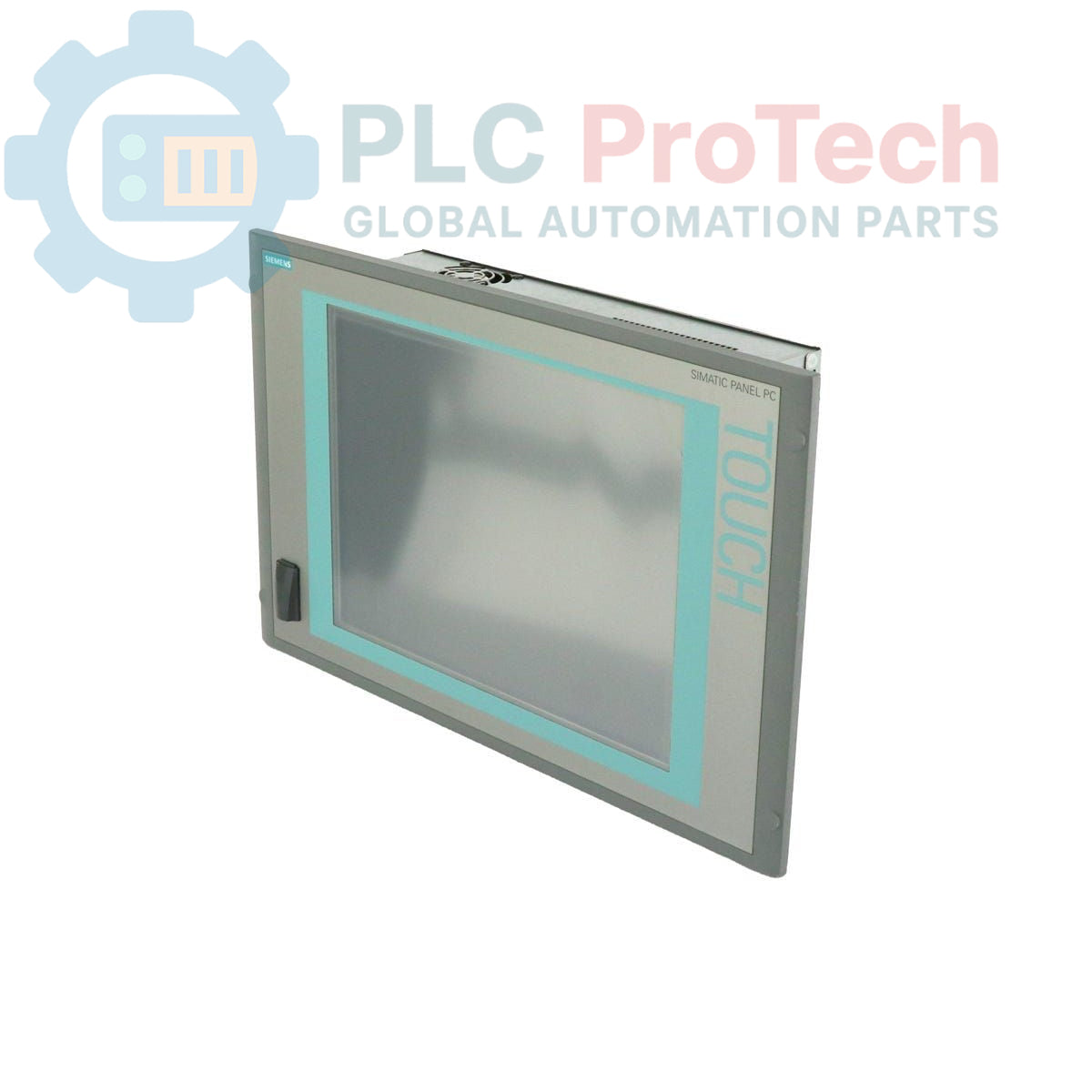

This product is a Siemens 6AV7885-2AK21-1DA1, a SIMATIC HMI IPC 577C series industrial panel PC. It is engineered for machine-level control and visualization tasks, integrating a 15-inch touch display with robust computing hardware. The unit is powered by an Intel Core 2 Duo 1.86 GHz processor and is equipped with 2 GB of DDR3 RAM. For storage, it includes a primary 320 GB SATA HDD and a secondary DVD RW drive. Connectivity is provided through PROFINET, standard Gigabit Ethernet, and multiple USB ports, all powered by a universal 110/230 V AC power supply.

Features

• 15-inch color touch display for operator interface
• Intel Core 2 Duo processor operating at 1.86 GHz
• 2 GB of DDR3 system memory
• 320 GB SATA Hard Disk Drive for primary storage
• Integrated DVD RW drive for secondary storage and data transfer
• Dual 1 Gbit PROFINET (IE) ports for industrial networking
• One standard 10/100/1000 Mbps Ethernet port
• Five USB ports (4 rear, 1 front) for peripheral connectivity
• One available PCI slot for hardware expansion
• Pre-installed with Windows XP Professional operating system

Applications

• Machine-level control and monitoring
• Process visualization (HMI) and SCADA systems
• Data acquisition and logging in industrial environments
• Factory automation and assembly line management
• Quality control stations

Technical Specifications

Installation Guidelines

1. 1 Panel Mounting: Prepare the control panel cutout according to the device's mechanical drawings. Ensure the mounting surface is clean, flat, and can support the weight of the unit. Secure the Panel PC into the cutout using all provided mounting clamps, tightening them evenly to ensure a proper seal.
2. 2 Protective Earth (PE) Connection: Connect a low-impedance protective earth conductor to the designated PE terminal on the chassis. This connection is mandatory for operator safety and electromagnetic compatibility (EMC). Use the largest feasible wire gauge.
3. 3 Power and I/O Wiring: Connect the 110/230 V AC power supply using appropriately rated conductors. Route all signal and communication cables (Ethernet, PROFINET, USB) separately from high-voltage power lines to prevent noise induction. Use shielded cables for all data communication, and ensure shields are properly terminated at one end.
4. 4 Initial Power-Up: After verifying all connections are secure and correct, remove the lockout/tagout device and apply power to the unit. The system should boot into the pre-installed Windows operating system. Verify network connectivity and touch screen functionality before deploying the application software.
