Description

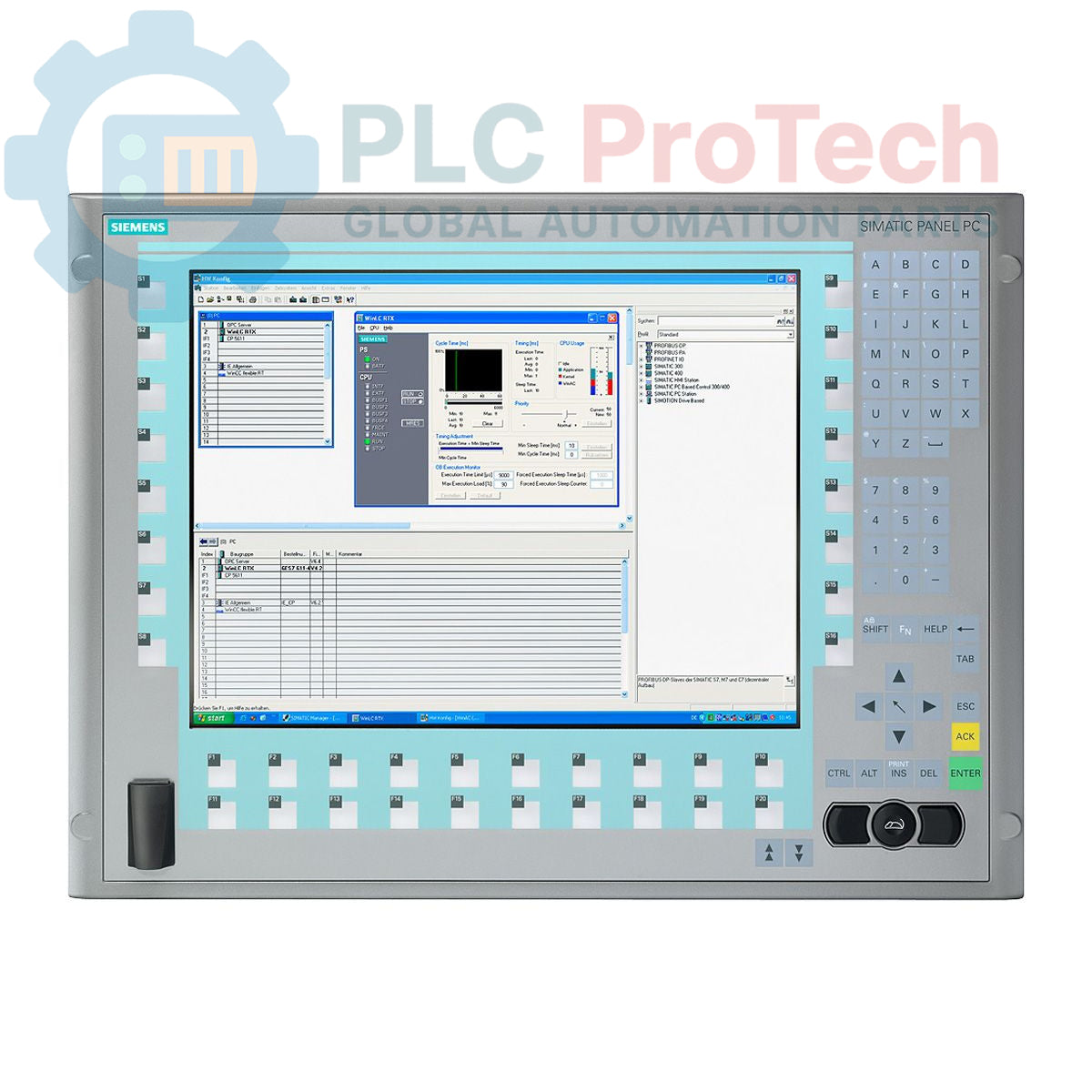

The Siemens 6AV7893-0BC10-1BE0 is a SIMATIC HMI IPC677C Panel PC designed for industrial human-machine interface (HMI) and control applications. This robust panel PC integrates a 15-inch display with a keyboard, offering a resolution of 1024 x 768 pixels. It features a Celeron P4505 processor, 2 GB DDR3 RAM, and a 250 GB SATA HDD, making it suitable for demanding industrial environments. Connectivity options include multiple Gigabit Ethernet ports, USB V2.0 interfaces (including a front-side port), and a serial COM1 port. The unit also incorporates a RAID controller, watchdog functionality, and monitoring for temperature and fan status to ensure reliable operation. It comes pre-installed with Windows 7 Ultimate 64 bit SP1 and is powered by a versatile 110/230 V AC supply.

Features

• Integrated 15-inch display with keyboard
• 1024 x 768 pixel resolution
• Celeron P4505 (2C/2T, 1.86 GHz, 2 MB cache) processor
• 2 GB DDR3 1066 DIMM RAM
• 250 GB SATA Hard Disk Drive (HDD)
• DVD+-R+-RW optical drive
• 2x 10/100/1000 Mbit/s Ethernet ports (3x RJ45, CP 1616-compatible, PROFINET)
• 4x USB V2.0 interfaces (including front-side USB)
• 1x Serial (COM1) port
• Onboard RAID controller
• Watchdog, temperature, and fan monitoring
• 1x PCI and 1x PCIe (X16) expansion slots
• 2 MB buffered SRAM
• 110/230 V AC power supply unit with NAMUR
• Pre-installed Windows 7 Ultimate 64 bit SP1, MUI

Applications

The Siemens SIMATIC HMI IPC677C Panel PC is typically deployed in various industrial automation and control settings, including:

• Machine control and visualization
• Process monitoring and data acquisition
• Operator stations for manufacturing lines
• Building automation systems
• Logistics and material handling control
• Supervisory Control and Data Acquisition (SCADA) systems
• Embedded control systems requiring local HMI

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized and locked out before beginning any work.
2. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate space for ventilation and cable routing.
3. Power Connection: Connect the 110/230 V AC power supply cable to the designated power input terminals. Verify correct voltage and polarity.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect industrial Ethernet cables to the RJ45 ports for network communication, ensuring proper shielding and routing away from power cables.
6. USB and Serial Peripherals: Connect USB devices and serial peripherals (e.g., bar code scanners, printers) to the respective ports.
7. Cable Management: Route all cables neatly and secure them to prevent strain, abrasion, and interference. Use cable ties and conduits where appropriate.
8. Ventilation: Ensure that the Panel PC's cooling vents are unobstructed to allow for proper airflow and prevent overheating.
9. Initial Power-Up: After all connections are verified, re-energize the power supply and observe the system for proper boot-up and operation.
