Siemens 6AV7893-0BH60-1BE0 SIMATIC IPC677C Panel PC

SKU 6AV7893-0BH60-1BE0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7893-0BH60-1BE0
Origin Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17.45 kg
Dimensions: 67.00 x 55.00 x 28.00 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

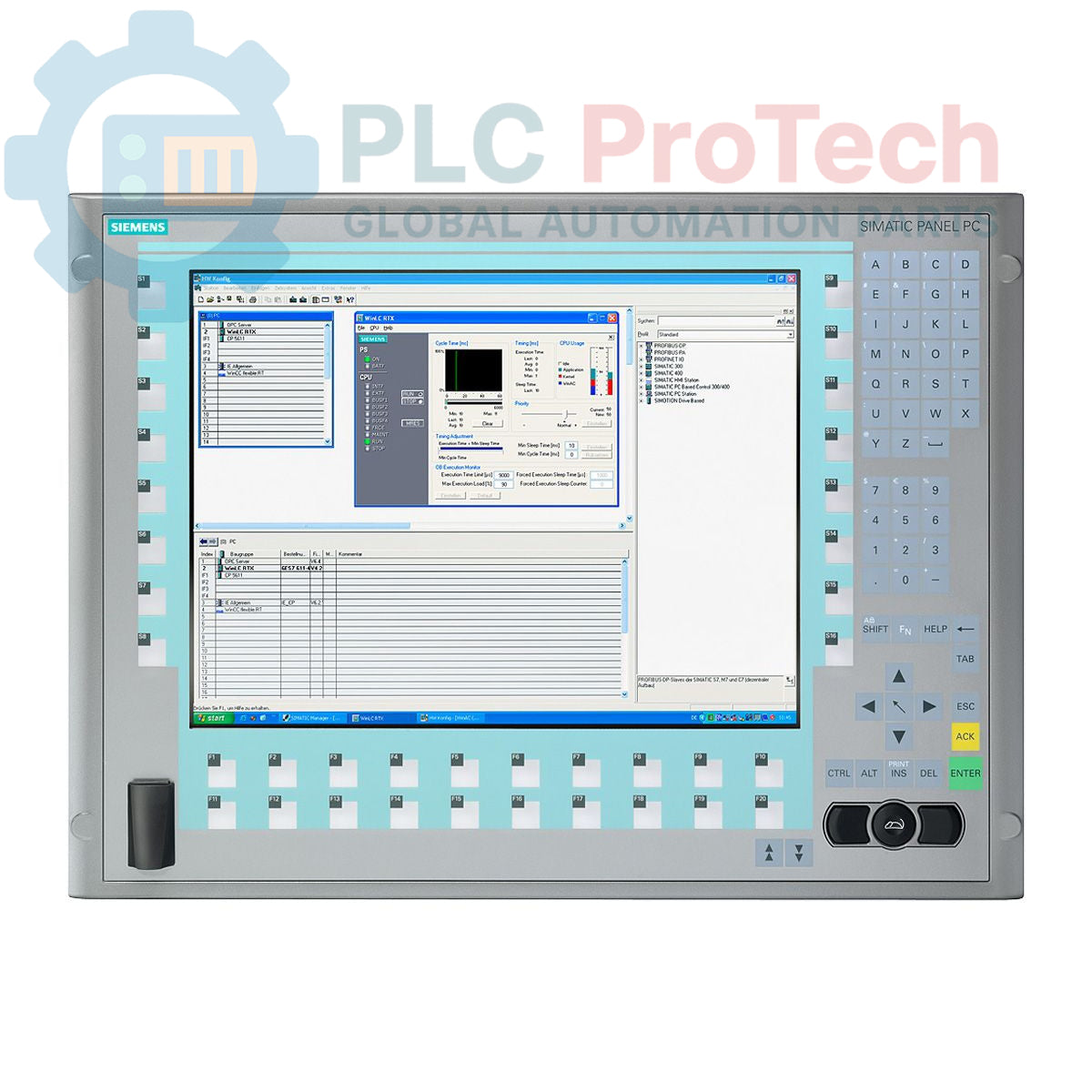

The Siemens 6AV7893-0BH60-1BE0 is a SIMATIC IPC677C Panel PC designed for demanding HMI and control tasks in industrial environments. This unit features a 15-inch keypad display with 1024x768 resolution and is powered by an Intel Core i7-610E processor. It is equipped with 4 GB of DDR3 ECC memory, a 250 GB SATA hard drive, and an integrated DVD drive. For robust industrial communication, it includes dual Gigabit Ethernet ports and a dedicated PROFIBUS/MPI interface, compatible with CP 5611-A2. The system also provides onboard monitoring for watchdog, temperature, and fan status, along with an integrated RAID controller for data integrity.

Features

Integrated Intel Core i7-610E dual-core processor.
Onboard PROFIBUS/MPI communication port.
System monitoring for watchdog, temperature, and fan speed.
Built-in RAID controller for enhanced storage reliability.
Front-panel USB 2.0 port for convenient access.
Includes a DVD+/-R+/-RW optical drive.
Pre-installed with Windows 7 Ultimate 64-bit operating system.

Applications

Process visualization and SCADA systems.
Machine-level data acquisition and control.
Manufacturing Execution Systems (MES) terminals.
Industrial automation and plant floor computing.

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC IPC677C
Product Type	Panel PC
Processor	Intel Core i7-610E (2 Cores / 4 Threads, 2.53 GHz, 4 MB Cache)
Memory (RAM)	4 GB DDR3 1066 DIMM, ECC
Buffered SRAM	2 MB
Storage	250 GB HDD SATA
Optical Drive	DVD+/-R+/-RW
Display	15-inch Keypad Display
Resolution	1024 x 768 pixels
Ethernet Ports	2 x 10/100/1000 Mbit/s
USB Ports	4 x USB 2.0 (rear), 1 x USB 2.0 (front)
Serial Port	1 x COM1
Fieldbus Interface	PROFIBUS/MPI (CP 5611-A2 compatible)
Expansion Slots	1 x PCI, 1 x PCIe (x16)
Power Supply	110/230 V AC with NAMUR
Operating System	Windows 7 Ultimate 64-bit SP1, MUI (de, en, fr, es, it)
Product Lifecycle Status	Phase-Out
Shipping Weight	17.45 kg
Package Dimensions	67.00 x 55.00 x 28.00 cm
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING

Hazardous voltages are present. Installation must be performed by qualified personnel only. Ensure the main power supply is de-energized and locked out (LOTO) before commencing any installation, wiring, or maintenance activities. Failure to comply can result in severe injury or death.

1 Verify that the panel cutout dimensions match the IPC677C specifications. Ensure the mounting surface is flat, clean, and capable of supporting the unit's weight.
2 Insert the Panel PC into the cutout from the front. Secure it from the rear using all provided mounting clamps, tightening them evenly to the manufacturer's recommended torque to ensure a proper seal.
3 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the chassis. This connection is critical for safety and noise immunity.
4 Connect the AC power supply cable, ensuring the source voltage matches the 110/230 V AC rating. Connect all communication cables (Ethernet, PROFIBUS, USB, Serial) as required, ensuring proper shielding and strain relief.
5 After verifying all connections are secure and correct, remove the lockout/tagout device and restore power to the unit. Observe the boot sequence to confirm proper system startup.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What processor is included in the 6AV7893-0BH60-1BE0?

This Panel PC is equipped with an Intel Core i7-610E processor, which features 2 cores, 4 threads, and a base clock speed of 2.53 GHz.

What are the primary communication interfaces on this device?

It includes two Gigabit Ethernet ports (10/100/1000 Mbit/s), four rear USB 2.0 ports, one front USB 2.0 port, one serial (COM1) port, and an integrated PROFIBUS/MPI interface.

What operating system is pre-installed on this Panel PC?

The unit comes with Windows 7 Ultimate 64-bit Service Pack 1, which includes a Multi-Language User Interface (MUI) for German, English, French, Spanish, and Italian.

What are the display specifications?

It features a 15-inch display with an integrated keypad for operator input. The screen resolution is 1024 x 768 pixels.

Does this unit support storage redundancy?

Yes, it has an onboard RAID controller, which can be configured to improve data integrity and availability for the internal storage drive.
