Description

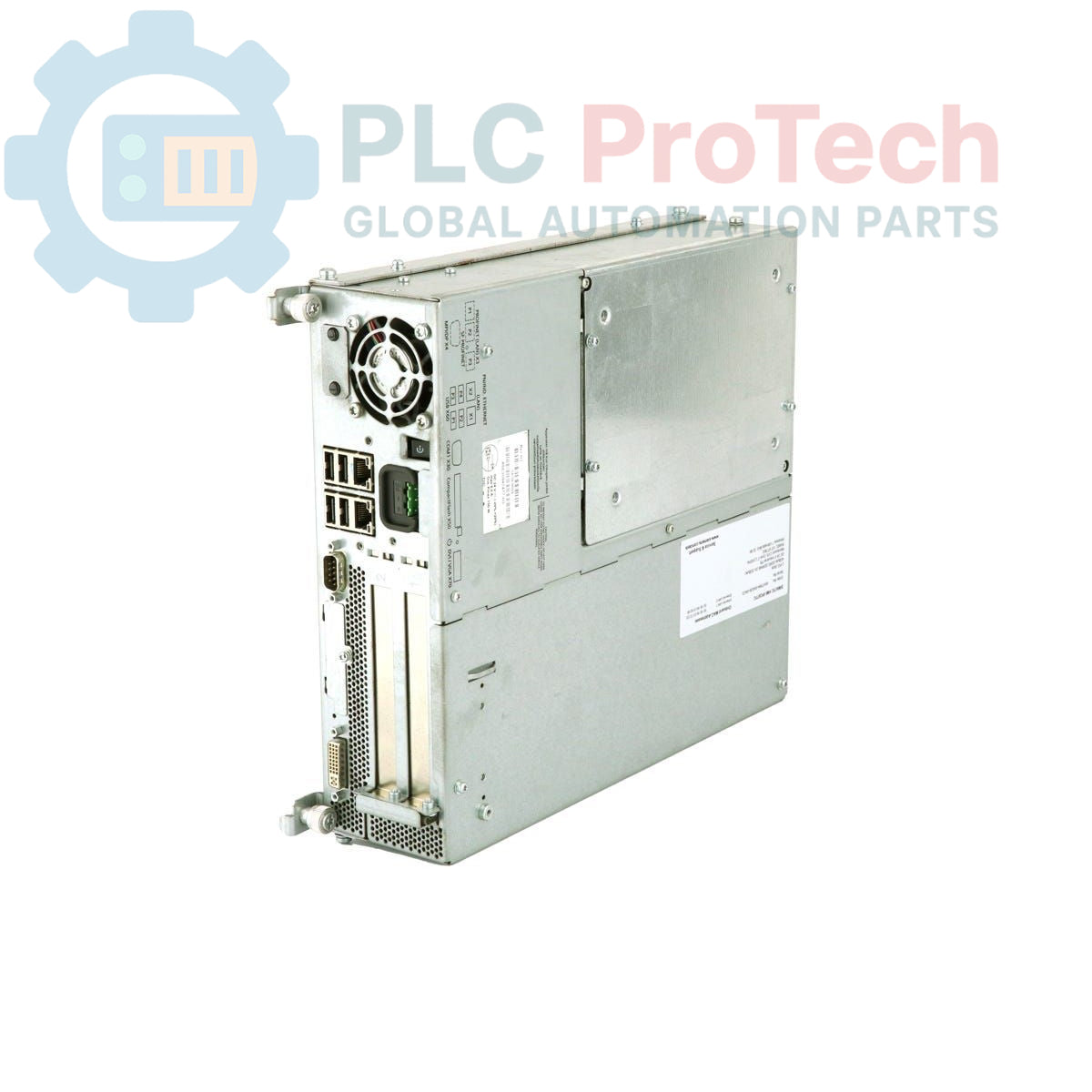

The Siemens 6AV7894-1BG22-0AB0 is a robust industrial Panel PC from the SIMATIC HMI IPC677C series, engineered for demanding production environments. This unit integrates a 19-inch touchscreen with a 1280 x 1024 resolution, providing clear and responsive human-machine interface capabilities directly on the factory floor. Powered by an Intel Core i7-610E processor (2 cores, 4 threads, 2.53 GHz, 4 MB cache) and equipped with 3 GB DDR3 1066 DIMM memory, the 6AV7894-1BG22-0AB0 ensures reliable, high-performance operation for complex industrial applications.

Connectivity options include dual 10/100/1000 Mbit/s Ethernet ports, four USB V2.0 ports, and a serial COM1 interface. An onboard RAID controller supports RAID1 with two 320 GB SATA drives (2.5" mirrored disks) for enhanced data security and system reliability. The 6AV7894-1BG22-0AB0 also incorporates advanced hardware monitoring features, including watchdog, temperature, and fan supervision, to safeguard continuous operation in industrial settings.

This Panel PC operates on a 110/230 V AC power supply and includes a European power cable. It comes pre-installed with Windows XP Professional SP3 MUI, supporting German, English, French, Spanish, and Italian languages, making it suitable for multilingual industrial deployments. This specific model is delivered without a front-side USB interface and without an optical drive.

Features

• Integrated 19-inch touchscreen with 1280 x 1024 resolution
• Intel Core i7-610E processor (2 cores, 4 threads, 2.53 GHz, 4 MB cache)
• 3 GB DDR3 1066 DIMM memory
• RAID1 configuration with 2x 320 GB SATA (2.5") mirrored disks
• Dual 10/100/1000 Mbit/s Ethernet interfaces
• Four USB V2.0 ports and one serial COM1 interface
• Onboard watchdog, temperature, and fan monitoring
• Pre-installed Windows XP Professional SP3 MUI (multi-language)
• 110/230 V AC power supply with European power cable
• Two free PCI expansion slots

Applications

The Siemens SIMATIC HMI IPC677C Panel PC is suitable for a wide range of industrial applications requiring robust computing and HMI capabilities, including:

• Machine control and visualization
• Process monitoring and data acquisition
• Factory automation systems
• Operator workstations in harsh environments
• Data logging and reporting in manufacturing
• Supervisory control and data acquisition (SCADA) systems

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Before commencing installation, ensure all power to the system and associated equipment is completely de-energized and locked out according to safety procedures.
2. Mounting: Securely mount the Panel PC in its designated enclosure or panel cutout. Ensure adequate space for ventilation and cable routing.
3. Power Connection: Connect the 110/230 V AC power supply to the unit using the provided European power cable. Verify correct voltage and polarity before applying power.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Network Connections: Connect Ethernet cables to the 10/100/1000 Mbit/s ports for network communication. Use shielded cables in noisy industrial environments.
6. Peripheral Connections: Connect USB devices and serial communication cables to the respective ports as required by the application.
7. Ventilation: Ensure that the Panel PC's cooling fans and vents are unobstructed to maintain proper operating temperature. Monitor fan and temperature status via the integrated monitoring features.
8. Software Configuration: After hardware installation, power on the unit and configure the pre-installed Windows XP Professional SP3 operating system and any necessary application software.
