Description

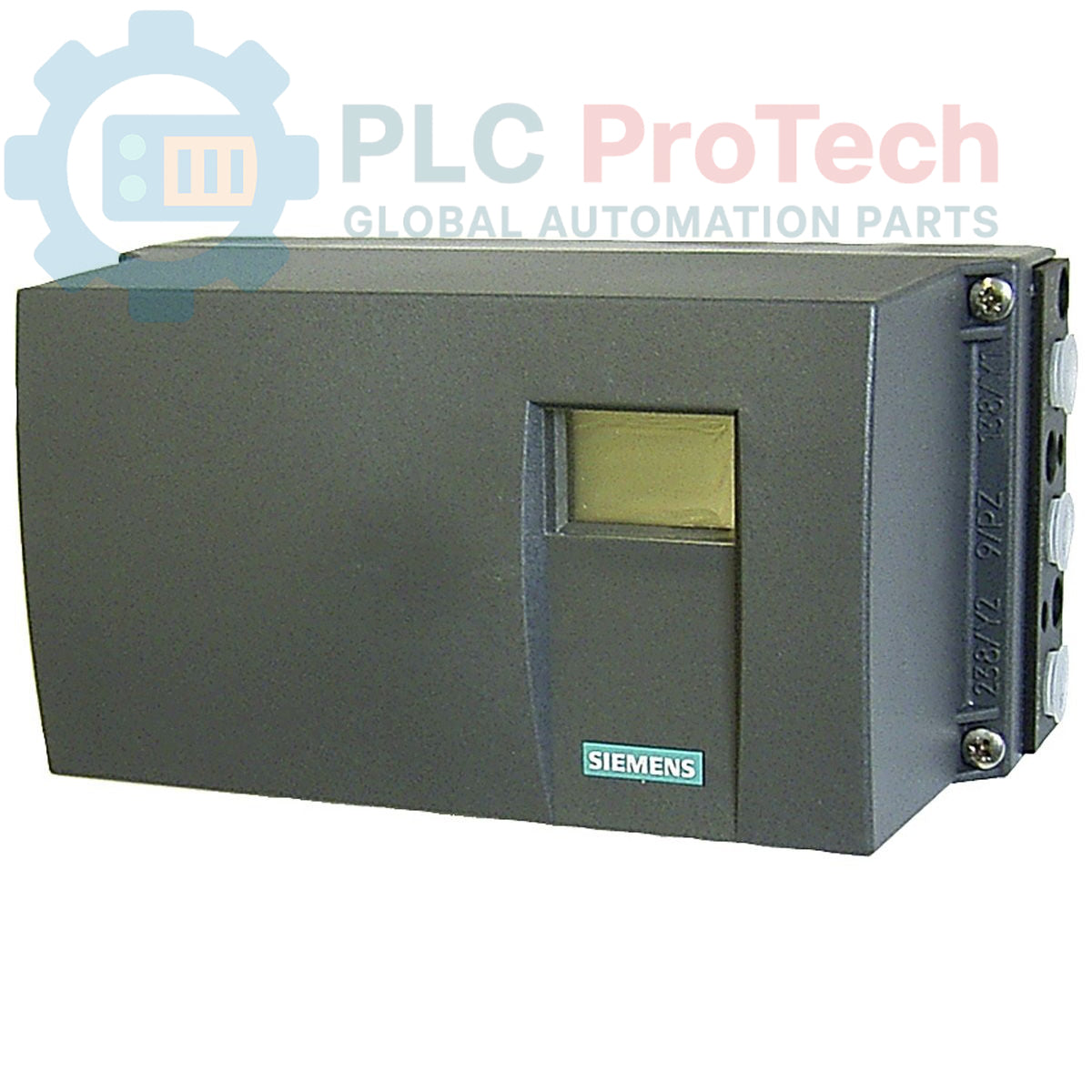

The Siemens 6DR5210-0EP00-0AA0 is a SIPART PS2 smart electropneumatic positioner designed for high-precision control of pneumatic linear and part-turn actuators. This unit serves as a critical interface between automation control systems and final control elements, accepting a 4–20 mA input signal with integrated HART communication protocol. Built within a durable polycarbonate enclosure, this model is engineered for single-acting actuator configurations and supports an intelligent "fail-safe" function, which automatically depressurizes the actuator in the event of an electrical auxiliary power failure.

The 6DR5210-0EP00-0AA0 is certified for use in potentially explosive atmospheres, providing intrinsic safety (Ex i) protection. It features a standardized 1/2" NPT electrical connection and a G1/4 pneumatic interface. Please note that this specific configuration is supplied without a limit monitor, additional option modules, or a manometer block.

Features

• HART Communication: Integrated support for remote parameterization and diagnostic data.
• Explosion Protection: Intrinsic safety (Ex i) design for hazardous industrial environments.
• Fail-Safe Function: Automatically depressurizes the actuator upon power loss (single-acting).
• Versatile Compatibility: Suitable for both linear and part-turn pneumatic actuators.
• Standardized Interfaces: 1/2" NPT electrical and G1/4 pneumatic connection threads.
• Durable Enclosure: High-quality polycarbonate housing for industrial environments.

Applications

• Process control in chemical, petrochemical, and refining industries.
• Precision valve and damper positioning in flow control systems.
• Hazardous area automation requiring intrinsic safety certifications.
• Automated mechanical motion control in heavy manufacturing.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the positioner is securely attached to the actuator. For linear actuators, verify the feedback lever is properly aligned with the valve stem to prevent measurement errors.
• Pneumatic Connections: Use clean, dry, and oil-free compressed air. Check for leaks at all G1/4 threaded connections before commissioning.
• Electrical Safety: Ensure the loop is installed according to hazardous area requirements for intrinsic safety (Ex i). Verify wire gauges conform to local electrical codes.
• Calibration: Perform the automated initialization process after physical installation to allow the positioner to learn the mechanical travel limits of the actuator.
• Documentation: Refer to the provided brief instructions (EN/DE/CN) for initial commissioning steps and parameterization settings.
