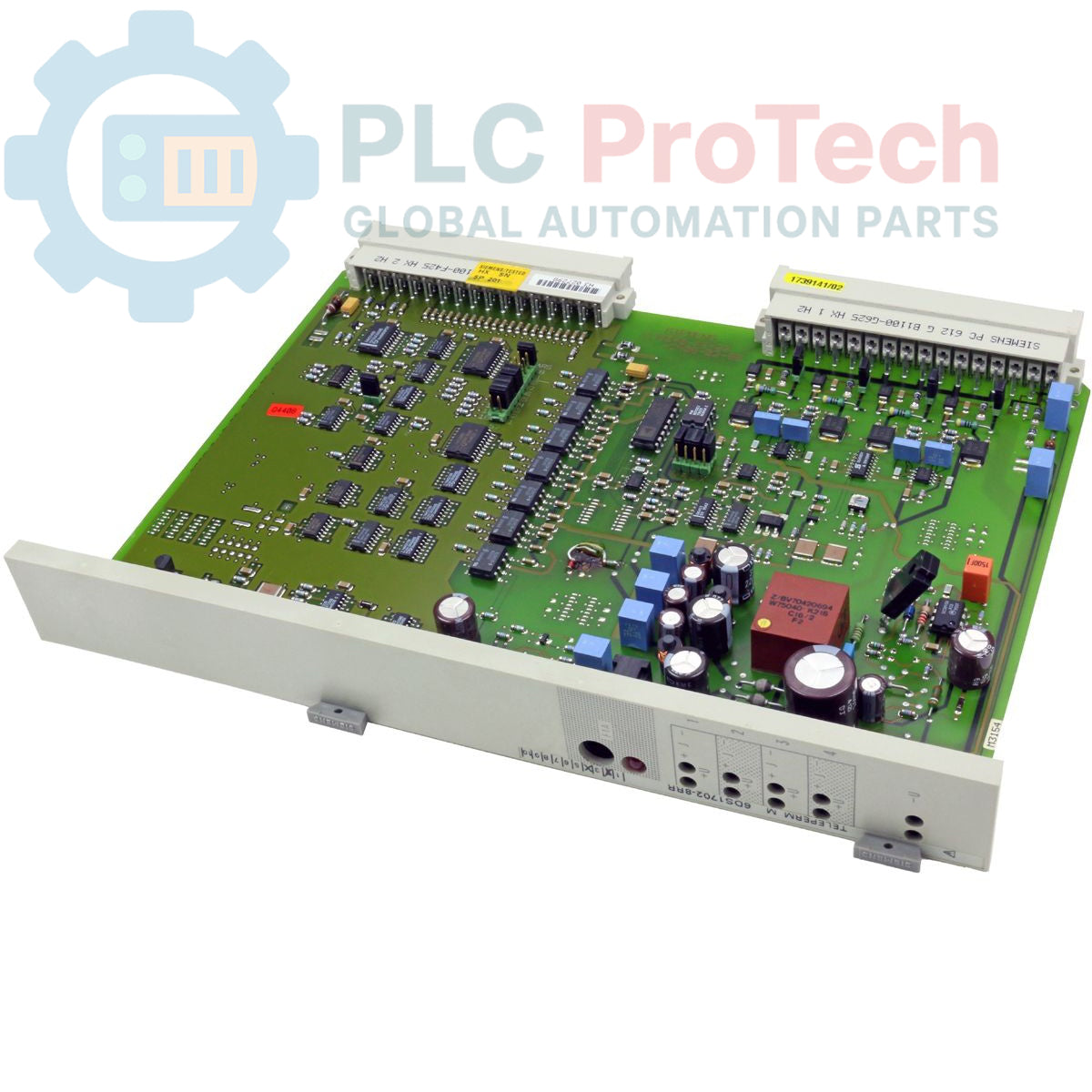

The 6DS1702-8RR is an Analog Output Module from the Teleperm automation range. It is equipped with four floating output channels, designed for the precise control of analog signals in industrial automation systems. This module is engineered to provide reliable signal generation for actuators, valves, or recording instrumentation, ensuring consistent performance in continuous production control applications.

Features

• Range: Teleperm
• Type: Analog output module
• Output Channels: 4 floating outputs
• Designed for precise signal control in automation architectures
• Robust industrial-grade construction for long-term operational stability

Applications

• Industrial process automation
• Analog actuator control (valves, positioners)
• Data recording and instrumentation monitoring
• Teleperm-based distributed control systems

Technical Specifications

Installation Guidelines

• Module Placement: Insert the module into the corresponding Teleperm system rack slot. Ensure all backplane pins are correctly aligned to prevent connection damage.
• Signal Wiring: Connect external analog devices to the output terminals as specified in the system documentation. Maintain proper isolation to utilize the floating output capability.
• Environment: Install within a protected cabinet environment to guard against moisture, conductive dust, and extreme temperature variations.
• Grounding: Ensure the system rack is connected to a stable functional earth to maintain signal integrity and reduce common-mode noise.
• Maintenance: Periodically inspect terminal connections and verify output signal accuracy during routine system diagnostic procedures.
