Description

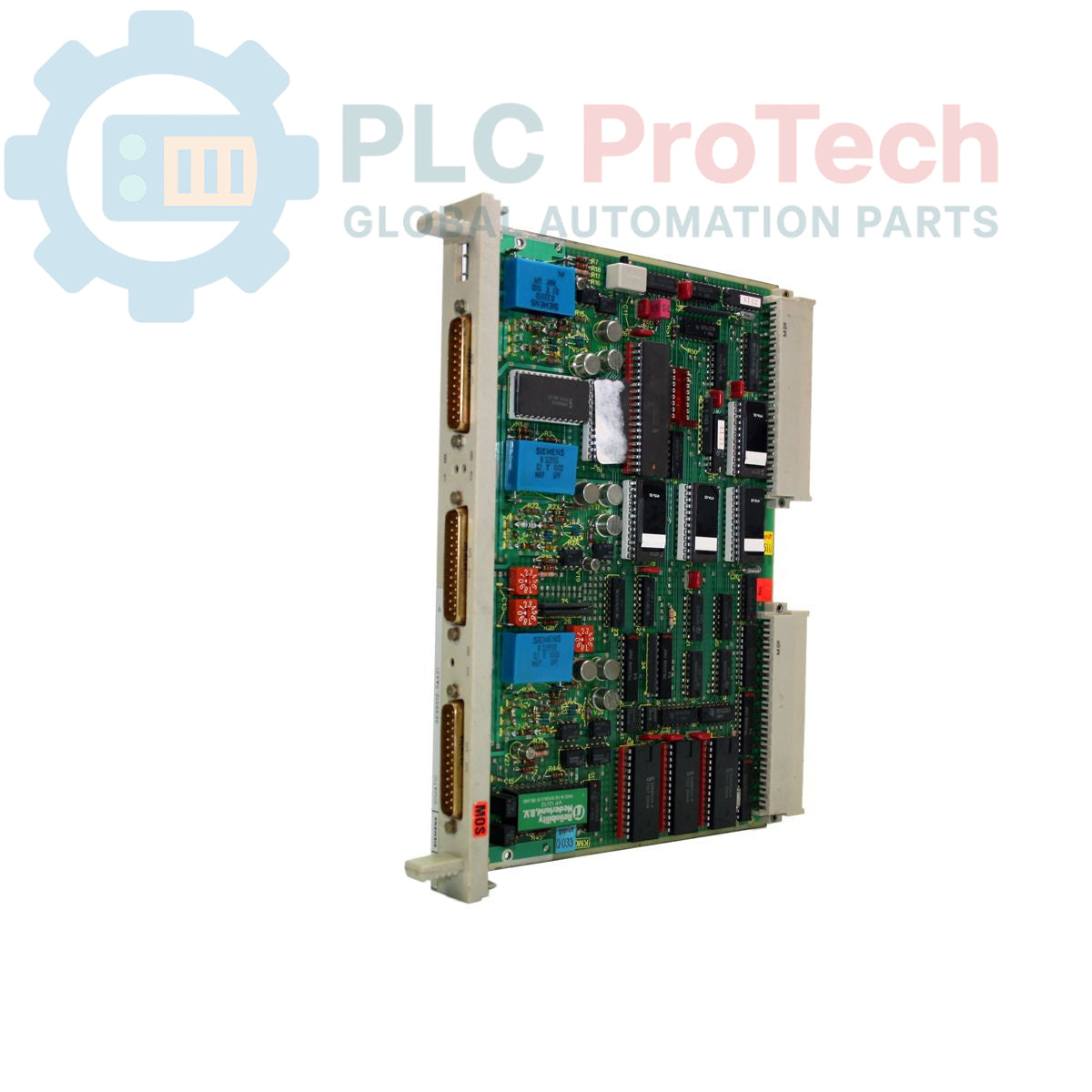

The 6ES5512-5AA21 is an IM 512 interface module acting as an extension board for SIMATIC S5 programmable controller systems. This module is essential for expanding the communication and connectivity capabilities of S5 racks, allowing for the connection of additional expansion units or peripherals. As an interface module within the legacy S5 infrastructure, it serves as a critical bridge for maintaining multi-rack configurations and ensuring seamless data exchange between the central processing unit and remote or secondary I/O segments. Its robust design is optimized for the demanding conditions of industrial control environments, providing reliable hardware expansion for complex automation layouts.

Features

• System Expansion: Functions as an interface extension board to increase the capacity of the SIMATIC S5 system.
• Compatibility: Designed specifically for integration with SIMATIC S5 rack-based architectures.
• Connectivity: Facilitates the link between central racks and expansion units for broader distributed I/O support.
• Industrial Durability: Engineered to withstand the rigors of continuous industrial operation.

Applications

• Expansion of existing SIMATIC S5 PLC racks
• Linking multi-rack automation configurations
• Retrofitting and maintenance of legacy industrial production lines
• Scaling I/O capacity for complex manufacturing processes

Technical Specifications

Installation Guidelines

• Rack Slotting: Ensure the module is properly aligned with the backplane connectors in the expansion rack; avoid forcing the module into the slot.
• Termination: Verify that any required bus termination or cabling between racks is correctly installed according to the specific S5 expansion configuration.
• Power: Ensure all racks are de-energized before inserting or removing the IM 512 module to prevent electrical damage to the backplane.
• Grounding: Ensure all racks share a common reference ground to prevent ground loops that could interfere with signal integrity across the extended interface.
