Siemens

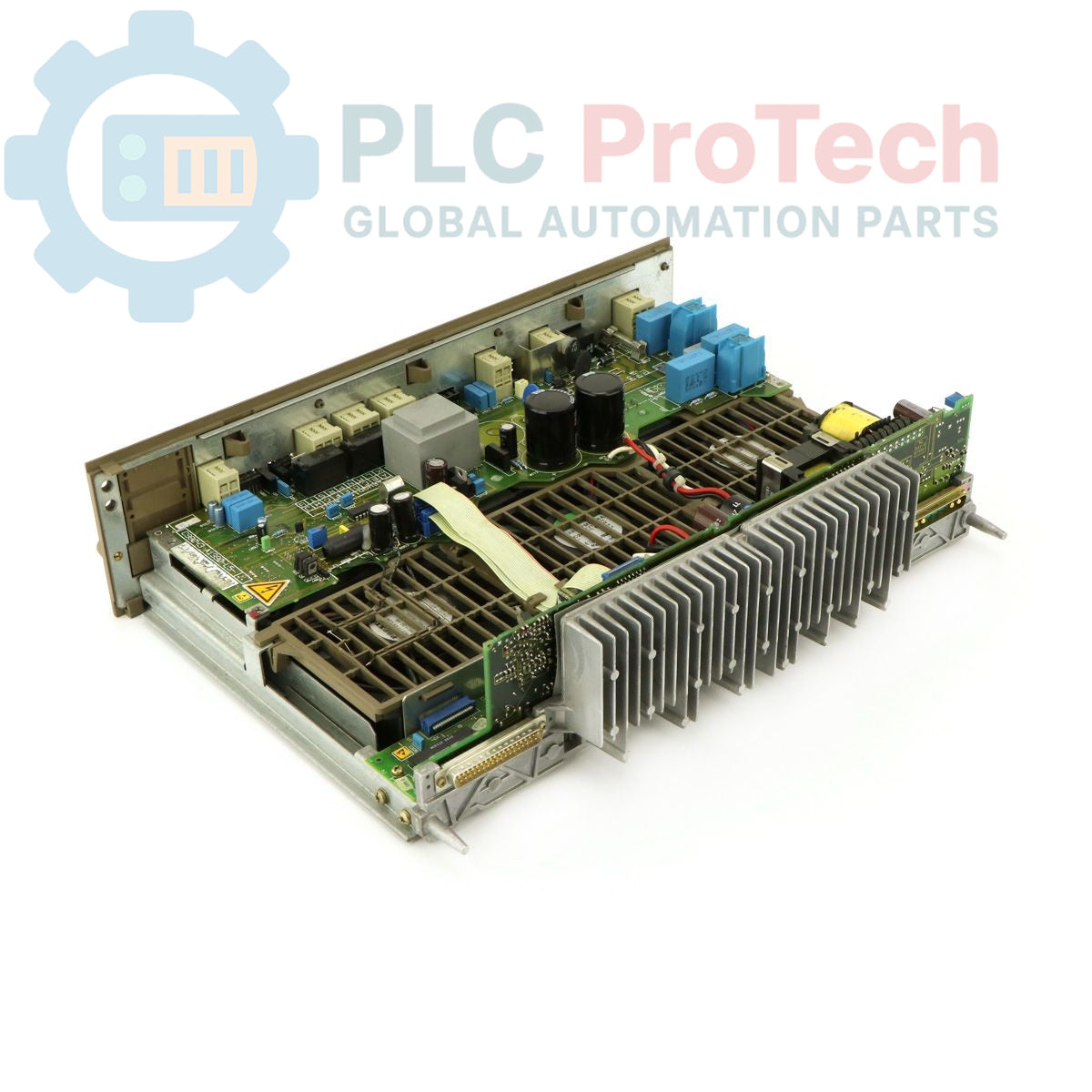

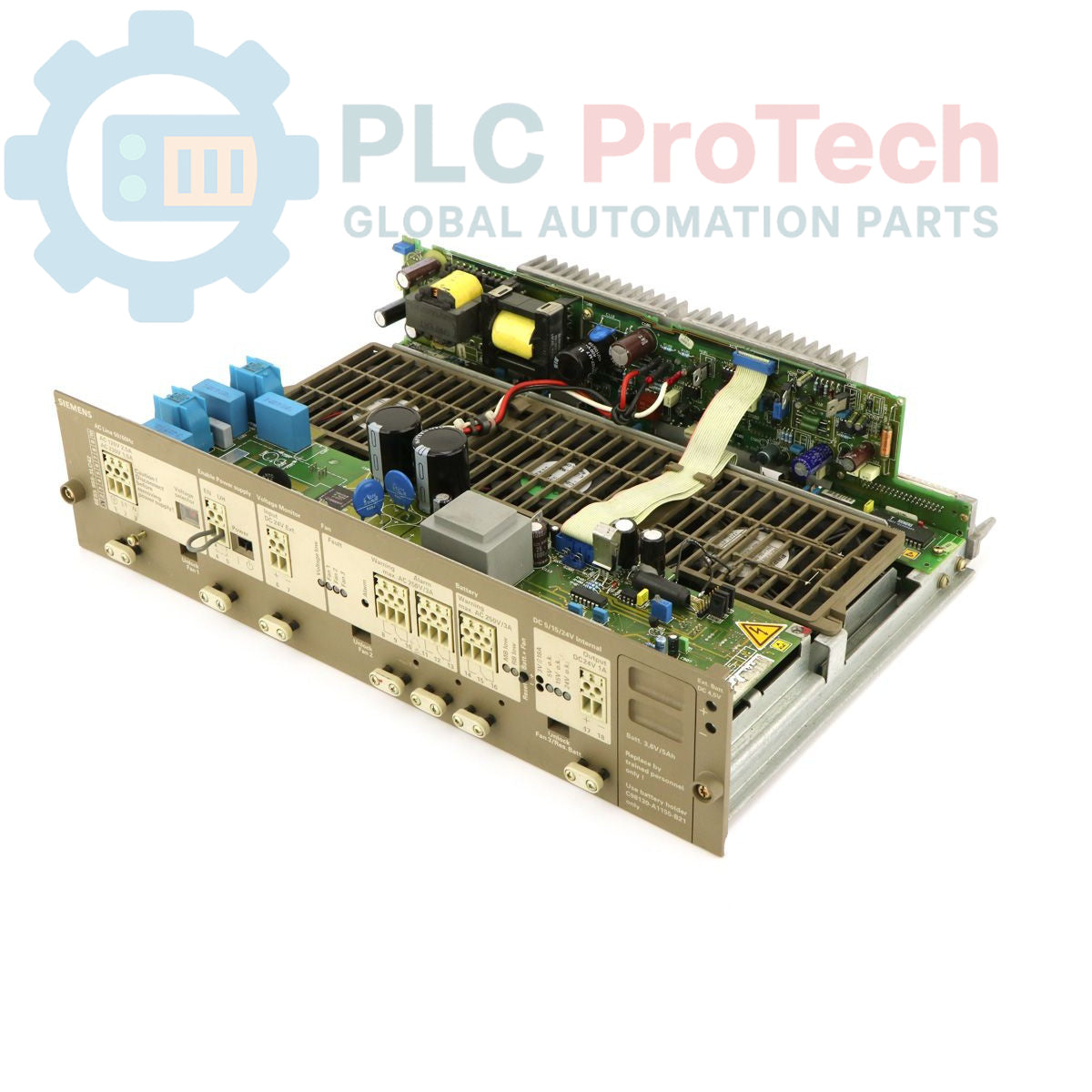

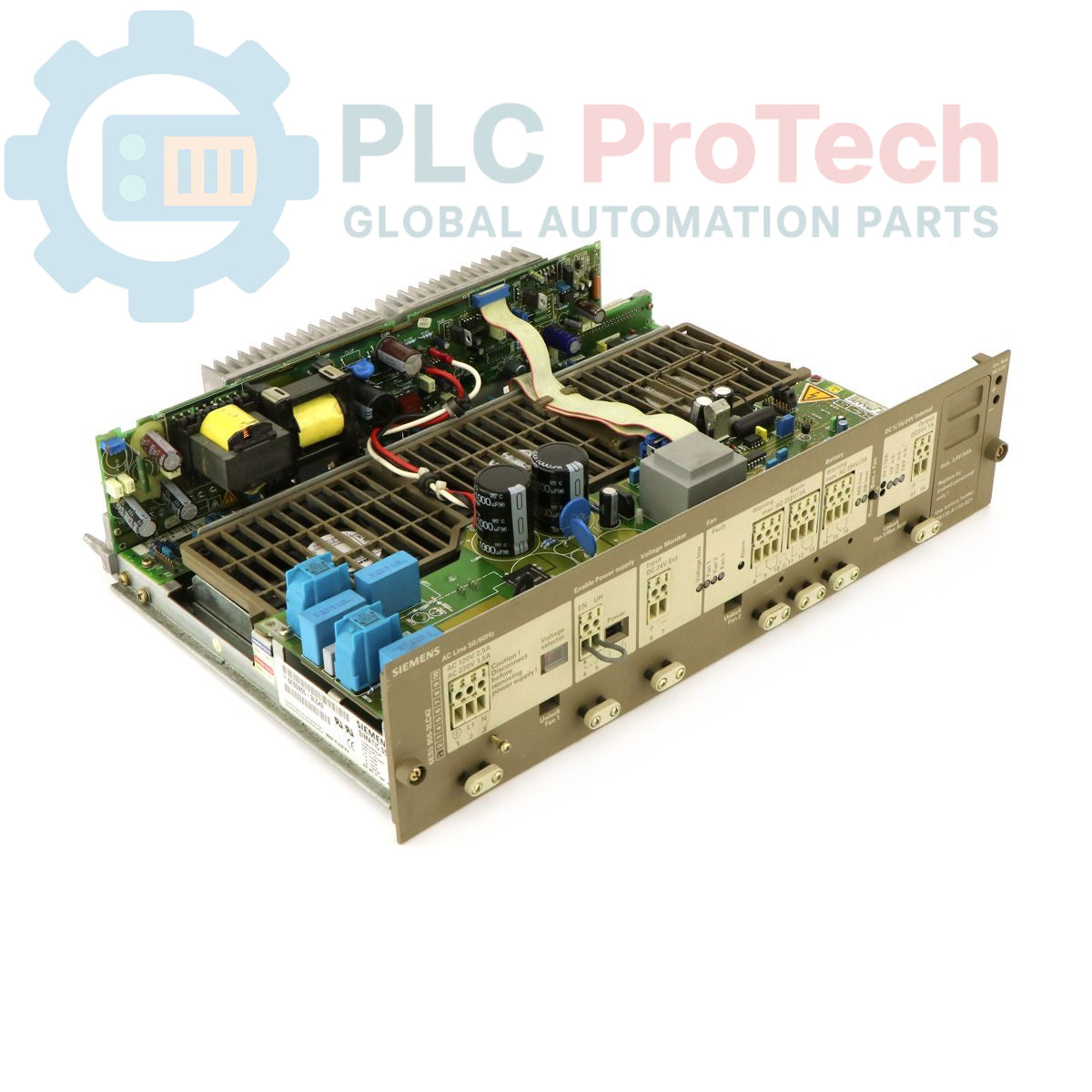

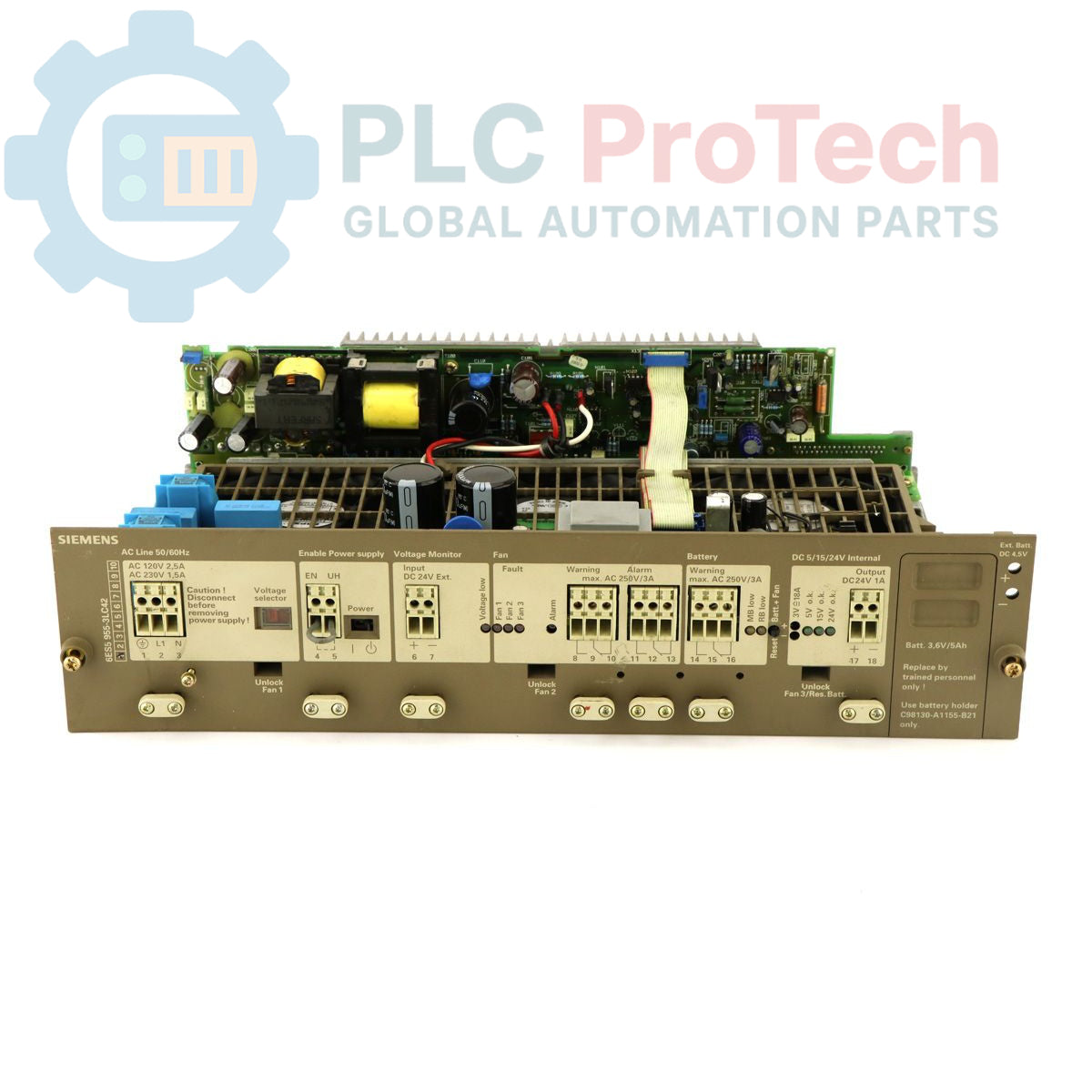

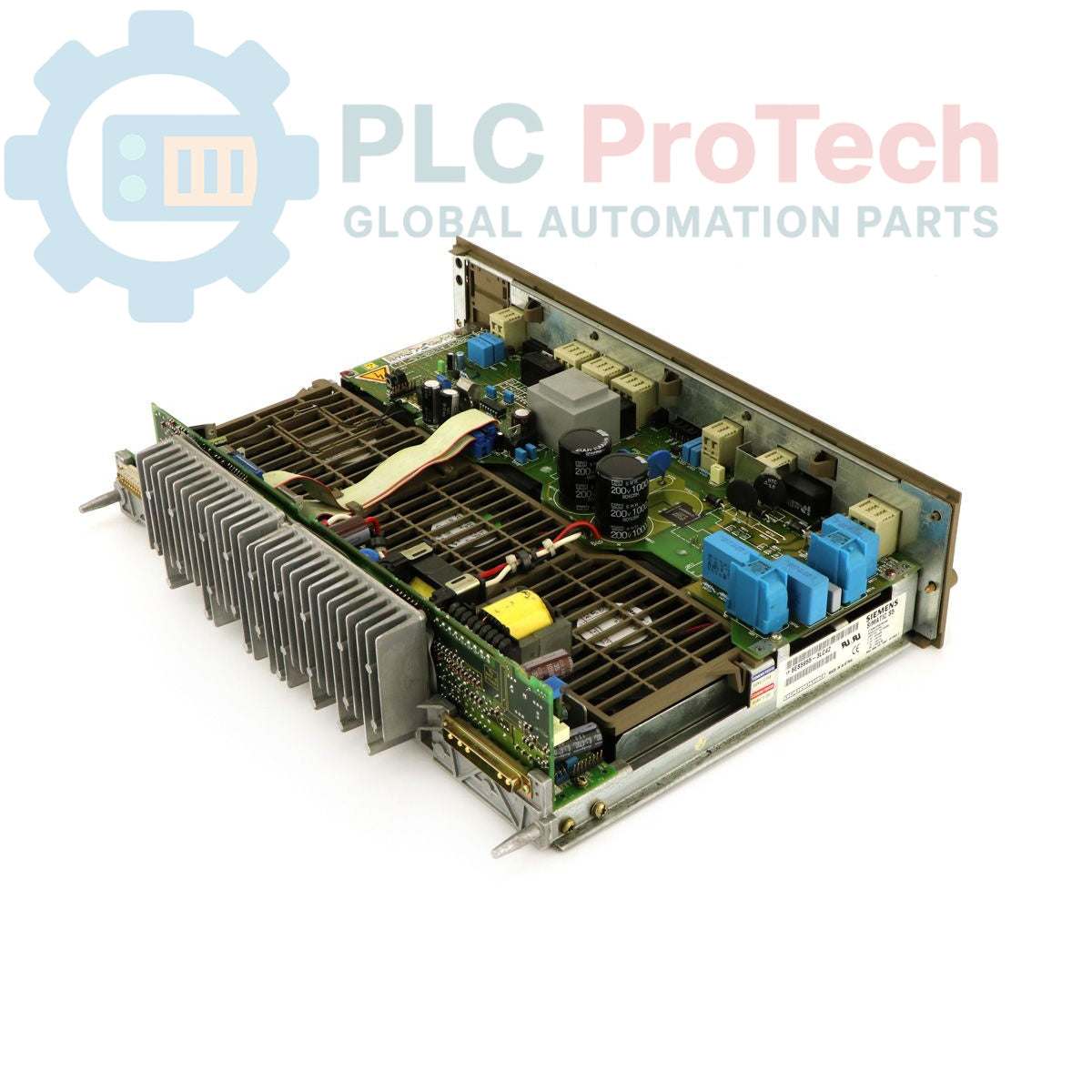

Siemens 6ES5955-3LC42 SIMATIC S5 Power Supply

SKU 6ES5955-3LC42

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES5955-3LC42
Origin Germany
Product Type: Power Supply
Barcode: 85044095
Payment: T/T, Western Union
Weight: 6.22 kg
Dimensions: 46.10 x 34.20 x 11.30 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Siemens 6ES5955-3LC42 is a SIMATIC S5 power supply unit, engineered for demanding industrial automation environments. This professional-grade unit provides a stable 5 V DC output at 18A and is compatible with both 230 V AC and 120 V AC input voltages. It is specifically designed for use with SIMATIC S5 systems, including models such as the S5-135U, S5-155U, and EG 183/185U, ensuring reliable power delivery for continuous operation on the production line.

Features

Provides 5 V DC output at 18A.
Compatible with 120 V AC and 230 V AC input voltages.
Designed for SIMATIC S5-135U, S5-155U, and EG 183/185U systems.
Robust construction suitable for industrial applications.

Applications

Powering SIMATIC S5 Programmable Logic Controller (PLC) systems.
Industrial automation setups requiring stable 5 V DC power.
Integration into existing SIMATIC S5-135U, S5-155U, or EG 183/185U installations.
Production lines and manufacturing facilities.

Technical Specifications

Parameter	Value
Manufacturer	Siemens
Brand	Siemens
Series	SIMATIC S5
Model	6ES5955-3LC42
Product Type	Power Supply
Input Voltage	120 V AC / 230 V AC
Output Voltage	5 V DC
Output Current	18A
Product Phase	Obsolete
Predecessor	6ES5955-3LC41
Package Dimensions (Calculated)	46.10 x 34.20 x 11.30 cm
Shipping Weight	6.22 kg
Commodity Code	85044095
Export Control Regulations (ECCN)	N

Installation Guidelines

De-energize System: Before installation, ensure all power to the SIMATIC S5 rack and associated equipment is completely disconnected and locked out to prevent electrical hazards.
Mounting: Securely mount the power supply unit within the designated slot or area in the SIMATIC S5 rack or enclosure. Ensure proper ventilation space around the unit.
Input Power Connection: Connect the appropriate AC input voltage (120 V AC or 230 V AC) to the designated terminals. Verify correct polarity and secure all connections.
Output Power Connection: Connect the 5 V DC output to the SIMATIC S5 backplane or modules as per the system wiring diagram. Ensure proper connection to the 5 V and ground terminals.
Grounding: Ensure the power supply unit and the SIMATIC S5 system are properly grounded to a common earth ground to minimize electrical noise and ensure safety.
Cable Routing: Route power cables away from signal and communication cables to prevent interference. Use appropriate cable management techniques.
Verification: After installation, double-check all connections for security and correctness before re-energizing the system.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What SIMATIC S5 systems is the 6ES5955-3LC42 compatible with?

This power supply is designed for use with SIMATIC S5-135U, S5-155U, and EG 183/185U systems.

What are the input voltage requirements for this power supply?

The unit is compatible with both 120 V AC and 230 V AC input voltages.

What is the output specification of the 6ES5955-3LC42?

It provides a stable 5 V DC output at 18A.

Is the 6ES5955-3LC42 still in active production?

No, the product phase for this power supply is listed as Obsolete.

What was the predecessor model to the 6ES5955-3LC42?

The predecessor model for this power supply was the 6ES5955-3LC41.
