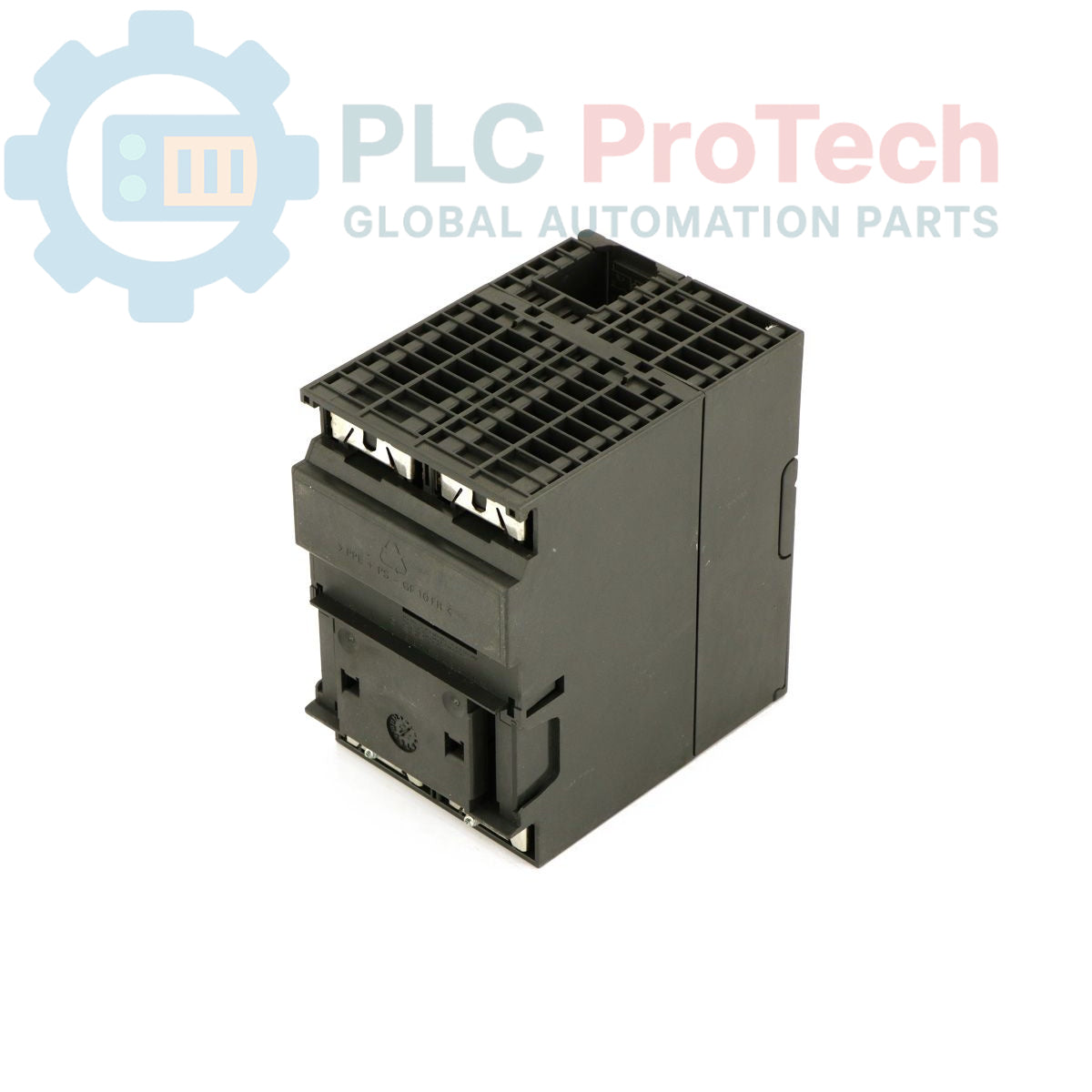

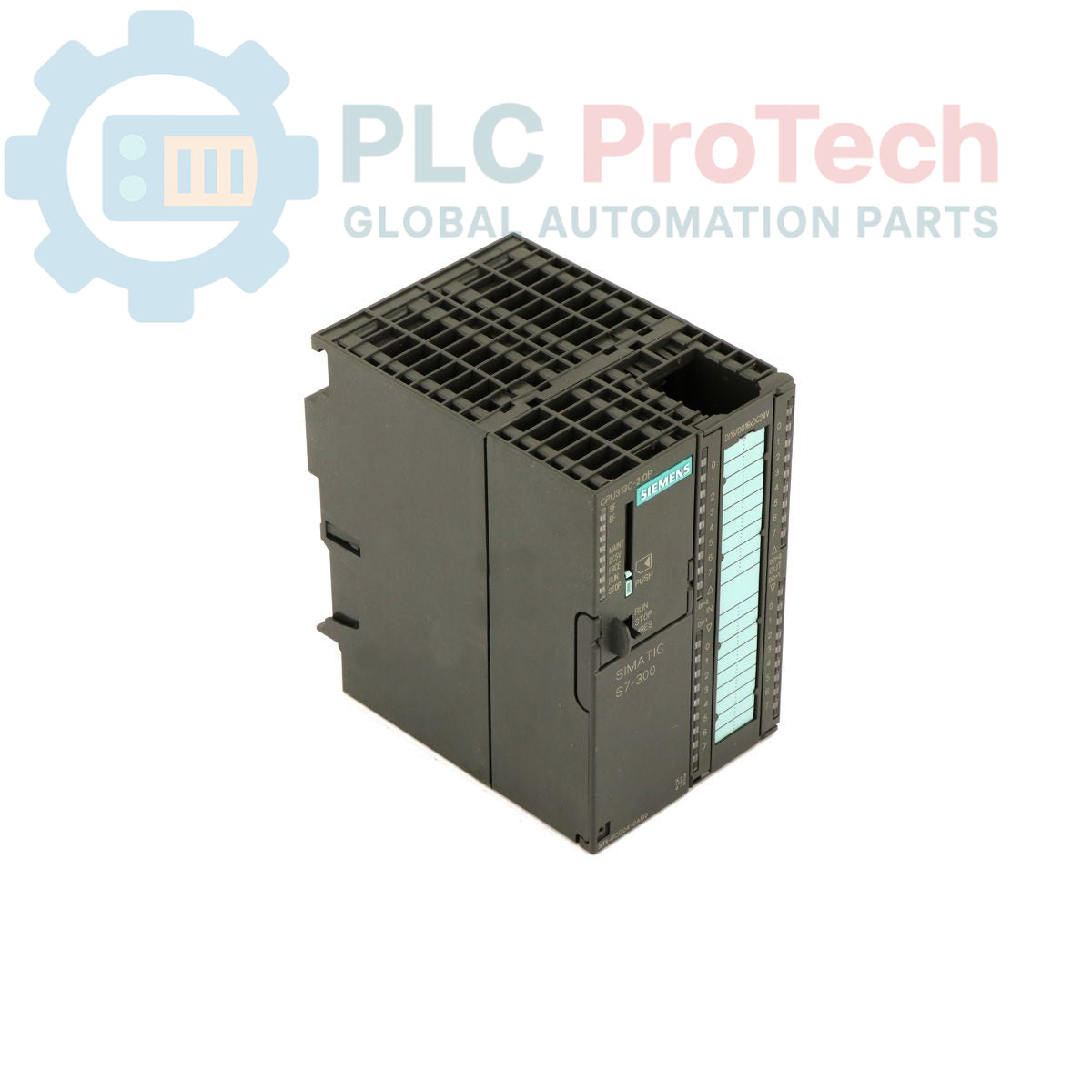

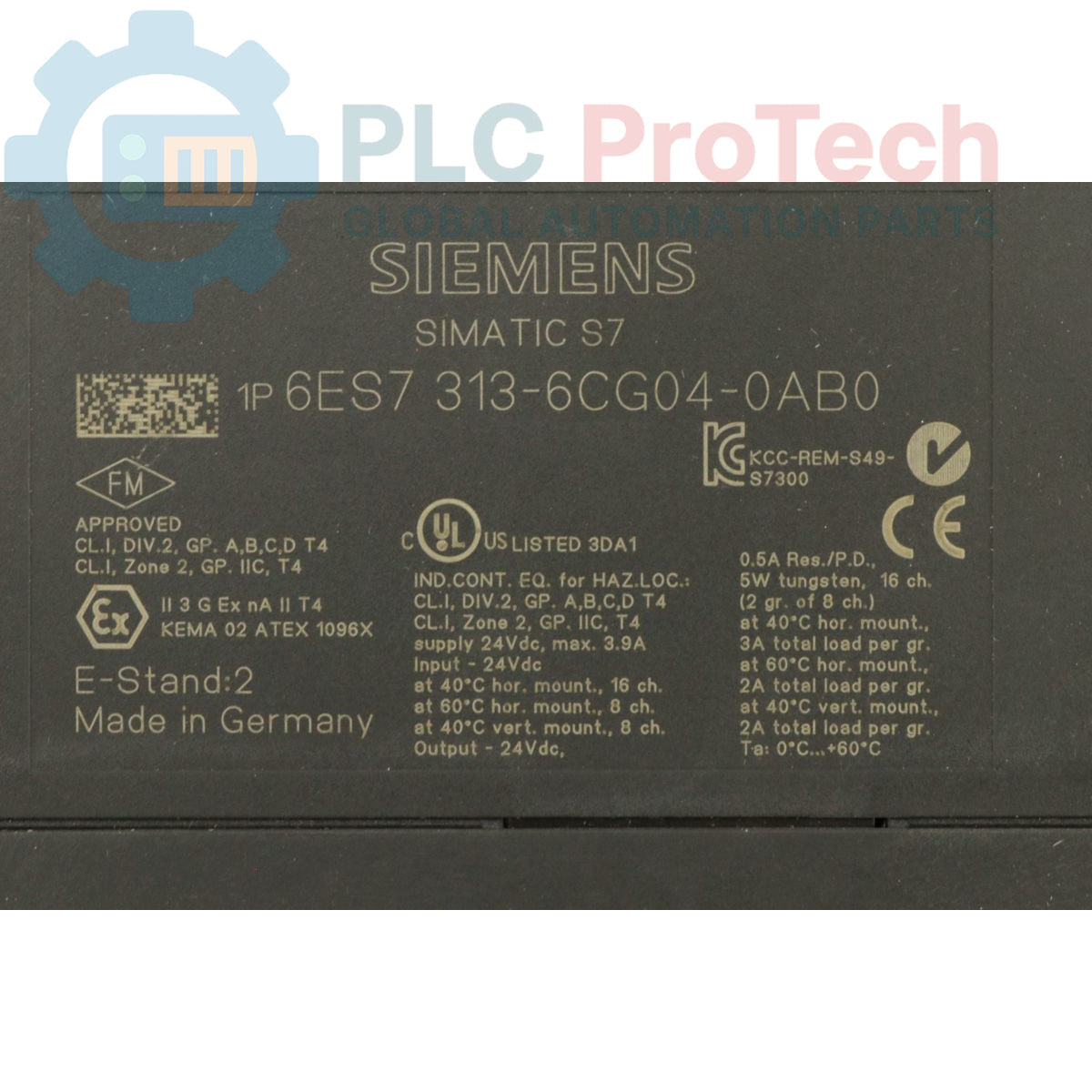

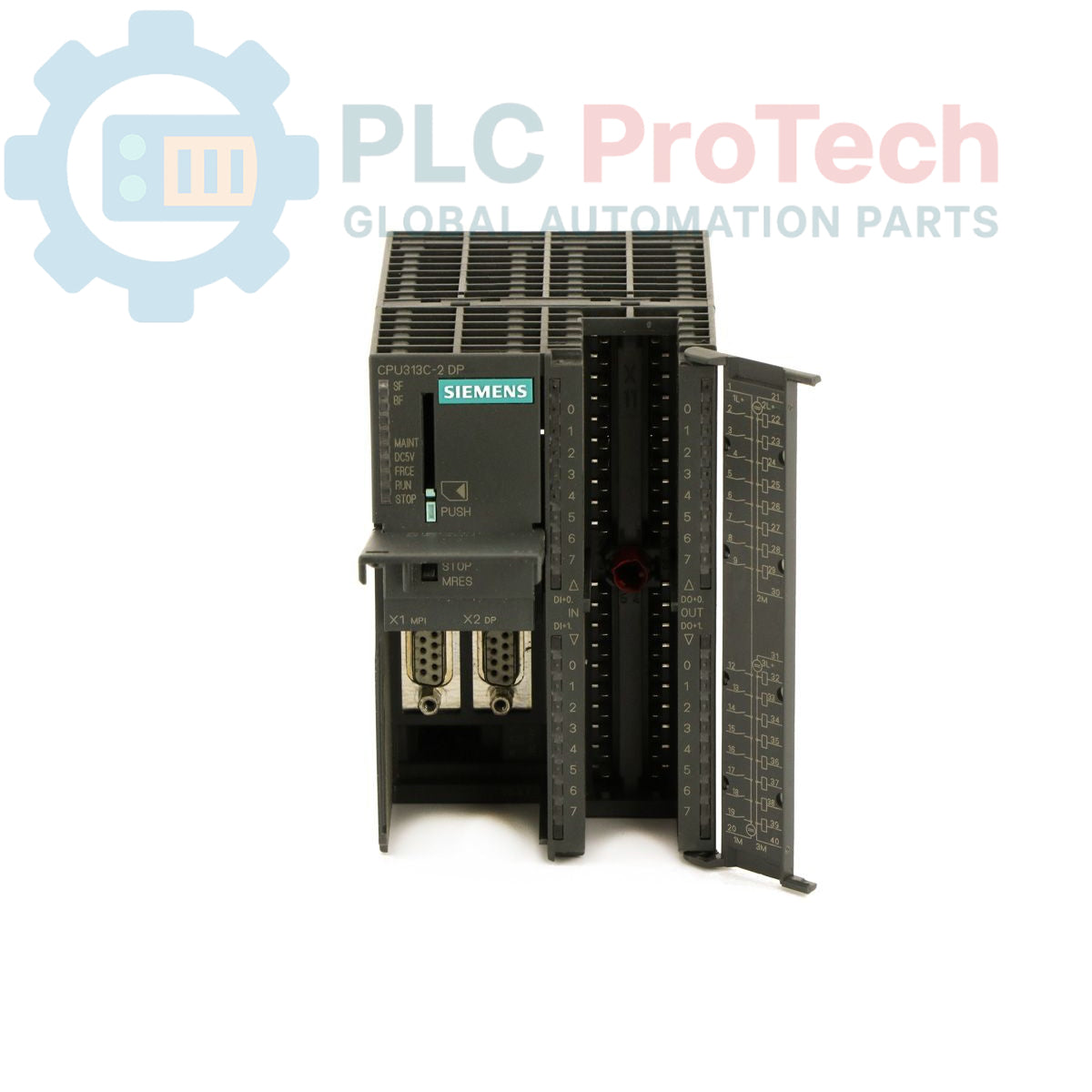

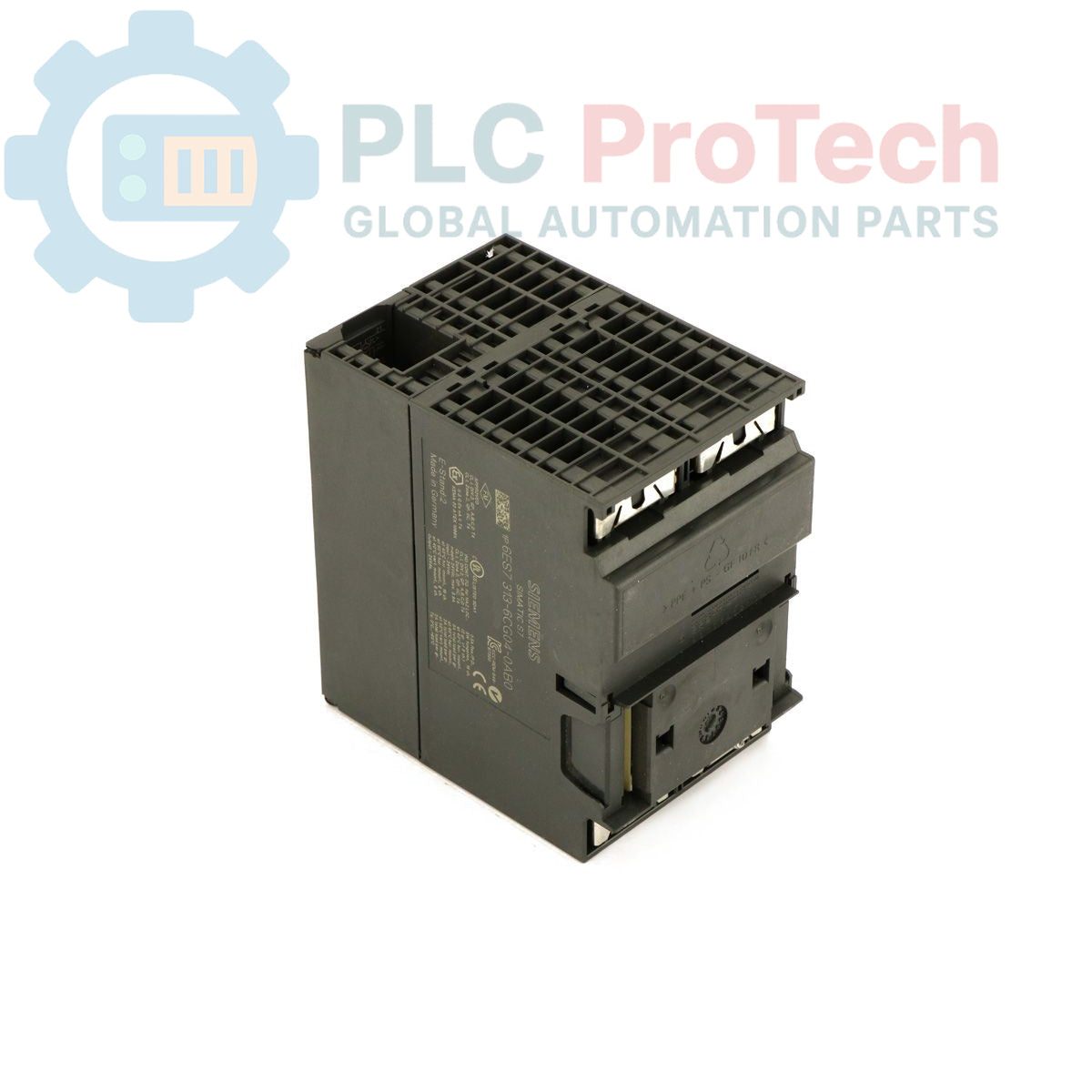

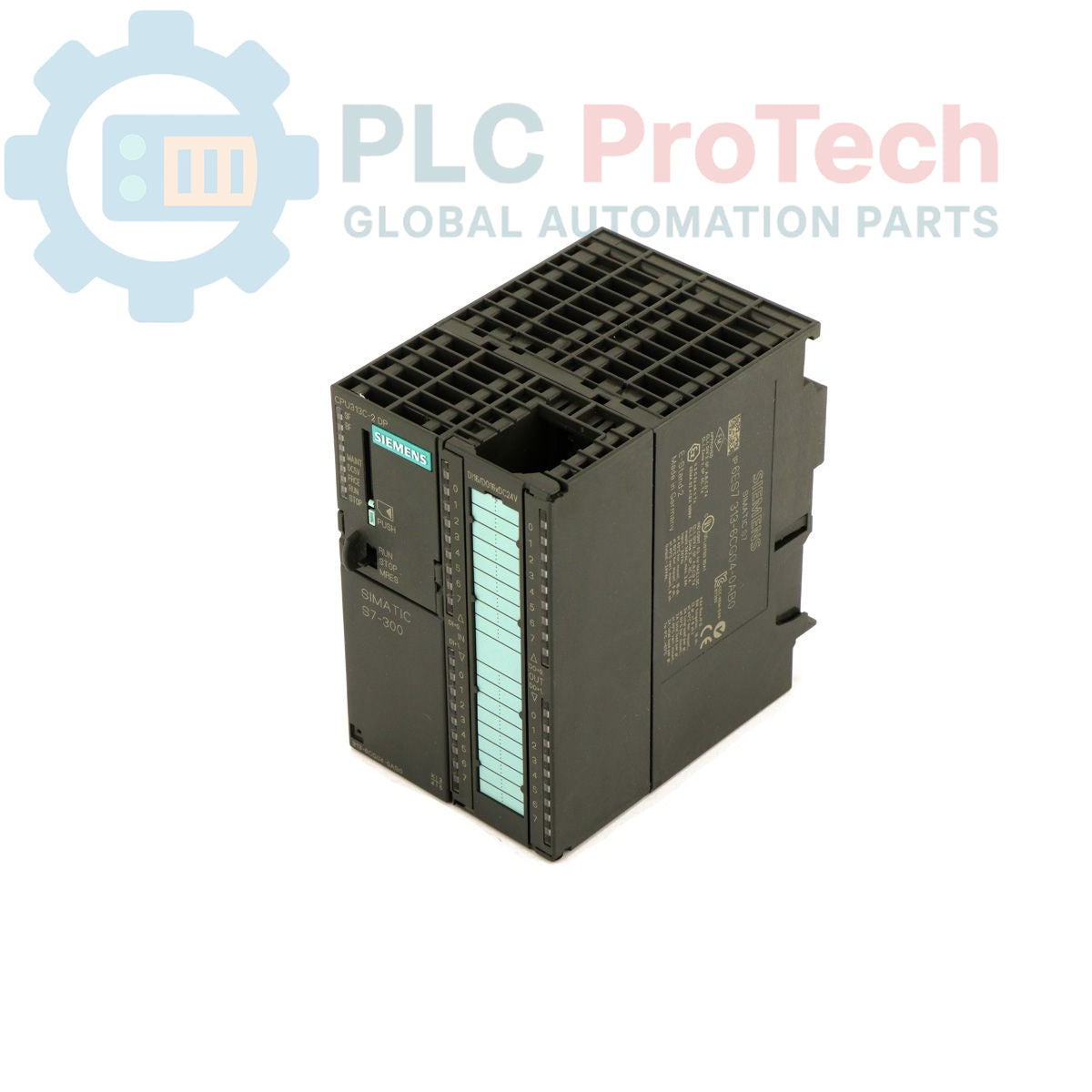

Siemens 6ES7313-6CG04-0AB0 | SIMATIC S7-300 | CPU 313C-2 DP Compact CPU

SKU 6ES7313-6CG04-0AB0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7313-6CG04-0AB0
Origin Germany
Product Type: Power supplies
Barcode: 85371091
Payment: T/T, Western Union
Weight: 0.54 kg
Dimensions: 8.00cm x 13.00cm x 12.50cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 6ES7313-6CG04-0AB0 is a SIMATIC S7-300 CPU 313C-2 DP, a compact CPU module designed for scalable automation solutions. It features integrated MPI and PROFIBUS DP interfaces, making it highly effective for distributed control architectures. This module includes 16 digital inputs and 16 digital outputs, complemented by 3 high-speed counters capable of processing frequencies up to 30 kHz. With a 128 KB work memory and an integrated 24 V DC power supply, the 6ES7313-6CG04-0AB0 provides efficient processing for demanding production environments. A Micro Memory Card (MMC) is required for operation, and the unit utilizes a 40-pole front connector for streamlined field wiring. This model supports firmware versions V3.3.7 and V3.3.11.

Features

Integrated Interfaces: Built-in MPI and PROFIBUS DP interface for flexible communication.
Compact I/O: Includes 16 digital inputs and 16 digital outputs.
High-Speed Processing: Equipped with 3 high-speed counters (up to 30 kHz).
Memory: 128 KB work memory for automation program storage.
Firmware: Supports firmware versions V3.3.7 and V3.3.11.
System Integration: Requires a 40-pole front connector and Micro Memory Card.

Applications

Distributed automation solutions via PROFIBUS DP
High-speed pulse processing and position monitoring
Industrial production line control
Retrofitting and upgrading existing S7-300 control systems
Process control requiring precise digital I/O management

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Range	SIMATIC S7
Subrange	S7-300
Model	CPU 313C-2 DP
Supply Voltage	19.2-28.8V DC
Digital Inputs	16
Digital Outputs	16
Work Memory	128 KB
Weight	0.54kg
Dimensions	8.00cm x 13.00cm x 12.50cm
Product Phase	Phase-Out
Predecessor	6ES7313-6CF03-0AB0
Commodity Code	85371091
Export Control (ECCN)	EAR99

Installation Guidelines

Mounting: Install on a standard 35mm DIN rail. Ensure proper clearance for ventilation to maintain optimal operating temperature.
Power Connection: Connect 24V DC to the integrated power supply terminals. Ensure the voltage remains within the 19.2-28.8V DC range.
Wiring: Use a 40-pole front connector for I/O wiring. Ensure all cables are properly shielded to mitigate electromagnetic interference.
Memory Management: A Micro Memory Card must be inserted into the designated slot before the CPU can perform program execution.
Configuration: Use compatible STEP 7 engineering software to configure the DP interface and assign I/O parameters.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary communication interface for this CPU?

The CPU features both MPI and an integrated PROFIBUS DP interface.

Does the 6ES7313-6CG04-0AB0 include a power supply?

Yes, it has an integrated 24V DC power supply for internal operation.

What are the requirements for program storage?

A Micro Memory Card is required to store the automation program and firmware data.

Is this product still in production?

The product is currently in the Phase-Out stage of its lifecycle.
