Description

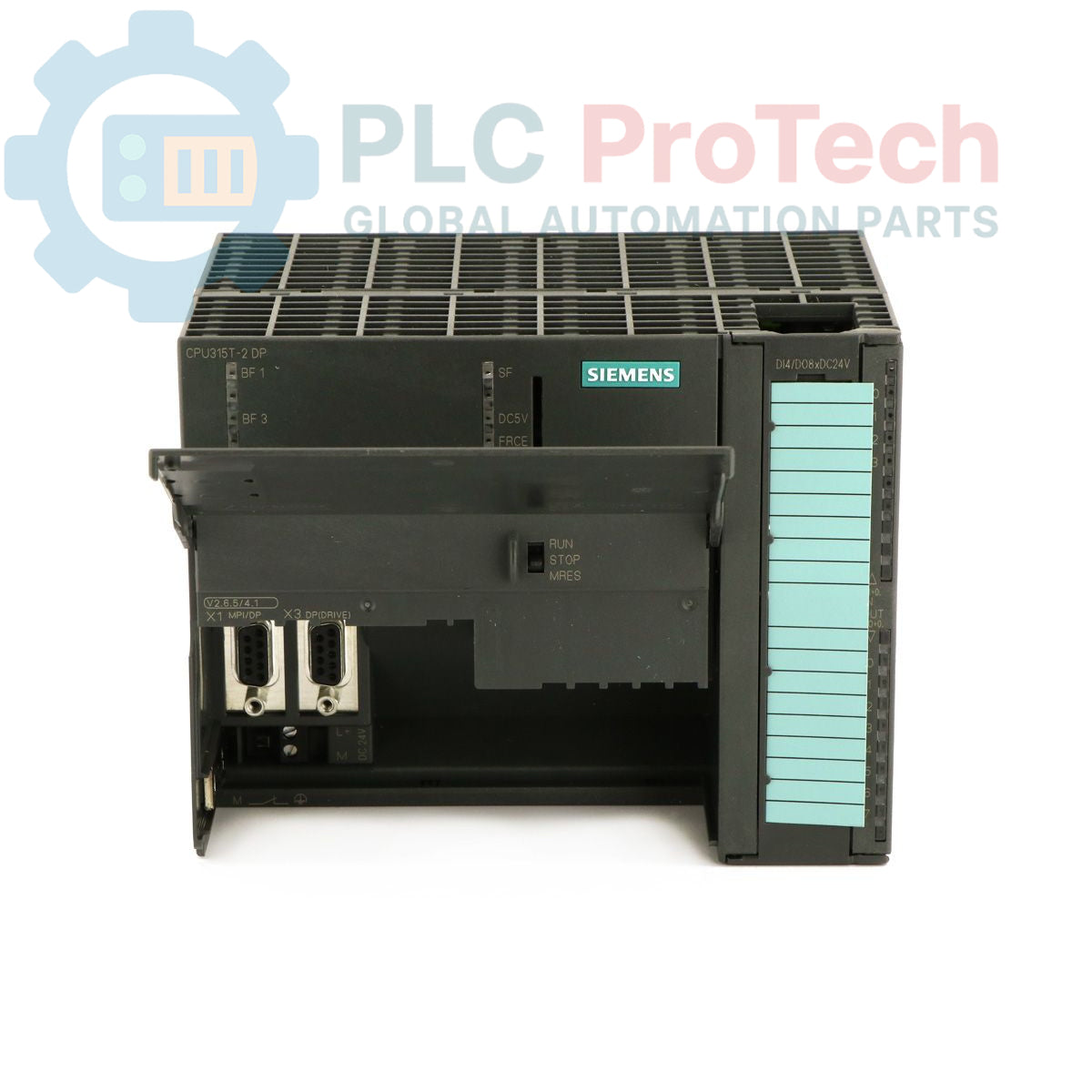

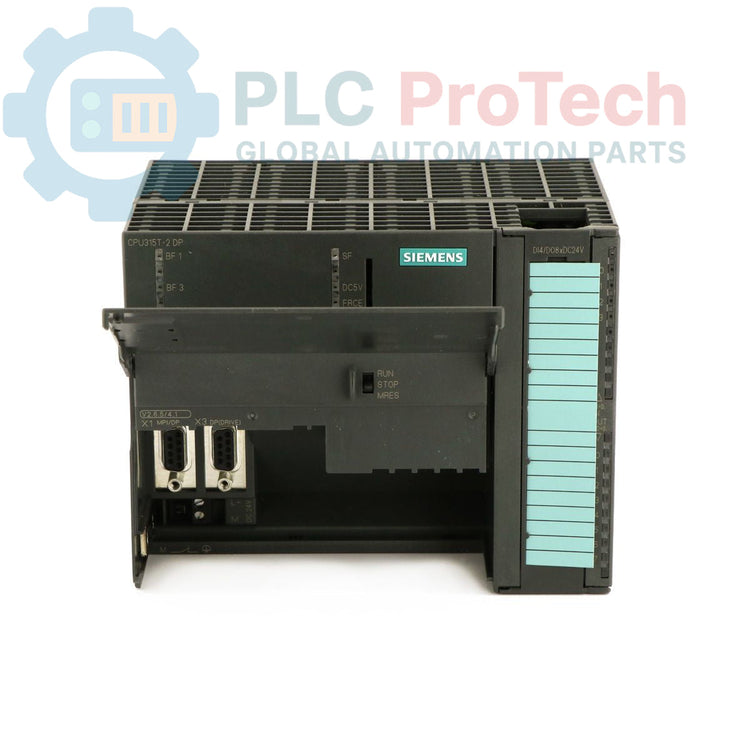

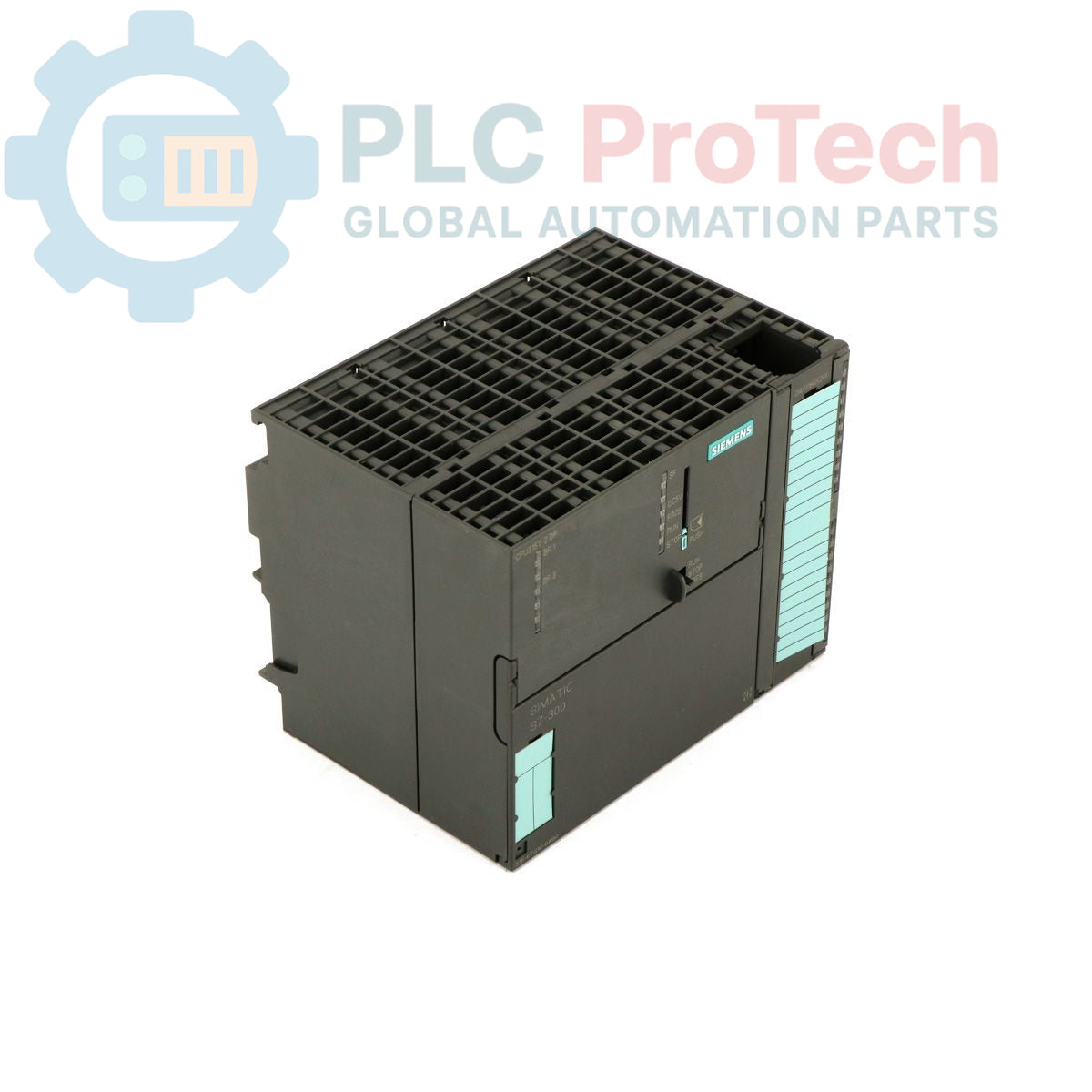

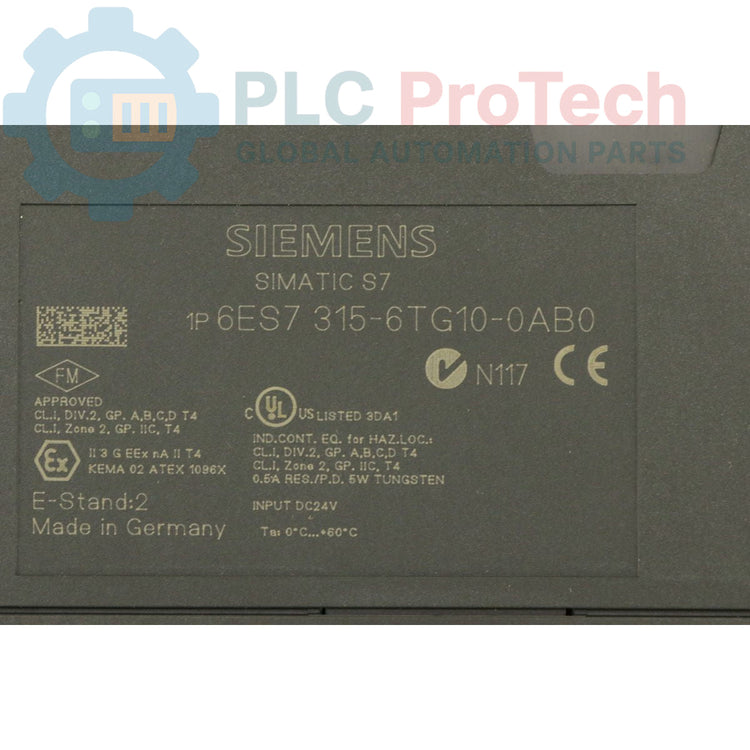

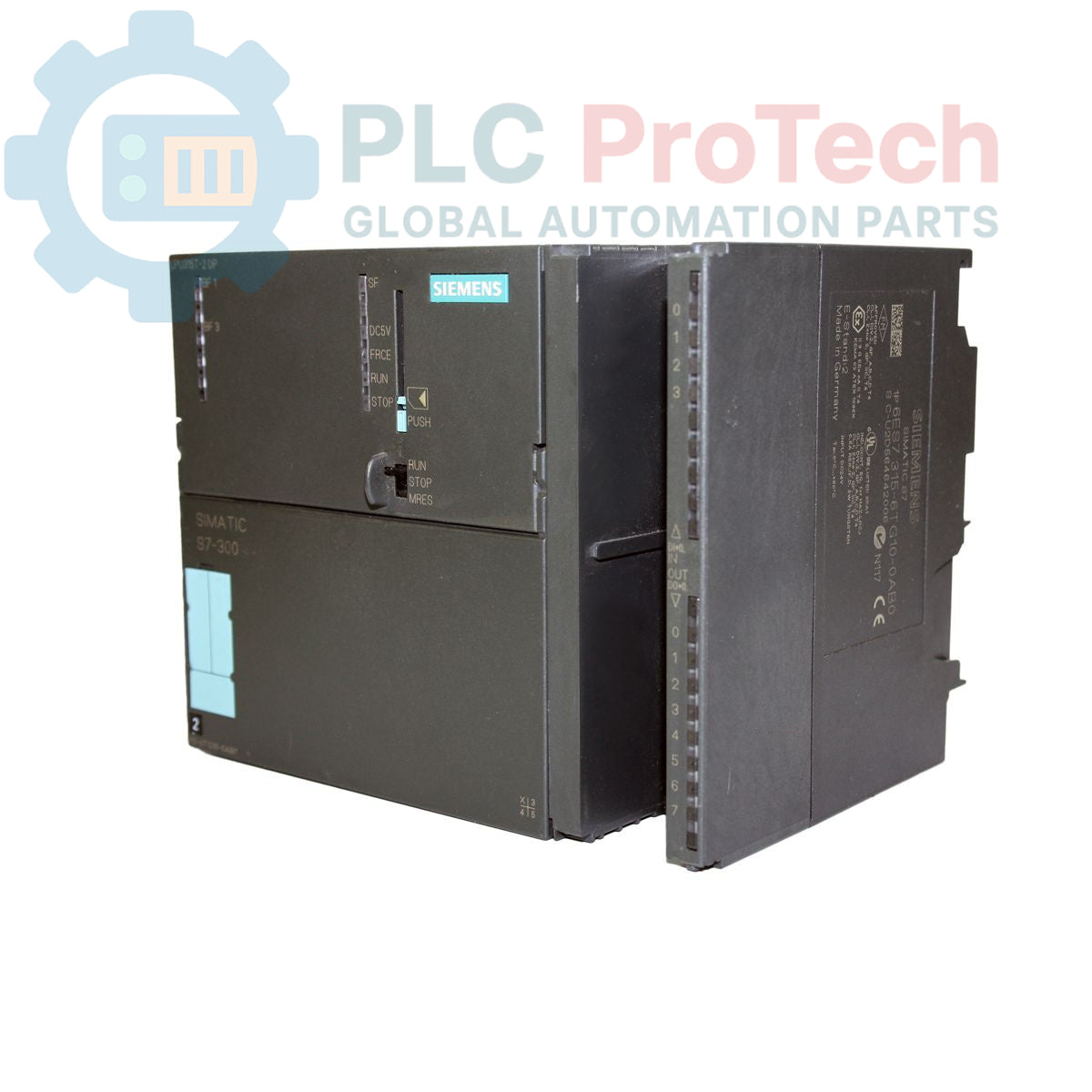

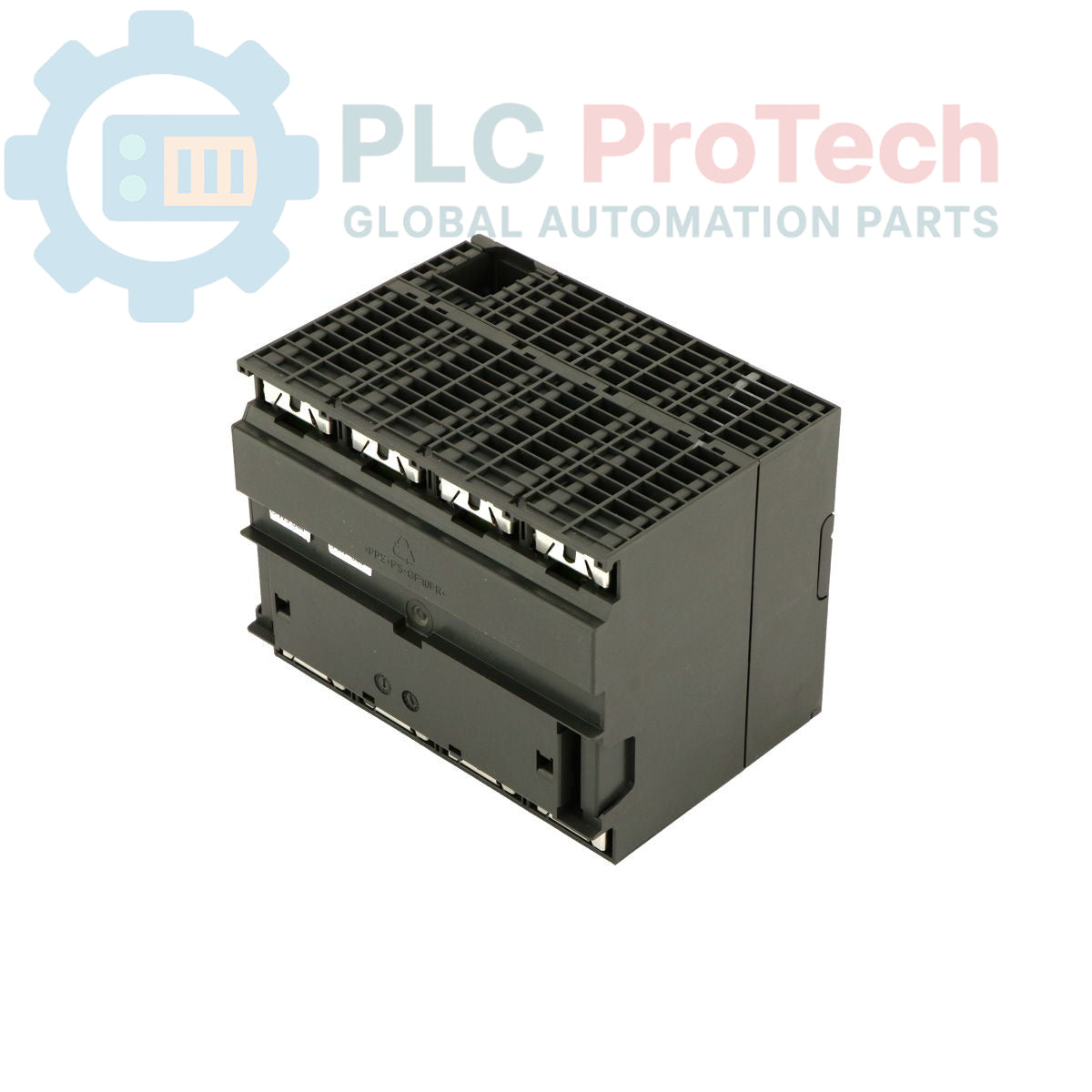

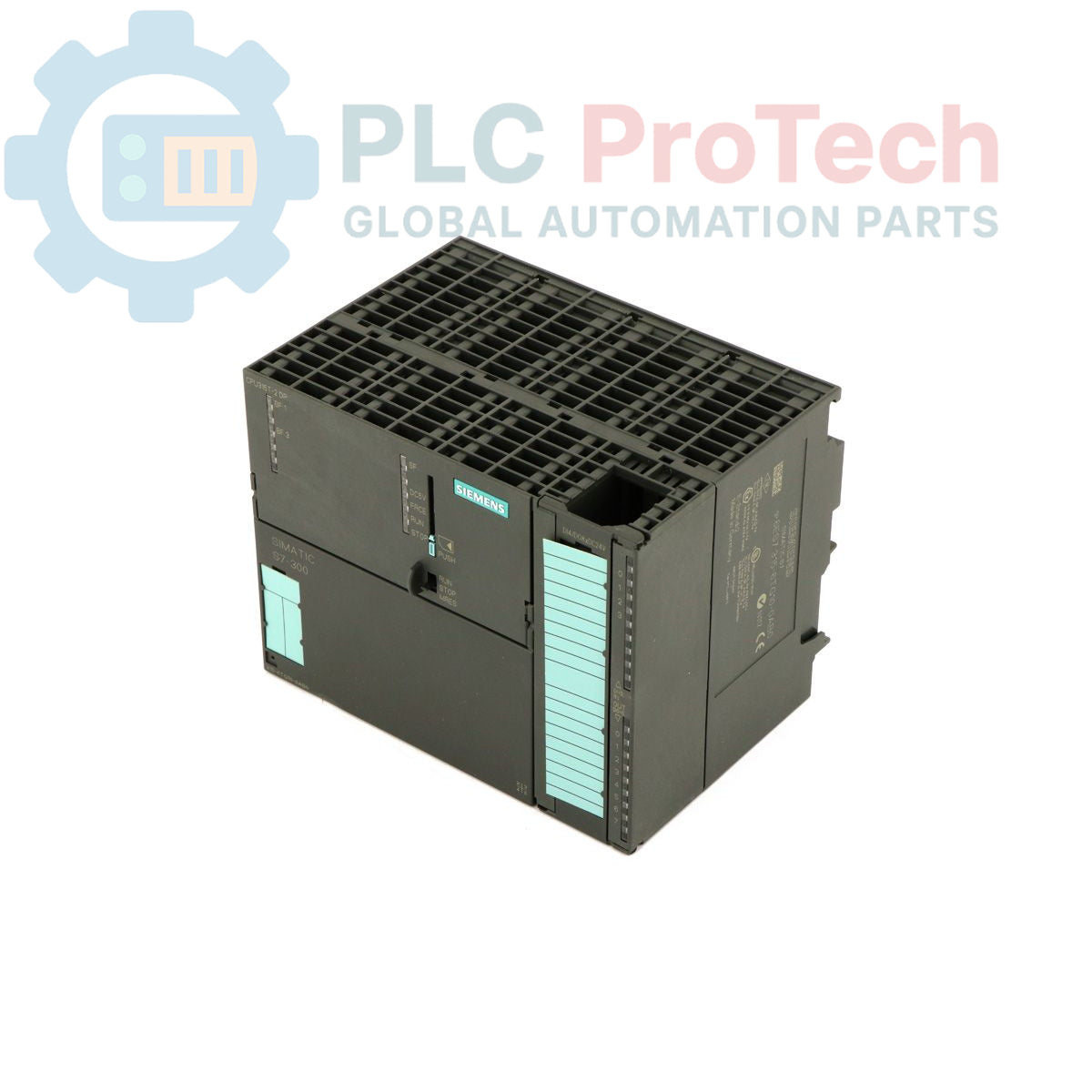

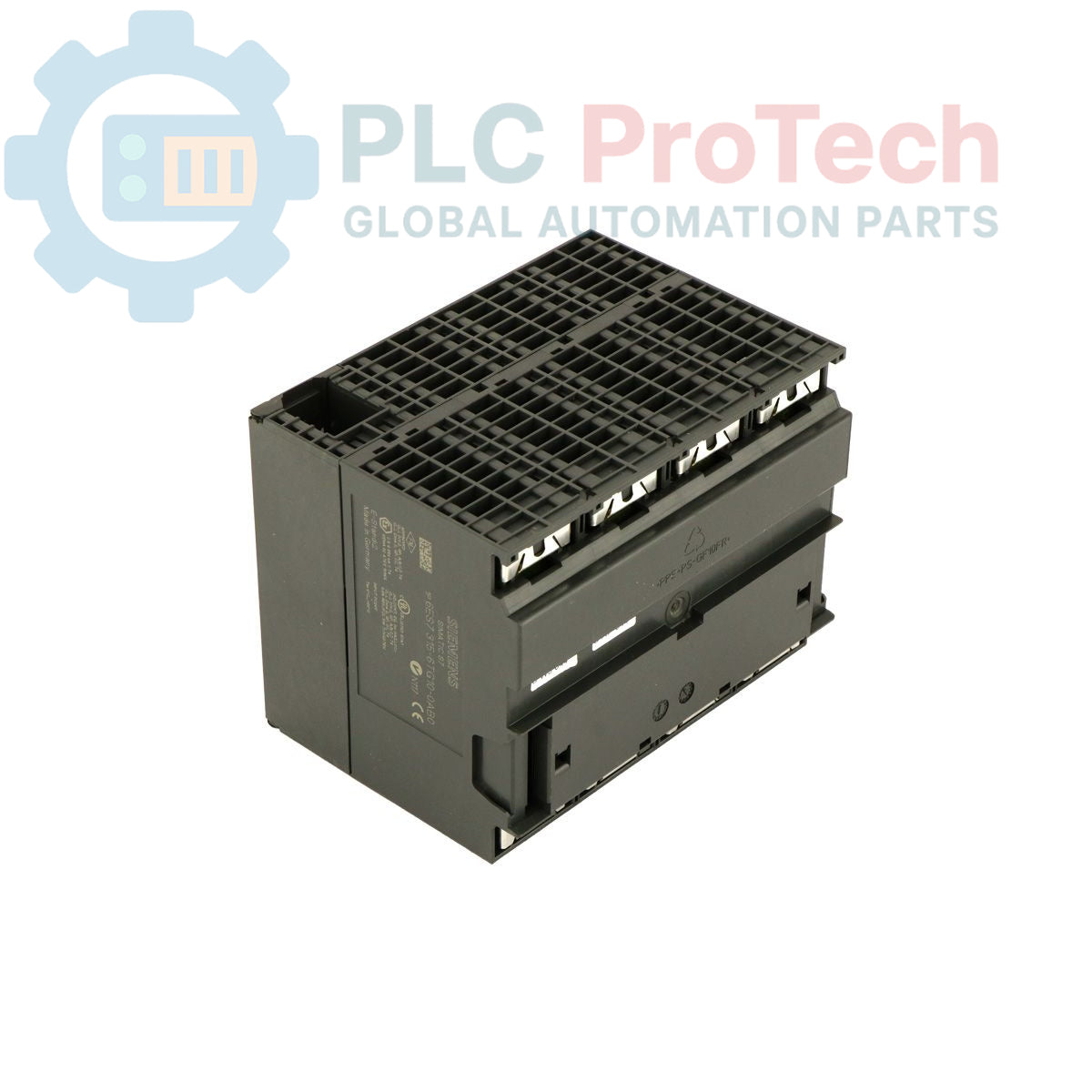

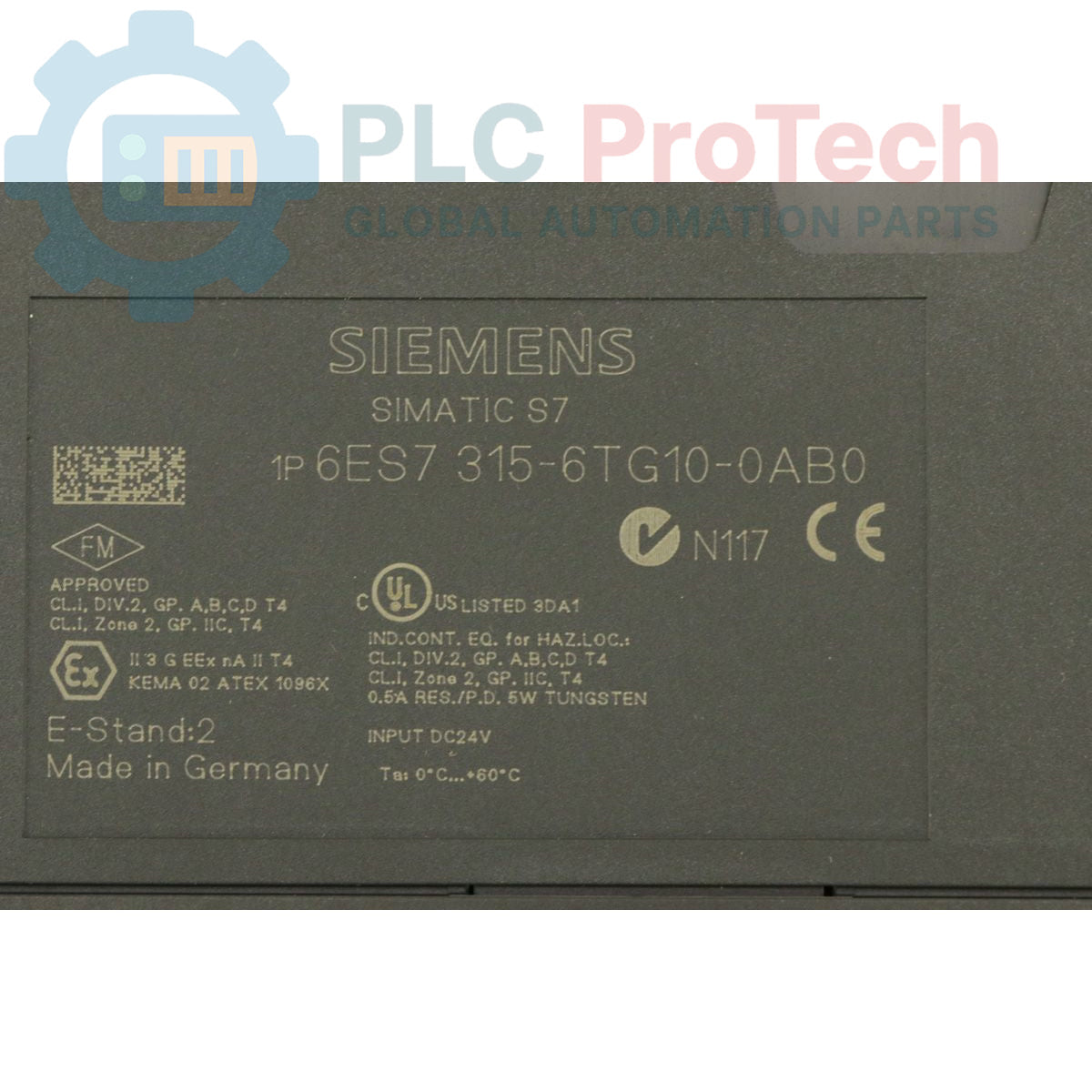

The Siemens 6ES7315-6TG10-0AB0 is a SIMATIC S7-300 CPU 315T-2 DP, a central processing unit engineered for advanced automation tasks within industrial environments. This CPU is equipped with 128 KByte working memory, facilitating efficient data processing for complex production processes. It features two high-speed communication interfaces: a primary MPI/DP interface supporting data rates up to 12 Mbit/s, and a dedicated DP (Drive) interface for seamless integration with drives and other field devices. Integrated I/O for technology applications is accessible via a 40-pin front connector, which simplifies installation and maintenance within control cabinets. The 6ES7315-6TG10-0AB0 requires a minimum 4MB Micro Memory Card for operation, making it a robust and dependable solution for evolving manufacturing needs.

Features

• 128 KByte working memory
• Integrated MPI/DP interface with 12 Mbit/s data rate
• Dedicated DP (Drive) interface for drive communication
• Integrated I/O for technology applications
• Single 40-pin front connector for I/O access
• Requires minimum 4MB Micro Memory Card

Applications

• Advanced automation tasks in manufacturing
• Control systems for complex production processes
• Integration with industrial drives and field devices
• General PLC control within the SIMATIC S7-300 platform

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the rack or control cabinet is de-energized and locked out before beginning installation.
2. Mounting: Insert the CPU module into the designated slot on the SIMATIC S7-300 rack. Ensure it is securely seated and locked into place using the module's retaining clips.
3. Memory Card Insertion: Carefully insert a Micro Memory Card (minimum 4MB) into the designated slot on the CPU. Ensure it clicks into place.
4. Front Connector Attachment: Connect the 40-pin front connector to the CPU for integrated I/O. Verify that all wiring to the connector is correct and secure according to your system's wiring diagrams.
5. Communication Cabling: Connect the MPI/DP and DP (Drive) communication cables to their respective ports on the CPU. Ensure proper termination and shielding for optimal signal integrity.
6. Power-Up: After all connections are verified, re-energize the system. Observe the CPU's status LEDs for proper operation.
7. Configuration: Use appropriate Siemens engineering software (e.g., STEP 7) to configure the CPU, load the application program, and set up communication parameters.
