Description

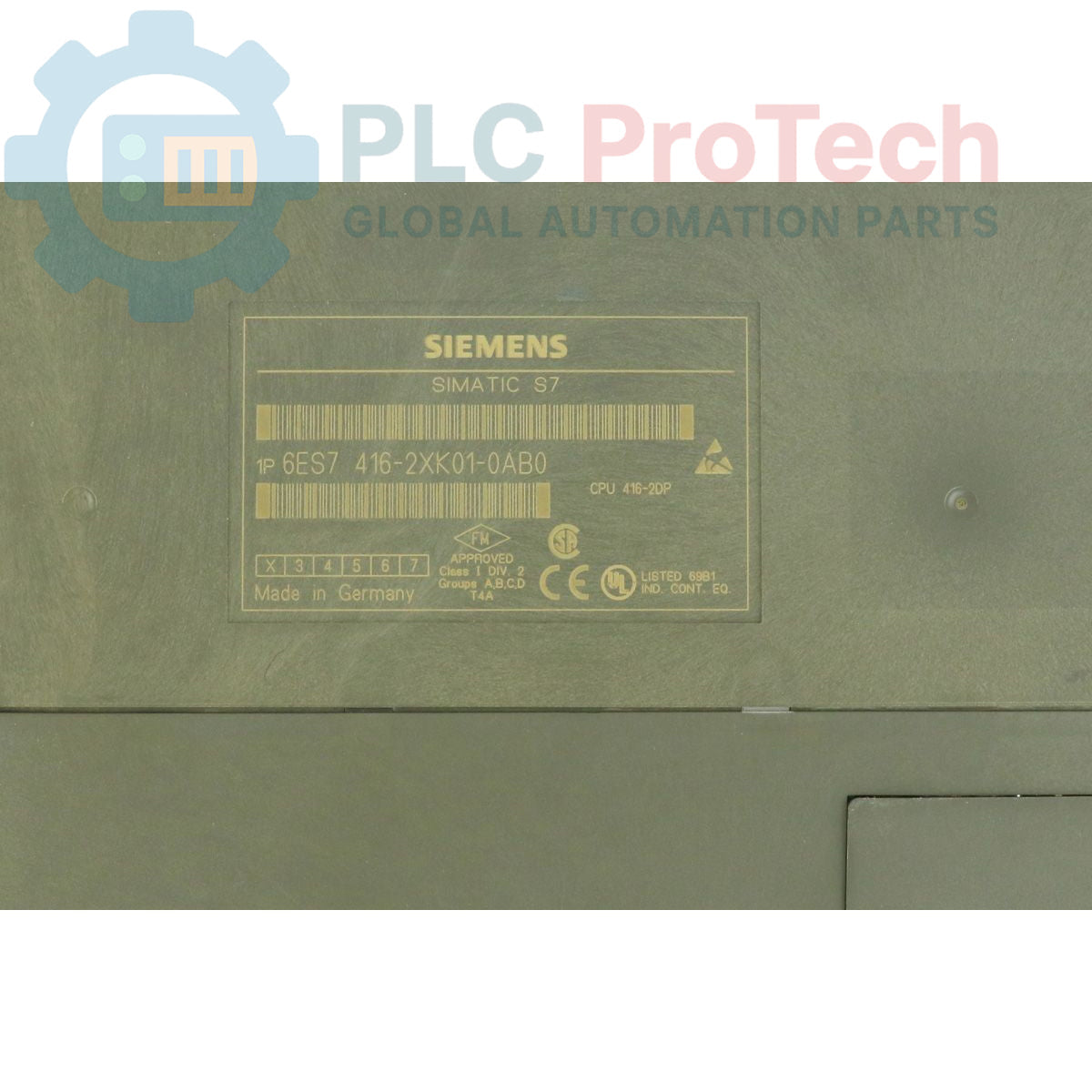

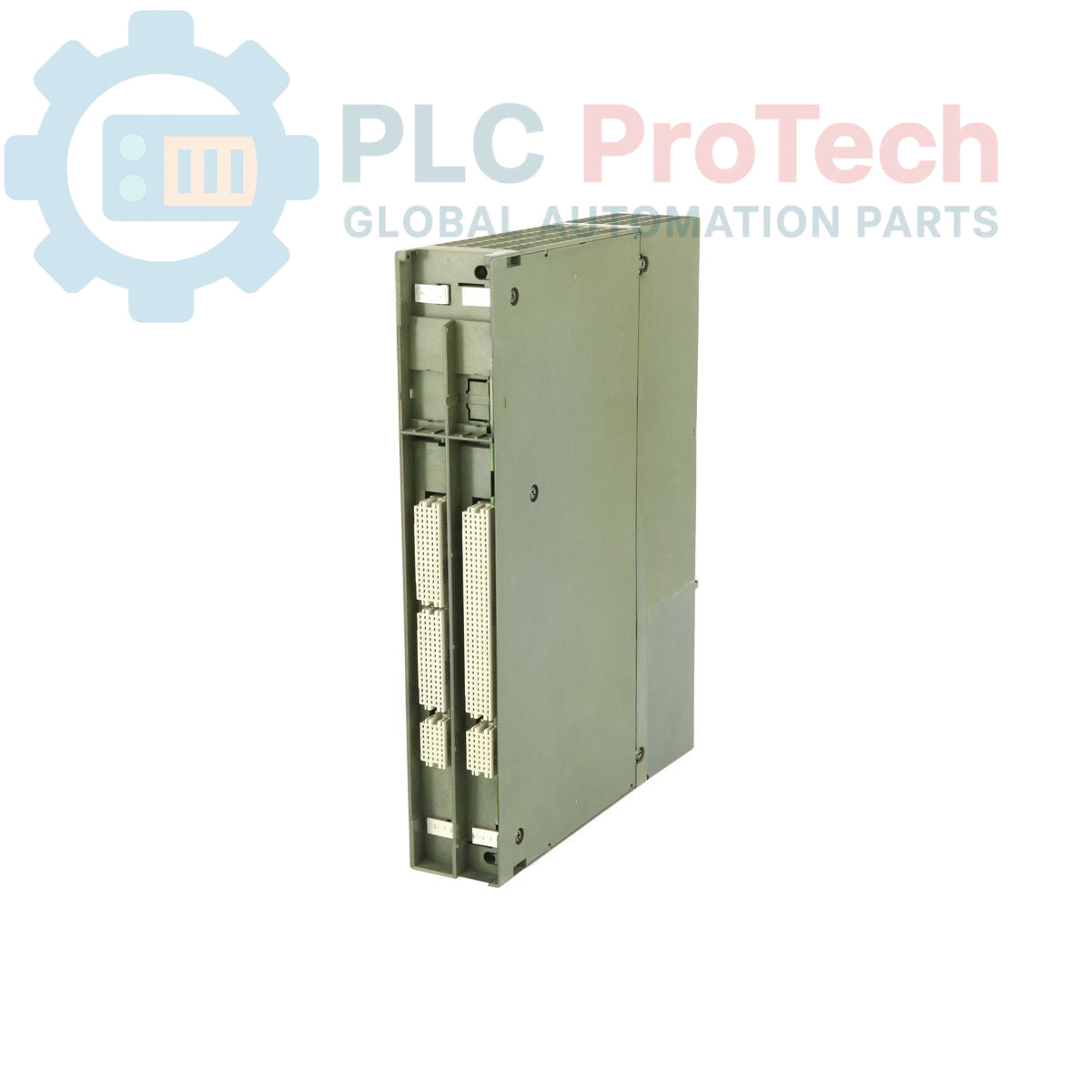

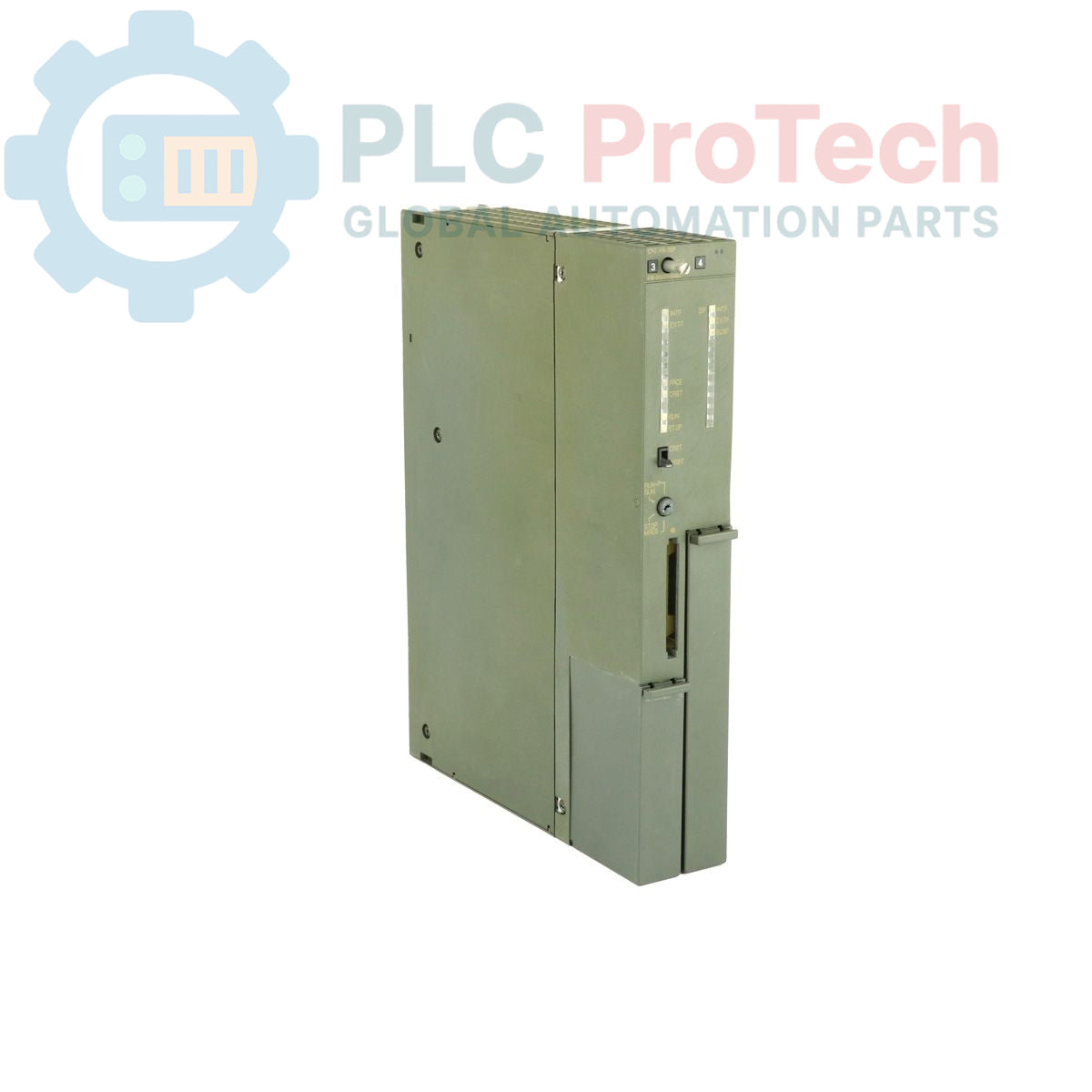

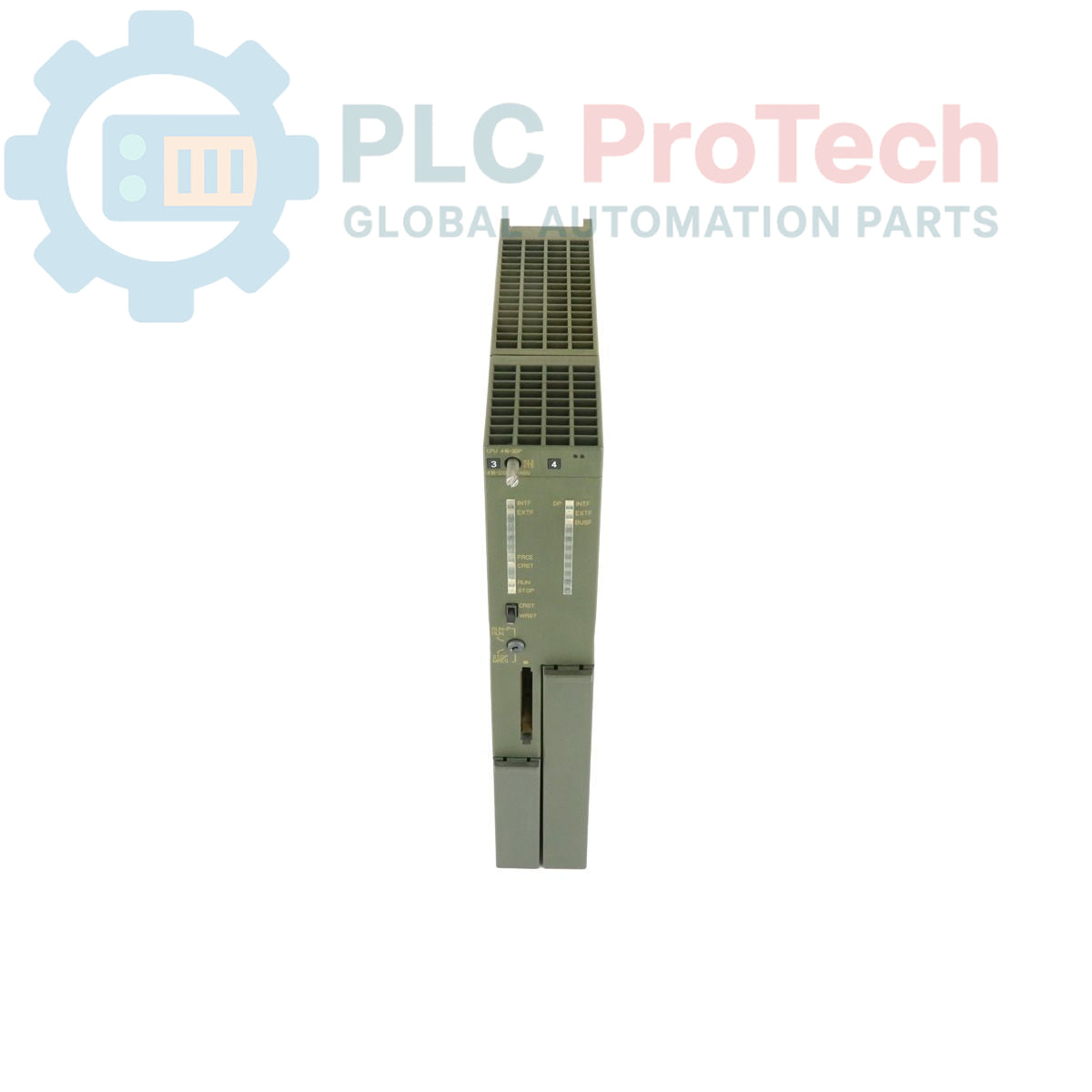

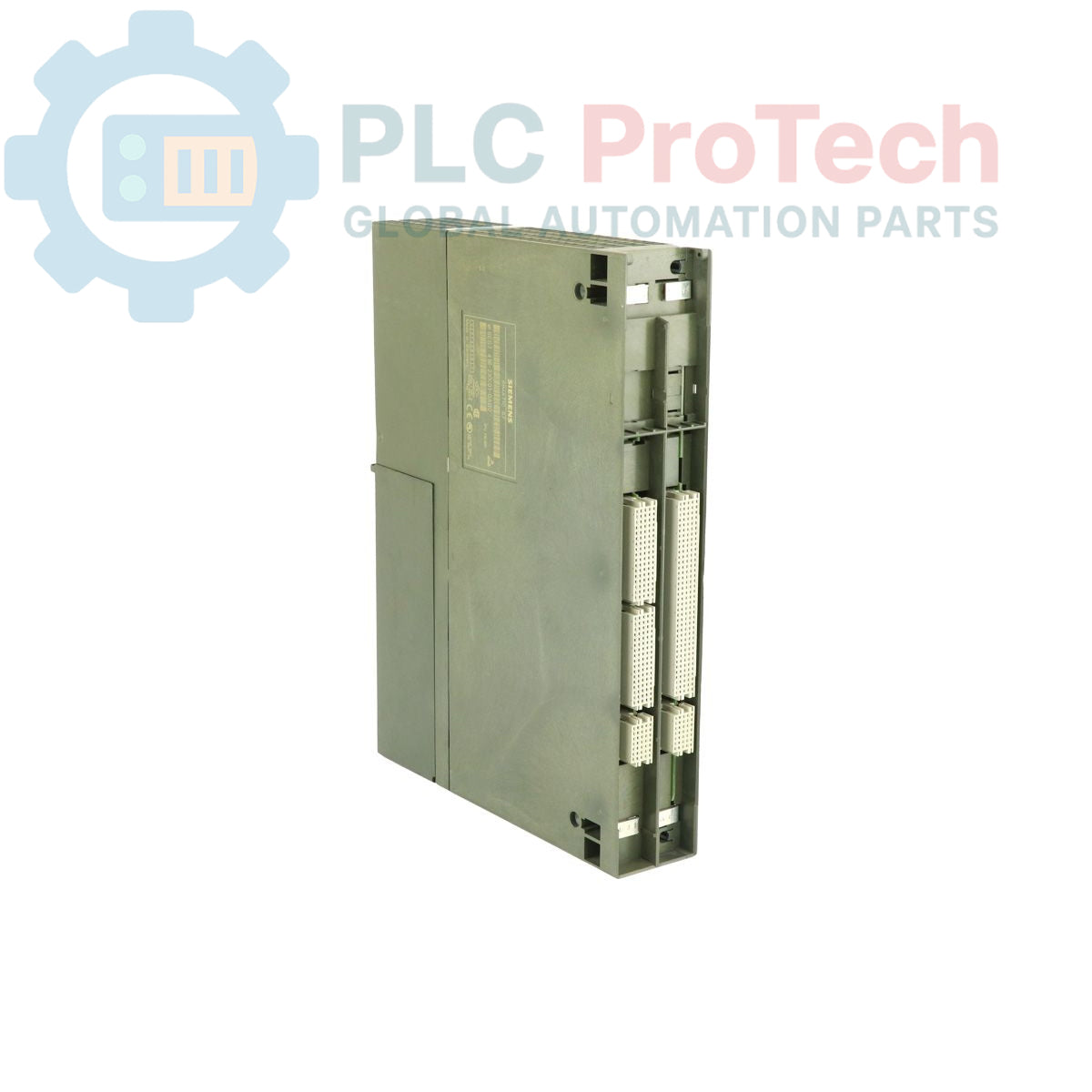

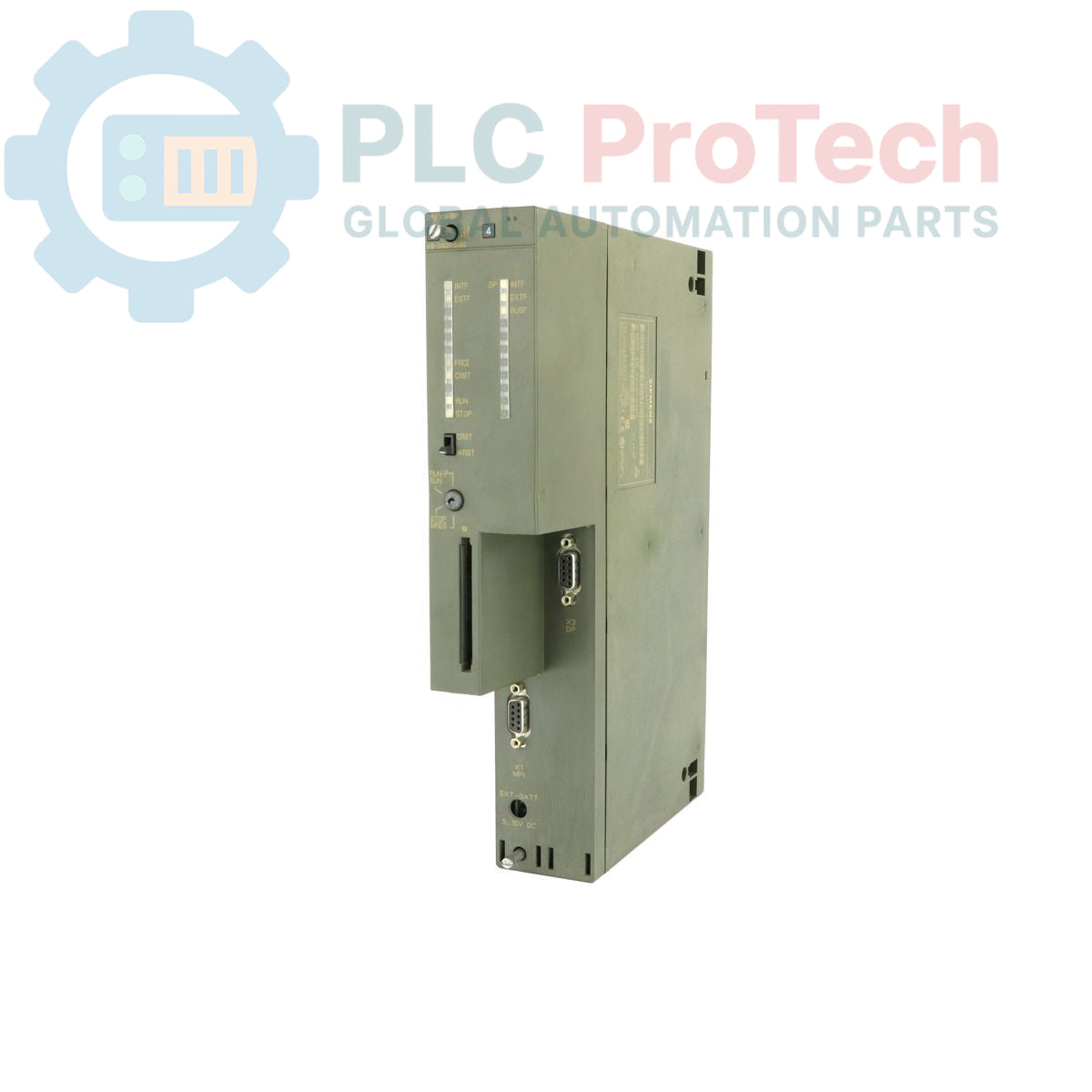

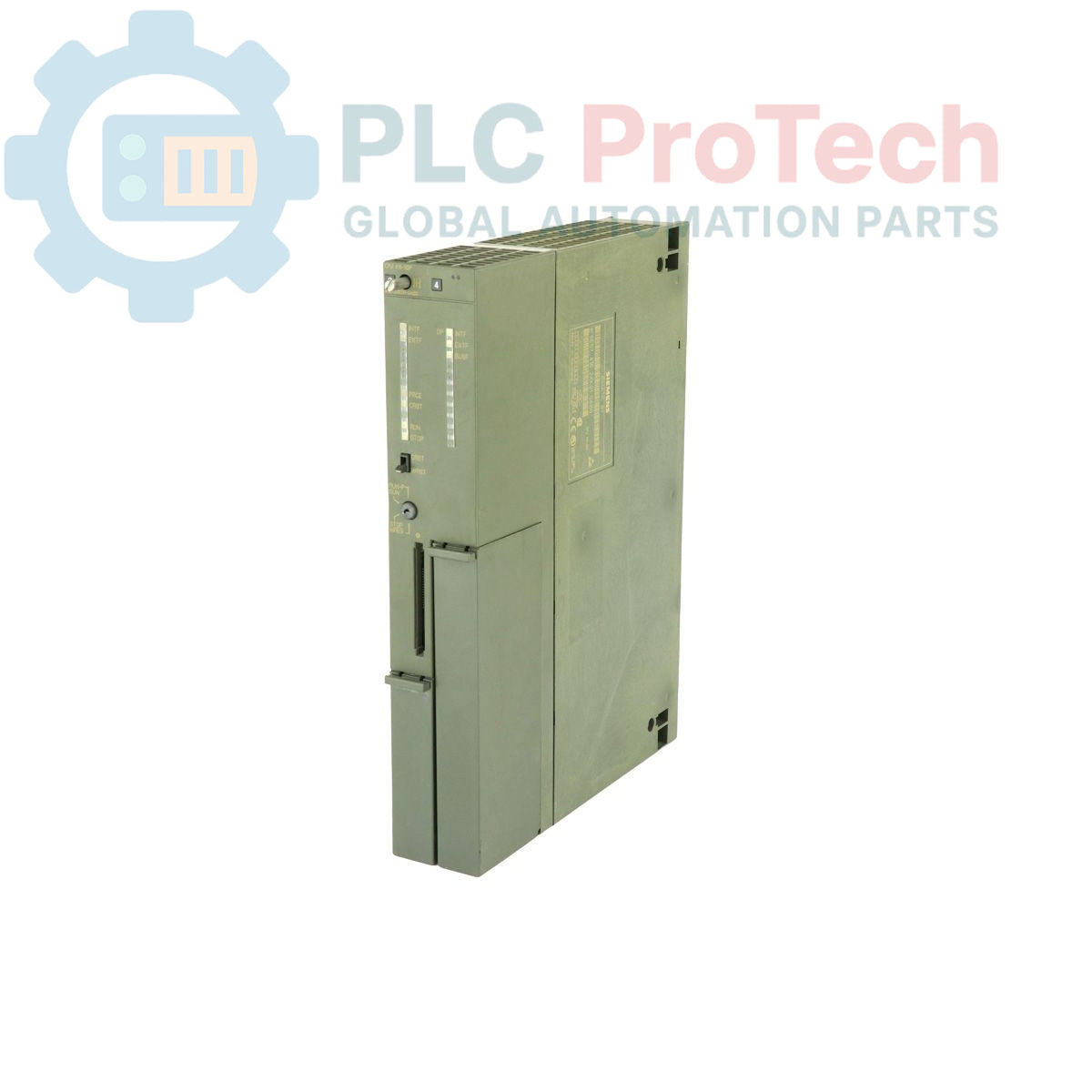

This module is a Siemens 6ES7416-2XK01-0AB0 CPU 416-2 DP, a central processing unit designed for the SIMATIC S7-400 automation platform. It is engineered for demanding control tasks in large-scale industrial applications, providing 0.8 MB of working memory for program execution and data handling. The unit features a built-in Multi-Point Interface (MPI) and an integrated PROFIBUS DP interface, enabling robust communication and networking within a distributed control architecture.

Features

• Central Processing Unit for the SIMATIC S7-400 series
• Equipped with 0.8 MB of working memory
• Integrated Multi-Point Interface (MPI) for programming and communication
• Onboard PROFIBUS DP interface for distributed I/O and field device networking
• Modular design for flexible system configuration and expansion

Applications

• Manufacturing and Assembly Lines
• Process Control Systems
• Automotive Production
• Material Handling and Logistics
• Power Generation and Distribution

Technical Specifications

Installation Guidelines

1. 1 Prepare the Rack: Identify the designated CPU slot in the SIMATIC S7-400 chassis. Ensure the backplane connectors are clean and free of debris.
2. 2 Mount the Module: Align the module with the card guides in the slot. Slide the CPU firmly and evenly into the rack until the backplane connectors are fully engaged.
3. 3 Secure the Module: Tighten the retaining screws on the front panel of the module to secure it to the chassis frame. Do not overtighten.
4. 4 Connect Interfaces: Connect the MPI and PROFIBUS DP communication cables to the corresponding ports on the front of the CPU. Ensure connectors are properly seated and secured.
5. 5 System Power-Up: After all modules are installed and connections are verified, remove LOTO devices and re-apply power to the system in accordance with operational procedures.
