Description

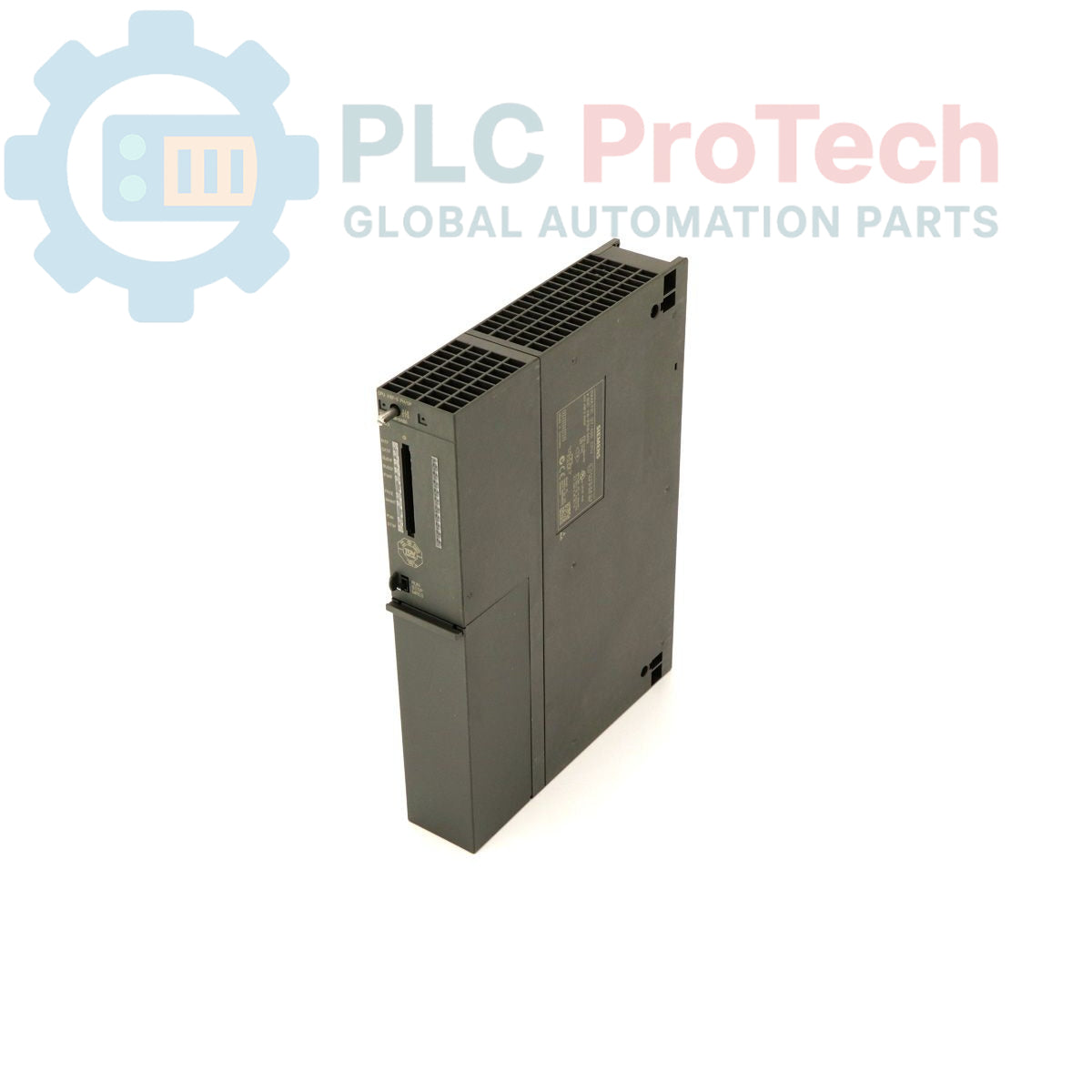

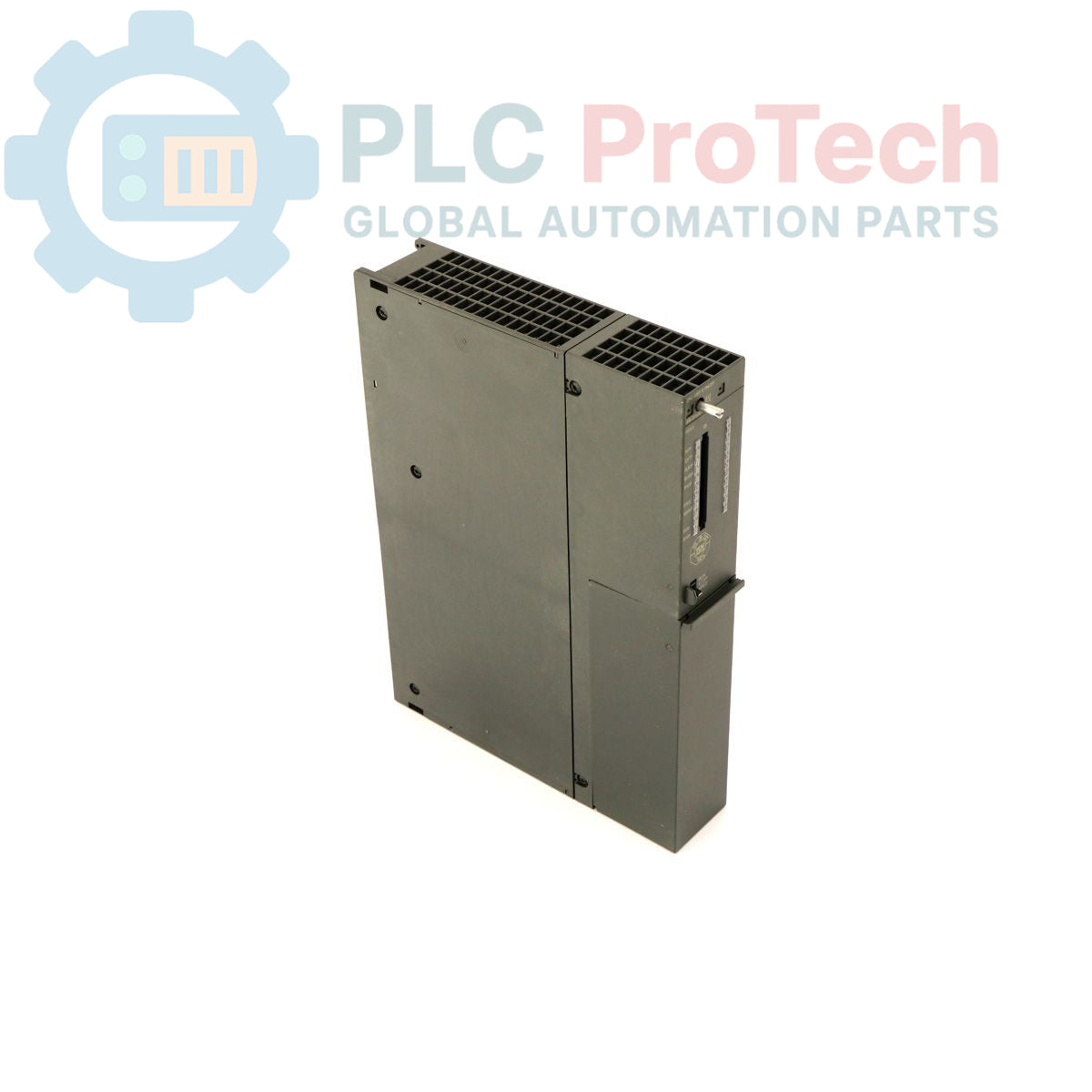

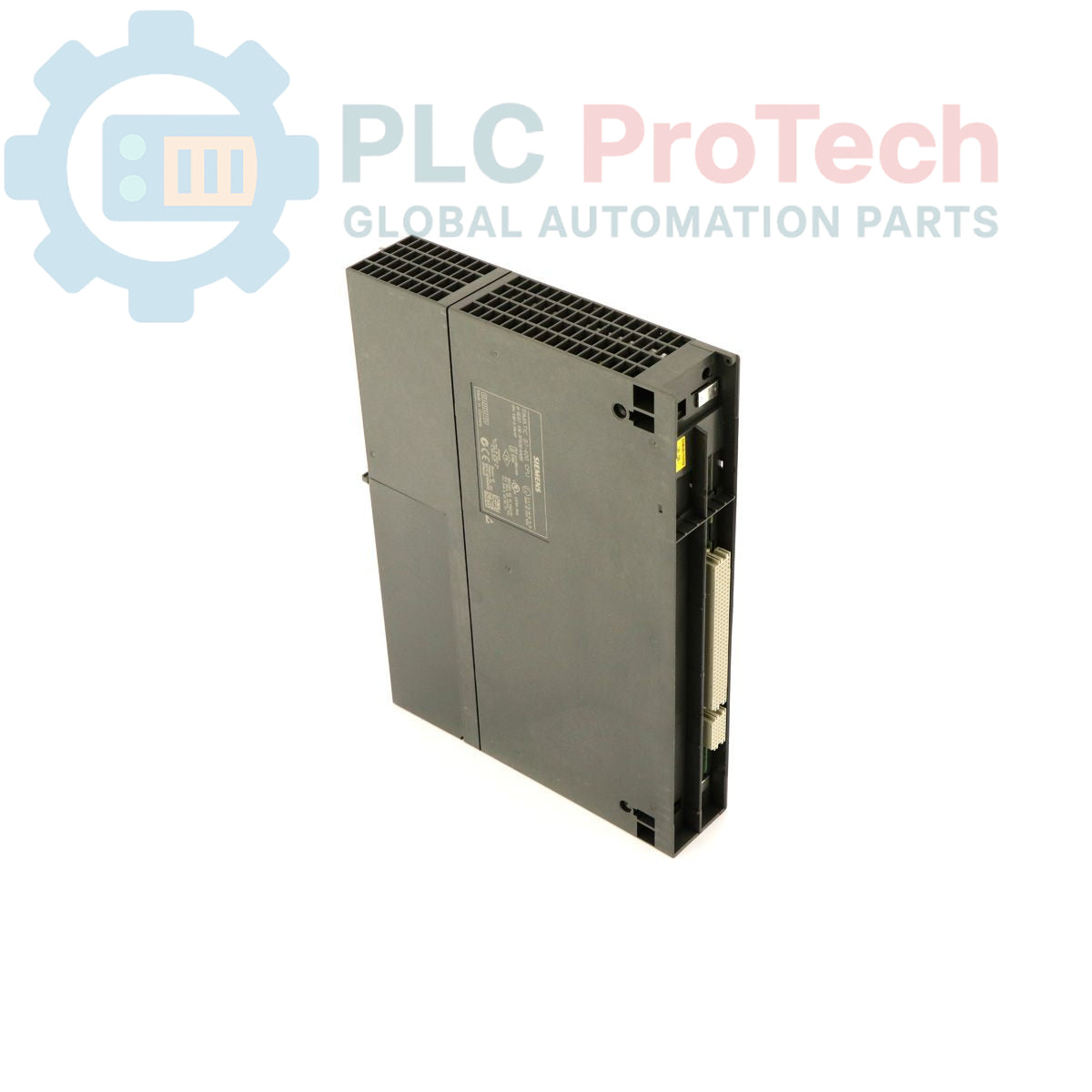

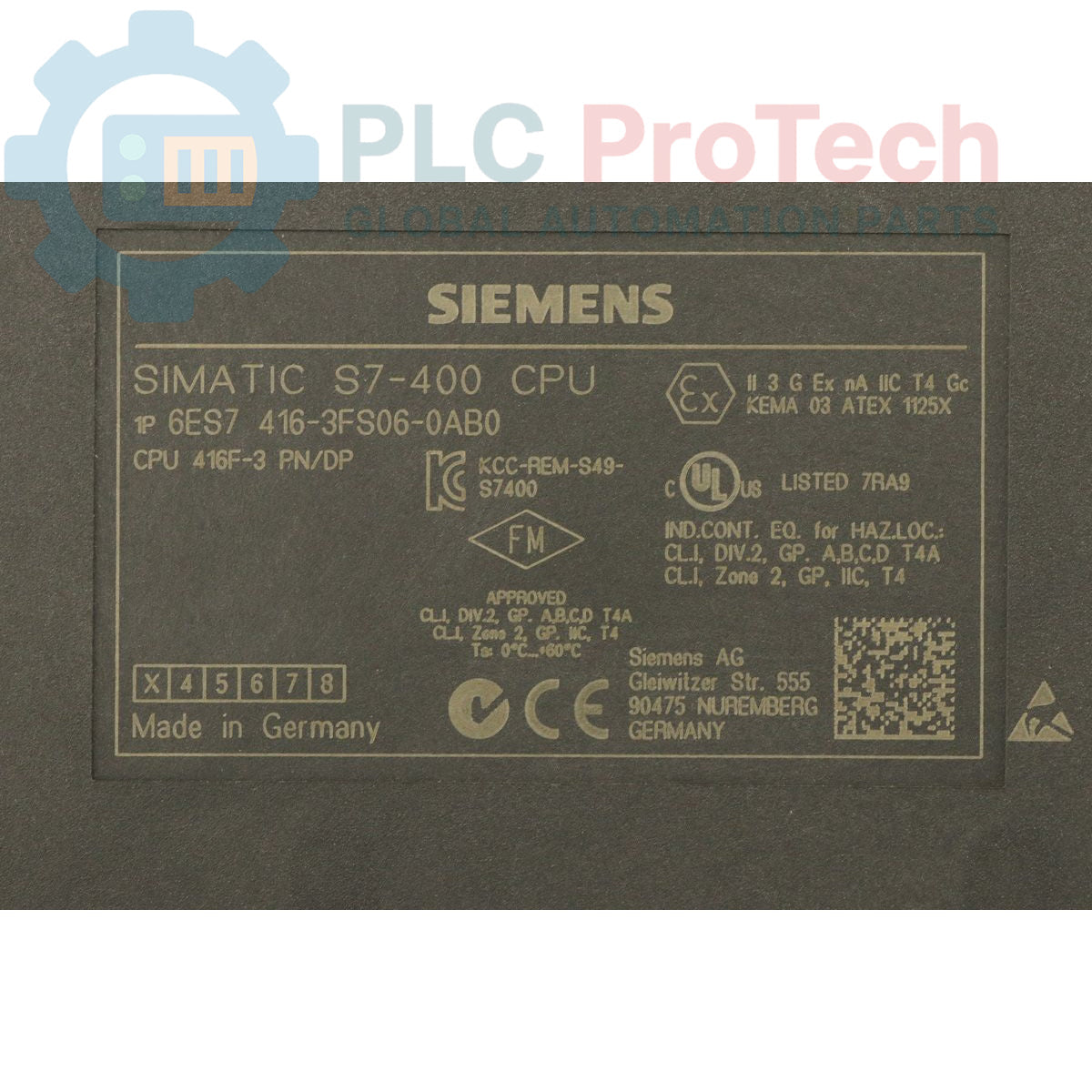

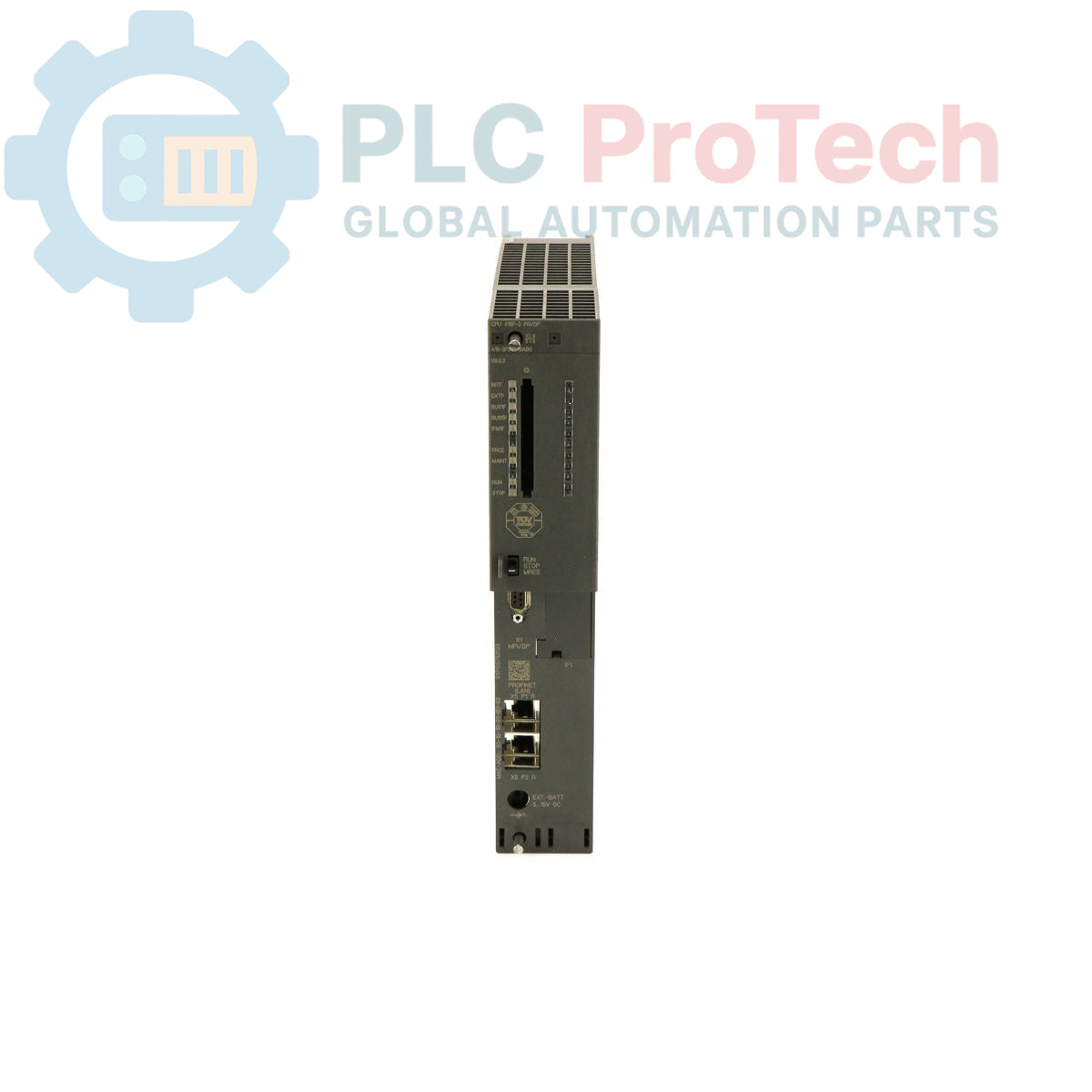

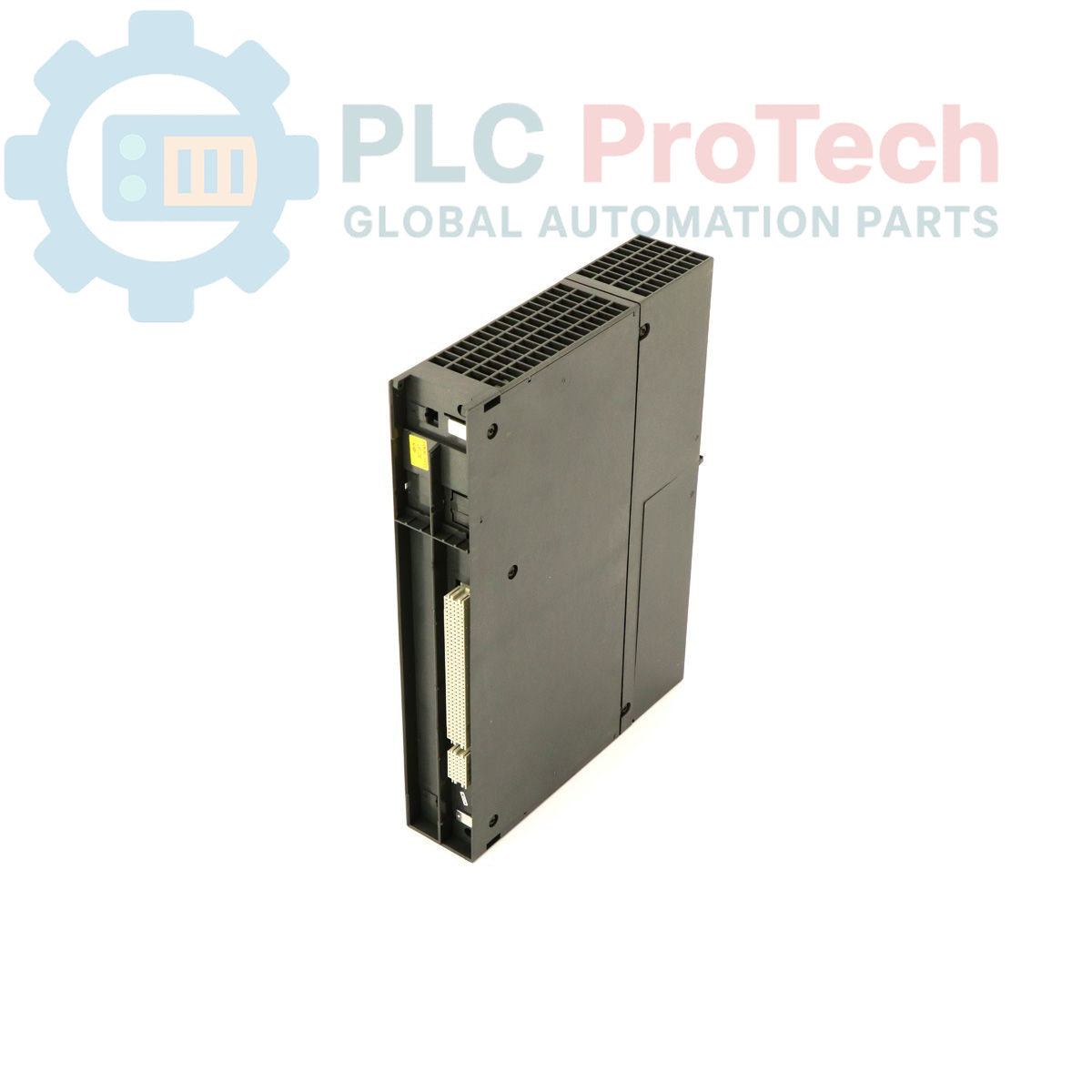

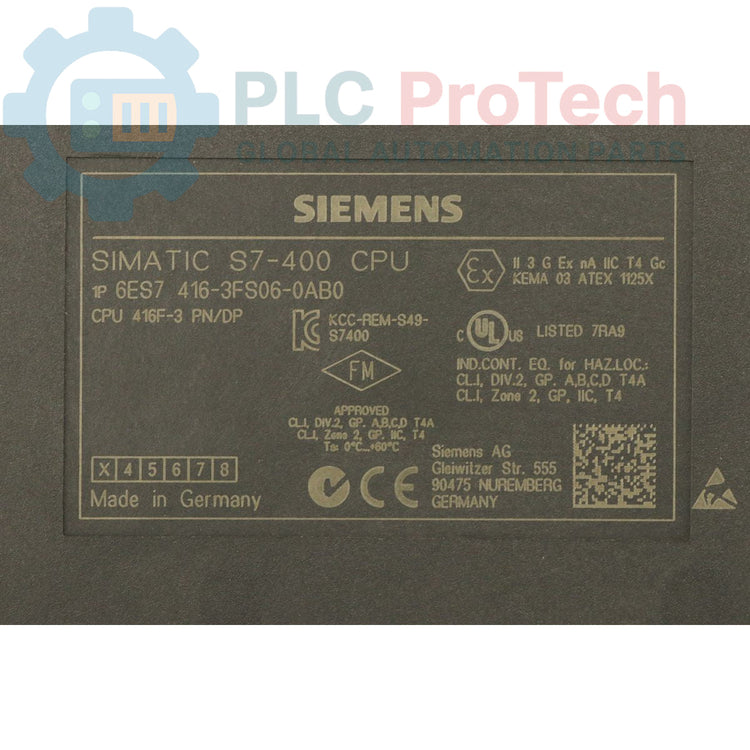

The Siemens 6ES7416-3FS06-0AB0 is a SIMATIC S7-400 CPU416F-3 PN/DP fail-safe central processing unit. Designed for high-demand industrial automation environments, this CPU provides robust control capabilities with a total work memory of 16 MB, allocated as 8 MB for code and 8 MB for data. It features versatile connectivity through three distinct interfaces: a primary MPI/DP interface (X1) supporting data exchange at up to 12 Mbit/s, a secondary Ethernet/PROFINET interface (X5) for seamless network integration, and a third interface (IF1) designed for a plug-in IFM module to enable expanded functionality.

Features

• SIMATIC S7-400 CPU416F-3 PN/DP architecture
• Fail-safe operation for critical applications
• 16 MB work memory (8 MB code, 8 MB data)
• Integrated MPI/DP interface (X1) with 12 Mbit/s speed
• Integrated Ethernet/PROFINET interface (X5)
• Dedicated interface (IF1) for plug-in IFM modules

Applications

The Siemens 6ES7416-3FS06-0AB0 is suitable for deployment in complex and safety-critical industrial automation systems. Typical applications include:

• Process control in chemical, pharmaceutical, and oil & gas industries
• Machine automation requiring high availability and safety functions
• Power generation and distribution systems
• Manufacturing lines with integrated safety circuits
• Infrastructure projects demanding reliable and fail-safe control

Technical Specifications

Installation Guidelines

Proper installation ensures the reliable and safe operation of the 6ES7416-3FS06-0AB0 CPU. Adhere to general industrial automation best practices:

1. De-energize System: Before installation, ensure all power to the rack or system is disconnected and locked out to prevent electrical hazards.
2. Mounting: Install the CPU into its designated slot within the SIMATIC S7-400 rack. Ensure it is securely seated and latched to prevent movement due to vibration.
3. Grounding: Verify that the rack and all associated components are properly grounded according to local electrical codes and manufacturer specifications to minimize EMI and ensure safety.
4. Cable Routing: Route communication and power cables neatly, separating them from high-voltage or noisy power lines to prevent interference. Use shielded cables for communication interfaces where specified.
5. Interface Connections: Connect the MPI/DP, Ethernet/PROFINET, and any IFM module cables to their respective ports (X1, X5, IF1). Ensure connections are firm and correctly terminated.
6. Power-Up Sequence: After all connections are verified, re-energize the system following the recommended power-up sequence for the S7-400 system.
7. Configuration: Configure the CPU and its interfaces using the appropriate Siemens engineering software (e.g., STEP 7) to integrate it into the automation project.
