Description

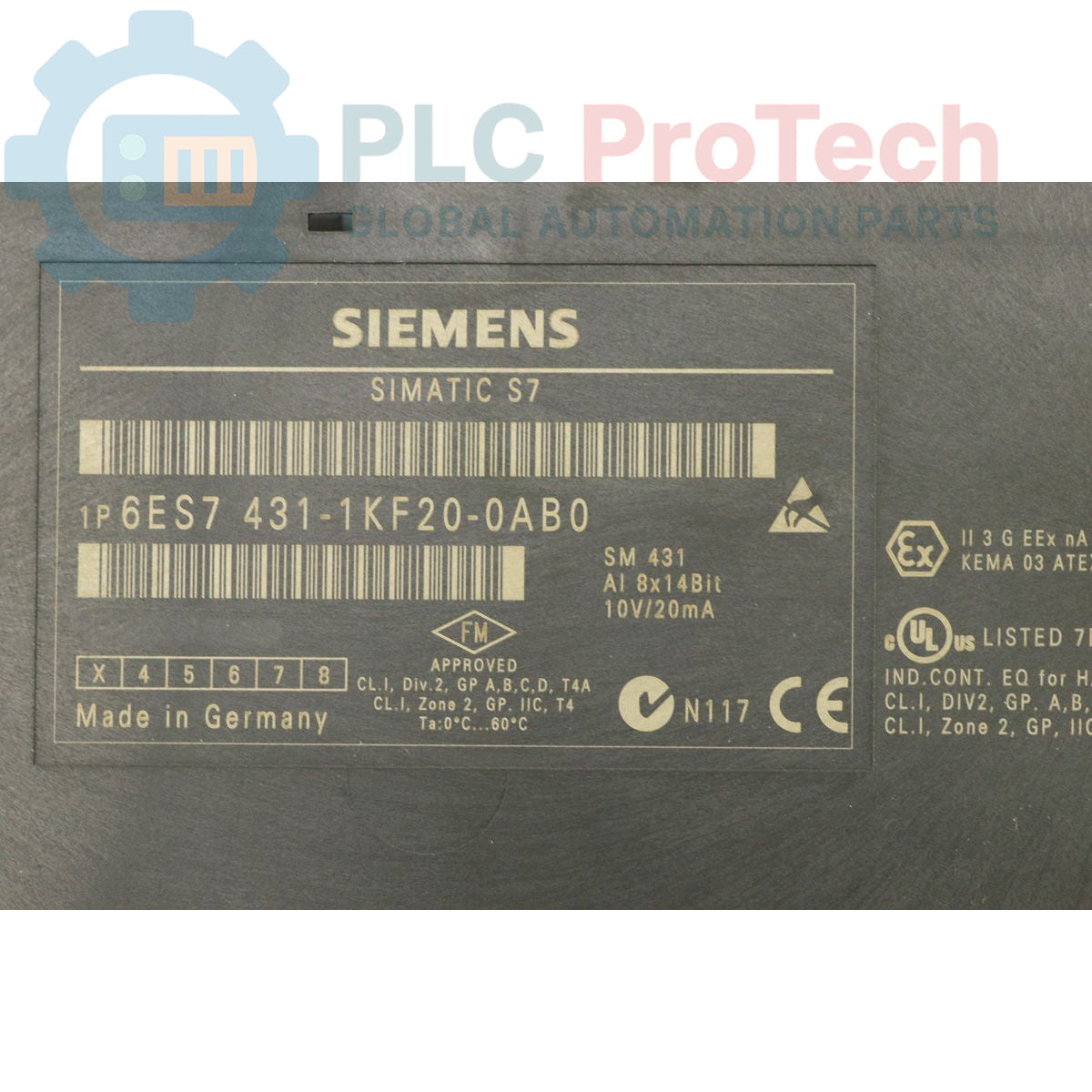

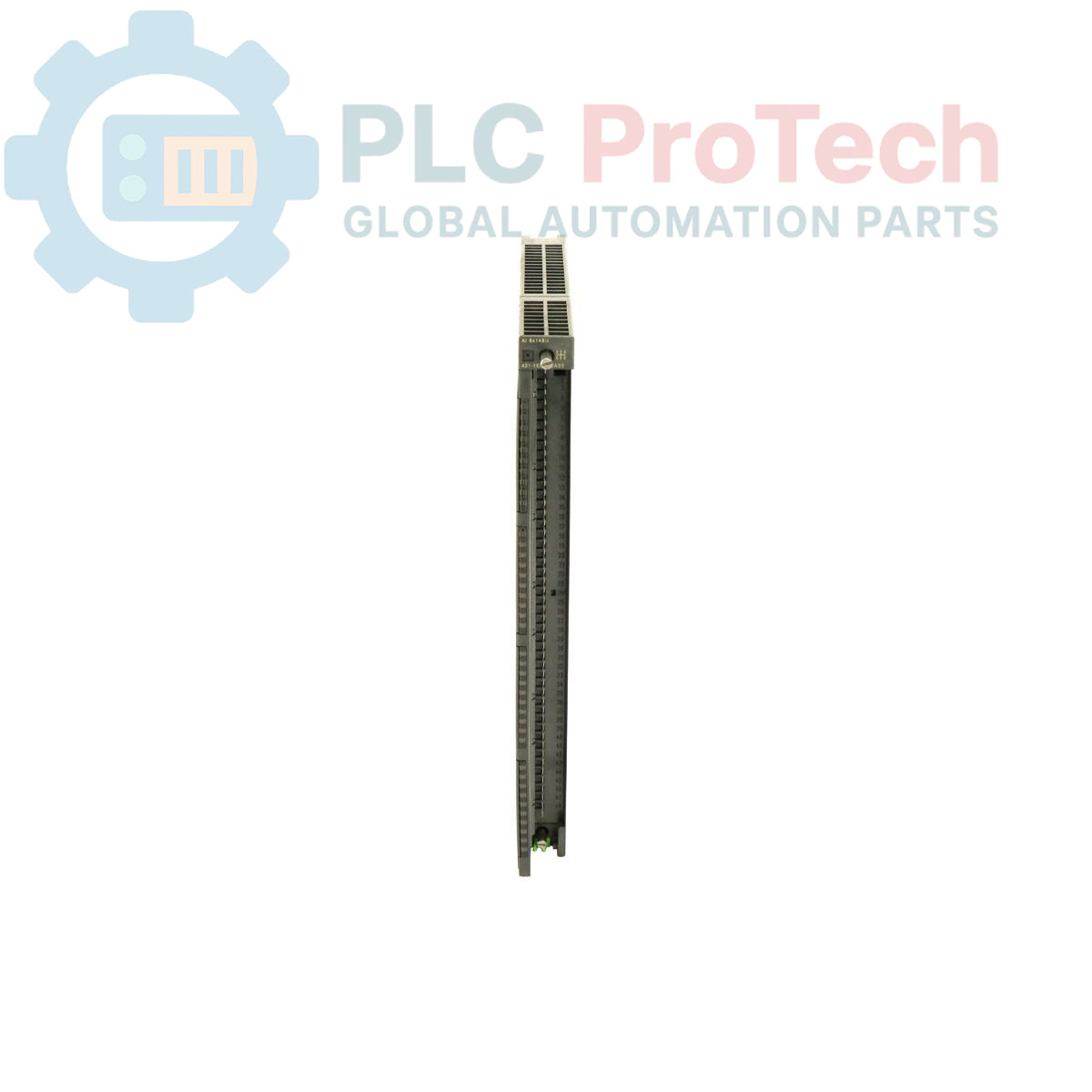

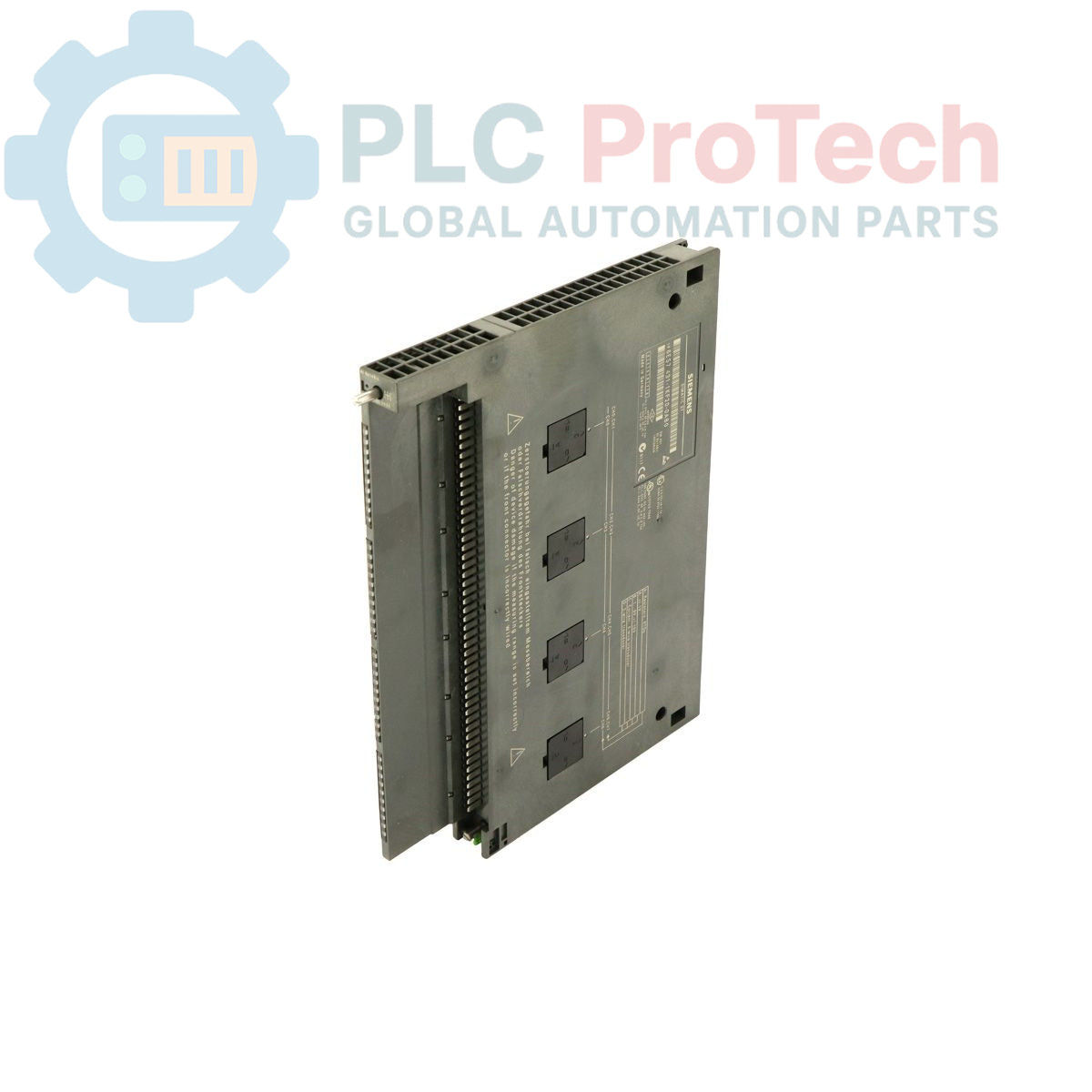

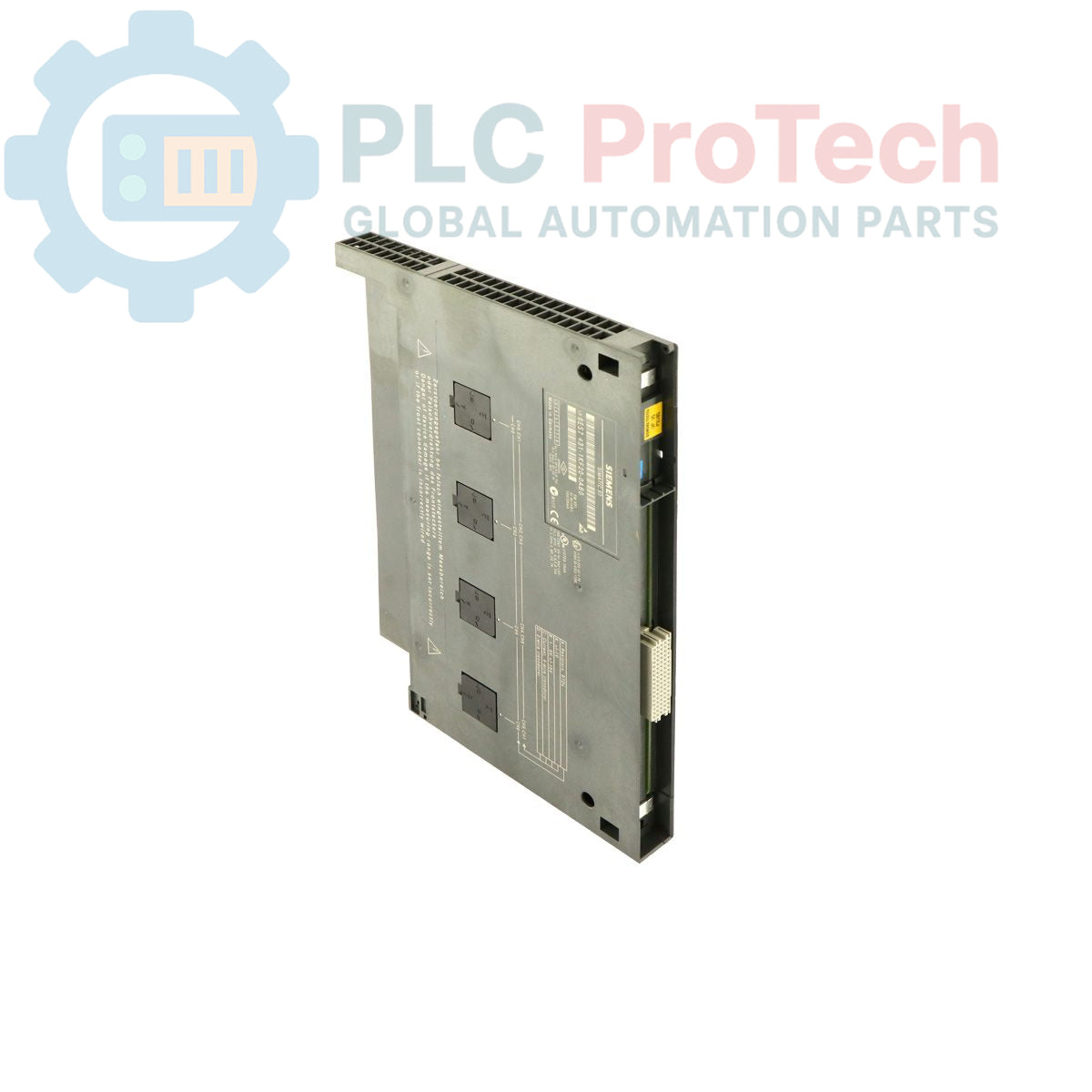

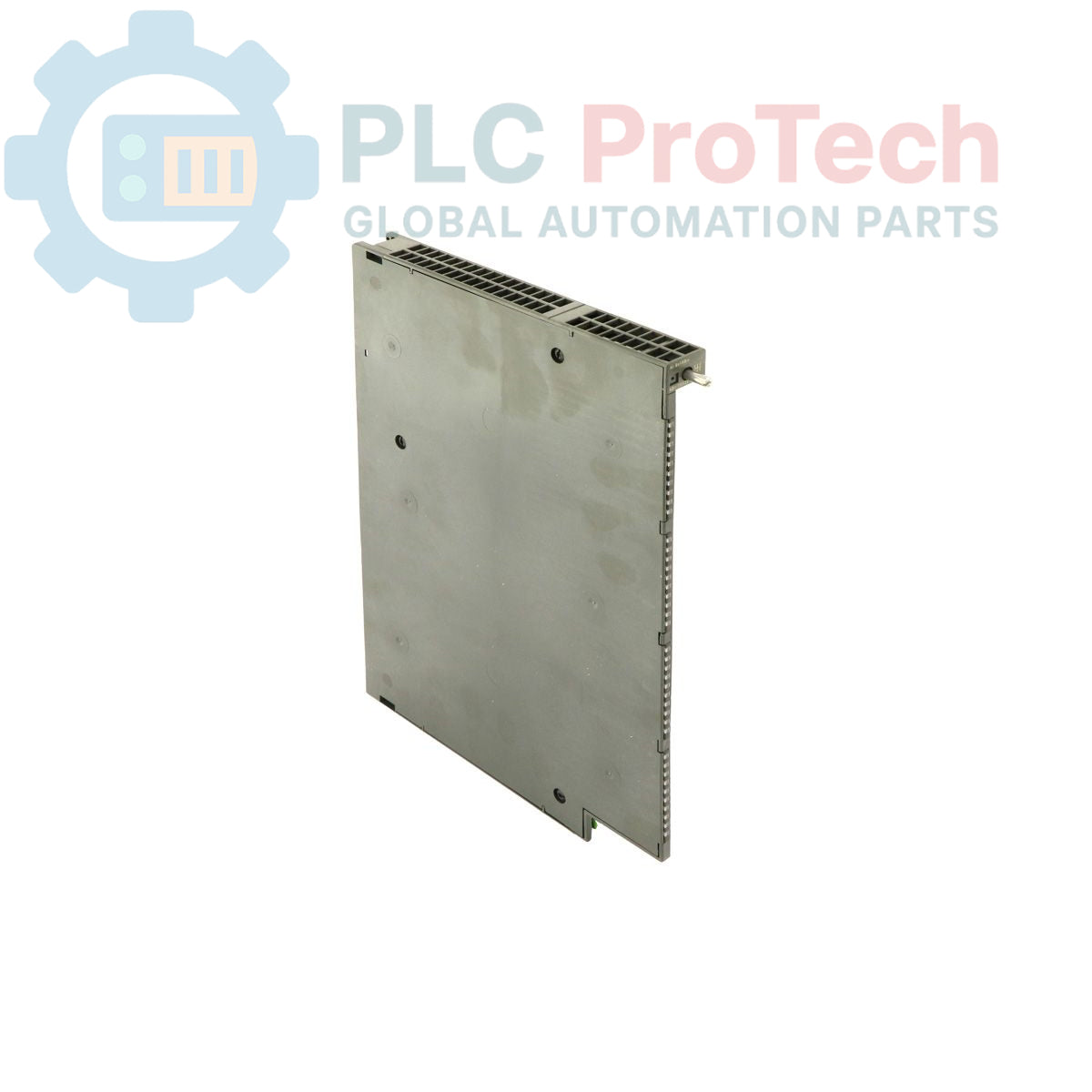

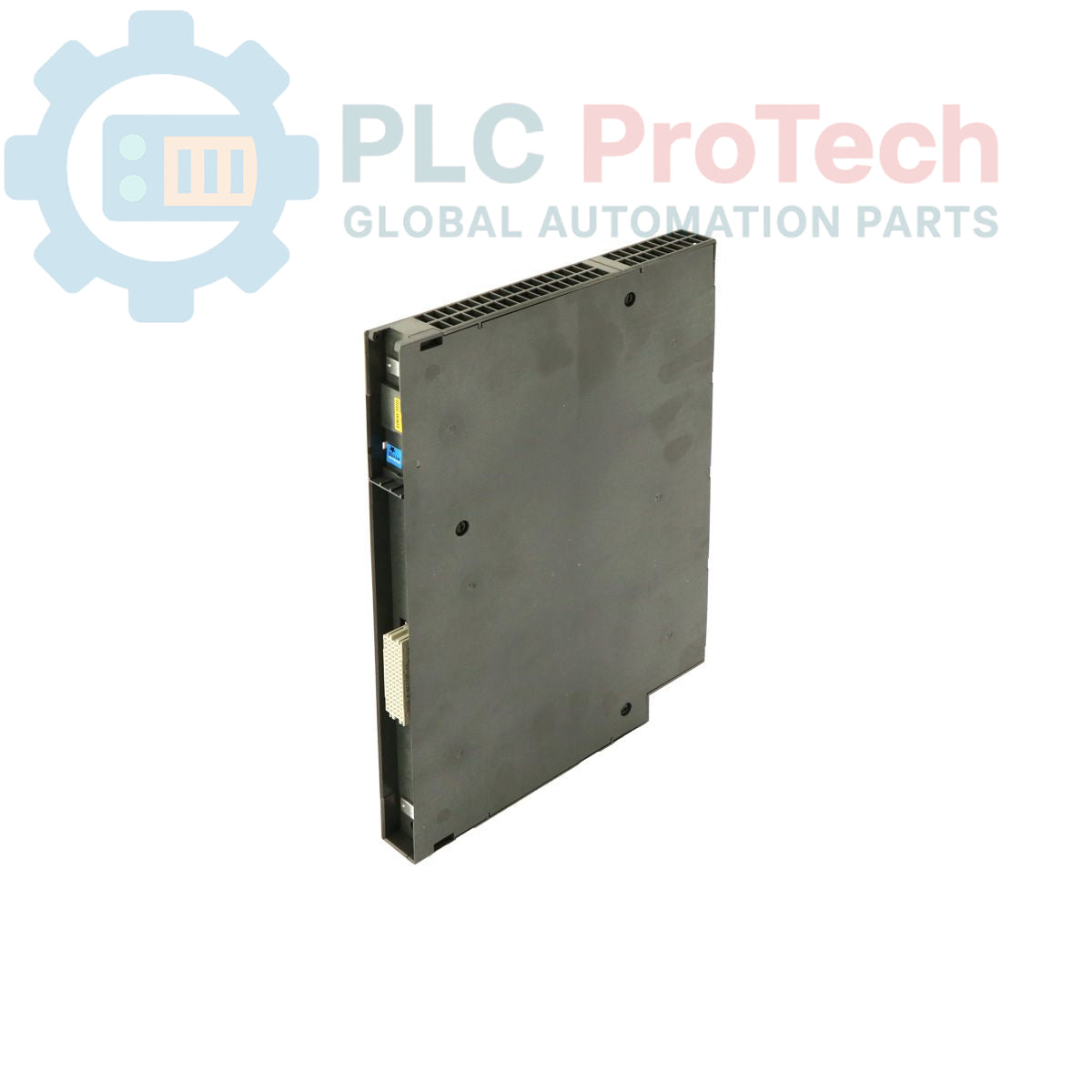

The 6ES7431-1KF20-0AB0 is a high-precision Analog Input (AI) module for the SIMATIC S7-400 automation system. This module features 8 isolated analog inputs, providing the flexibility to monitor various process signals, including voltage, current, and resistance. With a high-resolution of 14 bits, it ensures accurate signal conversion, which is critical for precise process control and data logging in industrial applications.

Designed for high-speed performance, the module operates with a rapid cycle time of 0.416 ms, allowing for near-instantaneous response to changes in process variables. This capability makes it an ideal choice for demanding control loops and monitoring tasks where timing and measurement accuracy are paramount. The 6ES7431-1KF20-0AB0 is a robust, active-phase component engineered for reliable integration into the S7-400 modular rail system.

Features

• Input Channels: 8 isolated analog inputs
• Resolution: 14-bit precision for high-fidelity data acquisition
• Versatility: Supports voltage (U), current (I), and resistor-based measurements
• Performance: High-speed cycle time of 0.416 ms
• Supply Voltage: 24V DC
• Platform: Designed specifically for the SIMATIC S7-400 modular PLC system

Applications

• Analog data acquisition in complex industrial control loops
• Temperature monitoring via resistive sensors
• Precision process value logging (flow, pressure, level)
• Integration into S7-400 distributed I/O systems

Technical Specifications

Installation Guidelines

• Mounting: Ensure the module is firmly seated in the S7-400 rack. Secure the module using the built-in locking mechanism to maintain electrical contact with the backplane.
• Wiring: Use shielded, twisted-pair cables for analog signals to minimize electromagnetic interference (EMI). Connect the shield to the grounding rail as close to the module as possible.
• Isolation: Since the inputs are isolated, ensure the external power sources for sensors are correctly referenced according to the module's wiring diagram to prevent ground loops.
• Configuration: Configure the specific input type (U/I/Resistor) for each channel using the STEP 7 hardware configuration software before commissioning.
