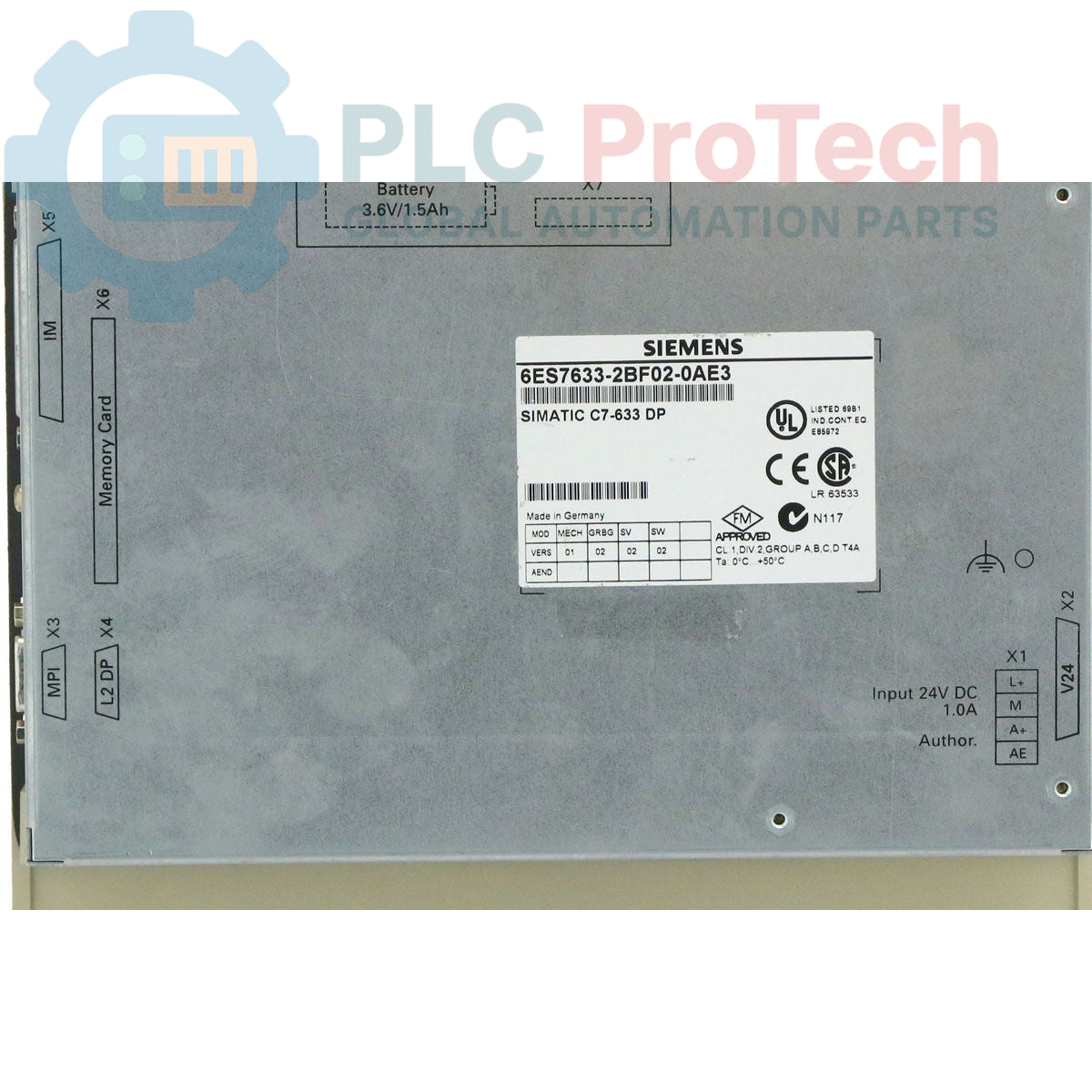

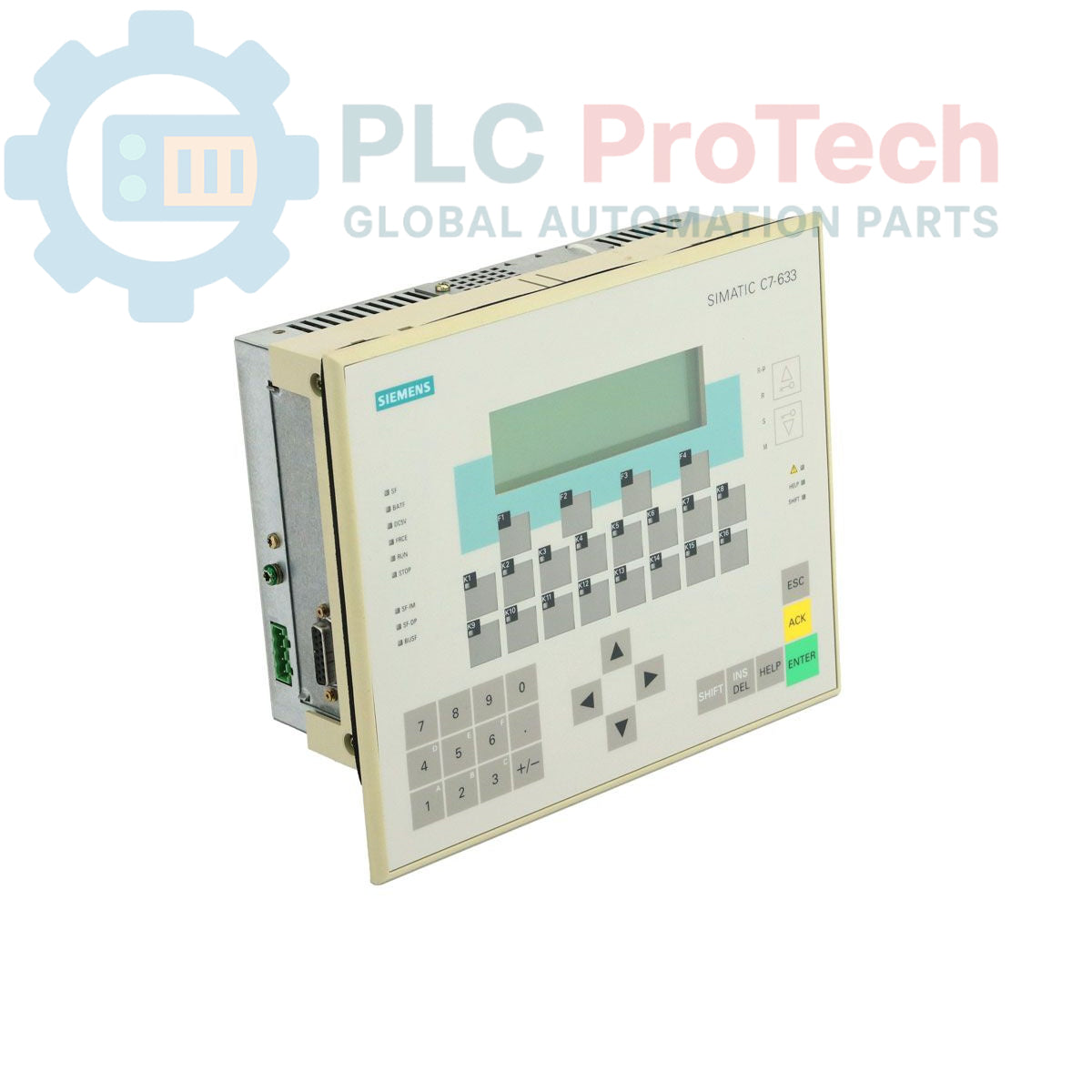

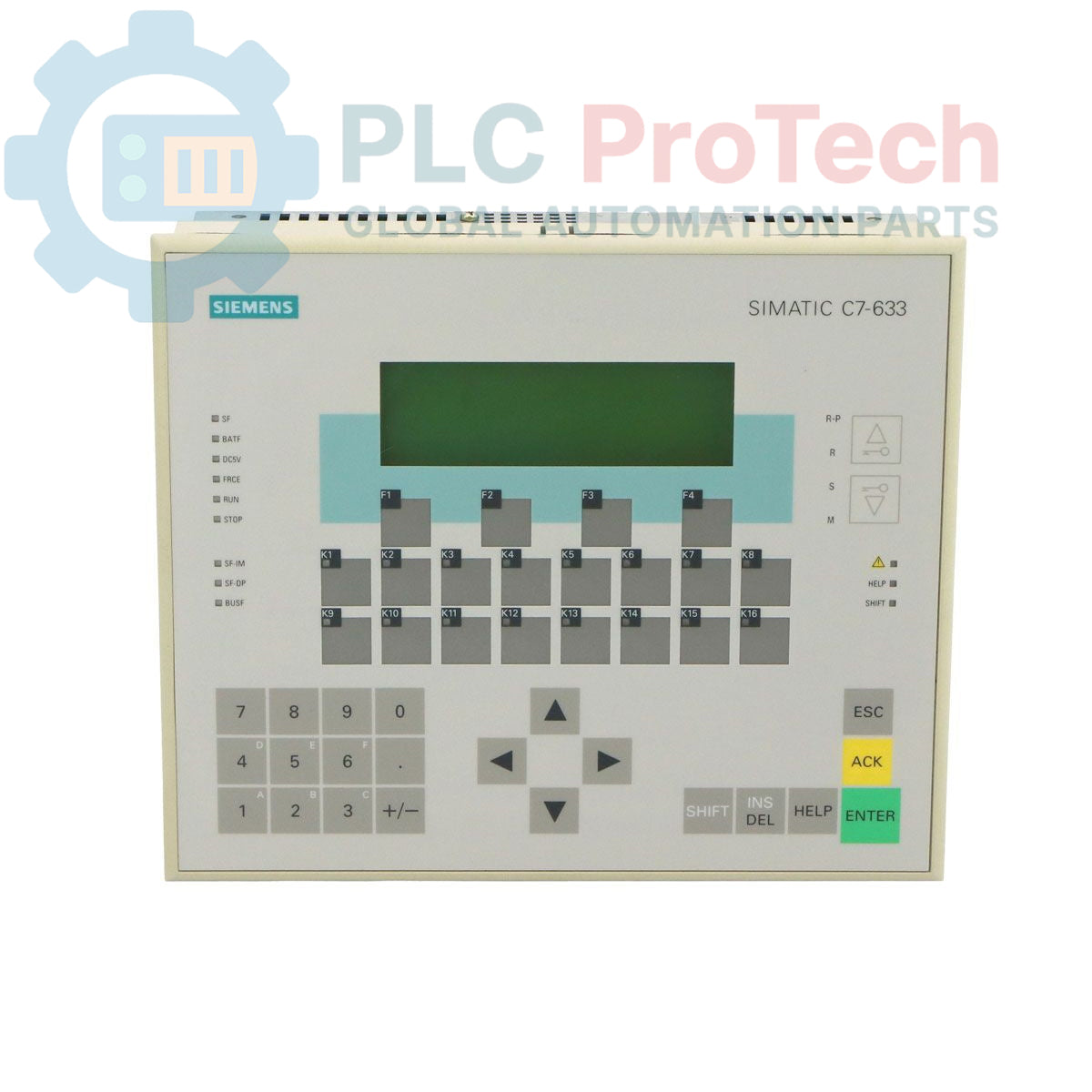

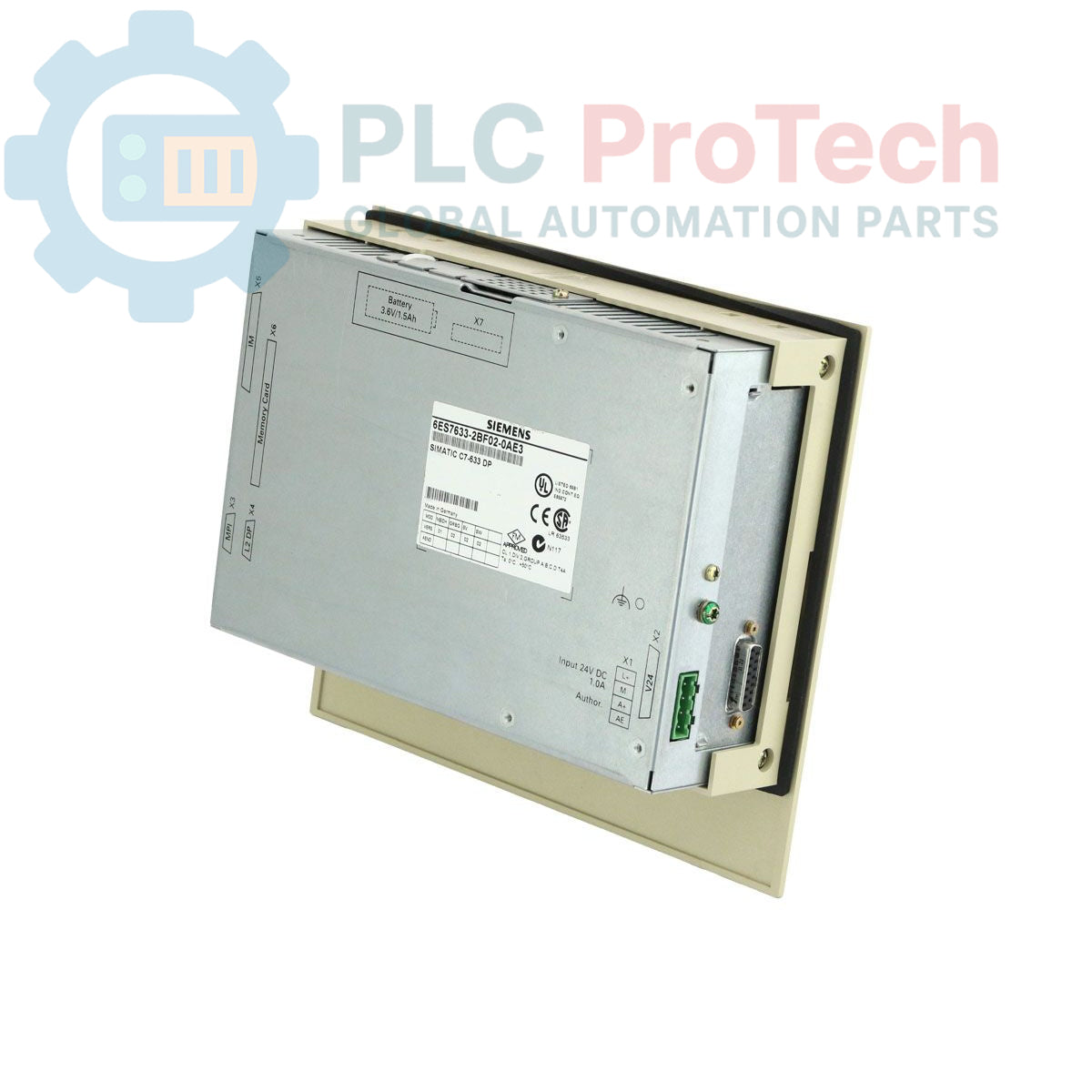

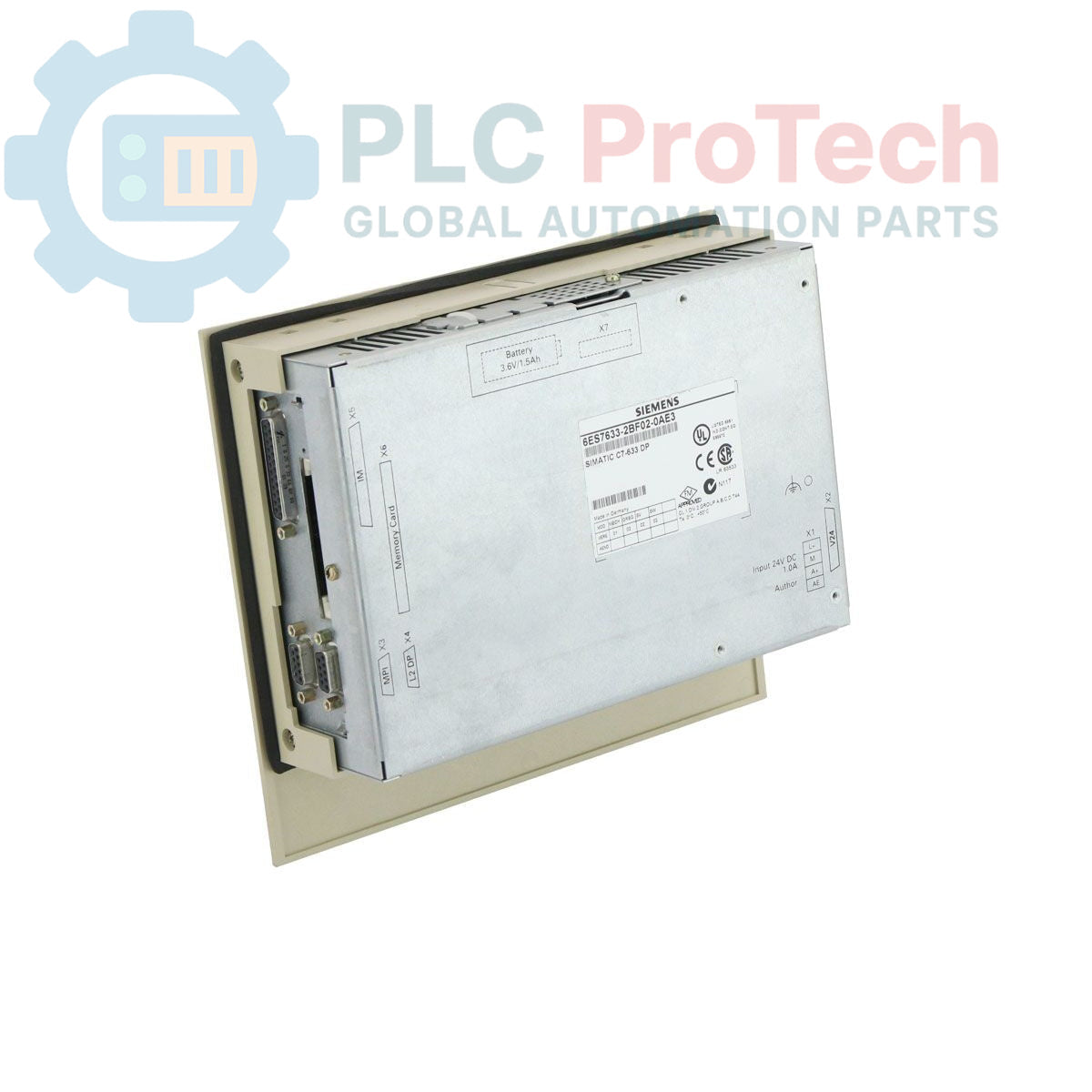

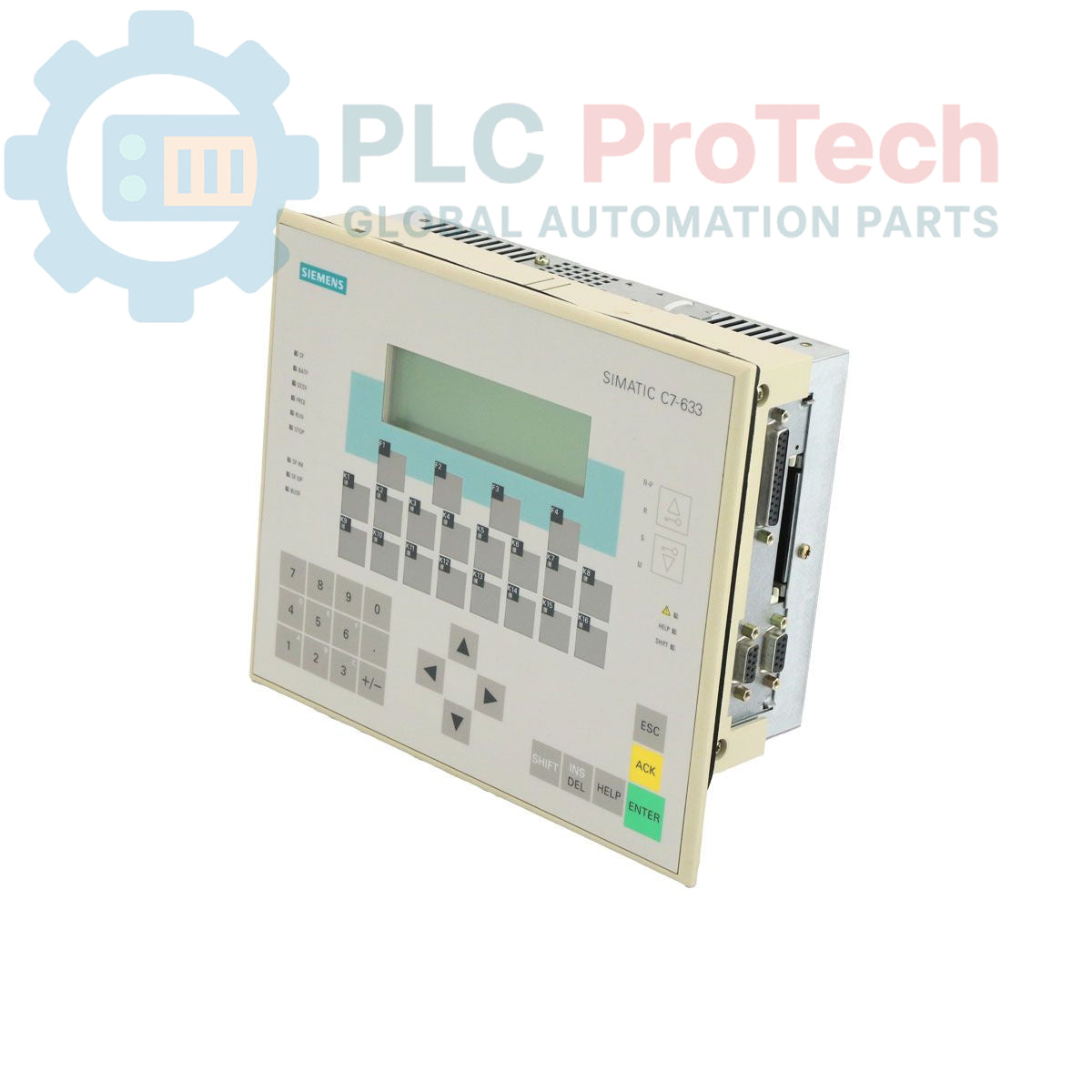

Siemens 6ES7633-2BF02-0AE3 SIMATIC C7-633 DP Compact Control Unit

SKU 6ES7633-2BF02-0AE3

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7633-2BF02-0AE3
Origin Germany
Product Type: Compact Control Unit
Barcode: 85389091
Payment: T/T, Western Union
Weight: 1.5 kg
Dimensions: 25.4 x 20.3 x 10.2 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

This is a SIMATIC C7-633 DP compact control unit, Siemens part number 6ES7633-2BF02-0AE3. This device provides a complete, integrated automation solution by combining a powerful S7-300 CPU 315-2DP, a SIMATIC OP7 operator panel for local visualization, and an IM360 communication module within a single robust enclosure. Designed for efficient process automation and monitoring, it features integrated MPI and PROFIBUS DP interfaces for reliable connectivity and data exchange in demanding industrial environments. This unit is well-suited for both new installations and as a direct replacement for maintaining existing systems.

Features

✓ Integrated S7-300 CPU 315-2DP for processing control logic.
✓ Built-in SIMATIC OP7 operator panel for local HMI functions.
✓ Includes an IM360 communication module for system integration.
✓ Features native MPI and PROFIBUS DP interfaces for network connectivity.
✓ Consolidated design combines PLC, HMI, and communication functions.
✓ Product lifecycle status is designated as Obsolete, ideal for spares.

Applications

Machine control and automation
Process monitoring and data acquisition
Small to medium-sized integrated automation tasks
Maintenance and replacement for existing SIMATIC C7 systems

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Family	SIMATIC C7
Part Number	6ES7633-2BF02-0AE3
Product Type	Compact Control Unit
Integrated CPU	S7-300 CPU 315-2DP
Integrated HMI	SIMATIC OP7
Integrated Communications	IM360, MPI/PROFIBUS DP
Product Lifecycle Status	Obsolete
Shipping Weight	1.50 kg
Package Dimensions (Calculated)	25.4 cm x 20.3 cm x 10.2 cm
Harmonized Tariff Code	85389091
Export Control (ECCN)	N
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: This unit is an obsolete product. Before integration, ensure full compatibility with your existing software (e.g., STEP 7 version) and hardware configuration. Incorrect software versions can lead to communication failure or unpredictable operation. Always create a complete backup of existing programs before replacing a unit.

1 De-energize the entire control panel and apply Lockout/Tagout (LOTO) procedures to ensure personnel safety before beginning work.
2 Verify the mounting location provides adequate clearance for ventilation around the unit and sufficient space for cable access and routing.
3 Securely mount the compact unit onto the backplane or panel, ensuring all mechanical fasteners are properly tightened.
4 Connect the main 24 VDC power supply to the designated terminals, carefully observing correct polarity to prevent damage to the electronics.
5 Terminate PROFIBUS DP and MPI communication cables using appropriate connectors. Ensure cable shielding is properly connected to functional earth.
6 After verifying all connections are secure and correct, remove LOTO devices and re-energize the panel to begin system commissioning.
