Siemens

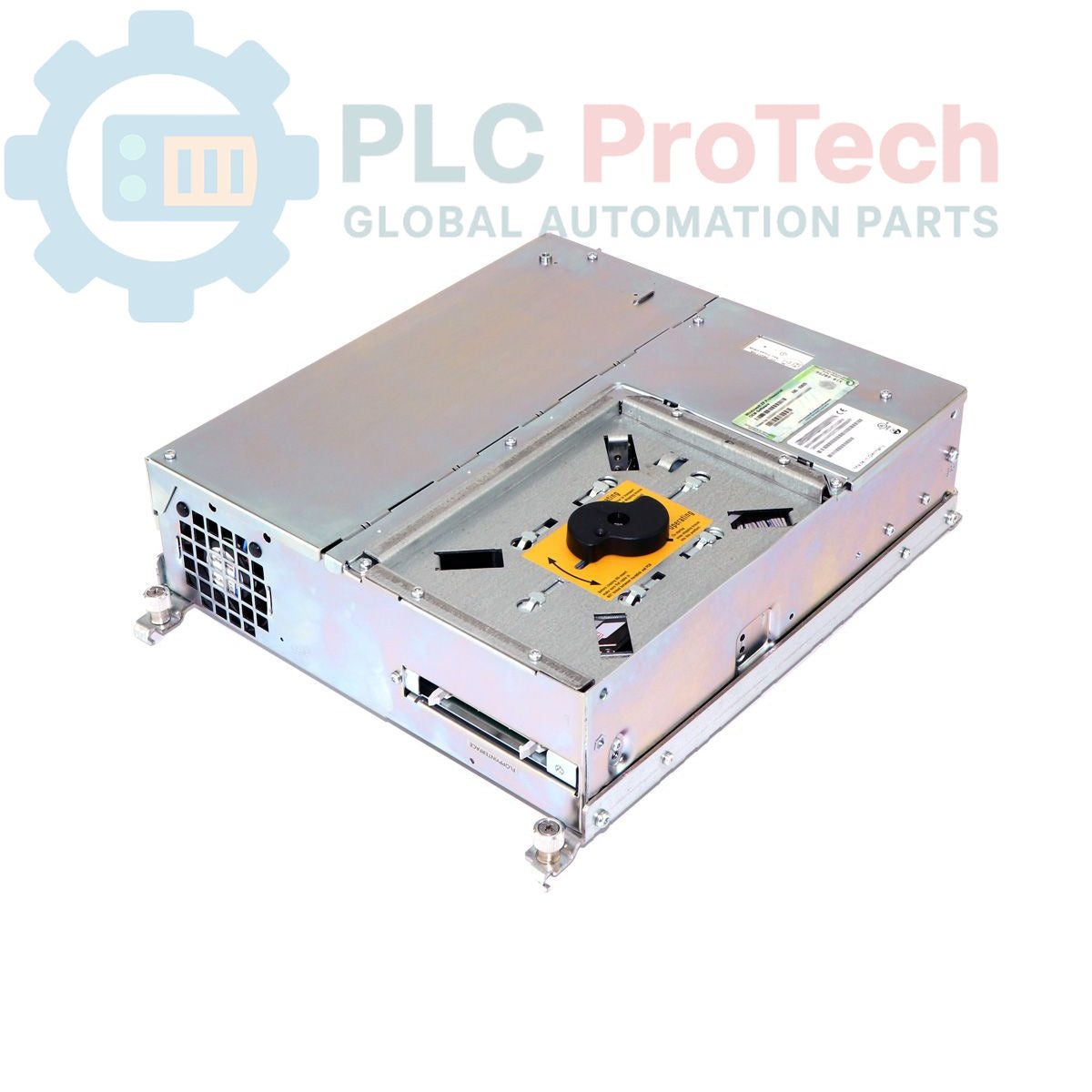

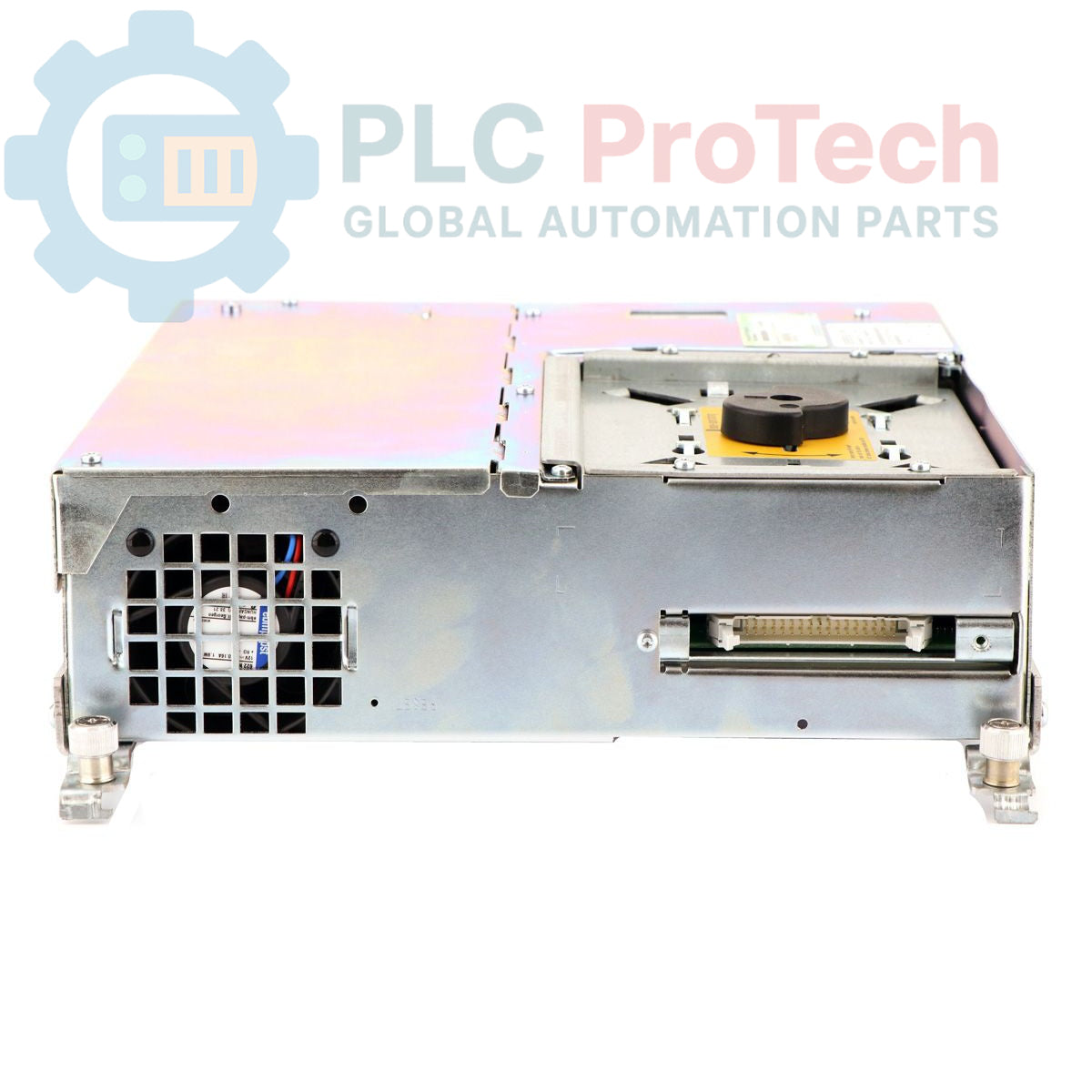

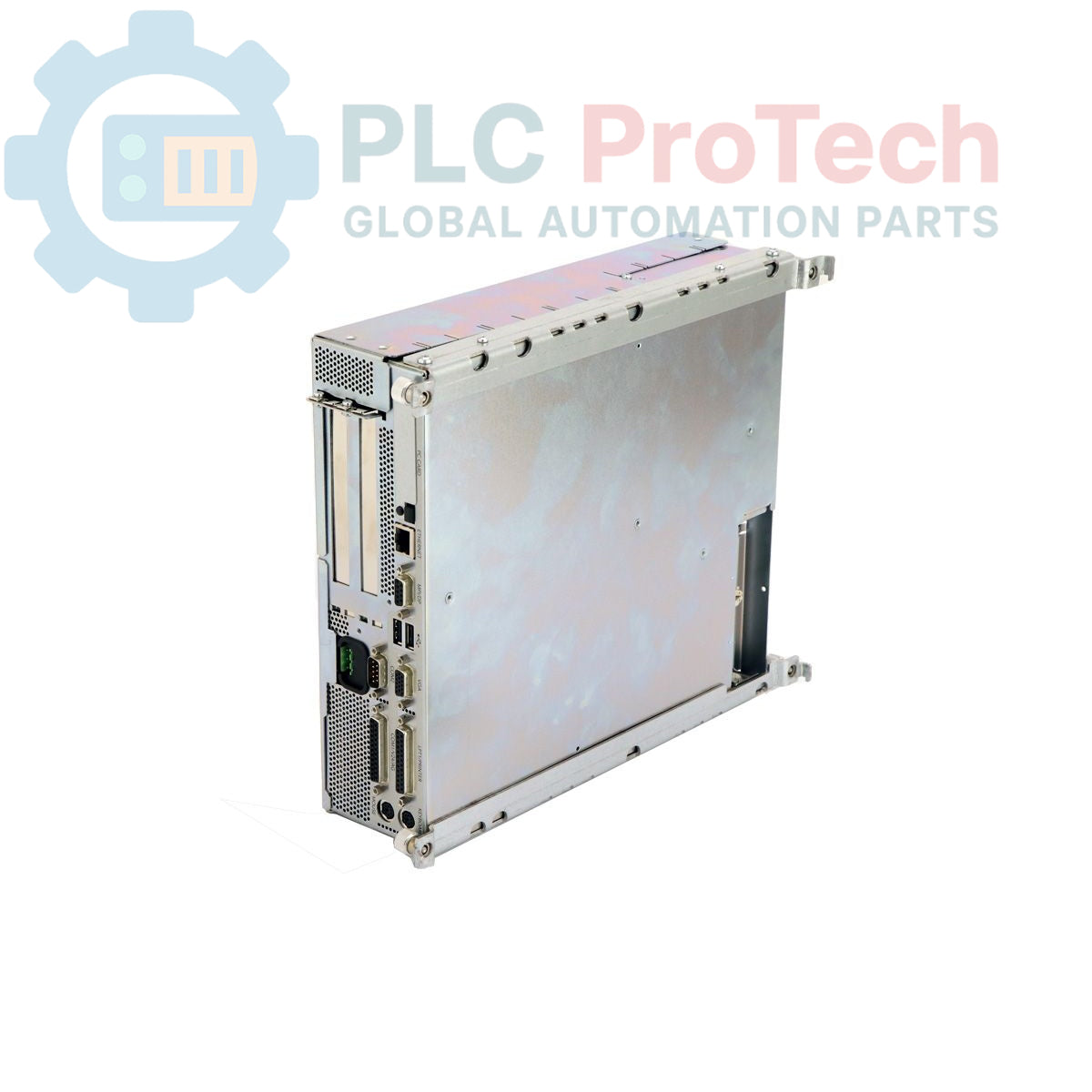

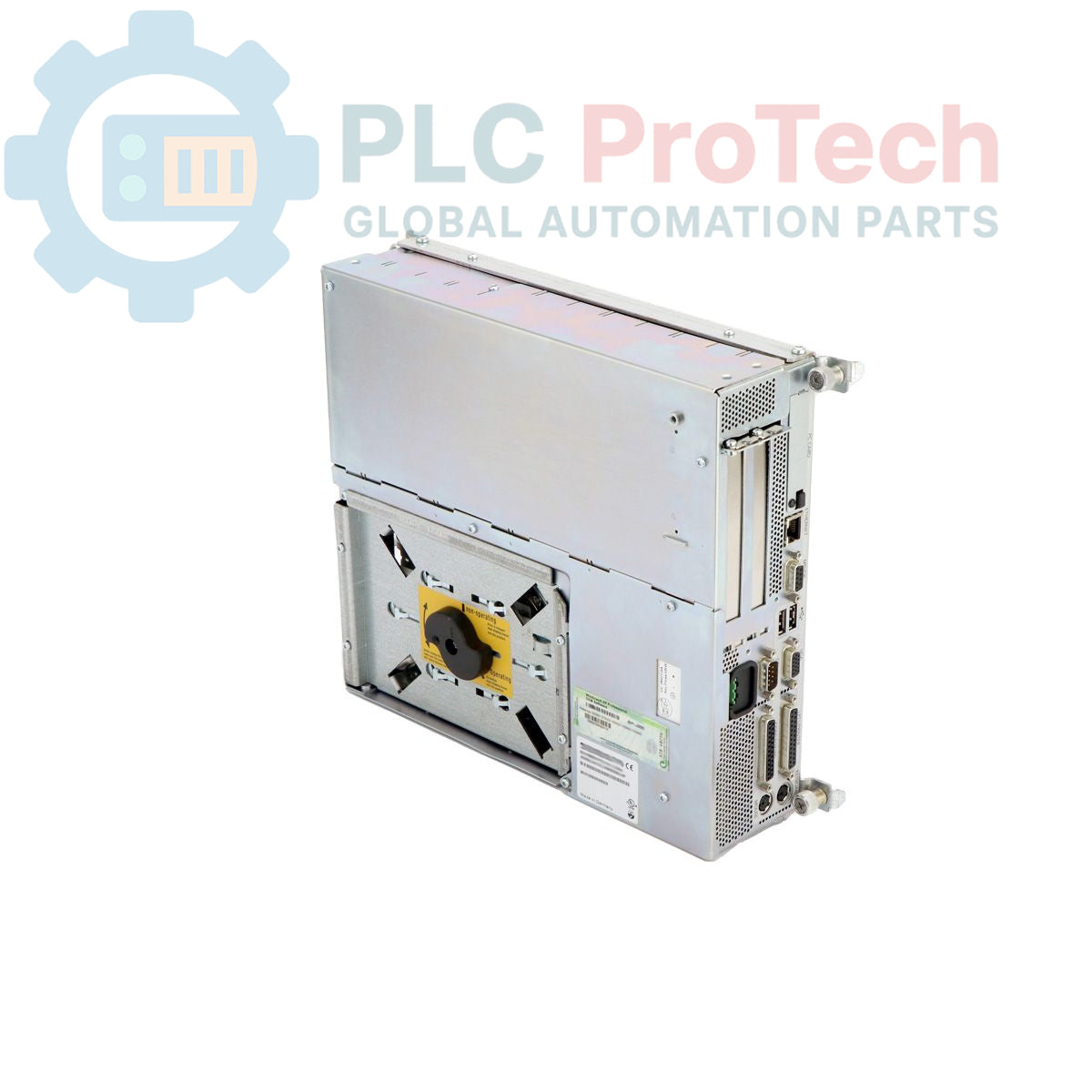

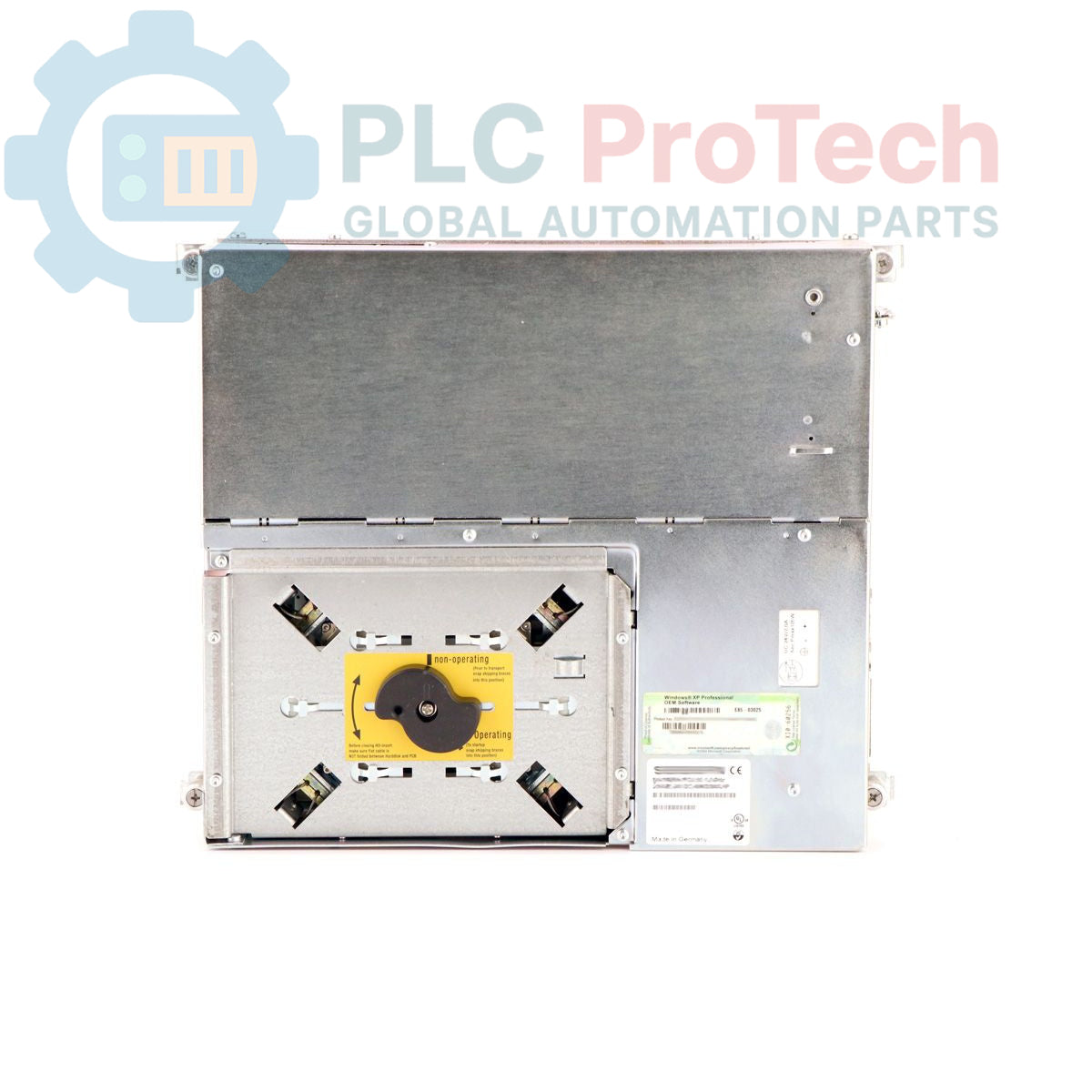

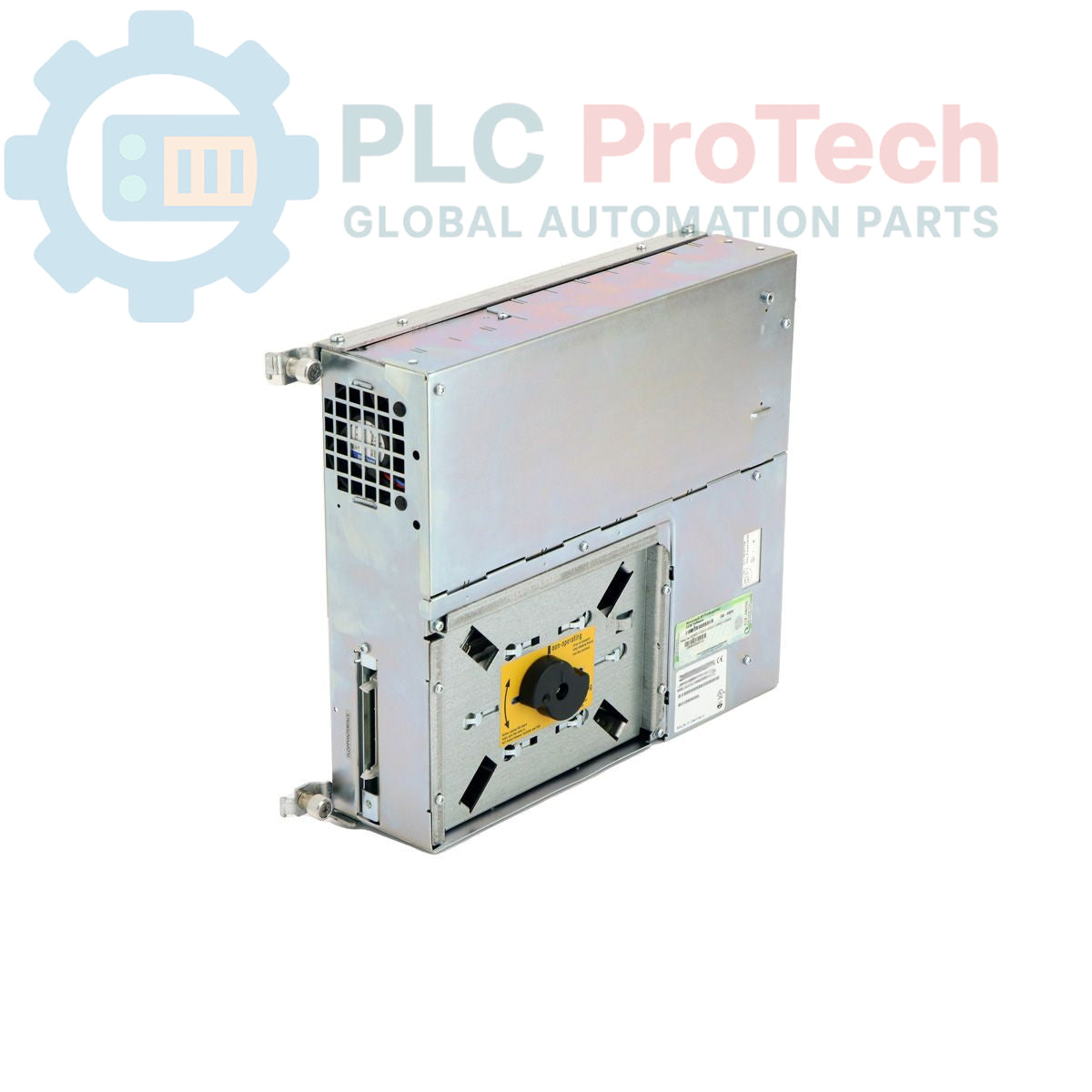

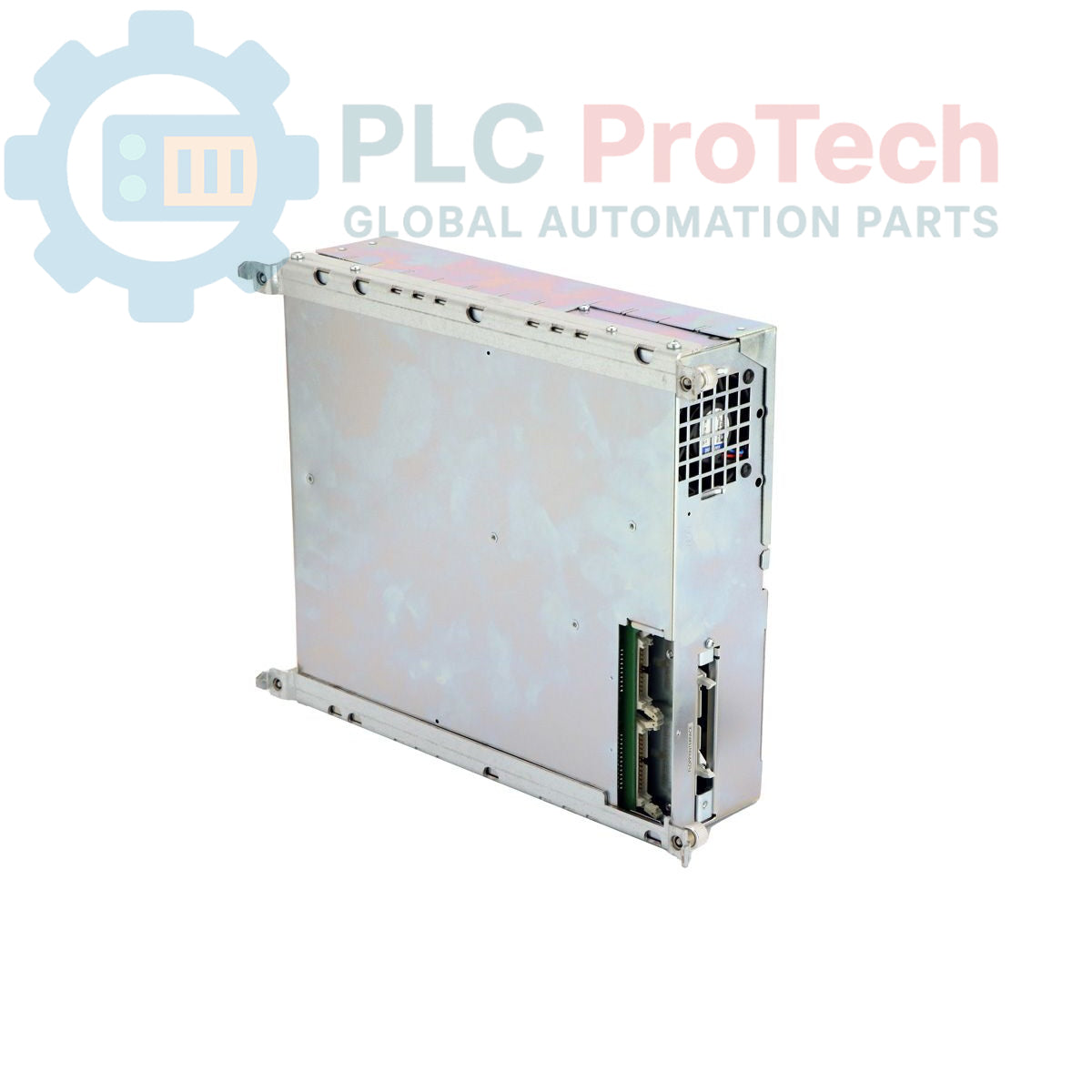

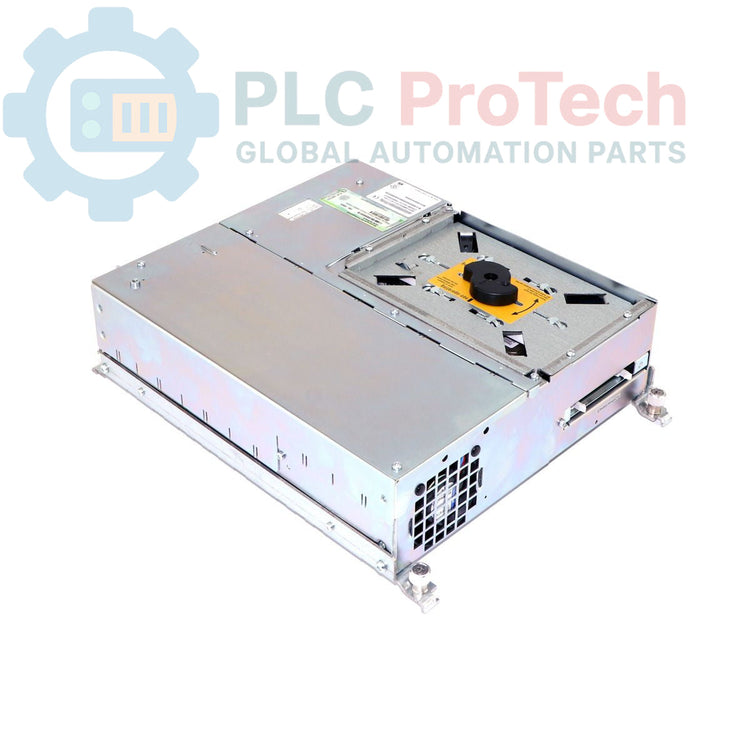

Siemens 6ES7647-5CE10-2JX0 SIMATIC BOX PC 620 Industrial PC

SKU 6ES7647-5CE10-2JX0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-5CE10-2JX0
Origin Germany
Product Type: Industrial PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 7.05 kg
Dimensions: 45.0 x 47.5 x 27.0 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

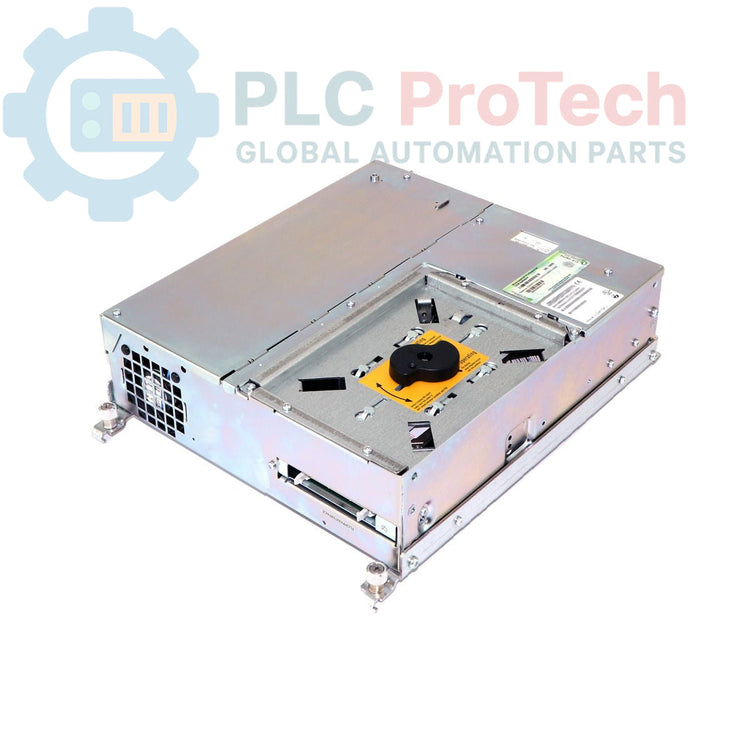

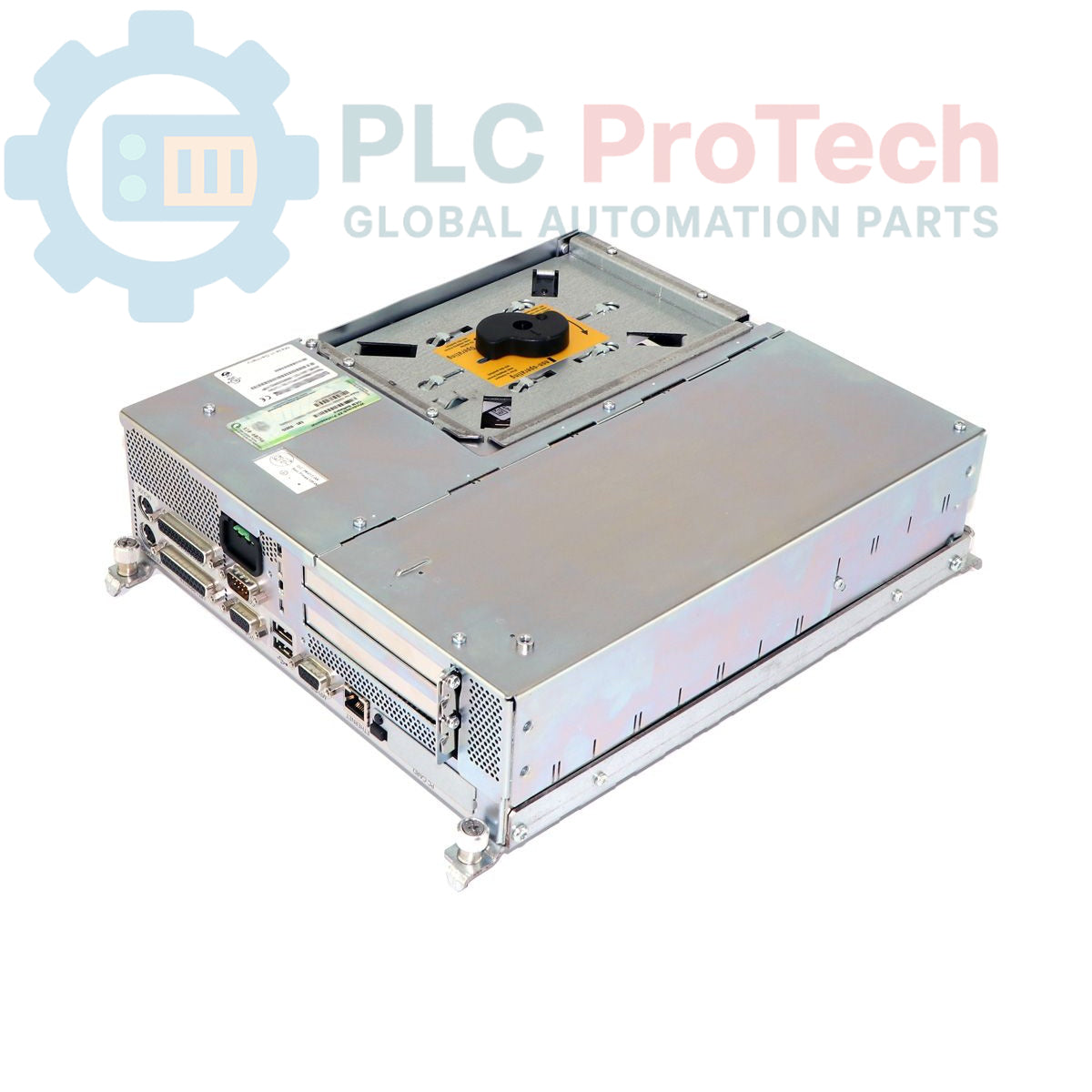

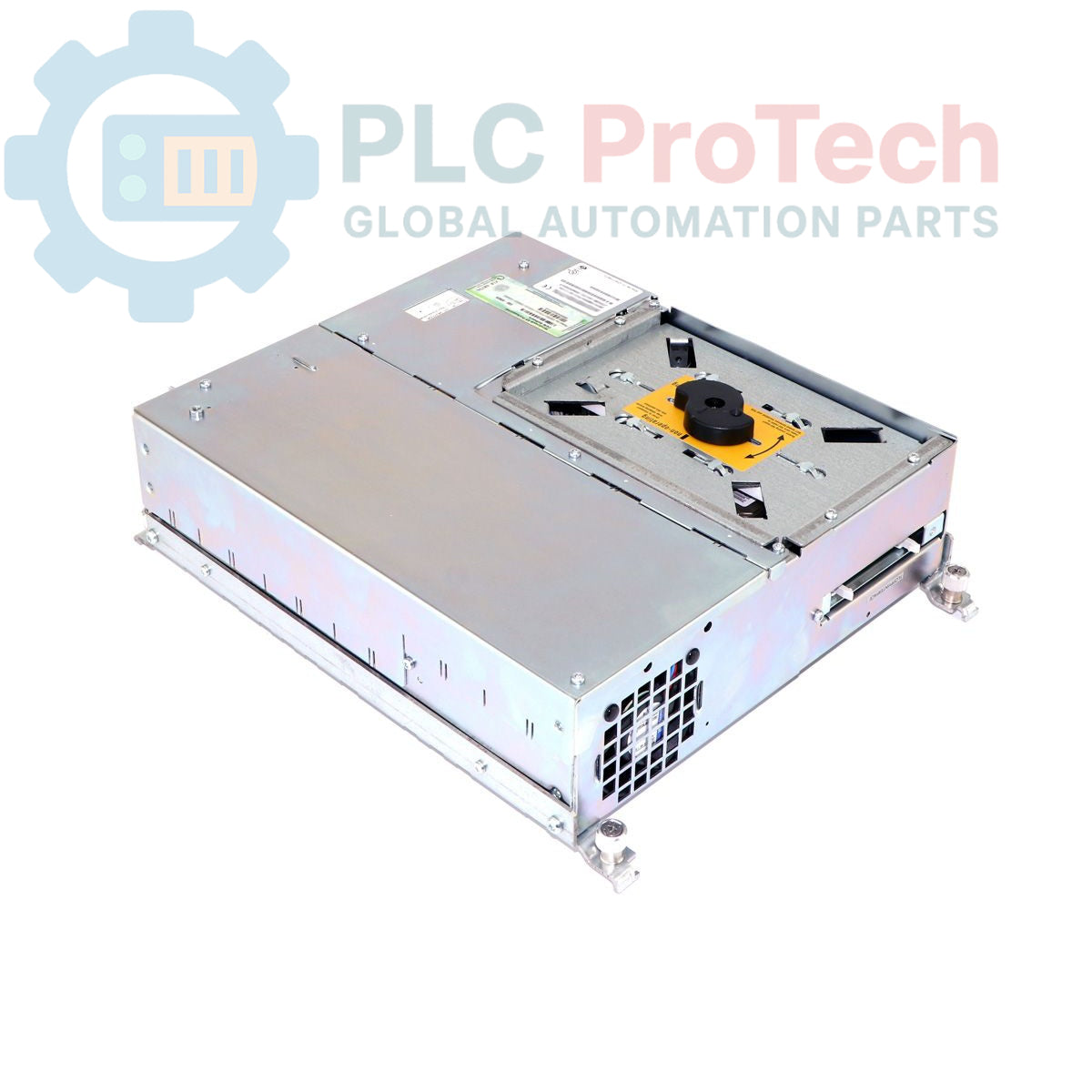

This is a Siemens 6ES7647-5CE10-2JX0, a robust industrial computer from the SIMATIC BOX PC 620 series. Engineered for industrial environments, this unit is powered by a Pentium III 866 MHz processor with 128 MB of SDRAM and includes a 40 GB EIDE hard drive. It comes pre-installed with the Windows 2000 Professional operating system, providing a stable platform for legacy automation applications. Connectivity is comprehensive, featuring integrated PROFIBUS/MPI, 10/100 Mbit/s Ethernet, USB ports, and available PCI and ISA/PCI slots for further expansion.

Features

Processor: Intel Pentium III at 866 MHz with 256KB SLC
Memory: 128 MB SDRAM-133
Storage: 40 GB EIDE Hard Disk Drive
Optical/Removable Media: DVD-ROM and 1.44 MB 3.5" Floppy Drive
Graphics: Onboard AGP with configurable 8, 16, or 32 MB video memory
Networking: 10/100 Mbit/s Ethernet (RJ45)
Industrial Communication: PROFIBUS/MPI interface (12 Mbit/s) and TTY port
Expansion Slots: One PCI slot and one shared ISA/PCI slot
External Ports: Two USB ports, PC Card (PCMCIA Type 3) slot
System Integrity: Integrated watchdog timer and temperature monitoring
Power Supply: Designed for a 24 V DC industrial power source
Operating System: Windows 2000 Professional SP4 (Multilanguage)

Applications

Human-Machine Interface (HMI) and SCADA visualization
PC-based automation and machine control
Data acquisition, logging, and processing
Gateway for industrial networks
Support for legacy systems requiring Windows 2000

Technical Specifications

Specification	Value
Brand	Siemens
Model	6ES7647-5CE10-2JX0
Series	SIMATIC BOX PC 620
Product Status	Obsolete
Processor	Pentium III 866 MHz, 256KB SLC
Memory (RAM)	128 MB SDRAM-133
Hard Drive	40 GB EIDE
Optical Drive	DVD-ROM
Floppy Drive	3.5 inch, 1.44 MB
Graphics	Onboard AGP, configurable 8/16/32 MB
Interfaces	1x Ethernet (10/100 Mbit/s, RJ45), 2x USB, 1x PROFIBUS/MPI (12 Mbit/s), 1x TTY, 1x PC Card (PCMCIA Type 3)
Expansion Slots	1x PCI, 1x ISA/PCI (shared)
Operating System	Windows 2000 Professional SP4 (EN, GER, FR, IT, SP)
Input Voltage	24 V DC
Shipping Weight	7.05 kg
Package Dimensions (Calculated)	45.0 x 47.5 x 27.0 cm
Country of Origin	Germany (Manufacturer's standard)
Commodity Code	85371091
ECCN	5D992

Installation Guidelines

CRITICAL WARNING: This is legacy hardware. The internal hard disk drive contains mechanical parts that are sensitive to shock and age. Handle the unit with extreme care. Always perform a full data backup before integrating into a live system.

1 Ensure all power to the installation cabinet is disconnected and locked out (LOTO) before beginning installation.
2 Verify mounting clearances around the PC chassis, ensuring adequate space for airflow and cable routing as specified for the enclosure.
3 Securely mount the Box PC to the panel or chassis using all designated mounting points. Do not overtighten fasteners.
4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the PC chassis. This is critical for safety and noise immunity.
5 Connect the 24 V DC power supply, ensuring correct polarity. Use appropriately sized conductors for the load.
6 Connect Ethernet, PROFIBUS/MPI, and any other required peripheral cables. Ensure communication cable shields are properly terminated.
7 After verifying all connections, restore power to the cabinet and monitor the PC for a successful boot into the operating system.
