Description

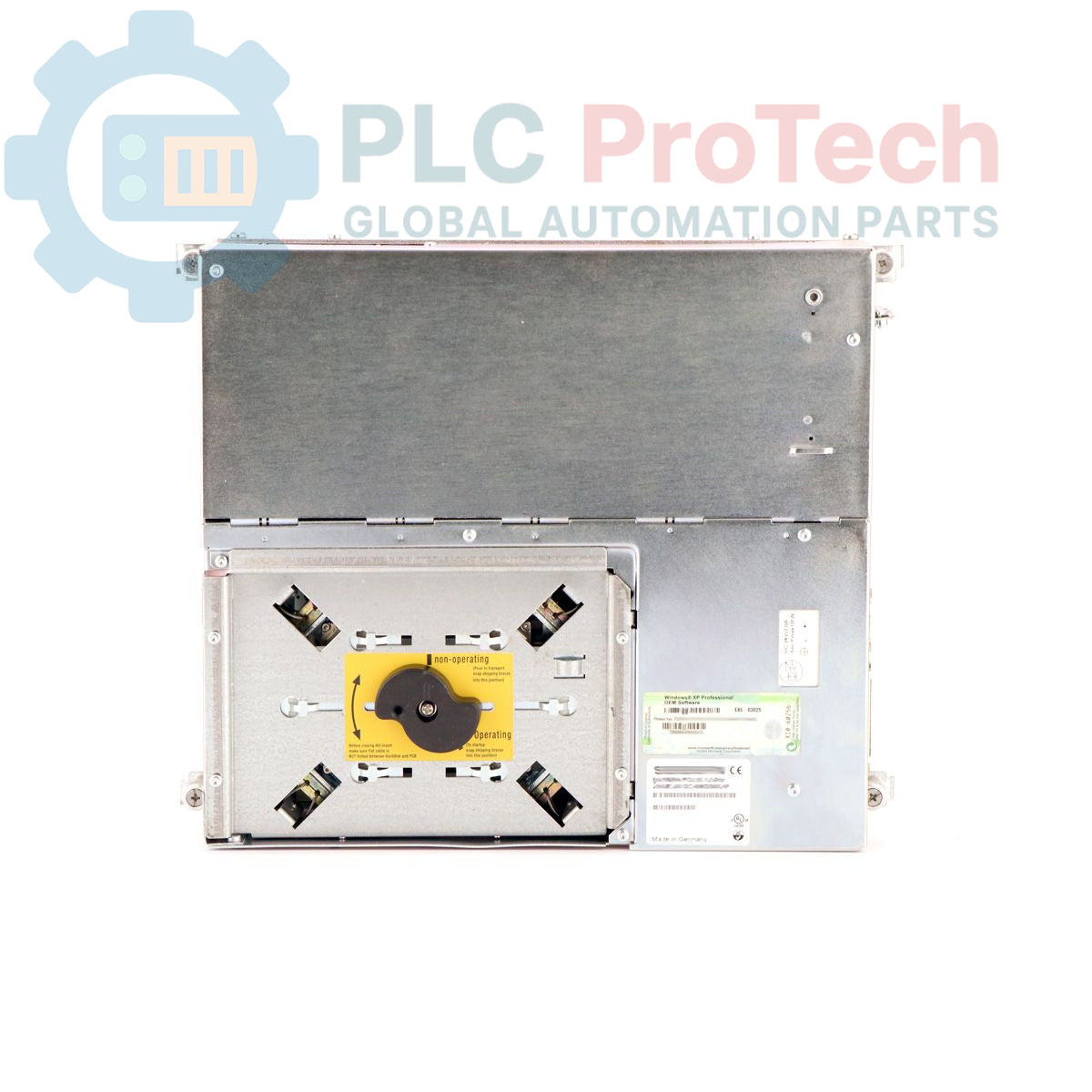

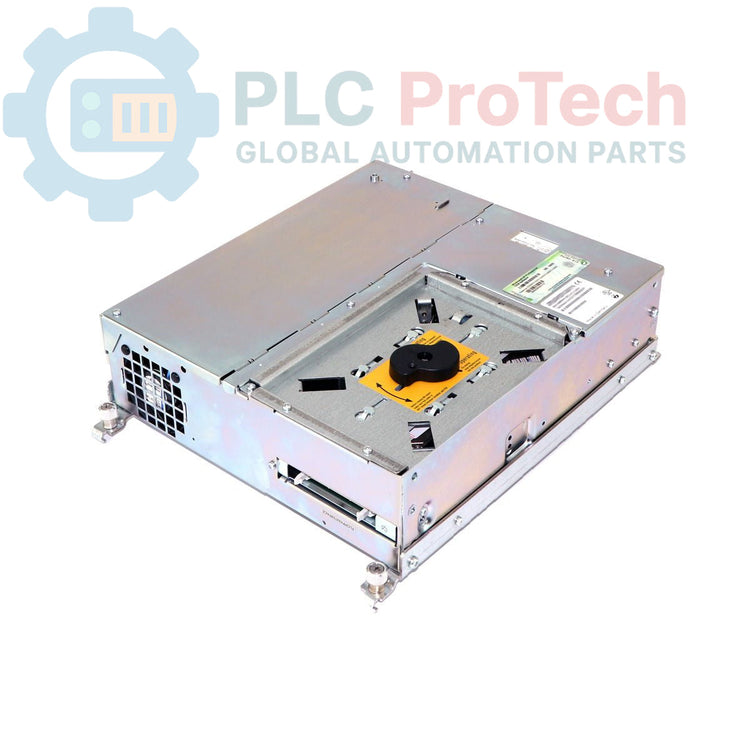

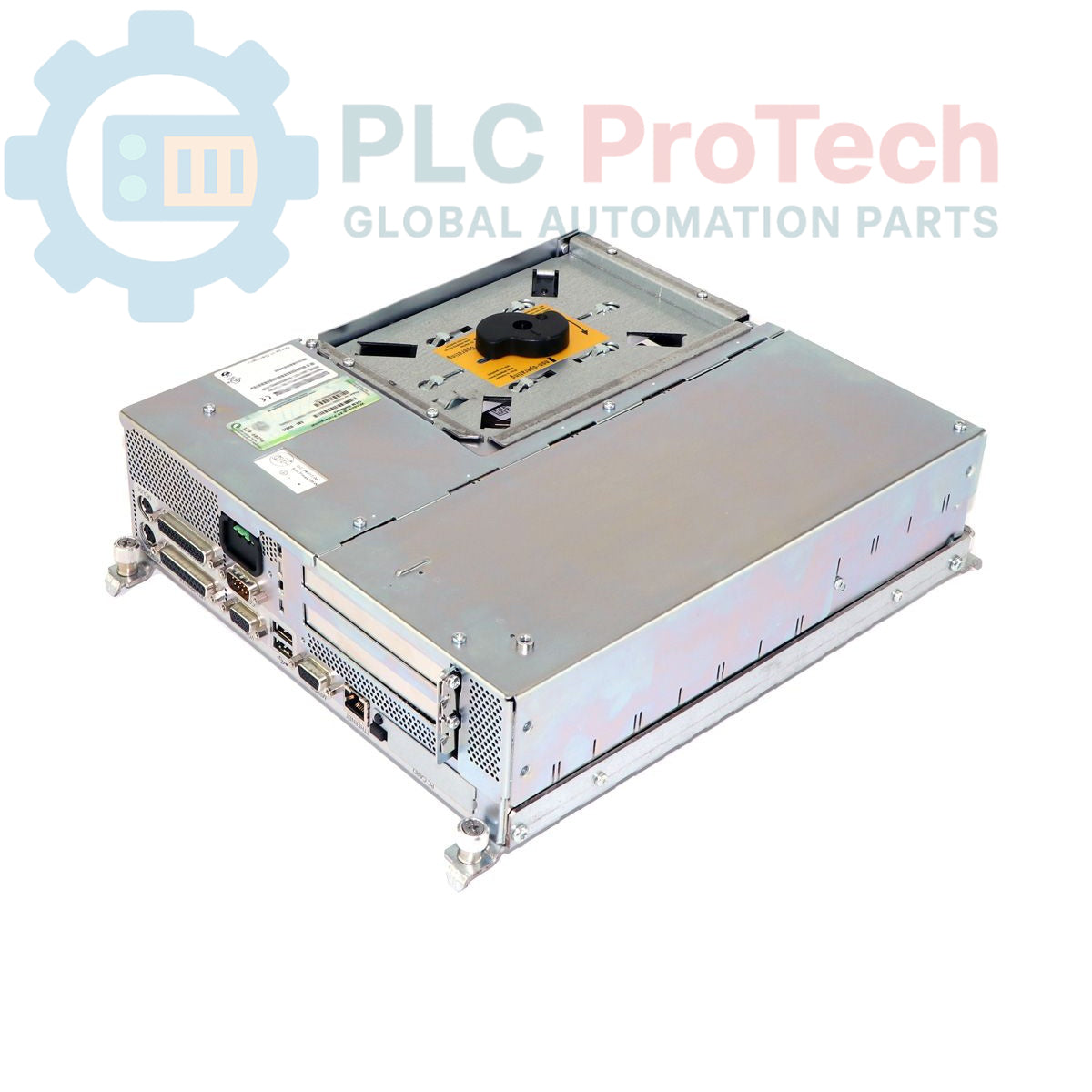

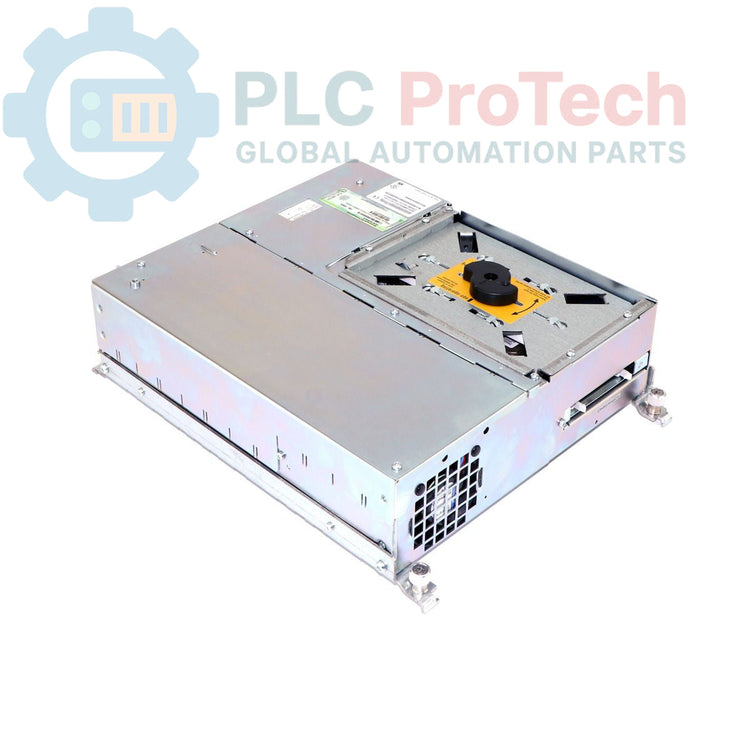

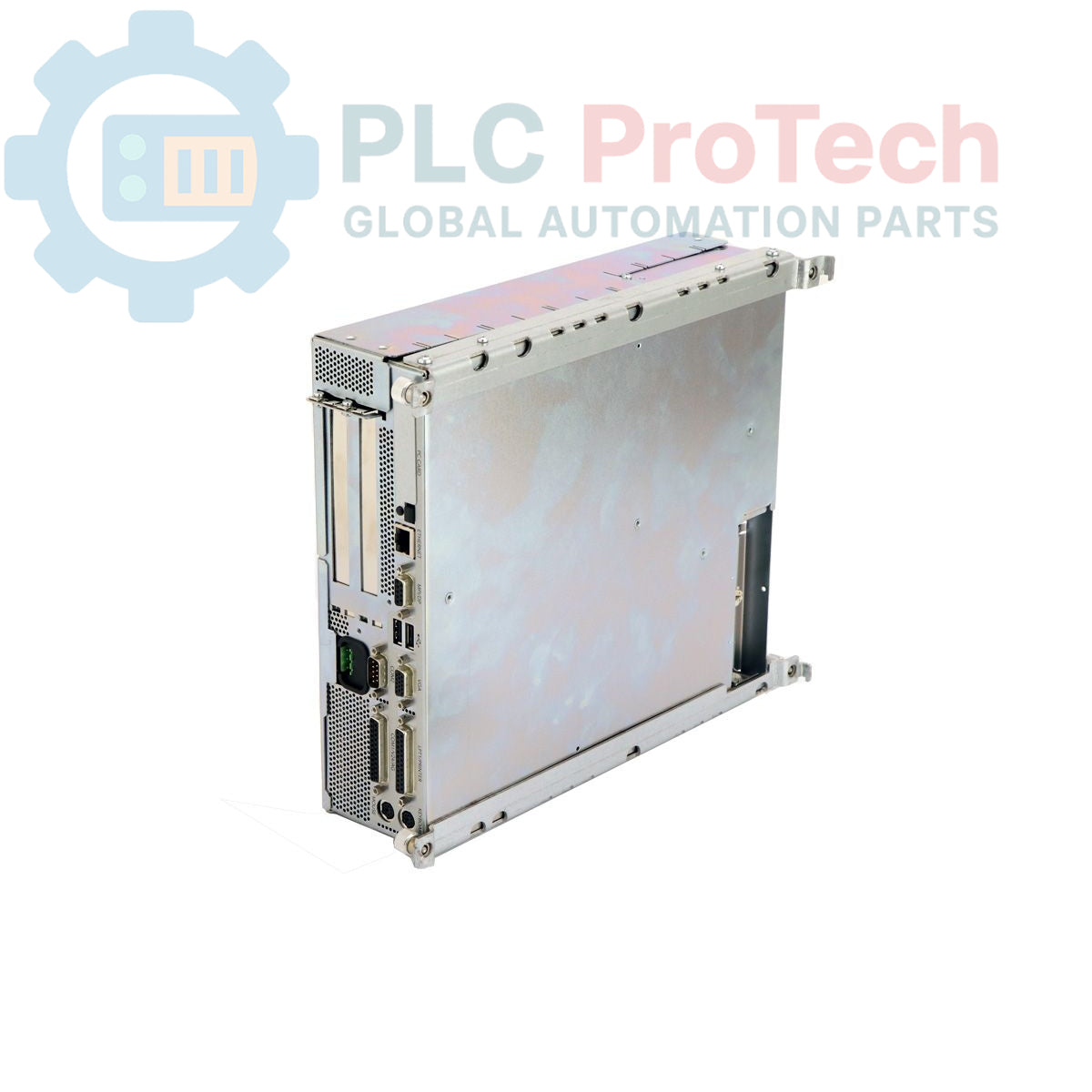

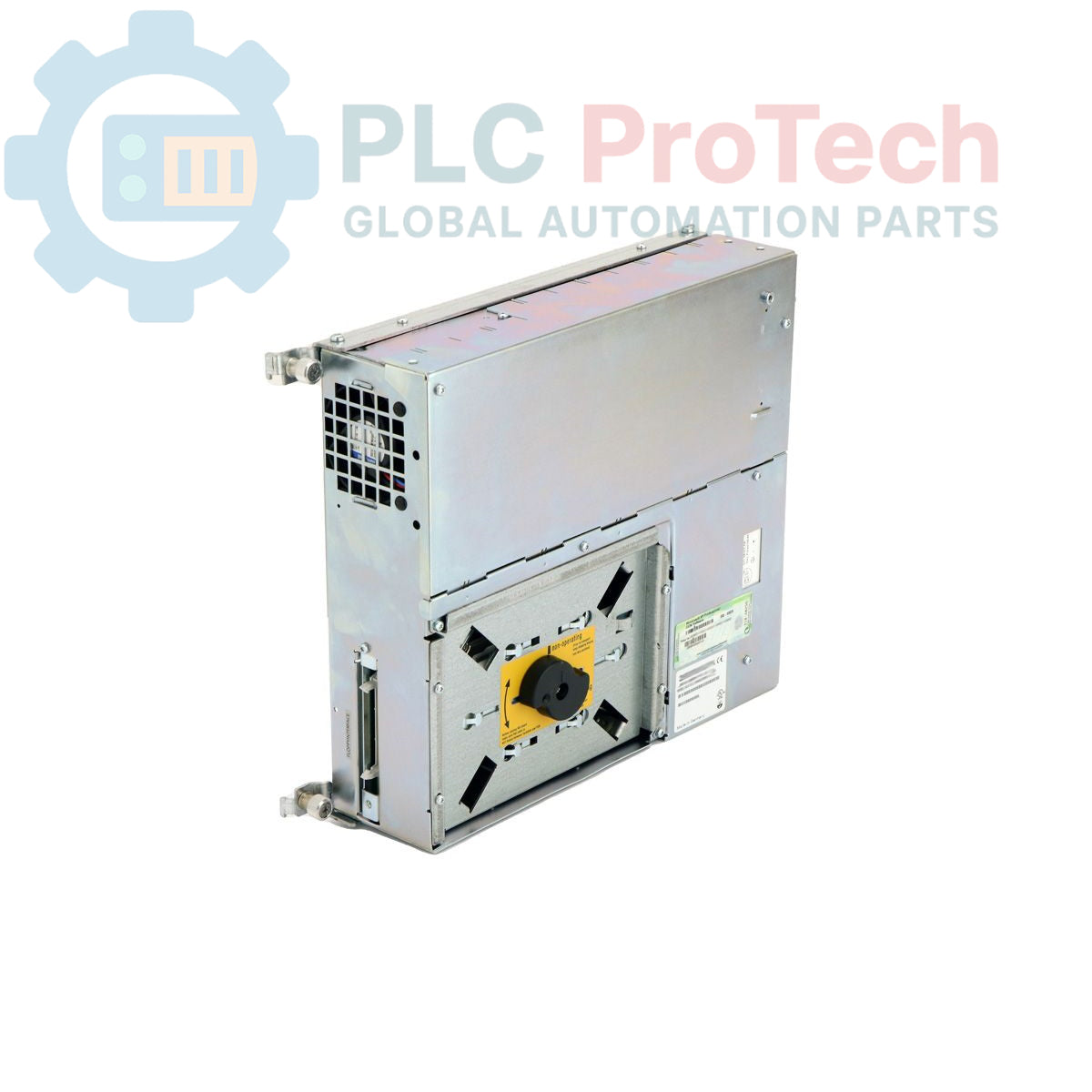

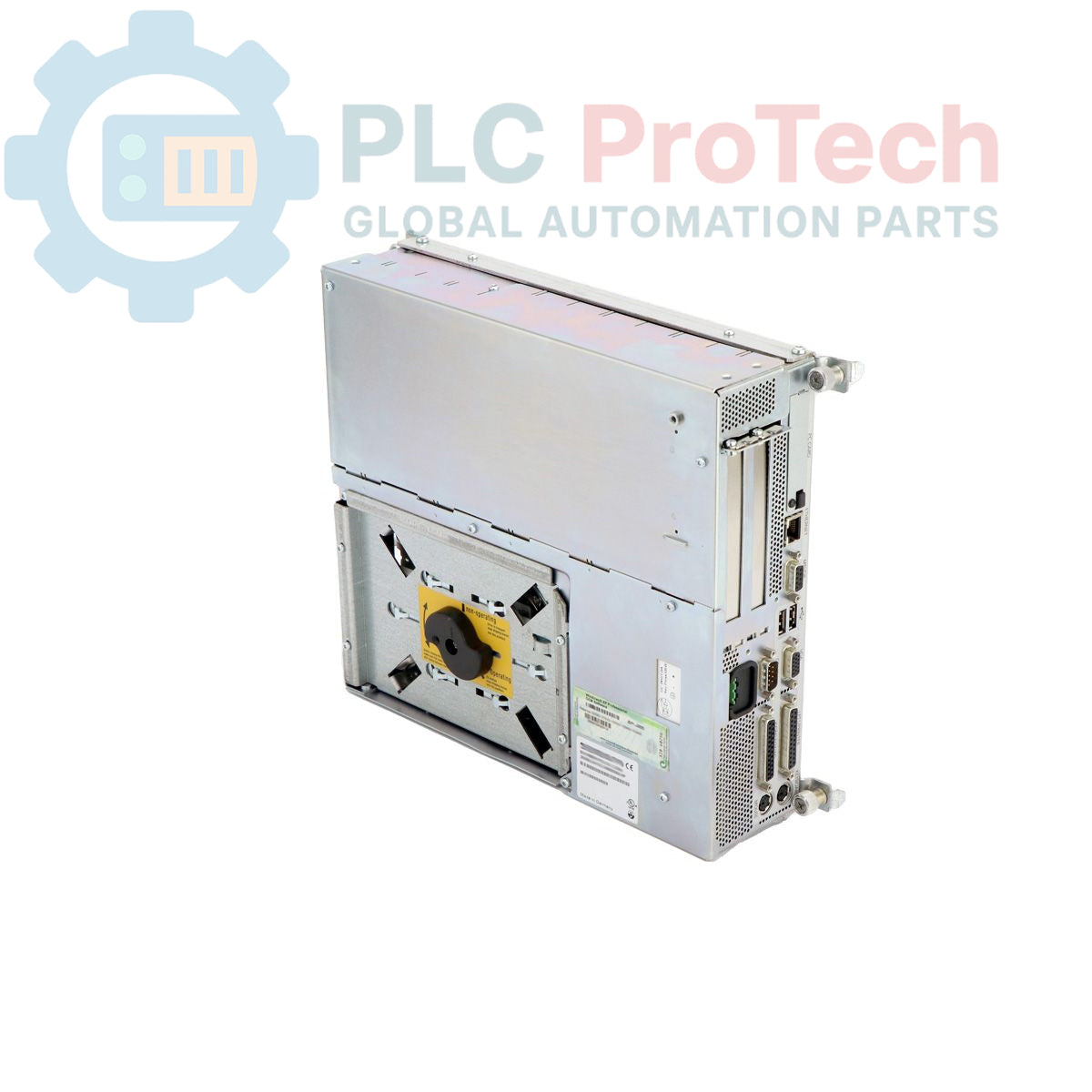

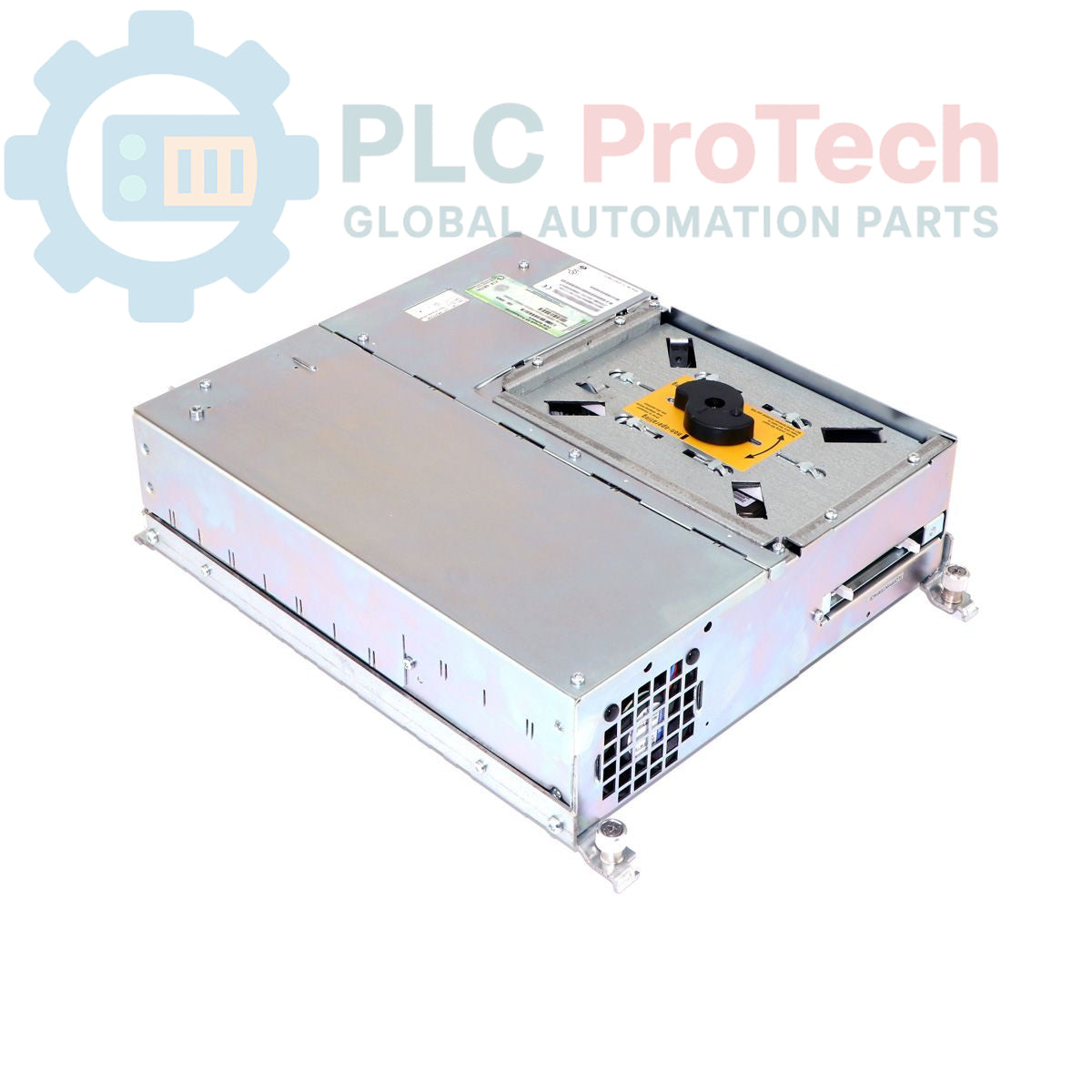

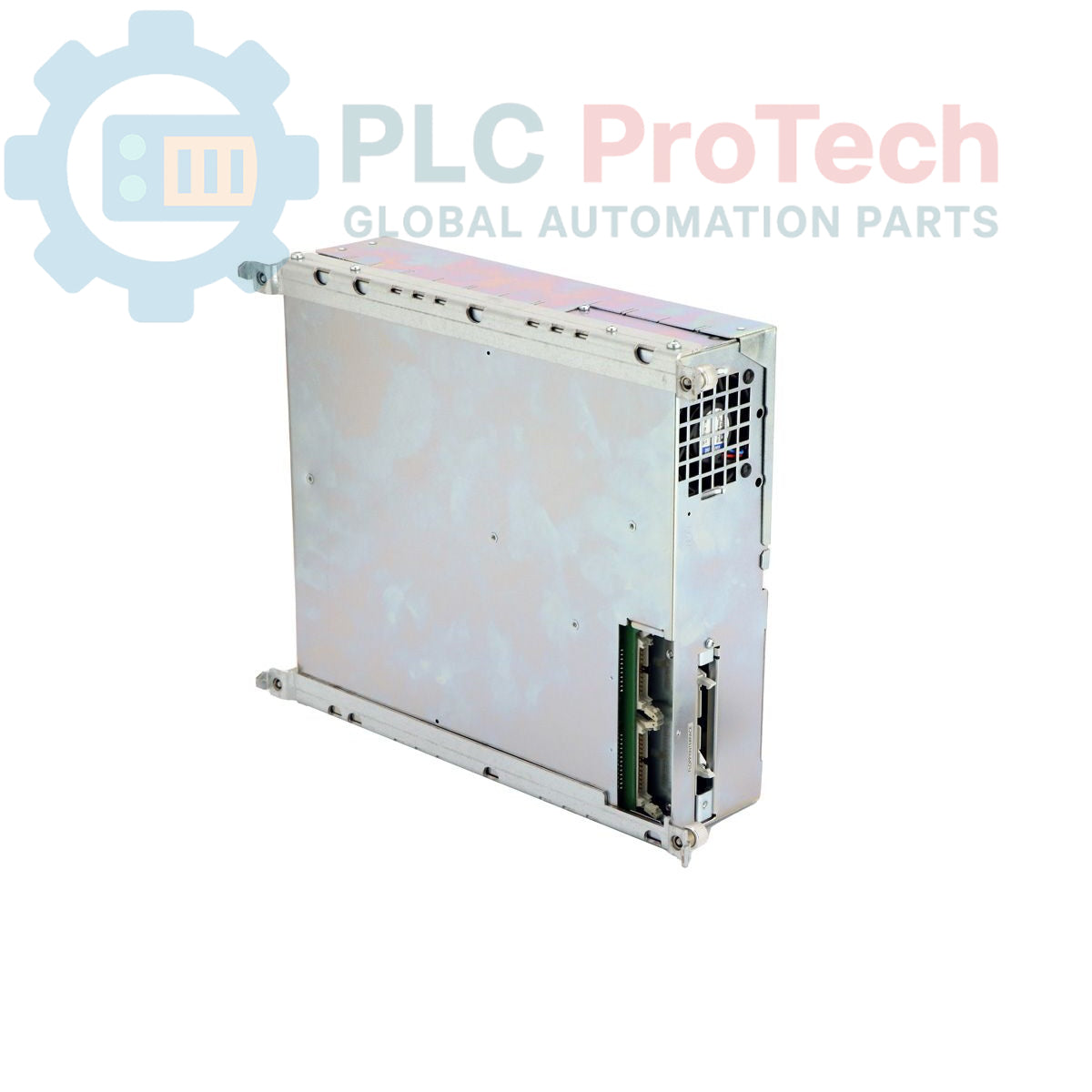

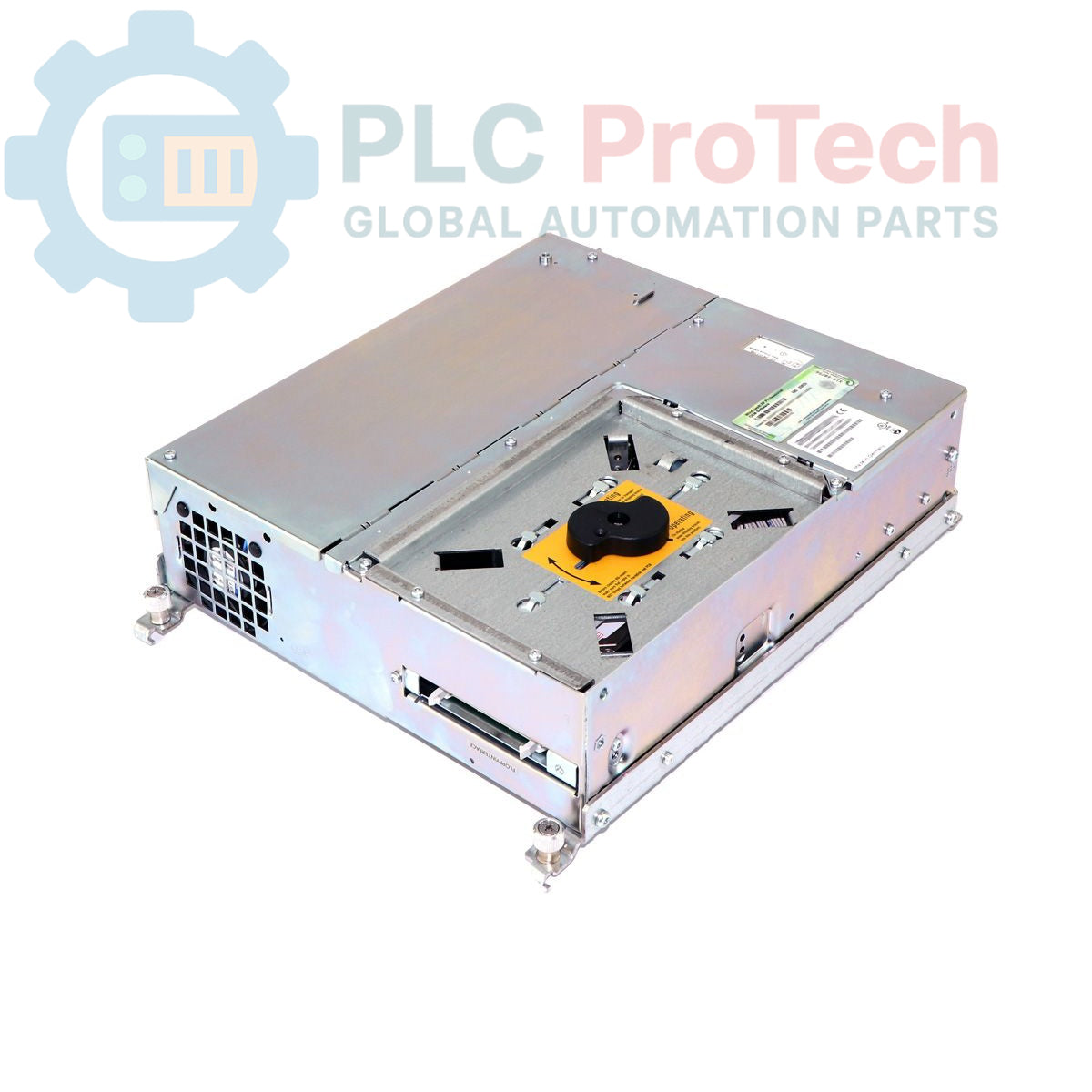

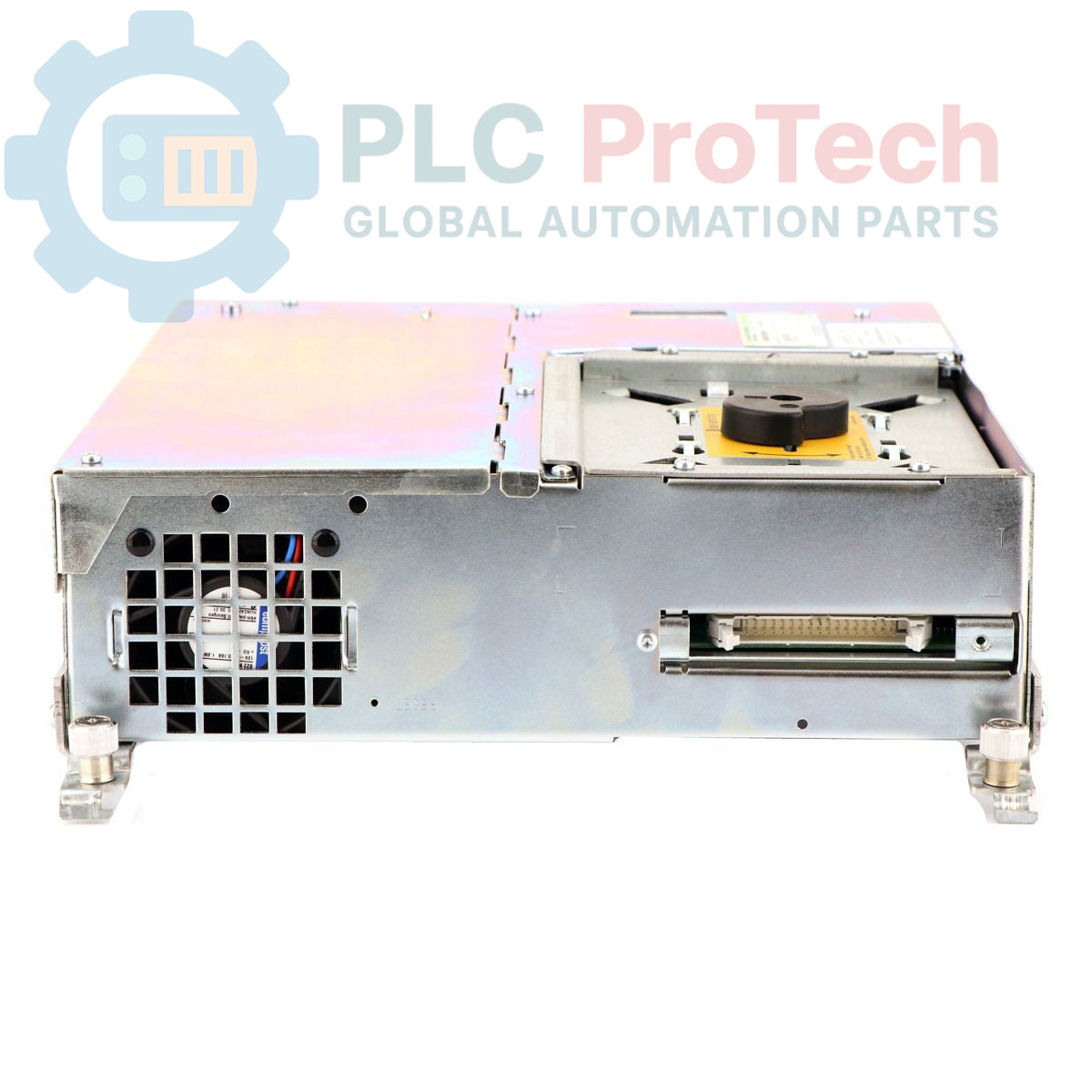

The Siemens 6ES7647-5GE20-6XX0 is an industrial computer from the SIMATIC BOX PC 620 series, designed for robust performance in automation environments. This unit is configured with a Pentium III 1.26 GHz processor, 256 MB of SDRAM-133 memory, and a 40 GB EIDE hard drive for local data storage. It features a comprehensive set of interfaces, including 10/100 Mbit/s Ethernet, PROFIBUS/MPI, and dual USB ports. Integrated system monitoring functions such as a watchdog timer and temperature monitoring enhance operational reliability. This model is supplied without a pre-installed operating system, providing flexibility for custom software deployment.

Features

• Processor: Pentium III 1.26 GHz with 133 MHz FSB and 512 KB SLC
• Memory: 256 MB SDRAM-133 RAM
• Storage: 40 GB EIDE Hard Disk Drive and an integrated DVD-ROM drive
• Removable Media: 3.5-inch, 1.44 MB floppy disk drive
• Graphics: Onboard AGP graphics with configurable 8/16/32 MB memory
• Connectivity: 10/100 Mbit/s Ethernet (RJ45), PROFIBUS/MPI, TTY, and 2x USB ports
• Expansion: One PCI slot, one shared ISA/PCI slot, and a PC Card (PCMCIA Type 3) slot
• System Integrity: Integrated watchdog timer and temperature monitoring
• Power Supply: 110/230V AC, 105 VA industrial power pack
• Included Accessories: European power cable

Applications

• Machine control and automation systems
• Data acquisition, logging, and processing
• Process visualization and HMI applications
• Industrial networking gateways
• Test and measurement platforms

Technical Specifications

Installation Guidelines

1. 1 Mount the PC securely in a control cabinet or on a stable surface, ensuring adequate ventilation space around the chassis for heat dissipation.
2. 2 Connect the chassis to a reliable protective earth (PE) ground using the designated grounding terminal to minimize electrical noise and ensure safety.
3. 3 Connect the provided European power cable to the 110/230V AC input on the industrial power pack and to a suitable mains supply.
4. 4 Connect peripheral devices such as monitors, keyboards, and mice to the appropriate ports (VGA, USB, etc.).
5. 5 Terminate network and fieldbus cables (Ethernet, PROFIBUS/MPI) to their respective RJ45 and D-sub connectors. Ensure proper shielding and termination practices are followed.
6. 6 Install any required PCI or ISA expansion cards into the available slots, ensuring they are firmly seated before securing the chassis cover.
7. 7 Once all connections are verified, the LOTO can be removed and the unit can be powered on for software installation and commissioning.
