Description

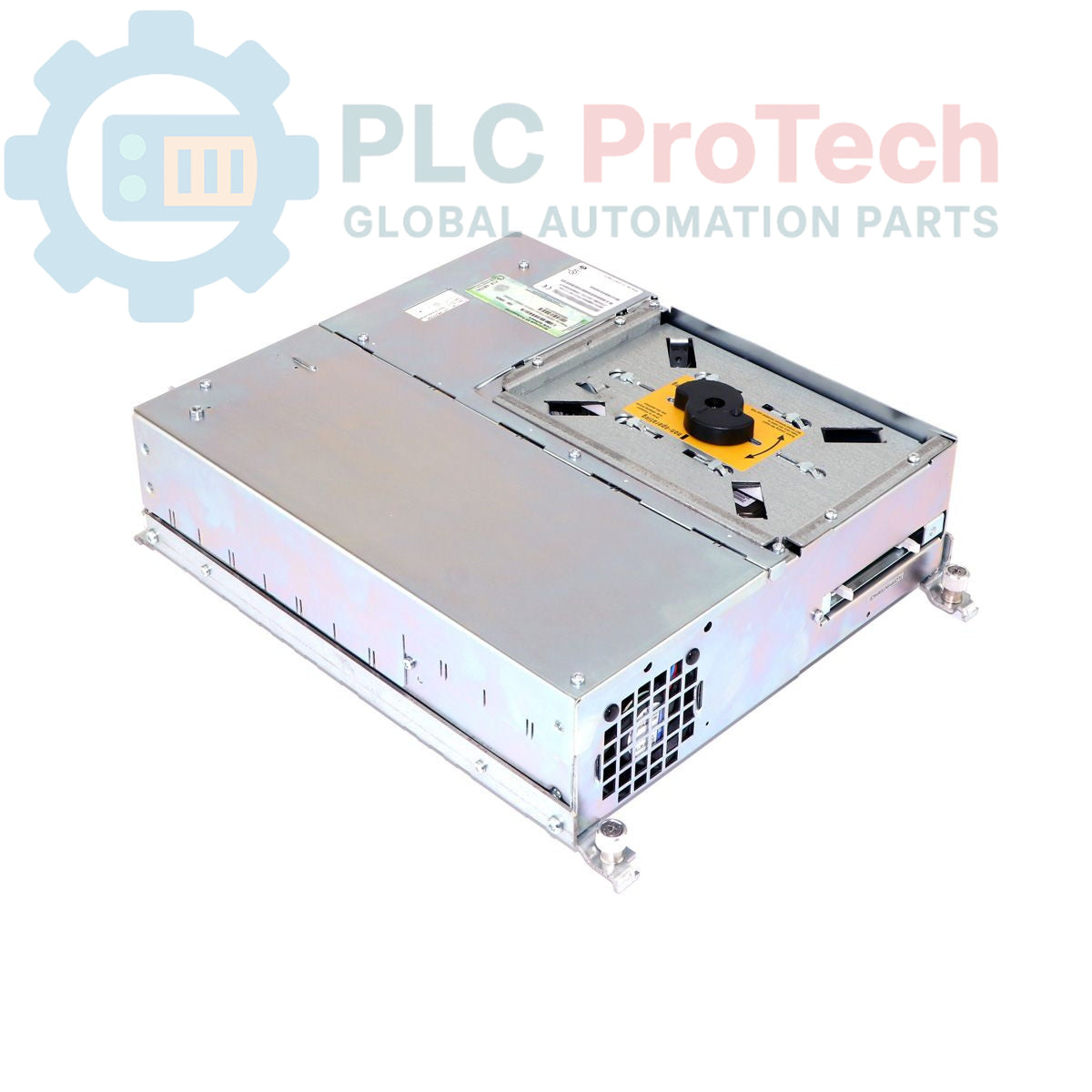

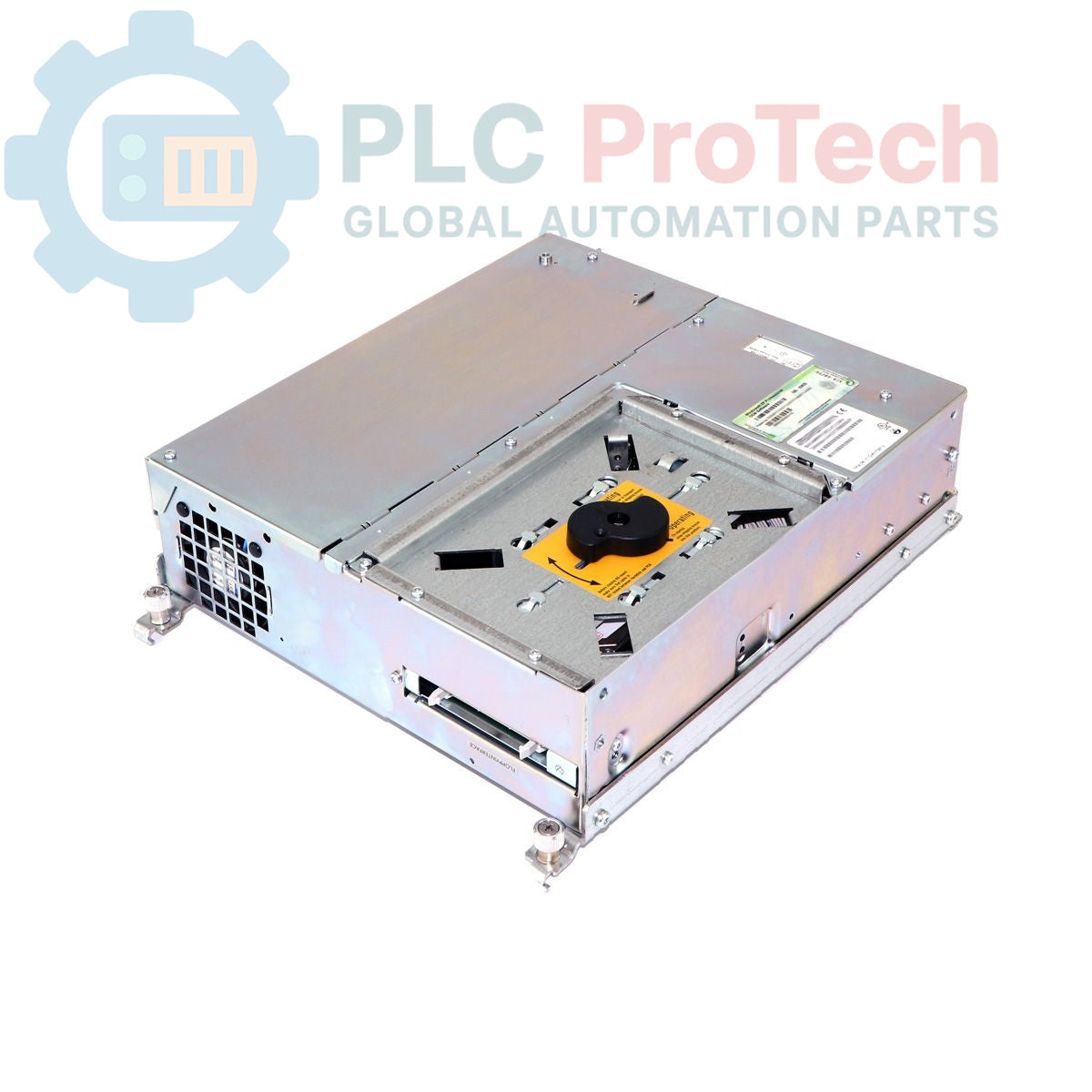

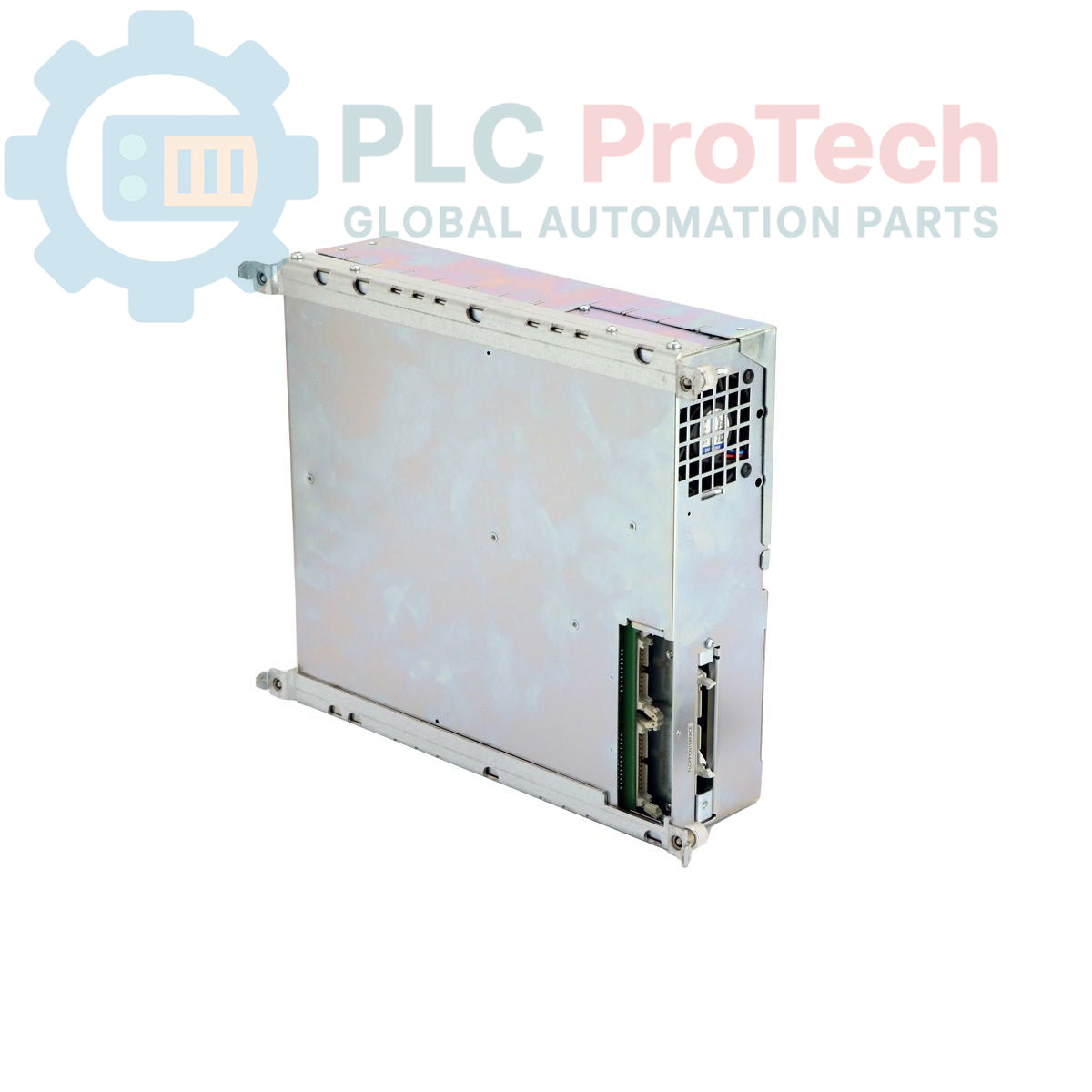

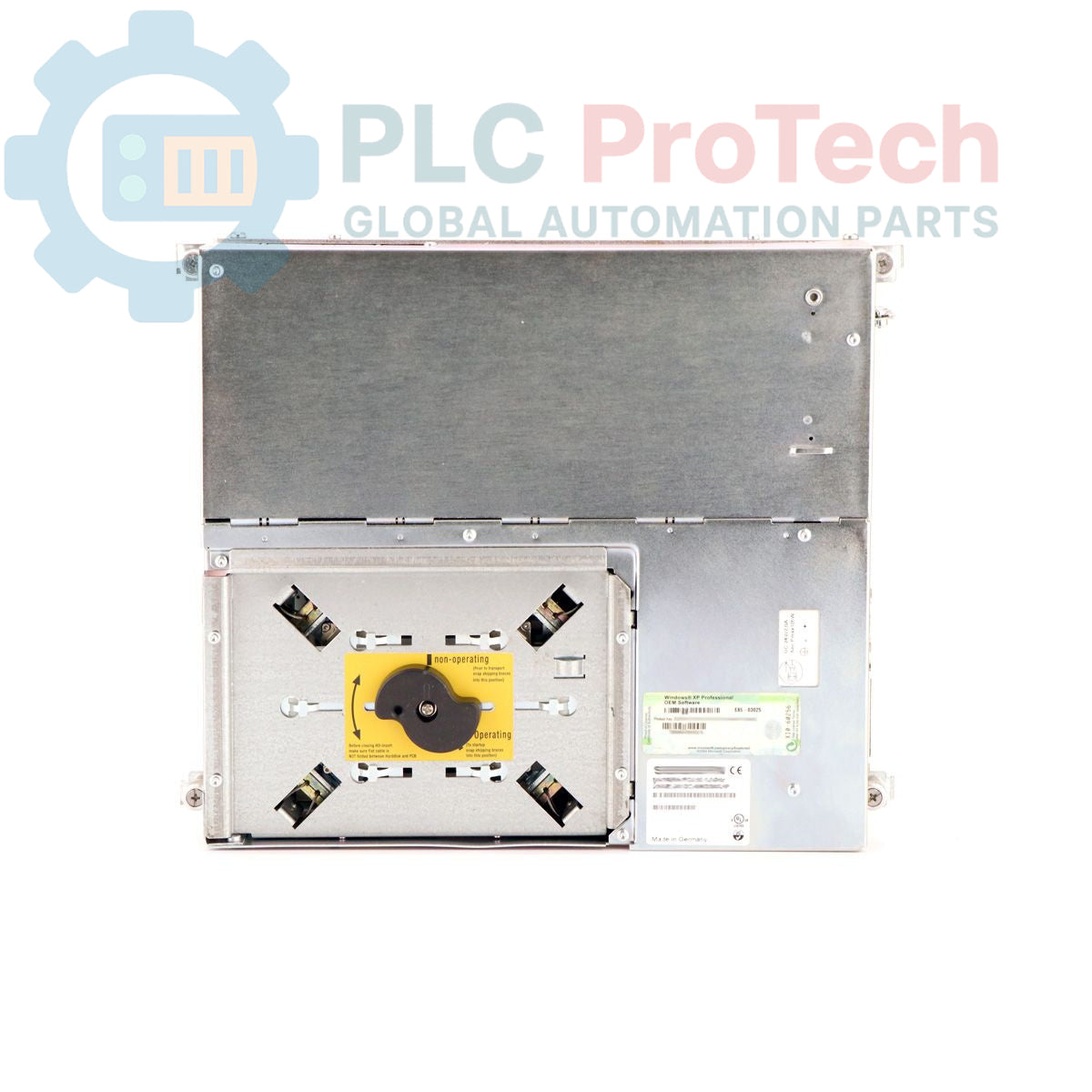

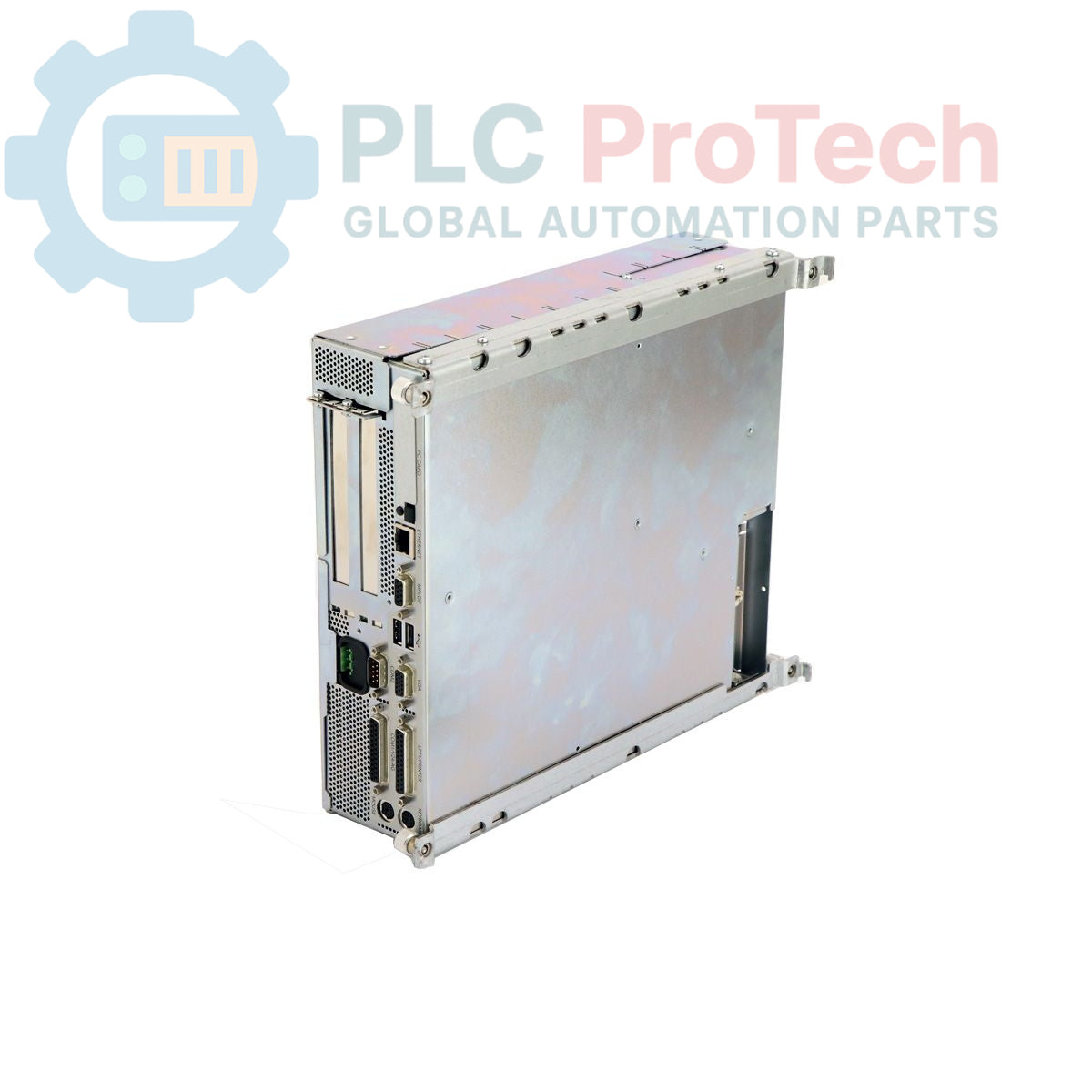

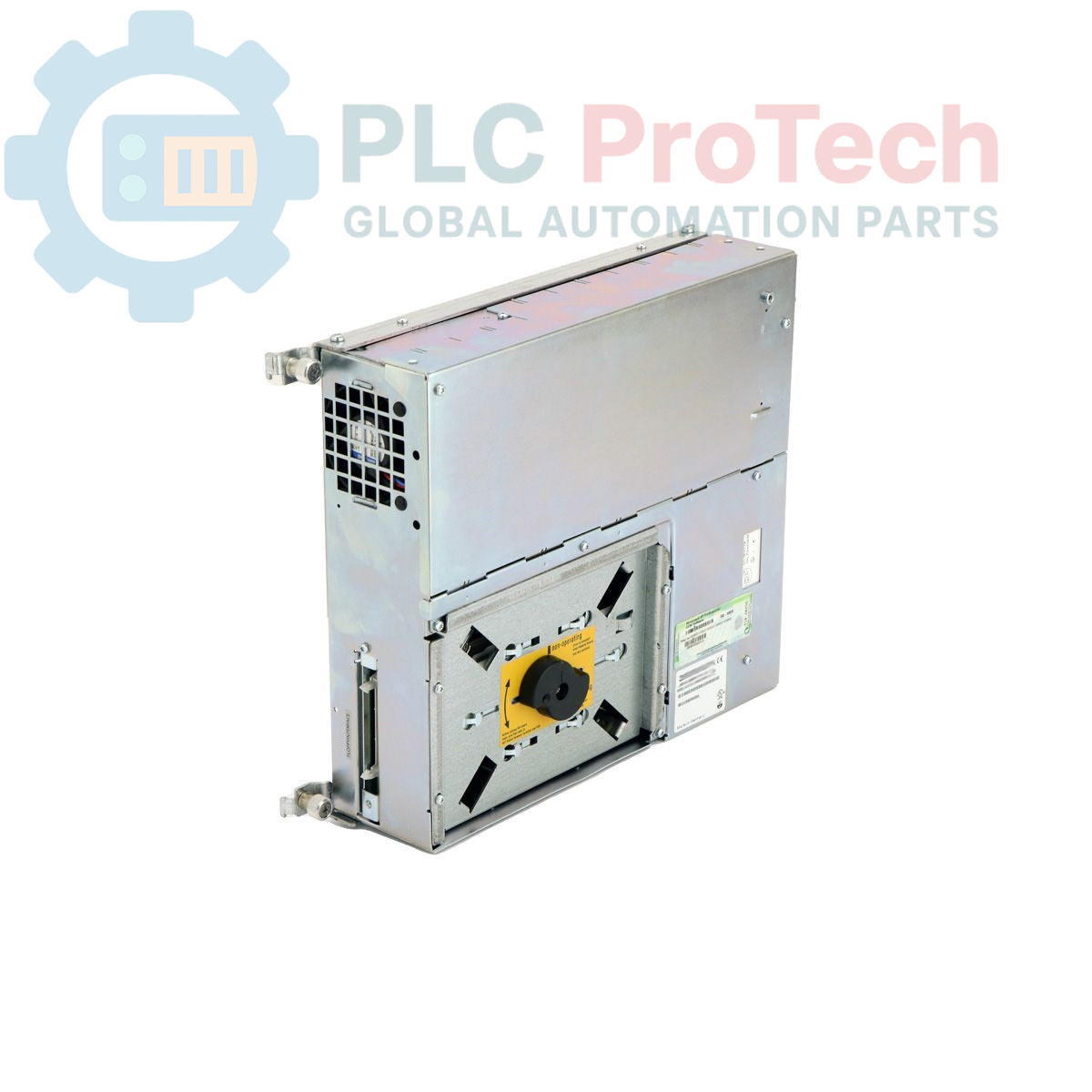

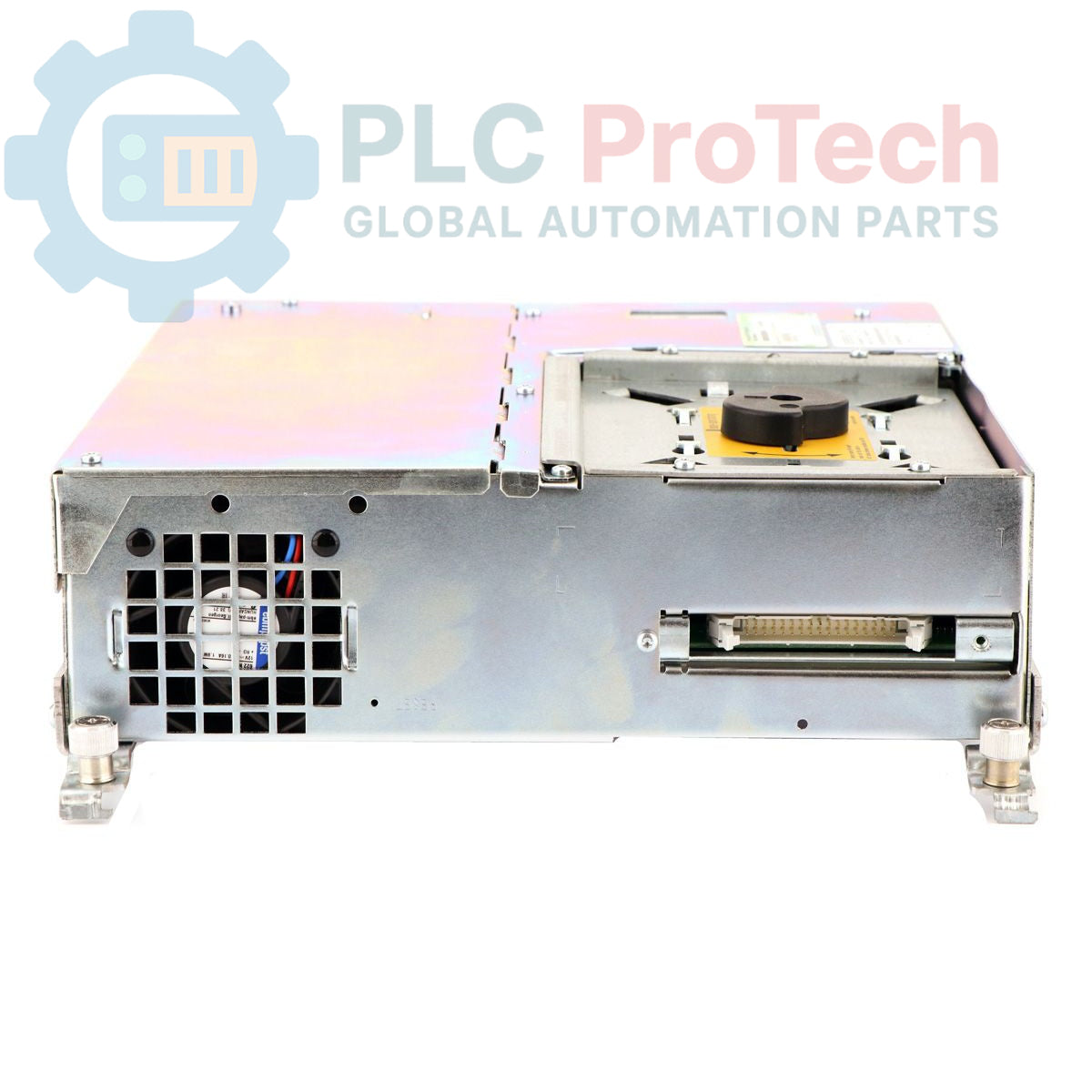

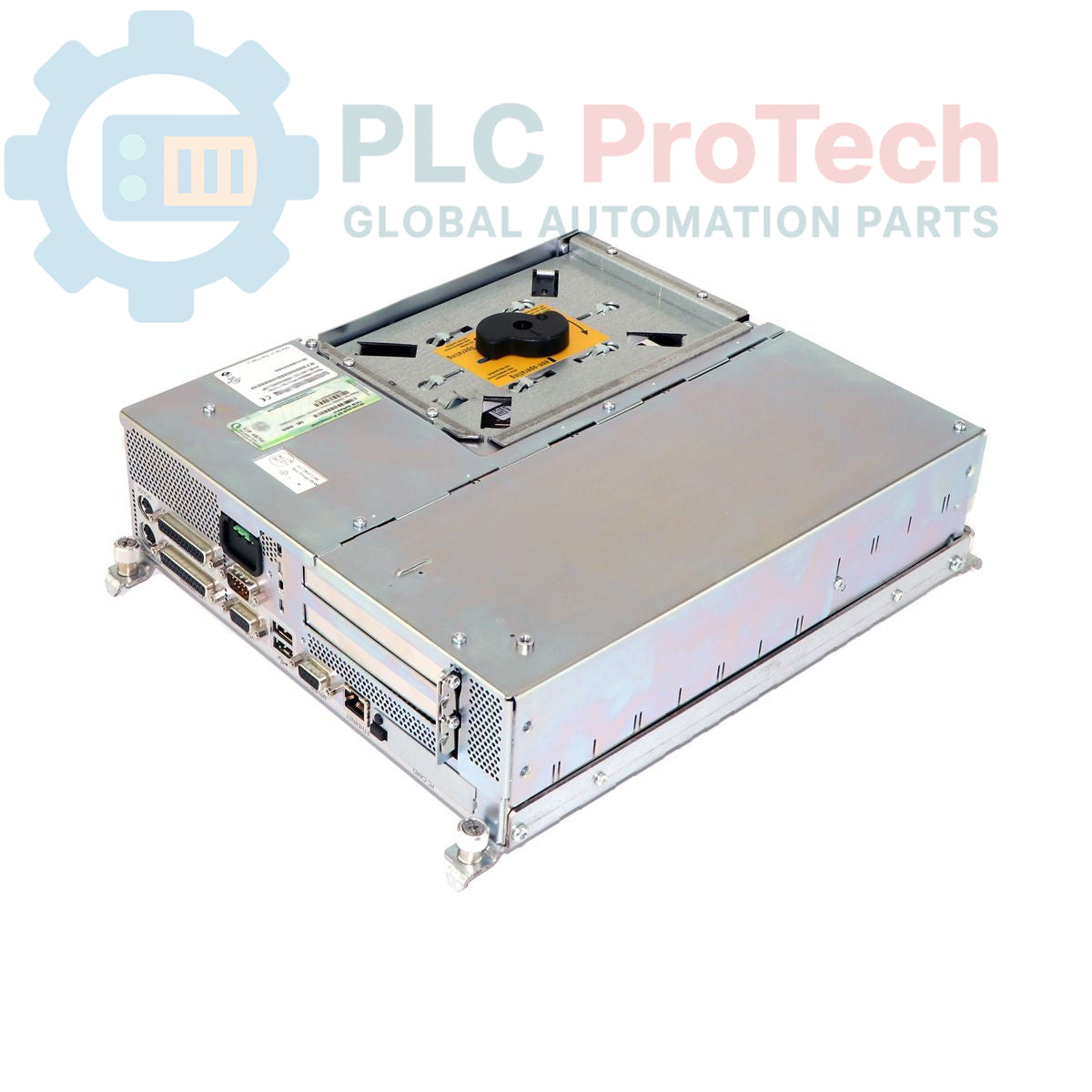

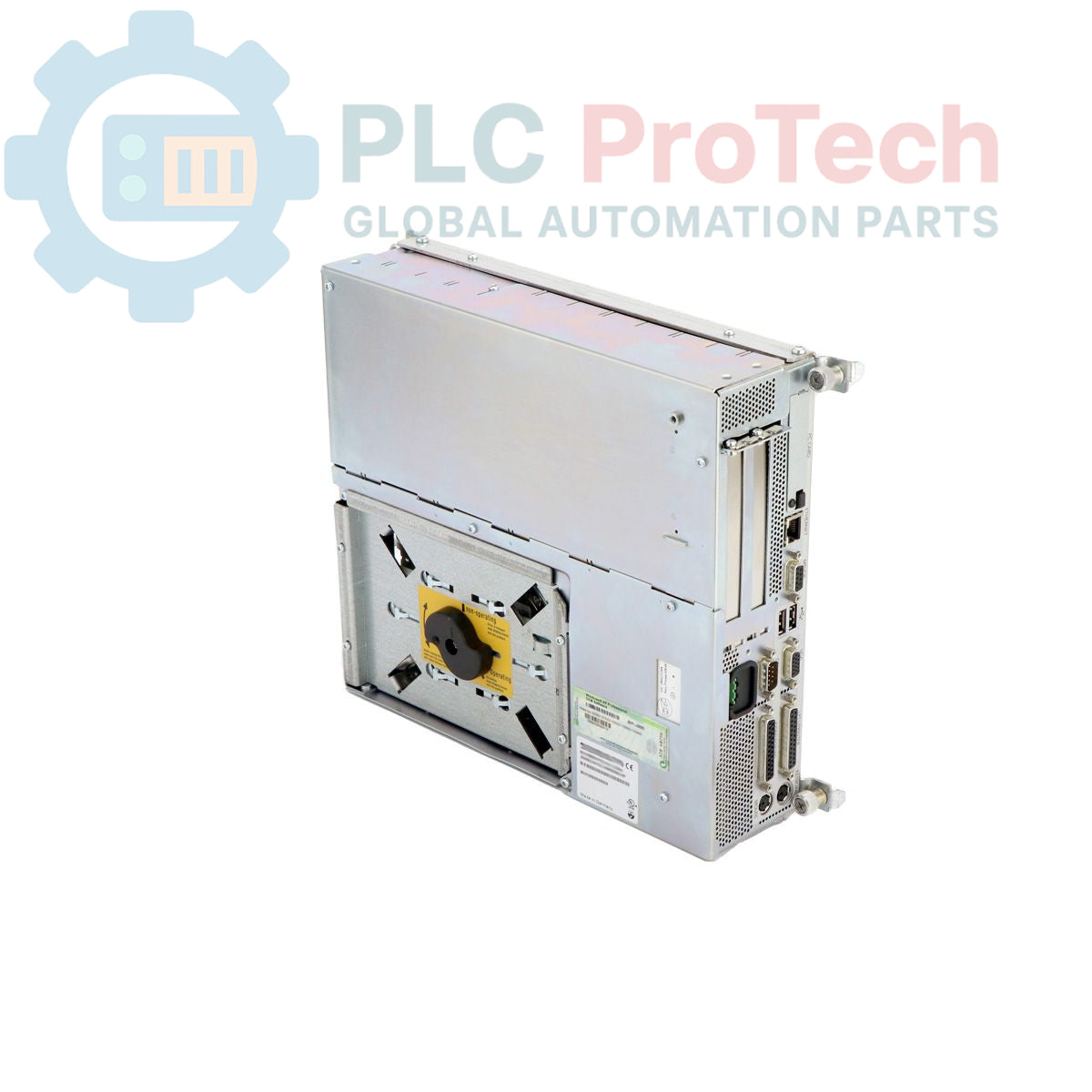

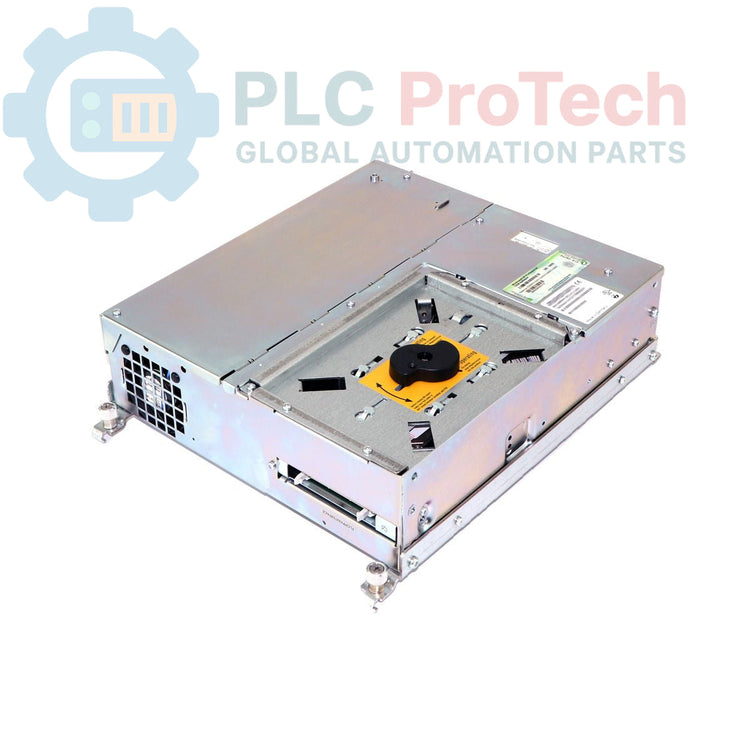

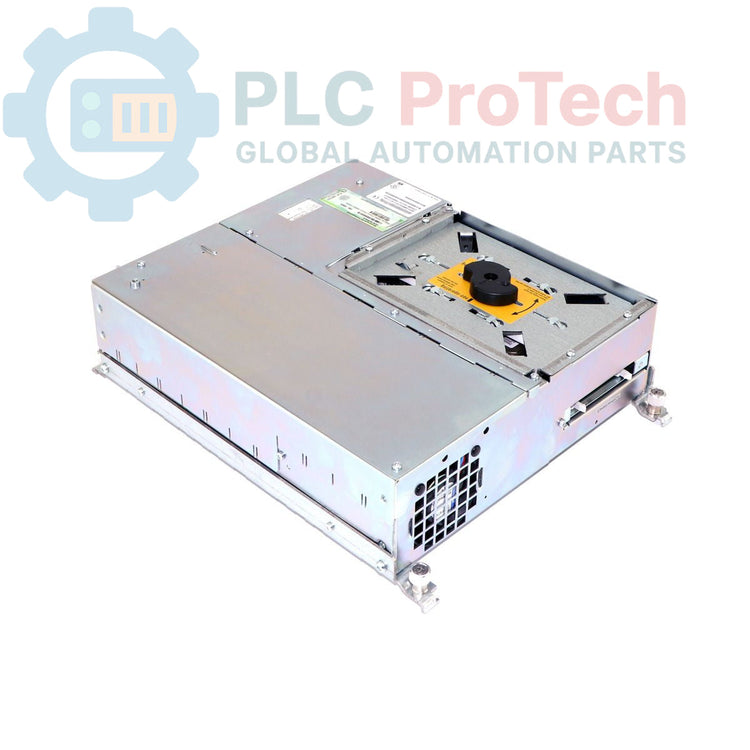

The Siemens 6ES7647-5GF30-4XX0 SIMATIC Box PC 620 is an industrial personal computer designed for robust operation in automation environments. This unit features an AGP graphics controller with configurable memory (8/16/32 MB), a 10/100 Mbit/s Ethernet interface via RJ45, and a PC Card (PCMCIA Type 3) slot for expansion. It incorporates a watchdog timer and temperature monitoring for enhanced reliability. Connectivity options include two USB ports, one PCI slot, and one shared ISA/PCI slot. The system is powered by a Pentium III 1.26GHz processor with a 133MHz Front Side Bus and 512 KB Secondary Level Cache. It includes PROFIBUS/MPI and TTY interfaces, an 80 GB EIDE Hard Disk Drive, a DVD-ROM drive, 512 MB of SDRAM-133 RAM, and a 1.44 MB 3.5" floppy drive. The unit operates on 110/230V AC via an 85 A industry power pack with NAMUR compatibility, and is supplied with a power cable (CH type) but without an operating system or expansion 2.

Features

• AGP Graphics Onboard (8/16/32 MB configurable)
• 10/100 Mbit/s Ethernet RJ45 interface
• PC Card (PCMCIA Type 3) slot
• Integrated Watchdog and Temperature Monitoring
• 2 x USB ports
• 1 x PCI slot, 1 x ISA/PCI shared slot
• Pentium III 1.26GHz Processor, 133MHz FSB, 512 KB SLC
• PROFIBUS/MPI and TTY interfaces
• 80 GB EIDE Hard Disk Drive and DVD-ROM
• 512 MB SDRAM-133 RAM
• 1.44 MB 3.5" Floppy Drive
• 110/230V AC, 85 A Industry Power Pack with NAMUR

Applications

The SIMATIC Box PC 620 is suitable for a variety of industrial applications requiring a reliable and robust computing platform. Typical uses include:

• Human Machine Interface (HMI) systems
• Process visualization and control
• Data acquisition and logging
• Industrial communication gateways
• Machine control and monitoring
• Production line management

Technical Specifications

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized and locked out before beginning any work.
2. Mounting: Securely mount the Box PC in a suitable industrial enclosure or rack, ensuring adequate ventilation and clearance for cable routing and maintenance.
3. Power Connection: Connect the 110/230V AC power supply to the designated input terminals. Verify correct voltage and current ratings for the industrial power pack.
4. Grounding: Establish a proper protective earth (PE) connection to the chassis of the Box PC to ensure electrical safety and minimize electromagnetic interference.
5. Peripheral Connections: Connect necessary peripherals such as monitors, keyboards, and mice to the USB ports. Connect Ethernet cables to the RJ45 port for network communication.
6. Industrial Communications: Connect PROFIBUS/MPI and TTY cables to their respective interfaces as per system architecture. Ensure proper termination and shielding for these industrial networks.
7. Expansion Cards: If using the PCI or ISA/PCI slots, ensure expansion cards are correctly seated and secured.
8. Cable Management: Route all cables neatly and securely, separating power cables from signal cables to prevent interference.
9. Power On: After all connections are verified, re-energize the power supply and observe system startup.
