Description

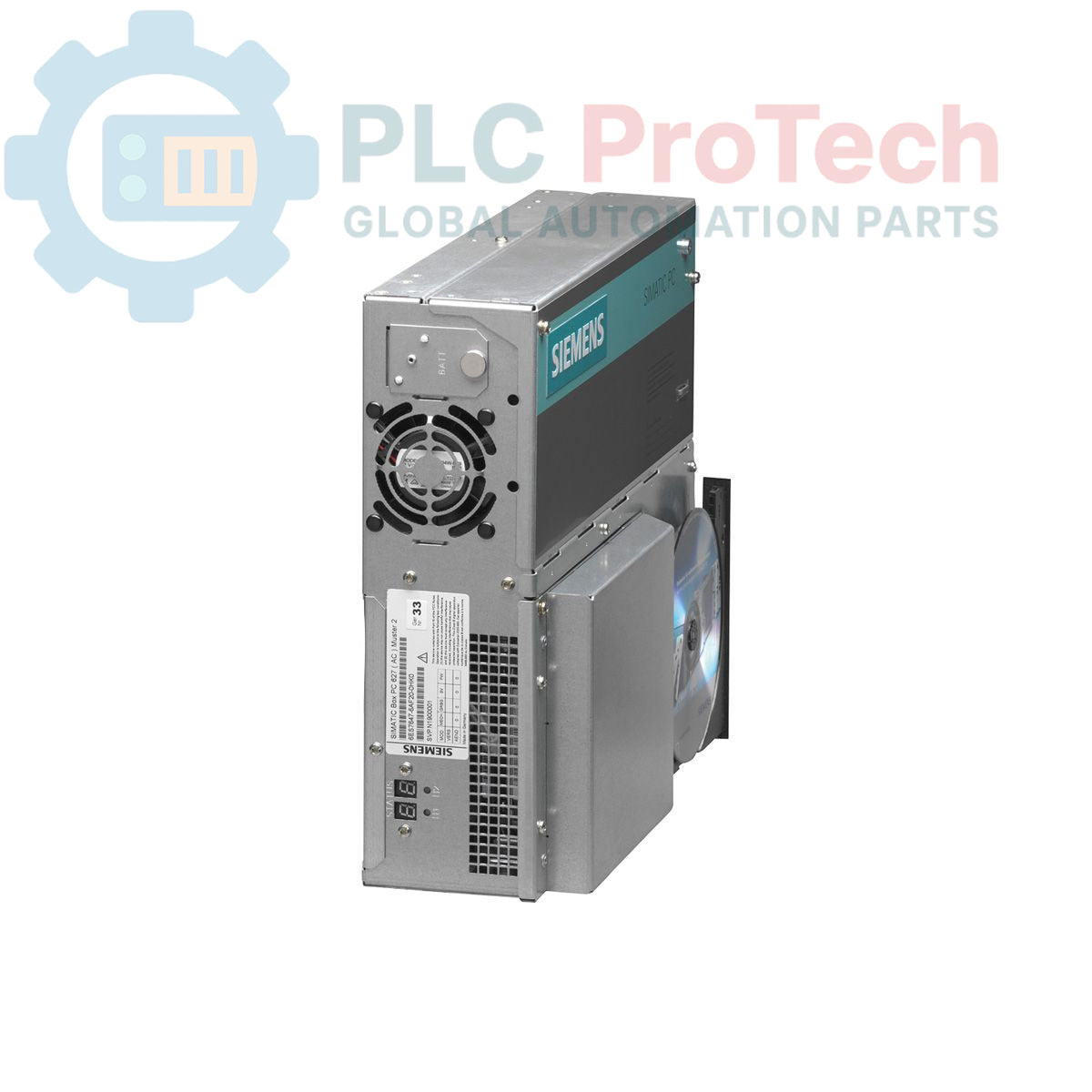

The Siemens 6ES7647-6AB30-0EK1 is a SIMATIC Box PC 627, designed for industrial applications requiring a robust and integrated computing platform. This unit features onboard AGP graphics with 8-128 MB shared memory, dual 10/100 Mbit/s Ethernet RJ45 ports, and four USB V2.0 ports with high current capability. It includes a single serial COM1 port, an onboard RAID controller, and a slot for a Compact Flash drive. The system integrates a watchdog timer and temperature/fan monitoring for enhanced reliability. Powered by a Celeron M 370 1.5 GHz processor with a 400 MHz FSB and 1 MB SLC, it also supports PROFIBUS/MPI communication. The PC comes equipped with 1 GByte DDR2 533 SODIMM RAM, a 160 GByte SATA HDD, and a DVD ROM drive. It operates on an AC 110/230V industrial power unit with NAMUR compliance and includes a power cable for Europe. The system is pre-installed with Windows XP Professional Multi-Language SP2 (English, German, French, Italian, Spanish) and SIMATIC PC DiagMonitor Software V3.1.

Features

• Integrated AGP Graphics with 8-128 MB Shared Memory
• Dual 10/100 Mbit/s Ethernet RJ45 Interfaces
• Four USB V2.0 Ports (High Current)
• One Serial (COM1) Port
• Onboard RAID Controller
• Compact Flash Drive Slot
• Watchdog and Temperature/Fan Monitoring
• Two Free PCI Slots
• Celeron M 370 1.5 GHz Processor
• PROFIBUS/MPI Communication Support
• 1 GByte DDR2 533 SODIMM RAM
• AC 110/230V Industrial Power Unit with NAMUR
• 160 GByte SATA HDD and DVD ROM
• Pre-installed Windows XP Professional Multi-Language SP2
• Includes SIMATIC PC DiagMonitor Software V3.1

Applications

The SIMATIC Box PC 627 is suitable for a wide range of industrial automation tasks, including:

• Human Machine Interface (HMI) systems
• Data acquisition and processing
• Process visualization and control
• Machine control and monitoring
• Industrial communication gateways
• Manufacturing execution systems (MES) client stations

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Mount the Box PC securely in a suitable industrial enclosure or control cabinet, ensuring adequate ventilation and clearance for cable routing and maintenance.
3. Power Connection: Connect the AC 110/230V industrial power unit to a stable and filtered power supply. Verify correct voltage and grounding.
4. Grounding: Establish a proper protective earth (PE) connection to the chassis of the Box PC to minimize electrical noise and ensure safety.
5. Ethernet Connections: Connect Ethernet cables to the RJ45 ports for network communication. Use shielded cables in noisy industrial environments if required.
6. USB and Serial Connections: Connect peripheral devices to the USB V2.0 ports and serial devices to the COM1 port as needed.
7. PROFIBUS/MPI Connection: If utilizing PROFIBUS/MPI, ensure proper bus termination and segment length according to the PROFIBUS/MPI guidelines.
8. Cooling: Ensure that the cooling fans are not obstructed and that the ambient temperature remains within the specified operating range to prevent overheating.
9. Cable Management: Route all cables neatly and secure them to prevent strain and interference. Separate power cables from signal cables where possible.
10. Initial Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.
