Description

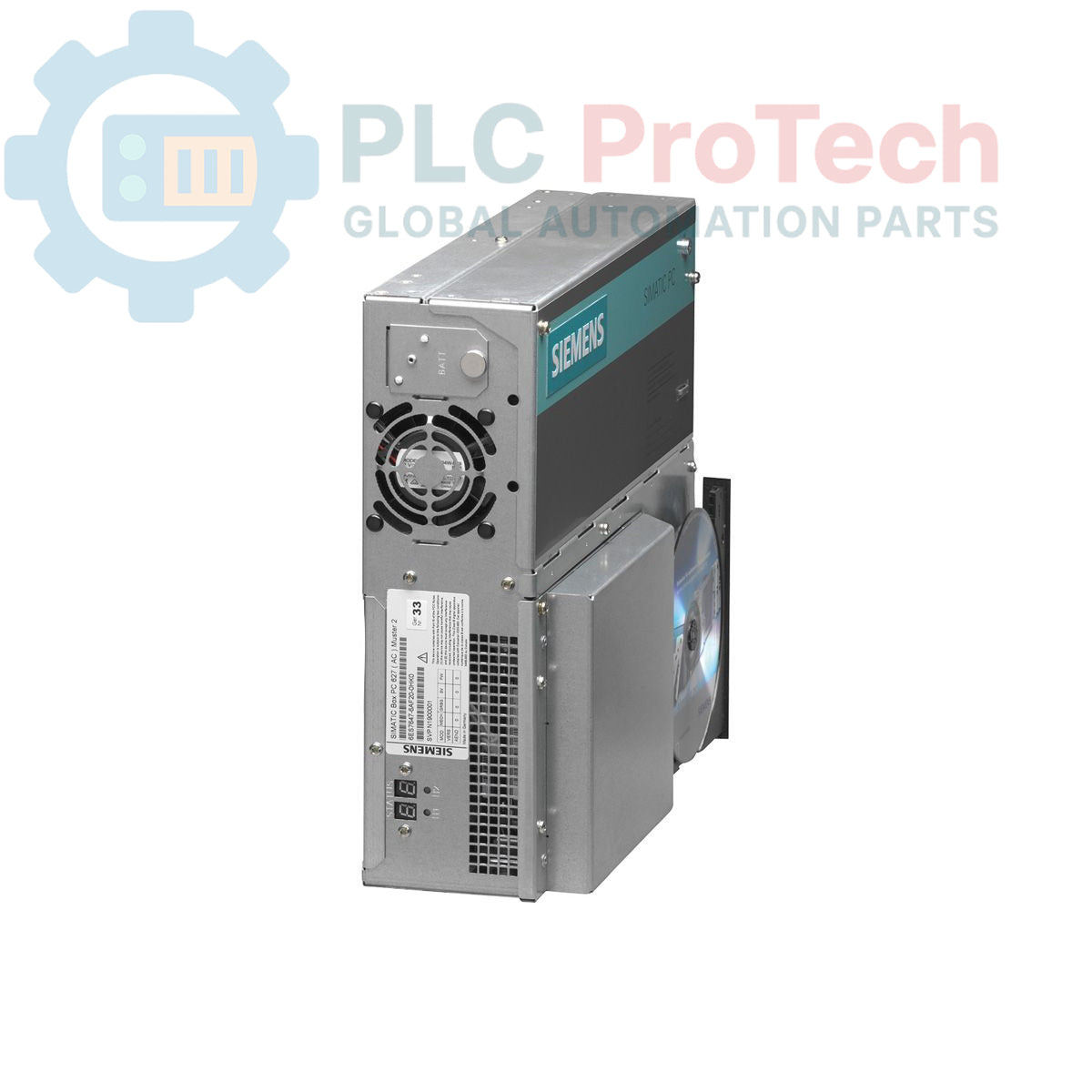

The Siemens 6ES7647-6AE35-0BX0 is a SIMATIC Box PC 627, an industrial personal computer designed for robust operation in automation environments. This unit features an onboard AGP graphics controller with 8-128 MB shared memory, providing visual output capabilities. For network connectivity, it includes two 10/100 Mbit/s Ethernet RJ45 ports. Peripheral connections are supported by four USB V2.0 ports (high current) and one serial COM1 port. The PC 627 integrates an onboard RAID controller for data redundancy and a slot for a Compact Flash drive, enhancing storage flexibility. It also incorporates a watchdog timer and monitoring functions for temperature and fan status, ensuring system reliability. Internally, it offers two free PCI slots for expansion. The system is powered by a Pentium M 760 2.0 GHz CPU with a 533 MHz Front Side Bus and 2 MB Second Level Cache, complemented by 1 GByte of DDR2 533 SODIMM RAM. Storage is provided by an 80 GByte SATA HDD and a DVD ROM drive. It operates on a DC 24V industrial power supply and is delivered without an operating system or pre-installed software expansions.

Features

• AGP Graphics Onboard with 8-128 MB Shared Memory
• 2x 10/100 Mbit/s Ethernet RJ45 Ports
• 4x USB V2.0 (High Current) Ports
• 1x Serial (COM1) Port
• Onboard RAID Controller
• 1x Slot for Compact Flash Drive
• Watchdog, Temperature, and Fan Monitoring
• 2x Free PCI Expansion Slots
• Pentium M 760 2.0 GHz CPU (533 MHz FSB, 2 MB SLC)
• 1 GByte DDR2 533 SODIMM RAM
• DC 24V Industrial Power Supply
• 80 GByte SATA HDD + DVD ROM

Applications

The Siemens SIMATIC Box PC 627 is suitable for a wide range of industrial applications requiring a robust and reliable computing platform. Typical deployments include:

• Human-Machine Interface (HMI) systems
• Supervisory Control and Data Acquisition (SCADA) systems
• Data acquisition and processing
• Machine control and visualization
• Embedded control systems
• Factory automation and process control
• Industrial communication gateways

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work. Verify absence of voltage.
2. Mounting: Mount the Box PC securely in a suitable industrial enclosure or control cabinet, ensuring adequate ventilation and clearance for cable routing and heat dissipation.
3. Power Connection: Connect the industrial DC 24V power supply to the designated terminals. Observe correct polarity to prevent damage.
4. Grounding: Establish a proper protective earth (PE) connection to the chassis of the Box PC to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect standard RJ45 Ethernet cables to the 10/100 Mbit/s ports for network communication.
6. USB and Serial Devices: Connect USB 2.0 compatible devices to the USB ports and serial devices to the COM1 port as required for the application.
7. Storage Media: If using a Compact Flash card, insert it into the dedicated slot.
8. Environmental Considerations: Ensure the operating environment complies with the specified temperature, humidity, and vibration ratings for industrial PCs.
9. Power Up: After all connections are secure and verified, restore power to the system.
